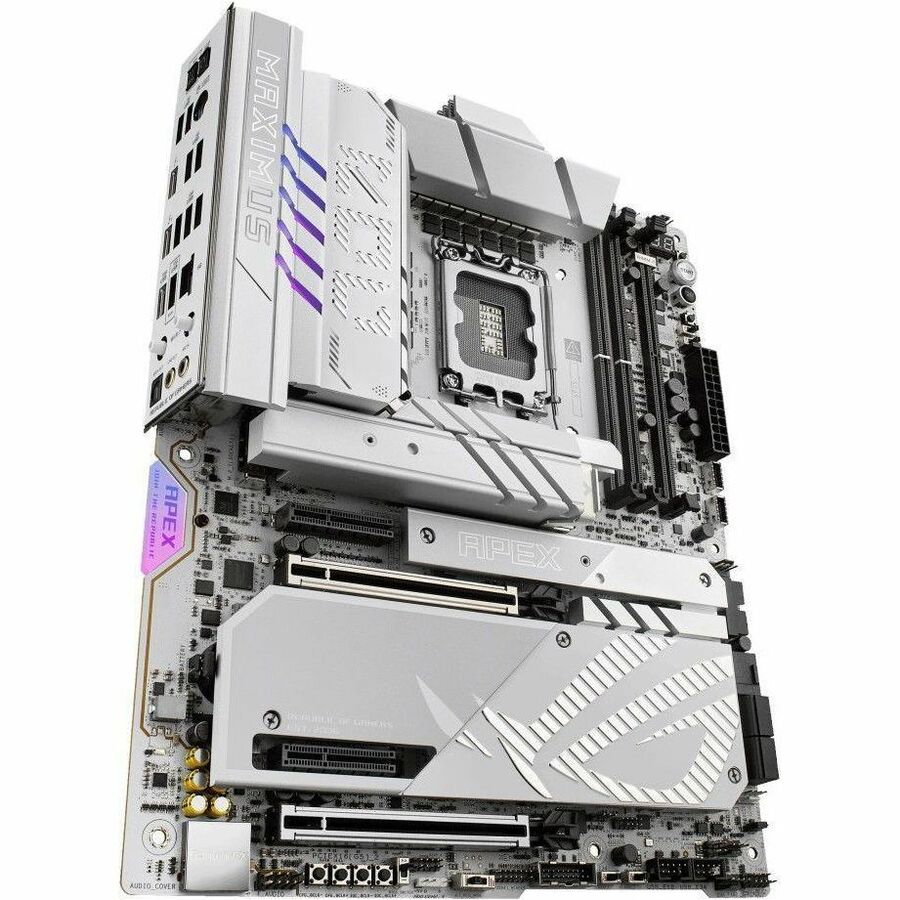

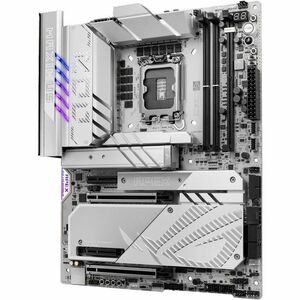

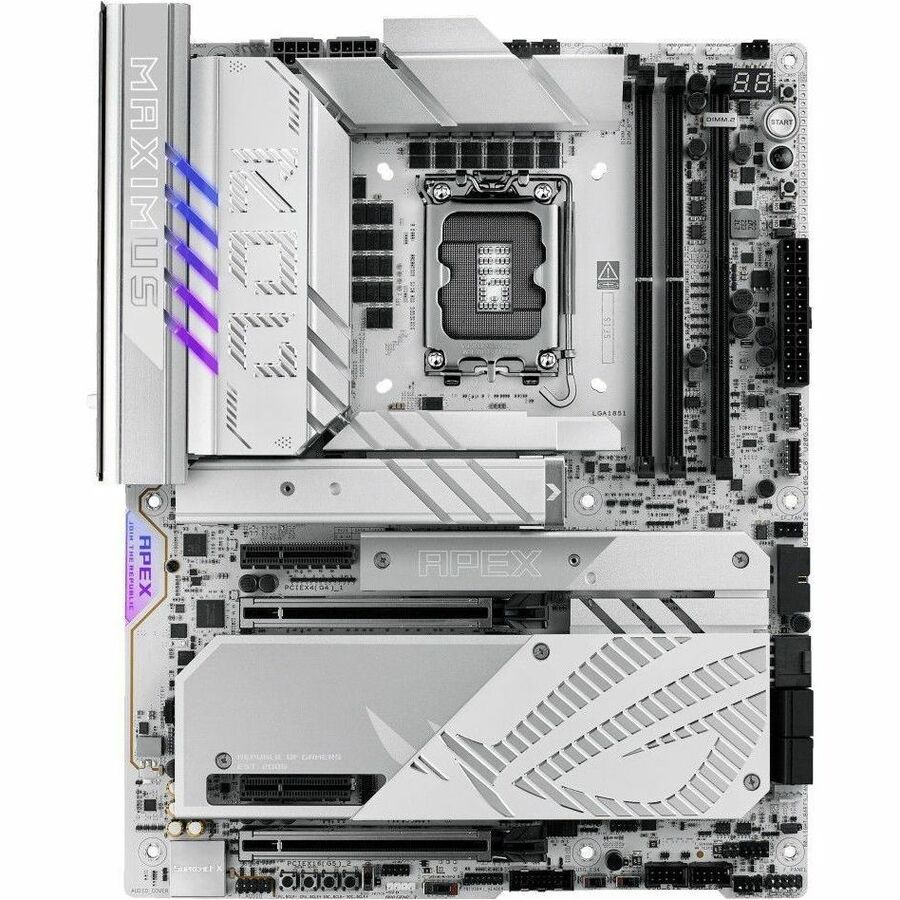

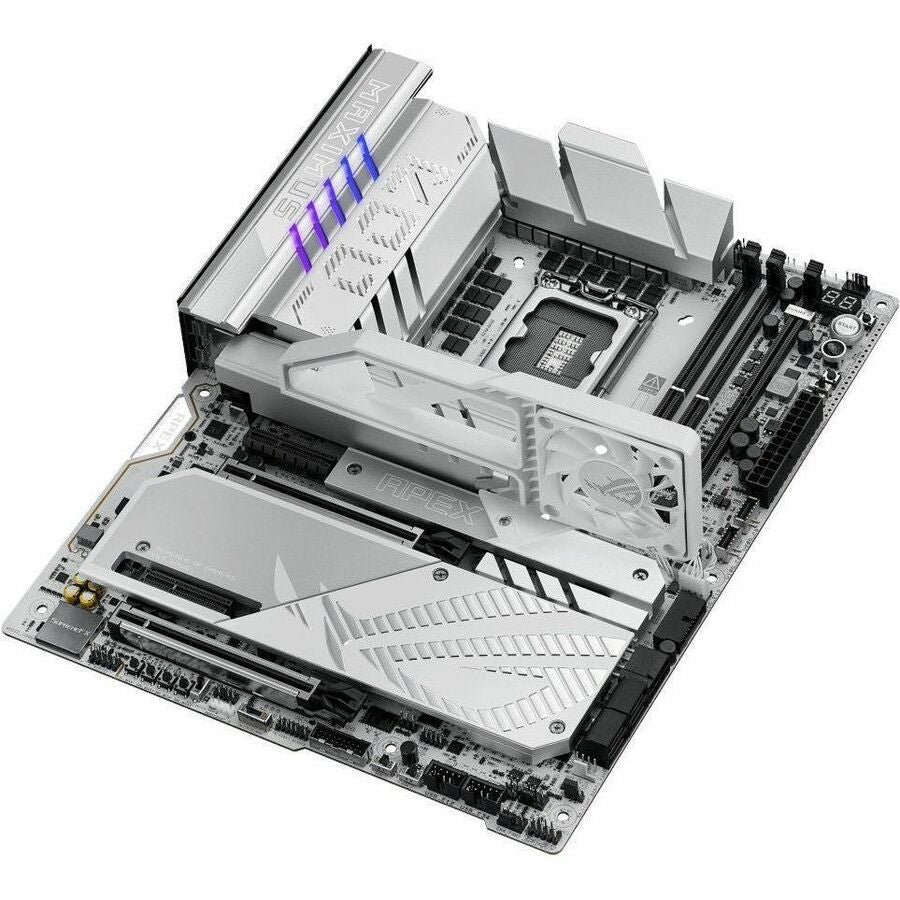

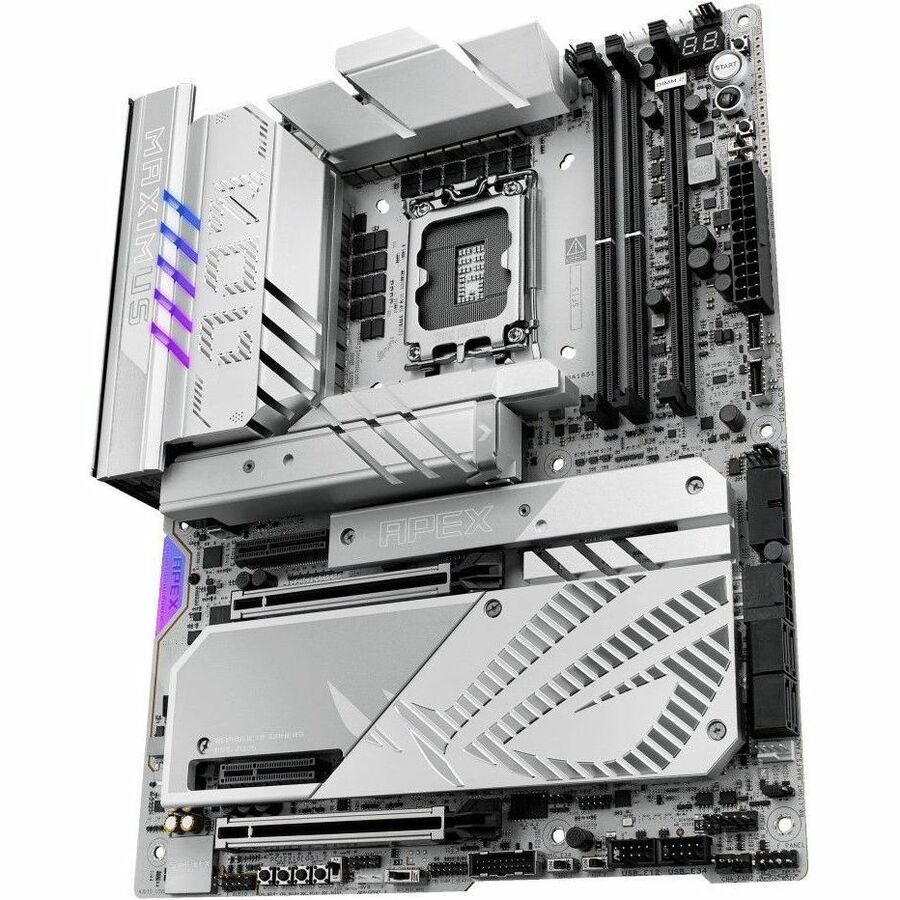

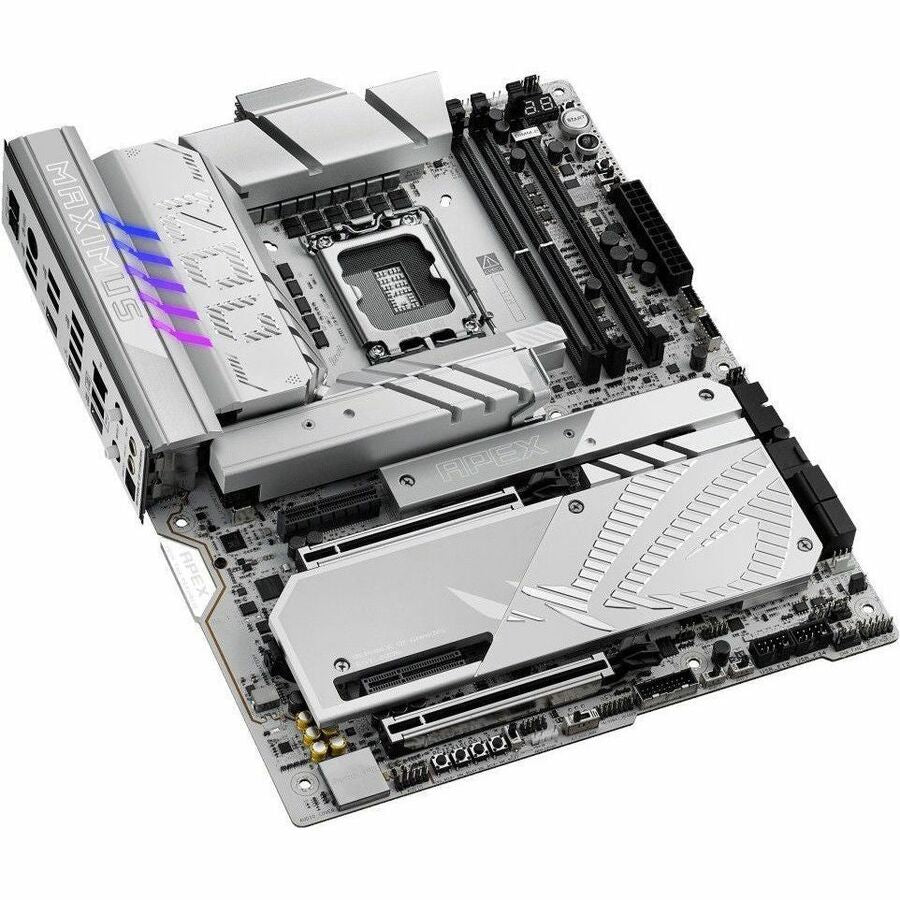

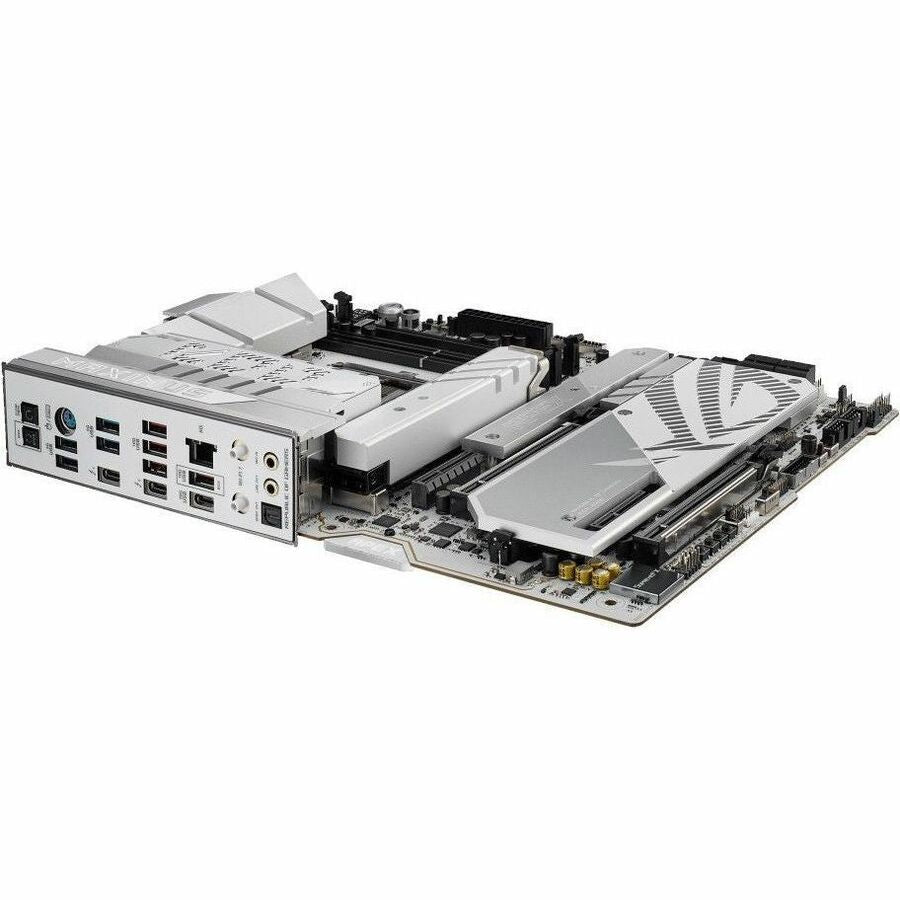

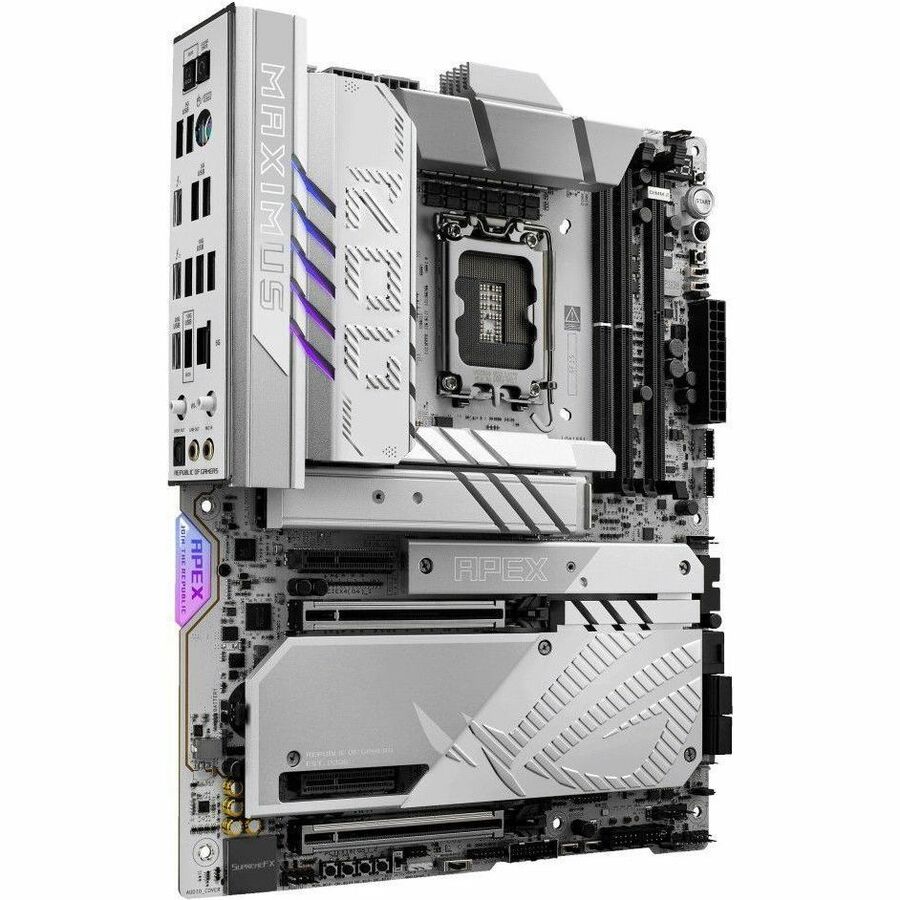

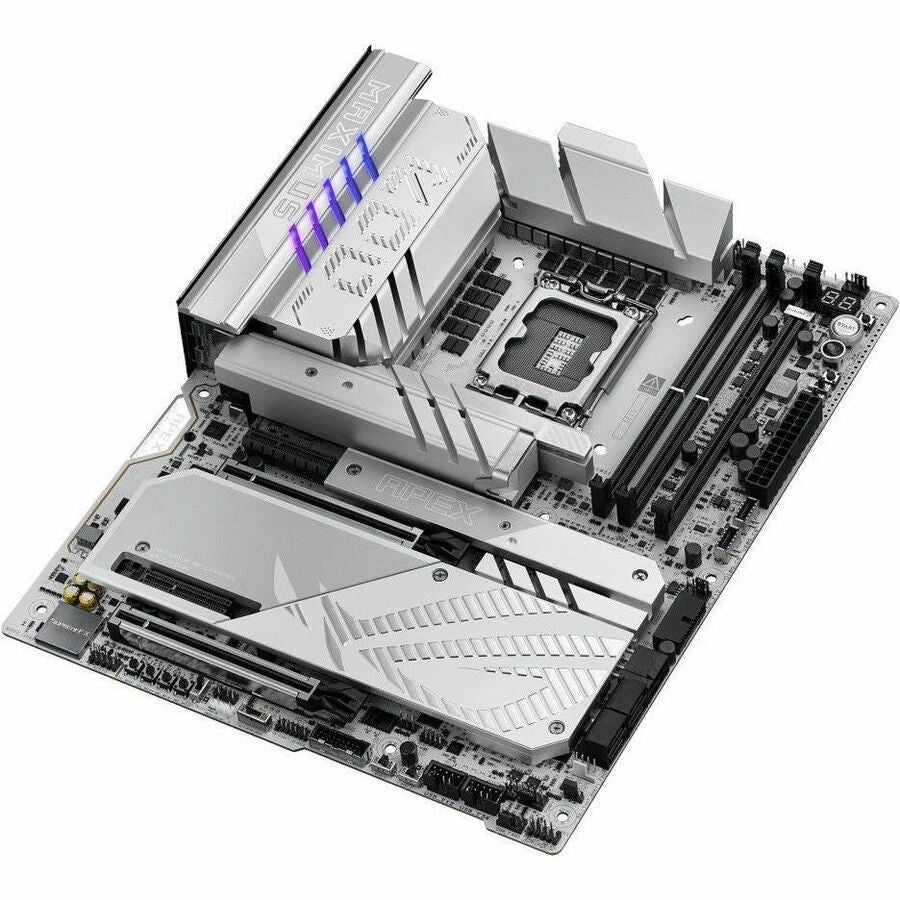

ContactAsus ROG MAXIMUS Z890 APEX Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
Item #: MAXIMUSZ890APEX | Model #: ROG MAXIMUS Z890 APEX
| 10 Questions
| Type | Value |
|---|---|
| AI-powered | Yes |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Brand Name | Asus ROG |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| DisplayPort | Yes |
| Form Factor | ATX |
| Gigabit Ethernet | Yes |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS Z890 APEX |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. ai OVERCLOCKING Tuning is now faster and smarter than ever before. AI COOLING II Balance the thermals and acoustics of any build with a single click. ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple andstraightforward way. Performance OVERCLOCKING NPU BOOST The integrated NPU in Intel®Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%. |
| Maximum Memory Supported | 96 GB |
| Memory Form Factor | UDIMM |
| Memory Technology | DDR5 SDRAM |
| Number of M.2 Interfaces | 6 |
| Number of Memory Slots | 2 |
| Number of Network (RJ-45) Por | 1 |
| Number of Onboard USB 2.0 Por | 4 |
| Number of PCI Express x16 Slo | 2 |
| Number of PCI Express x4 Slots | 2 |
| Number of SATA Interfaces | 4 |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core |
| Product Model | MAXIMUS Z890 APEX |
| Product Name | MAXIMUS Z890 APEX Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 10 |
| RAID Supported | Yes |
| S/PDIF | Yes |
| Thunderbolt | Yes |
| Total Number of Expansion Slo | 4 |
| Total Number of Onboard USB P | 10 |
| Total Number of PCI Express S | 4 |
| Total Number of USB Ports | 11 |
| Total Processor Supported | 1 |
| Width | 12" |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
