Fluke 1587/i400 Current Clamp FC Kit

The Fluke 1587 FC 2-in1 Insulation DMM

• Pl/DAR measurements with TrendIt™ graphs
• Memory storage through Fluke Connect Measurements app
• Temperature Compensation through Fluke Connect Measurements app
• VFD low-pass filter for accurate motor drive measurements
• Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation test voltages 500 V, 1000 V
• Insulation test: 0.01 M? to 2.0 G?
• Insulation test: 0.1 M? to 600 M?
• Auto-discharge of capacitive voltage
• Insulation test smoothing reading
• Frequency / Capacitance / Diode test / Temperature
• Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
• Resistance (0.1 ? to 50 M?) / Continuity / Auto power off
• Three-year warranty / Remote probe, test leads, alligator clips, K-type thermocouple, hard case

Fluke i400 AC Current Clamp

• Use with your Fluke 1587 FC to measure 1A AC to 400 A AC
• 1 mA/Amp output guarantees easy reading
• CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
• Specially designed to offer maximum utility in a very compact shape
• Maximum conductor: � 32 mm
• 1 year warranty

• Fluke 1587 FC 2-in1 Insulation DMM Three-year warranty / Remote probe, test leads, alligator clips, K-type thermocouple, hard case
• Fluke i400 AC Current Clamp 1 year warranty

Safety

• CAT IV 600 V, CAT III, 1000 V

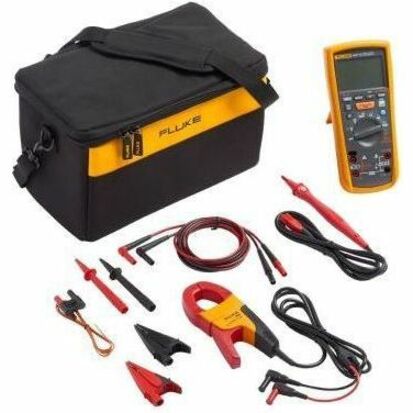

Product overview: Fluke 1587/i400 Current Clamp FC Kit

Includes the 1587 FC 2-in-1 Insulation DMM and the i400 Current Clamp

The Fluke 1587 FC Insulation Multimeter features four powerful new diagnostic functions through the Fluke Connect Measurements app:

• Pl/DAR timed ratio tests with TrendIt™ graphs identifies moisture and contaminated insulation problems faster
• Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time
• Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
• Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect® Assets

The Fluke i400 AC CurrentClamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry standard safety ratings.

• 1587 FC 2-in-1 Insulation DMM
• i400 Current Clamp
