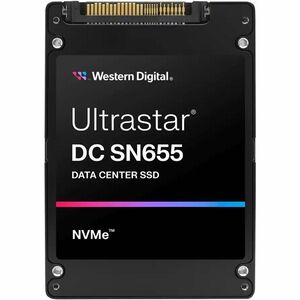

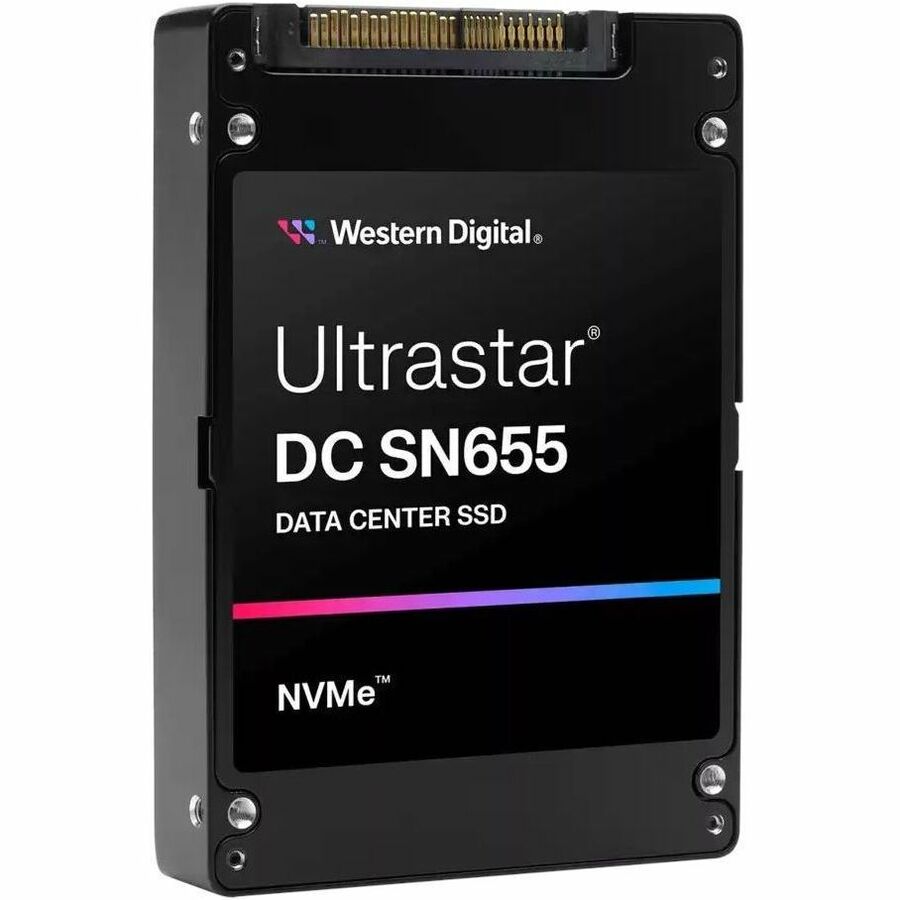

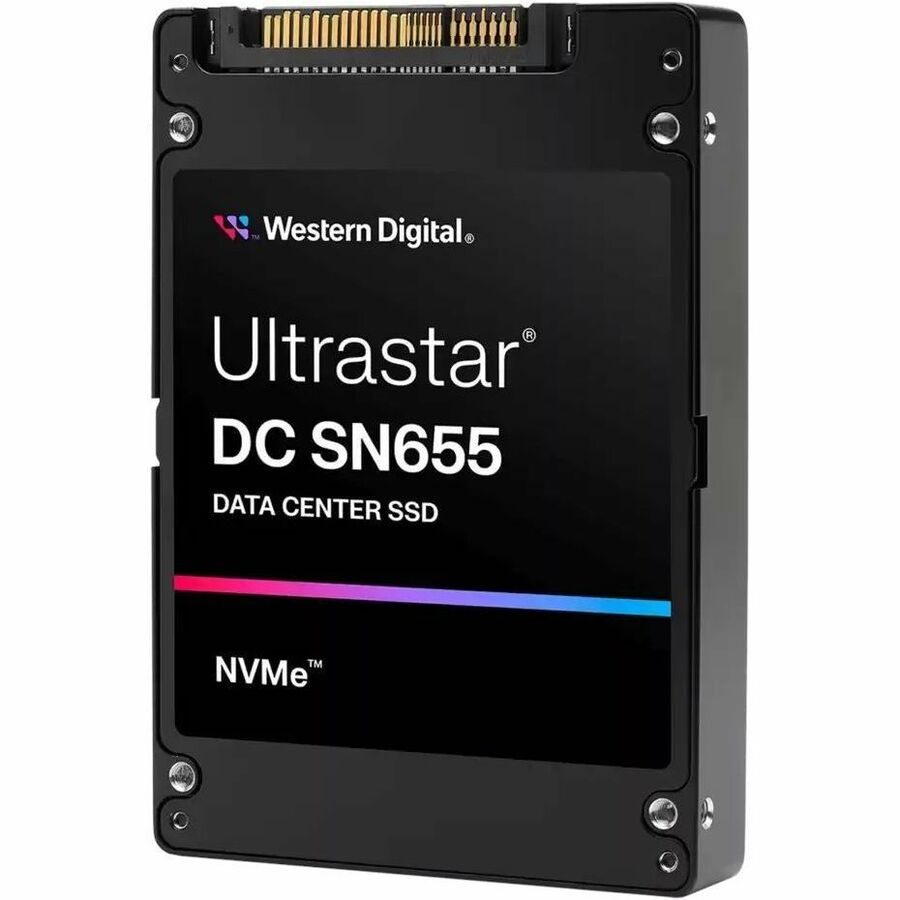

WD Ultrastar DC SN655 WUS5EA1A1ESP7E4 15.36 TB Solid State Drive - U.3 15 mm Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Read Intensive

Item #: JL6782   |   Model #: 0TS2469

  |   10 Questions
Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

WD Ultrastar DC SN655 WUS5EA1A1ESP7E4 15.36 TB Solid State Drive - U.3 15 mm Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Read Intensive - Server Device Supported - 1 DWPD - 28672 TB TBW - 6800 MB/s Maximum Read Transfer Rate
Type Value
Brand Name WD
Device Supported Server
Drive Interface PCI Express NVMe
Drive Interface Standard PCI Express NVMe 4.0 x4
Drive Type Internal
Endurance (DWPD) 1
Endurance (TBW) 28672 TB
Endurance Type Read Intensive
Form Factor U.3 15 mm
Height 0.6"
Length 4"
Manufacturer Western Digital Corporation
Manufacturer Part Number 0TS2469
Manufacturer Website Address http://www.wdc.com
Marketing Information

Data strategy, not just data storage

Ultrastar NVMe™ enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs

With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features

Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5" SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads

Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Maximum Read Transfer Rate 6800 MB/s
Maximum Write Transfer Rate 3700 MB/s
Operating System Compatibility Linux
Platform Supported PC
Product Line Ultrastar
Product Model WUS5EA1A1ESP7E4
Product Name Ultrastar DC SN655 NVMe SSD
Product Series DC SN655
Product Type Solid State Drive
Random 4KB Read 1100000IOPS
Random 4KB Write 125000IOPS
Storage Capacity 15.36 TB
Weight (Approximate) 5.20 oz
Width 2.8"
WD Ultrastar DC SN655 WUS5EA1A1ESP7E4 15.36 TB Solid State Drive - U.3 15 mm Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Read Intensive - Server Device Supported - 1 DWPD - 28672 TB TBW - 6800 MB/s Maximum Read Transfer Rate
