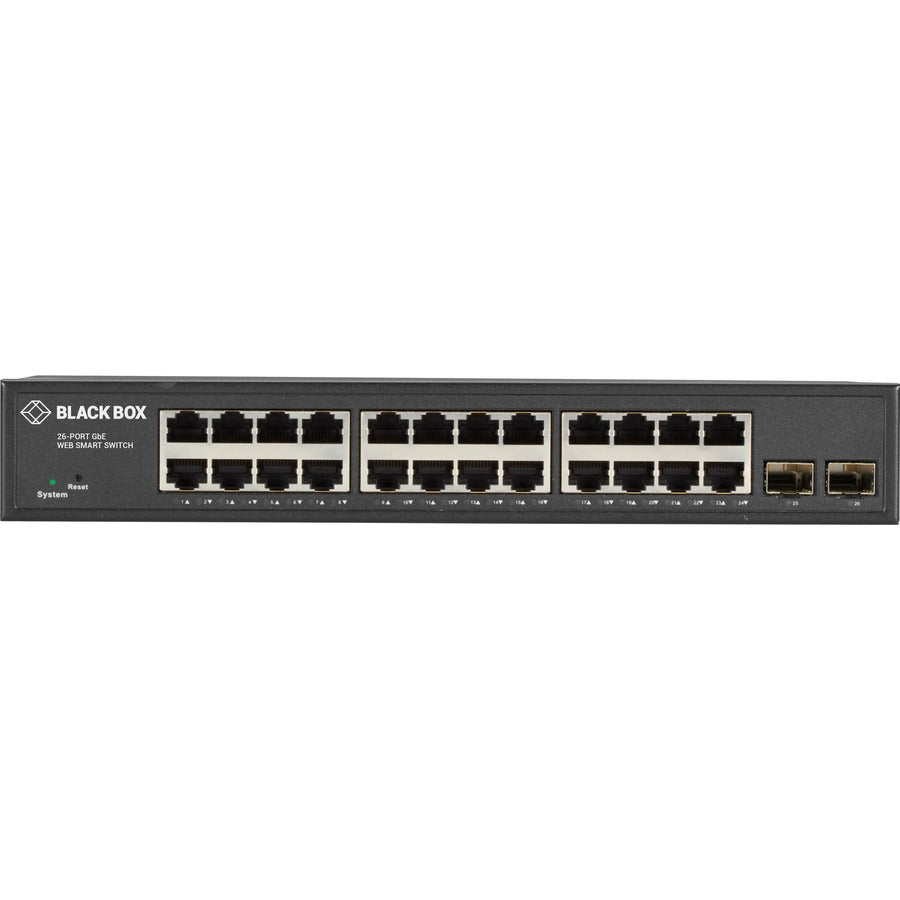

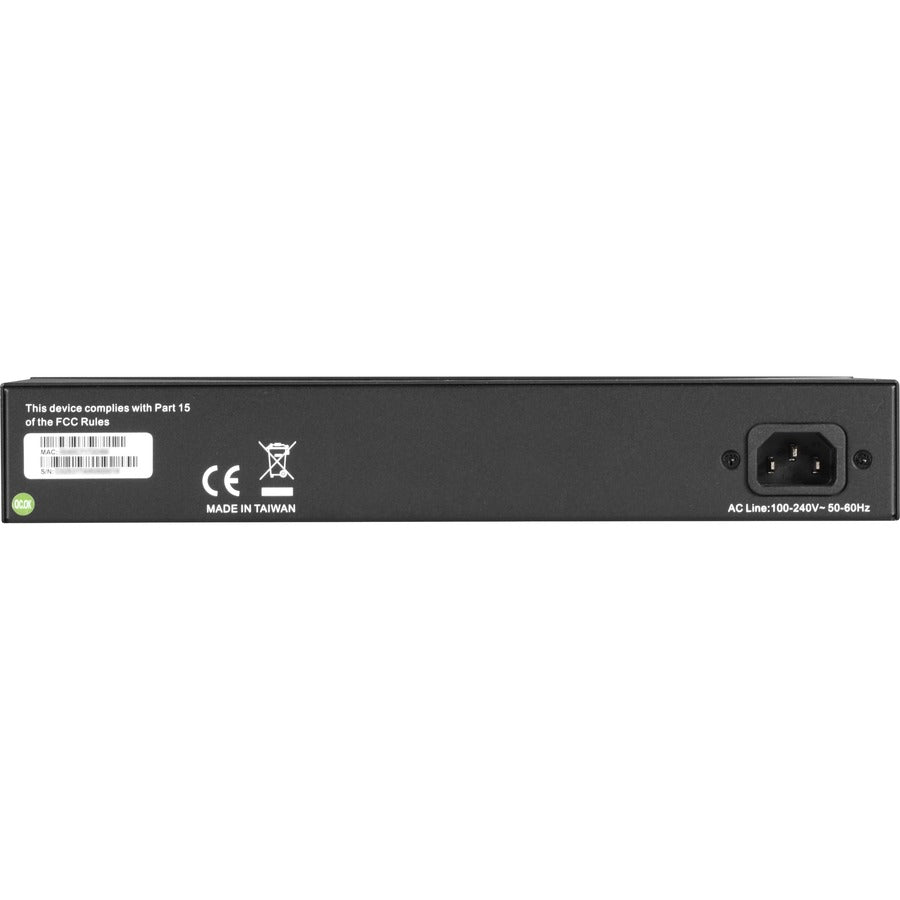

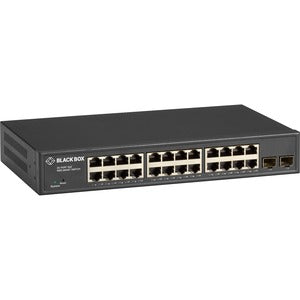

Black Box Gigabit Ethernet Managed Switch - (24) RJ-45, (2) SFP - 24 Ports - Manageable - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - 1U High - Desktop, Rack-mountable - 1 Year Limited Warranty
Type |
Value |
Brand Name |
Black Box |
Compatible Rack Unit |
1U |
Country of Origin |
Taiwan |
Depth |
5.9" |
Environmental Certification |
WEEE |
Environmentally Friendly |
Yes |
Ethernet Technology |
Gigabit Ethernet |
Expansion Slot Type |
SFP (mini-GBIC) |
Form Factor |
Rack-mountable |
Height |
1.5" |
Layer Supported |
2 |
Limited Warranty |
1 Year |
Manageable |
Yes |
Manufacturer |
Black Box Corporation |
Manufacturer Part Number |
LGB2126A |
Manufacturer Website Address |
http://www.blackbox.com |
Marketing Information |
This capable switch offers 24 autosensing 10-/100-/1000-Mbps RJ-45 Ethernet ports. It also has two SFP ports which support Gigabit fiber uplinks through the use of SFP+ transceivers.
Web smart The switch has the easy-to-use management capabilities network administrators need. Simply access a switch via your Web browser and log on to monitor, configure, and control each port's activity. It also supports SNMP V1/V2c.
VLAN and QoS Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, management, private or MAC-based VLANs. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.
Secure You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SSH and SSL.
Green The Gigabit Ethernet Web Smart Switch features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
Easy management The device management system provides embedded functions to facilitate device management. Its interface helps users manage devices intuitively. It also supports various IP devices, such as IP-phones, to help users manage devices better and reduce time during installation and maintenance. |
Media Type Supported |
Optical Fiber |
Modular |
Yes |
Network Technology |
1000Base-X |
Number of SFP Slots |
2 |
Number of Total Expansion Slo |
2 |
Package Contents |
LGB2126A Switch (1) AC Power Cord (4) Adhesive Rubber Feet Rackmount Hardware (2 brackets, 6 screws) Quick Installation Guide |
Port/Expansion Slot Details |
2 x Gigabit Ethernet Expansion Slot |
Power Source |
Power Supply |
Product Name |
Gigabit Ethernet Managed Switch - (24) RJ-45, (2) SFP |
Product Type |
Ethernet Switch |
Redundant Power Supply Suppor |
No |
Shared SFP Slot |
No |
TAA Compliant |
Yes |
Total Number of Network Ports |
24 |
Uplink Port |
Yes |
Weight (Approximate) |
4.63 lb |
Width |
8.6" |
Black Box Gigabit Ethernet Managed Switch - (24) RJ-45, (2) SFP - 24 Ports - Manageable - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - 1U High - Desktop, Rack-mountable - 1 Year Limited Warranty
