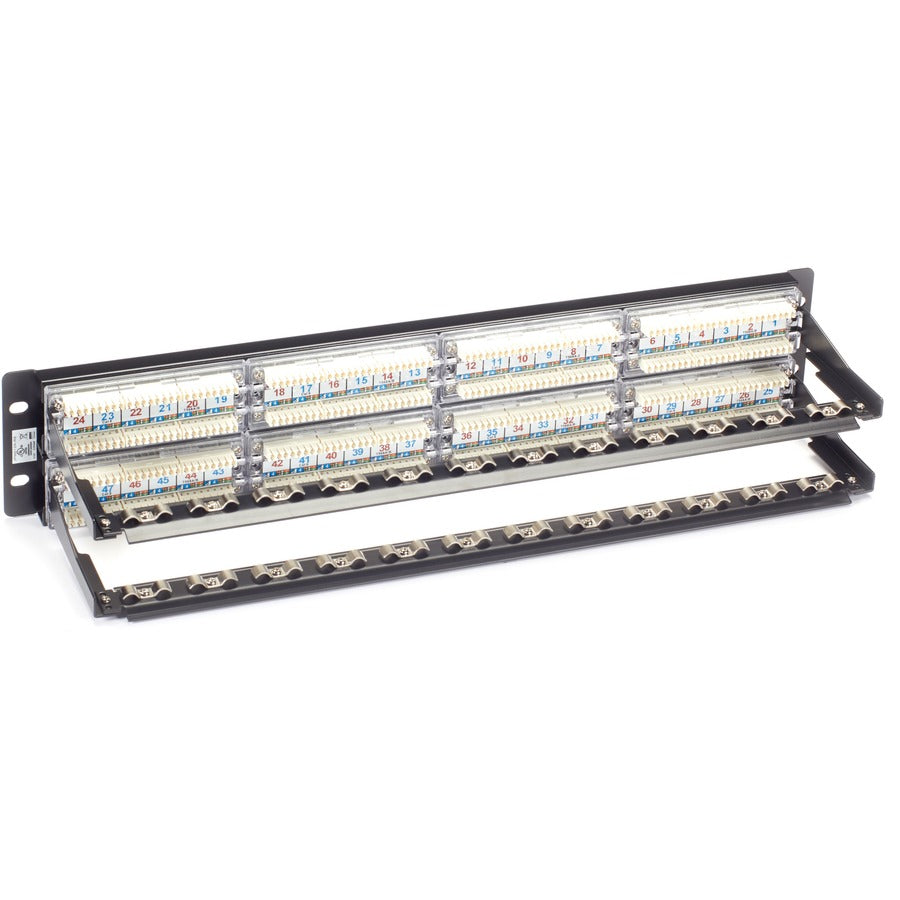

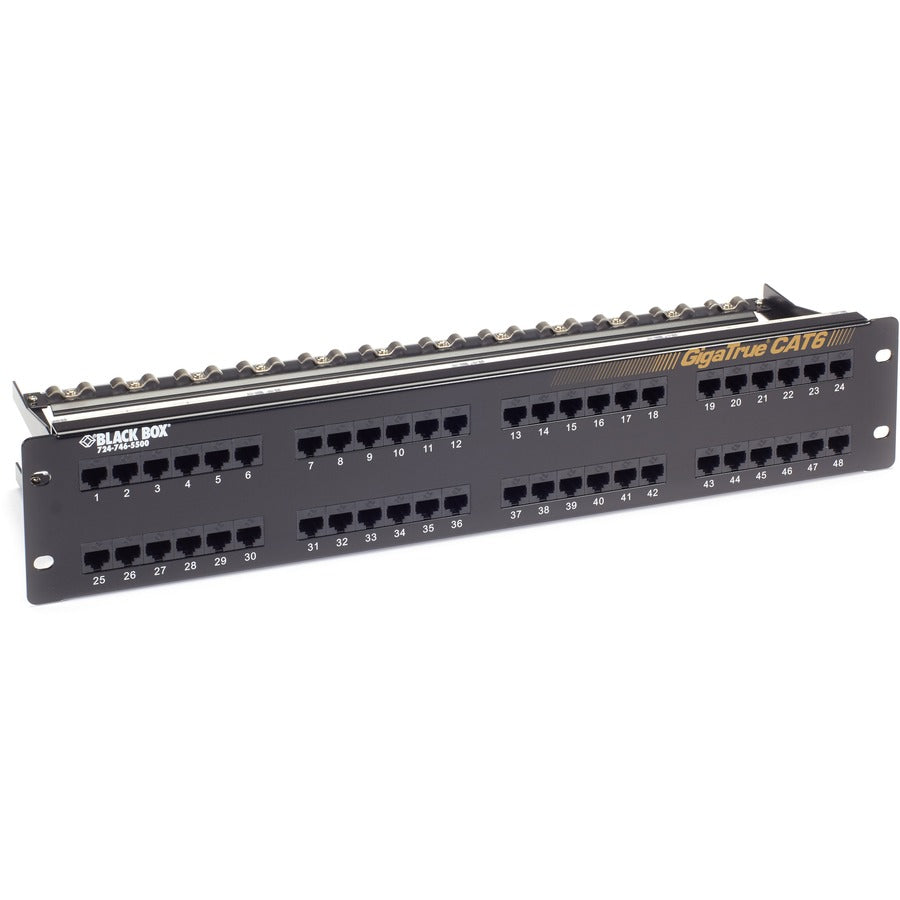

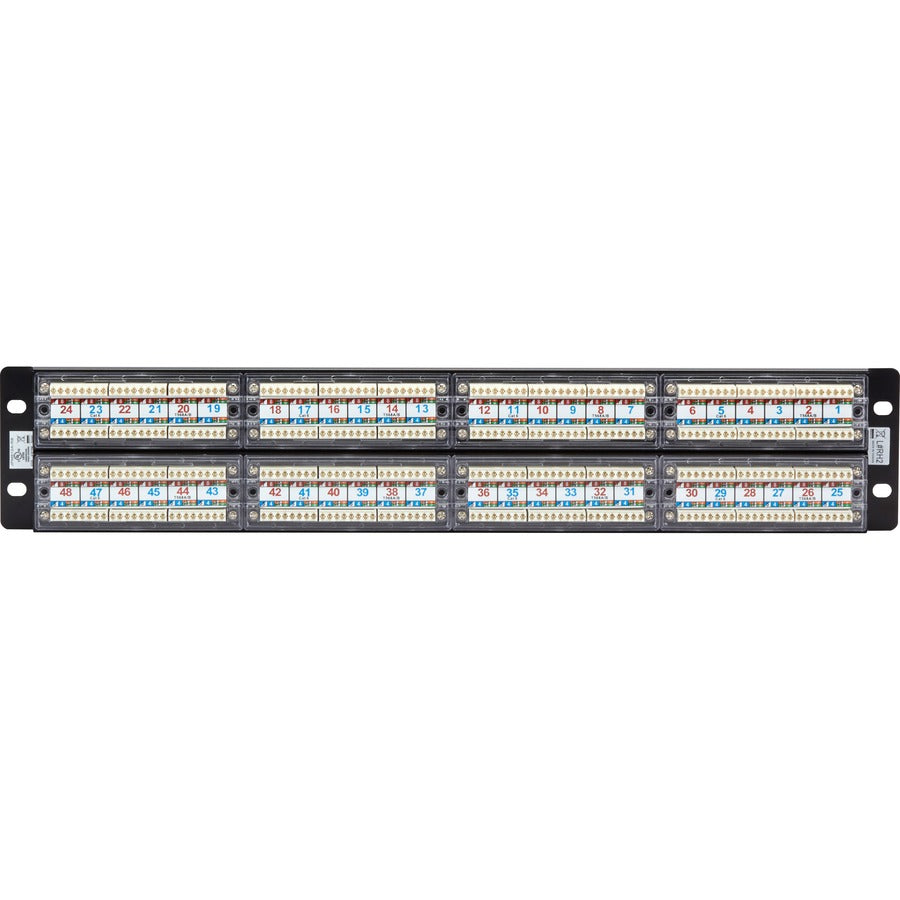

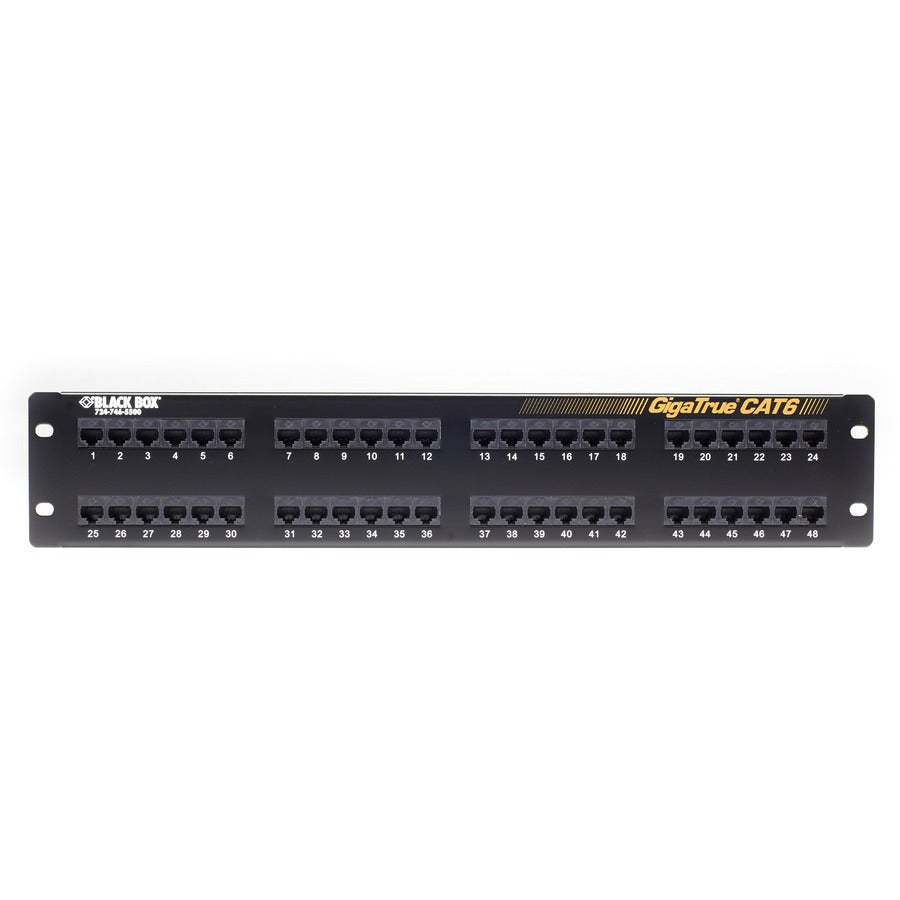

Black Box GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port

Item #: 5634005   |   Model #: 0822088143543

  |   10 Questions
$300.99
$300.99
Sold out

1 Each

Special Buy
Add to list
Black Box GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port - 48 Port(s) - 48 x RJ-45 - 2U High - Rack-mountable - TAA Compliant
Type Value
Additional Information
  • Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6
  • Includes cable management bars that make organization easier
  • Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications
  • Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz
  • Universal wiring - panel is supplied with labeling for both T568A and T568B
  • Paired punchdown sequence enables pair twist within 1/2" of termination
  • Redesigned IDC 110 block features peaks to make lacing cable easier
  • Rolled-edge construction provides superior panel rigidity to eliminate flex during termination
  • Includes cable ties and mounting hardware
Brand Name Black Box
Compatible Rack Unit 2U
Country of Origin Taiwan
Depth 1.3"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Rack-mountable
Height 1.8"
Limited Warranty Lifetime
Manufacturer Black Box Corporation
Manufacturer Part Number JPM612A-R8
Manufacturer Website Address http://www.blackbox.com
Number of Network (RJ-45) Por 48

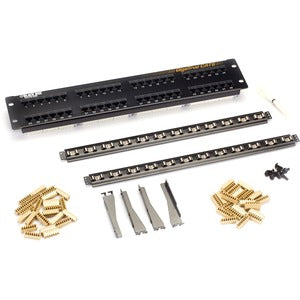

Package Contents
  • GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port
  • Cables Ties
  • 4 x 10-32
  • 4 x 12-24 Cup Heads Screws
  • Stuffer Caps
  • 1 x Cable Support Bar
  • Manual
Product Line GigaTrue
Product Name GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port
Product Type Network Patch Panel
TAA Compliant Yes
Total Number of Ports 48
Weight (Approximate) 1.50 lb
Width 19"
Black Box GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port - 48 Port(s) - 48 x RJ-45 - 2U High - Rack-mountable - TAA Compliant
