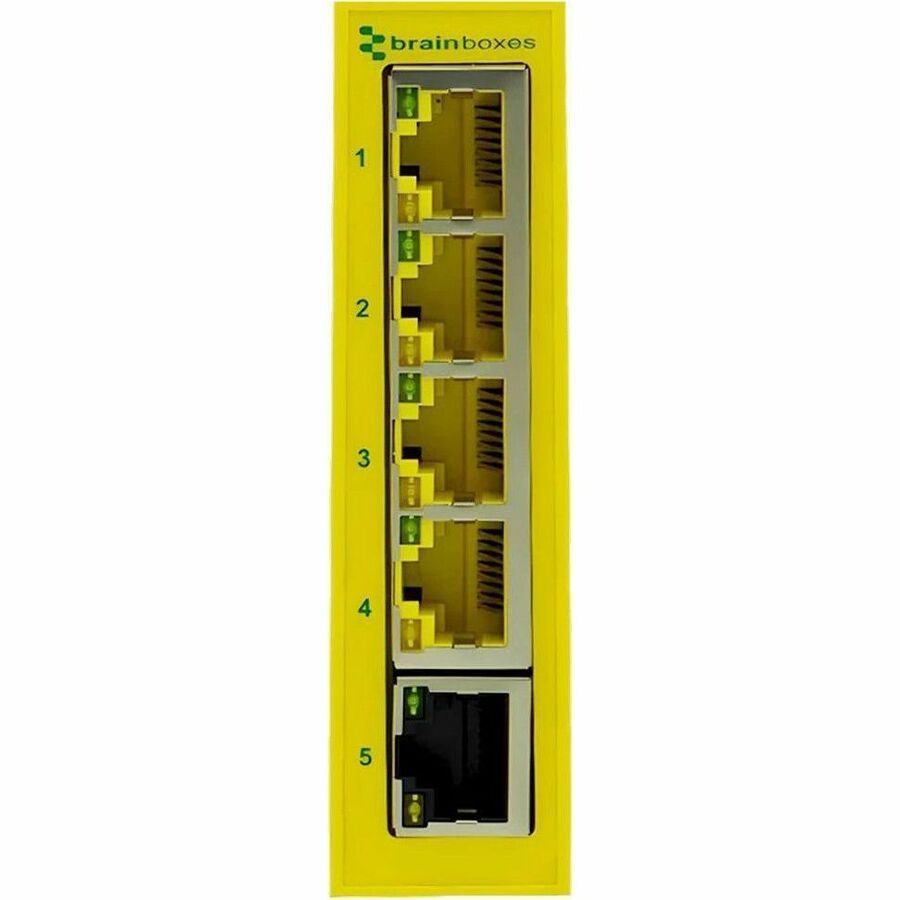

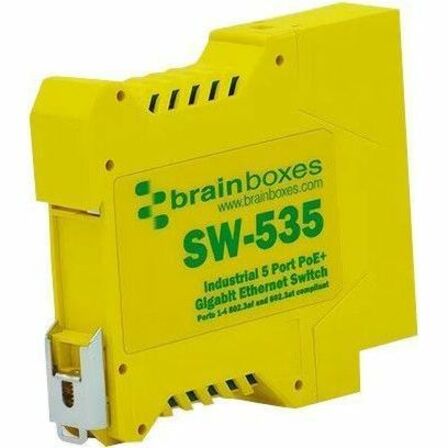

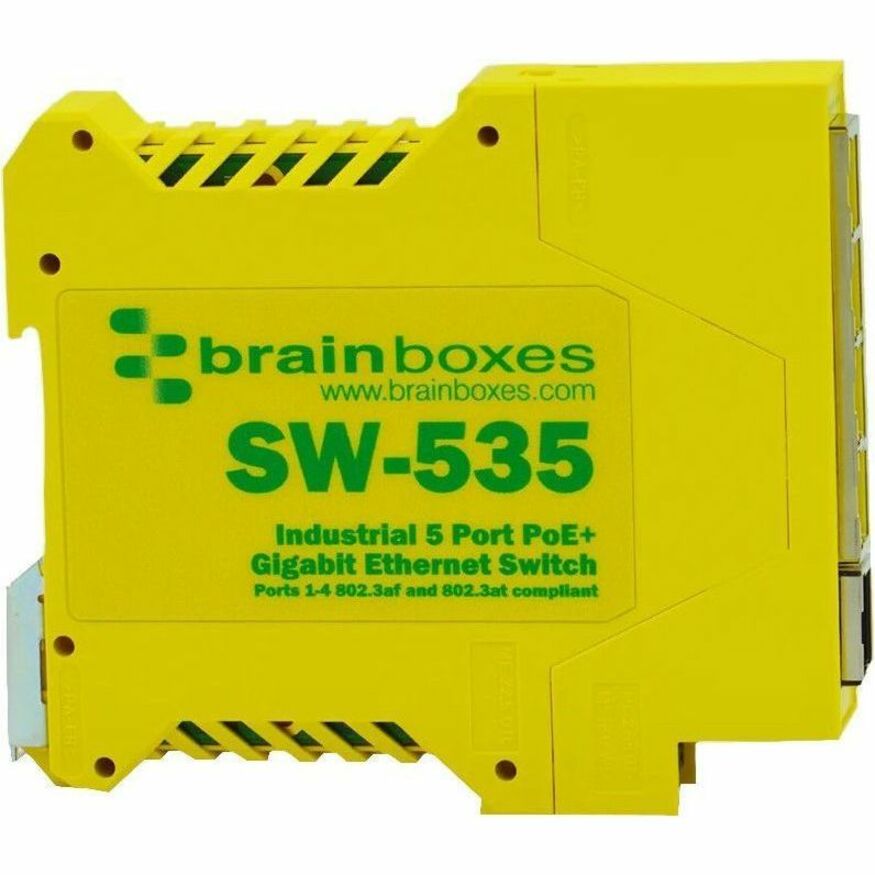

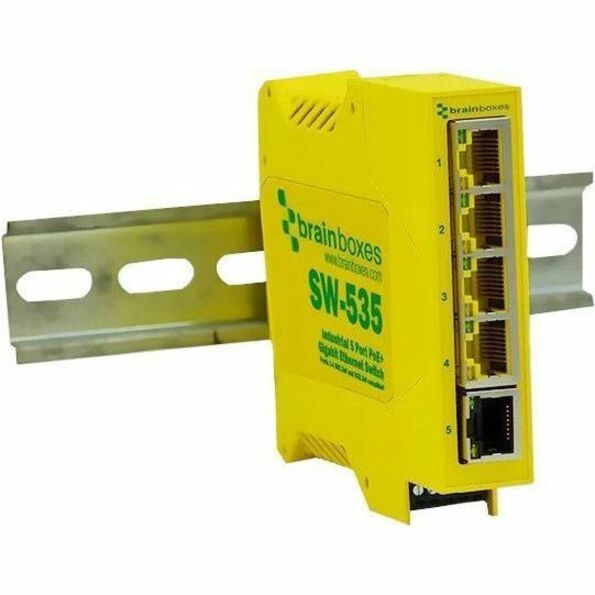

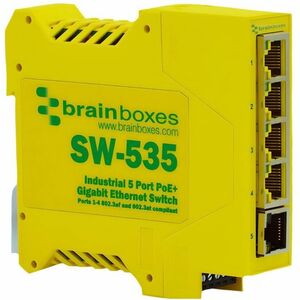

ContactBrainboxes SW-535 Ethernet Switch
Item #: JT9386 | Model #: SW-535
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Wireless Access Point |
| Brand Name | Brainboxes |
| Certifications & Standards |
|
| Country of Origin | Great Britain |
| Depth | 4.6" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Compact |
| Height | 3.9" |
| Input Voltage | 57 V DC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-535 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Compact 5 Port PoE+ Gigabit Ethernet device. Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more. |
| Maximum Data Transfer Rate | 125 MB/s |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Network Technology | 10/100/1000Base-T |
| Networking Standards | IEEE 802.3at |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90 W |
| Port/Expansion Slot Details | 5 x 10/100/1000BASE-T RJ-45 PoE+ Network Port |
| Power Consumption | 5.50 W |
| Power Source | Power Supply |
| Product Model | SW-535 |
| Product Name | SW-535 Ethernet Switch |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Weight (Approximate) | 4.83 oz |
| Width | 0.9" |
Brainboxes SW-535 Ethernet Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5.50 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limited Warranty - TAA Compliant
