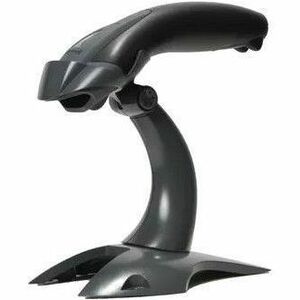

Honeywell Voyager 1400g Area-Imaging Scanner

Item #: 5759237   |   Model #: 1400G2D-2USB-N

  |   10 Questions
Regular price
$404.05
Sale price
$404.05
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Honeywell Voyager 1400g Area-Imaging Scanner - Cable Connectivity - 13.70" Scan Distance - 1D - LED - Imager - Linear, Area, Omni-directional - USB, Keyboard Wedge, Serial, IBM 46XX - Black - IP42 - USB - Industrial
Type Value
Application/Usage Industrial
Barcode Symbology Supported
  • 1400g1D: all standard 1D symbologies
Brand Name Honeywell
Cable Type Included USB
Color Family Black
Connectivity Technology Cable
Drop Specification
  • Designed to withstand 30 1.5 m (5�) drops to concrete
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmentally Friendly Yes
Field of View (Horizontal) 42°
Field of View (Vertical) 31°
Form Factor Handheld
Height 2.6"
Host Interface IBM 46XX
Humidity (Non-condensing) 0% to 95%
Image Sensor Resolution 640 x 480
Image Sensor Type Imager
Ingress Protection (IP) Rating IP42
Length 1.7"
Light Source LED
Limited Warranty 5 Year
Manufacturer Honeywell International, Inc
Manufacturer Part Number 1400G2D2USBN
Manufacturer Website Address http://www.honeywell.com
Marketing Information

2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.

Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.

Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.

With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.

The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.

Maximum Ambient Light 100000 lux
Maximum Element Resolution (C 20 mil
Maximum Operating Power Consu 2 W
Minimum Element Resolution (C 5 mil
Minimum Element Resolution (D 10 mil
Minimum Element Resolution (P 6.7 mil
Minimum Print Contrast 35%
Motion Tolerance 4 in/s
Operating Temperature 32°F (0°C) to 104°F (40°C)
Package Contents
  • 1 x Voyager 1400g Area-Imaging Scanner
  • 1 x USB Type A 1.5m straight cable (CBL-500-150-S00)
Product Color Black
Product Line Voyager
Product Model 1400g
Product Name Voyager 1400g Area-Imaging Scanner
Product Type Barcode Scanner Kit
Reading Angle (Pitch) 60°
Reading Angle (Skew) 70°
Scan Pattern Omni-directional
Scanning Capability 1D
Scanning Distance 13.70"
Standby Current 90 mA
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Weight (Approximate) 4.20 oz
Width 7.1"
Honeywell Voyager 1400g Area-Imaging Scanner - Cable Connectivity - 13.70" Scan Distance - 1D - LED - Imager - Linear, Area, Omni-directional - USB, Keyboard Wedge, Serial, IBM 46XX - Black - IP42 - USB - Industrial
