Shuttle XPC P52U Barebone System - All-in-One - 1 x Processor Support

15.6-inch Multi-touch All-in-One PC Flexible Connectivity Fit Diverse Business Scenario

Shuttle AIO P52U features a 15.6-inch 16:9 widescreen LCD with glove-friendly multi-touch. It is powered by Intel® Comet Lake-U Celeron® processor and supports up to 64GB DDR4-2666 memory for better multitasking performance and energy-saving. P52U is also available with Core i3 and Core i5 models to choose from to meet the performance need of the actual application. Furthermore, the fanless passive cooling design makes the system virtually noiseless and maintenance-free while improving reliability and is approved for 24/7 operation. The IP54-compliant front panel is dust protected and protects from splash water. As for its rich connectivity, P52U is equipped with four USB 3.2 Gen1, two USB 2.0, two RS232, an HDMI 1.4, a VGA, and Intel® Gigabit Lan, ideal for POI terminals, POS systems, and self-service Kiosks.

Intel® Comet Lake-U Celeron® Processor

The P52U is equipped with Intel® 10th Gen Comet Lake-U Celeron® 5205U, Core™ i3-10110U / i5-10210U processor and supports up to 64GB DDR4-2666 memory frequencies. Built-in Intel® UHD Graphics to play 4K content.

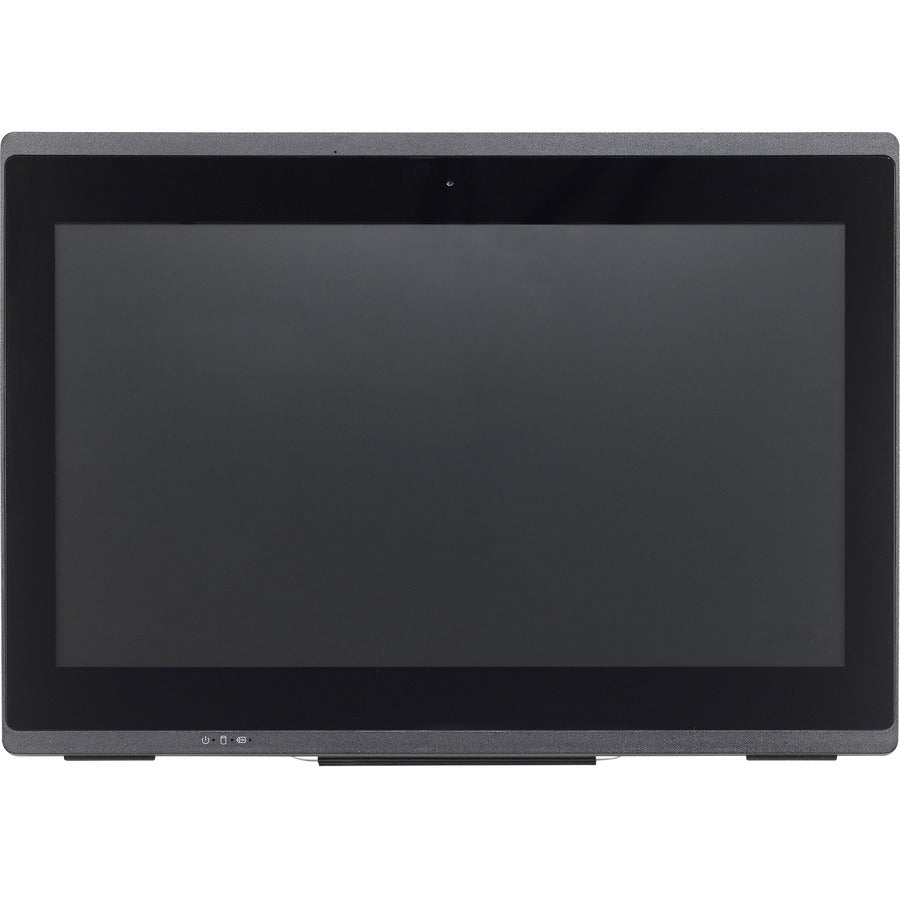

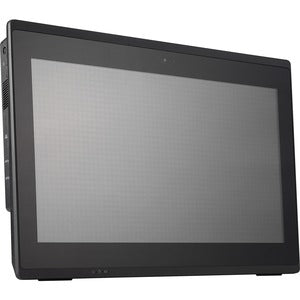

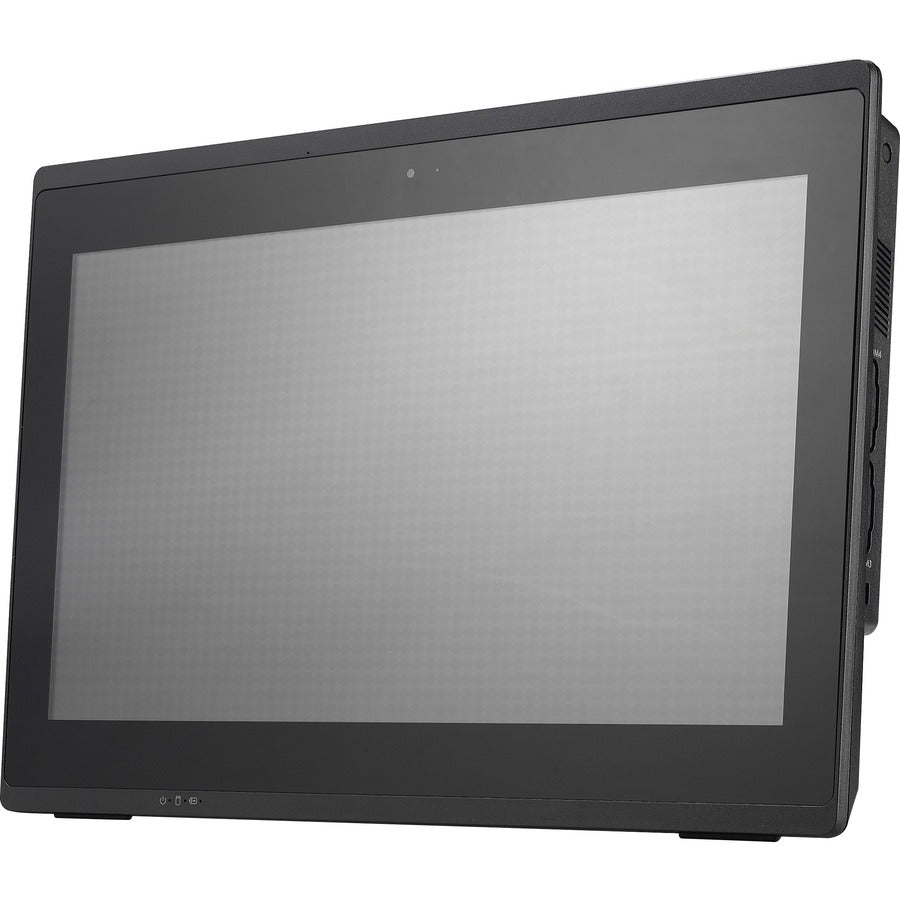

15.6" Multi-touch Screen

The 15.6-inch capacitive touch panel with 10-point multi-touch, delivering responsive and highly accurate touch recognition for all your execution applications. Even glove operation can be supported. It is suitable for POS, POI, and KIOSK applications.

IP54 Protection

P52U front panel is IP54 protected for water and dust resistance, conforming to environmental specifications for industrial and commercial applications.

Triple-Display Productivity

The P52U can connect with two other monitors via built-in HDMI and VGA outputs, providing productivity benefits for different content playback.

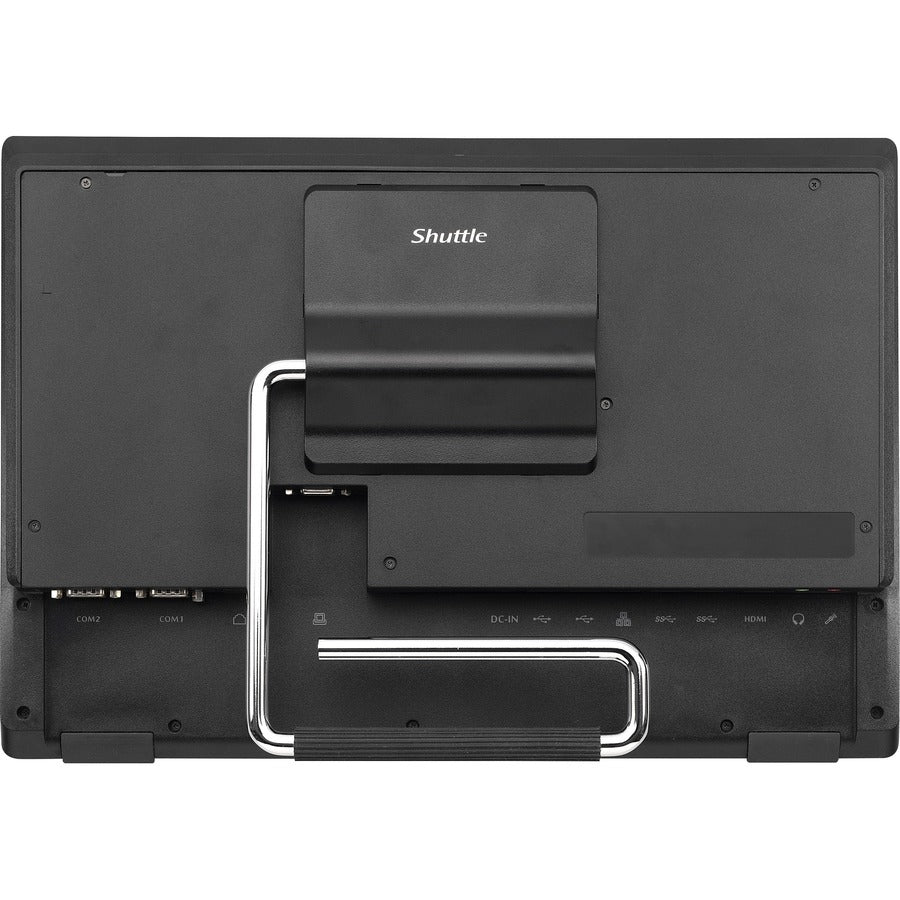

Expandability Peripheral Connectivity

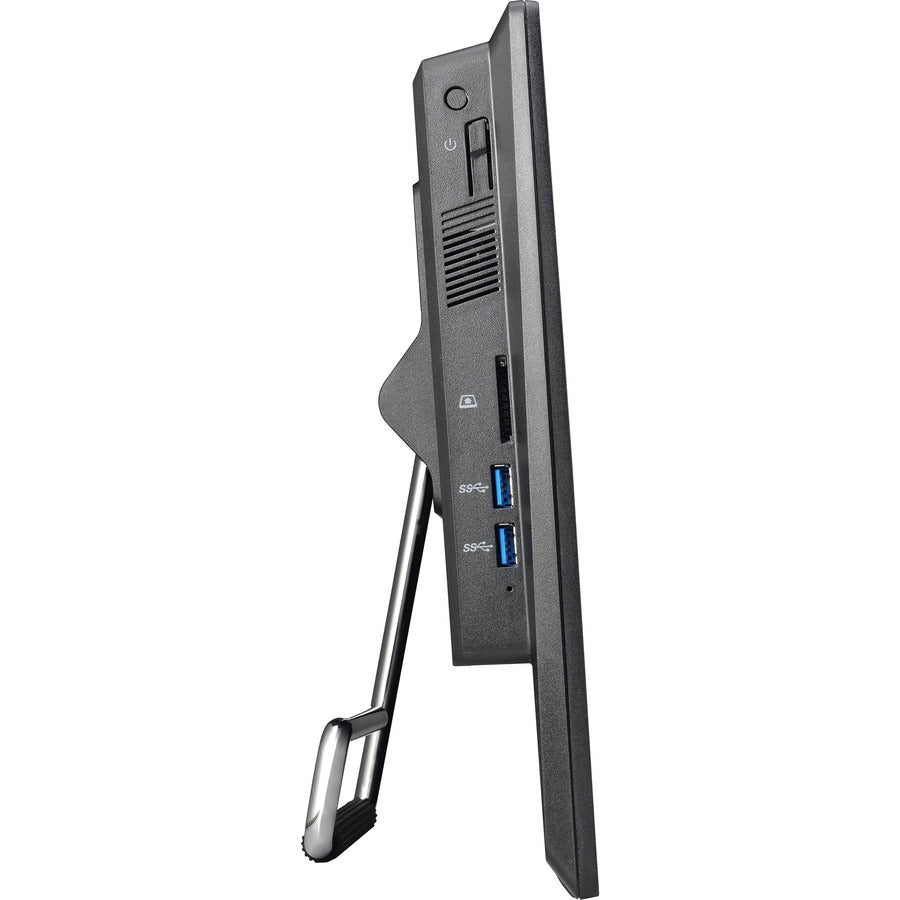

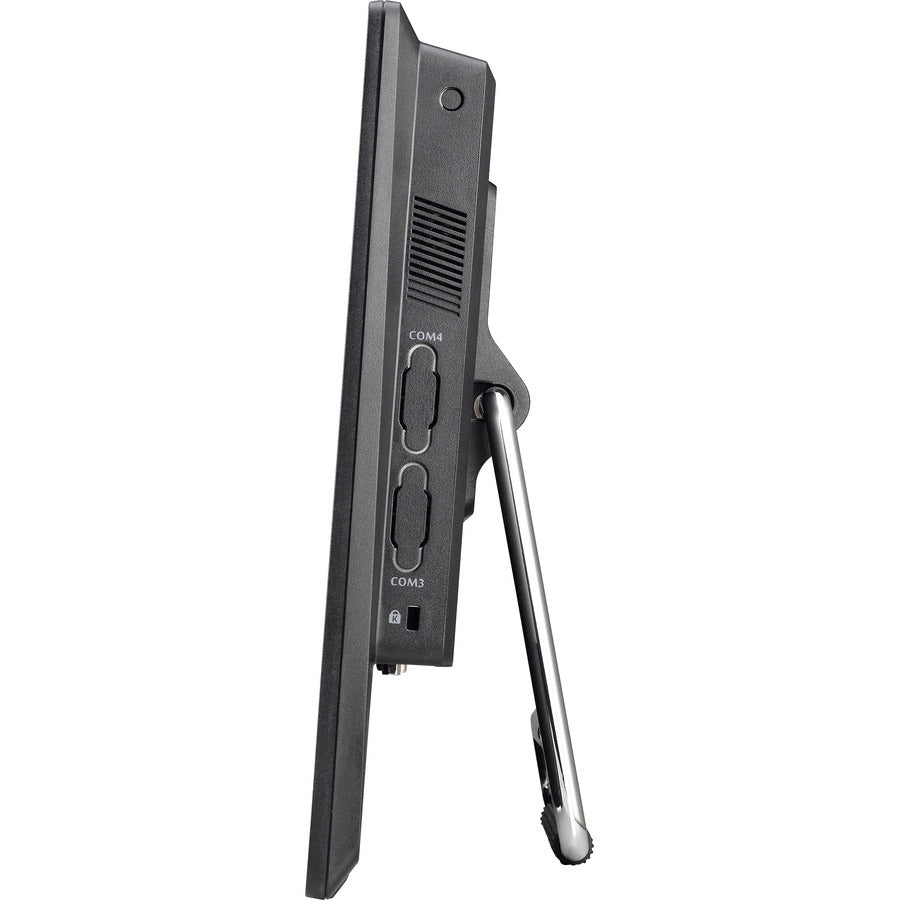

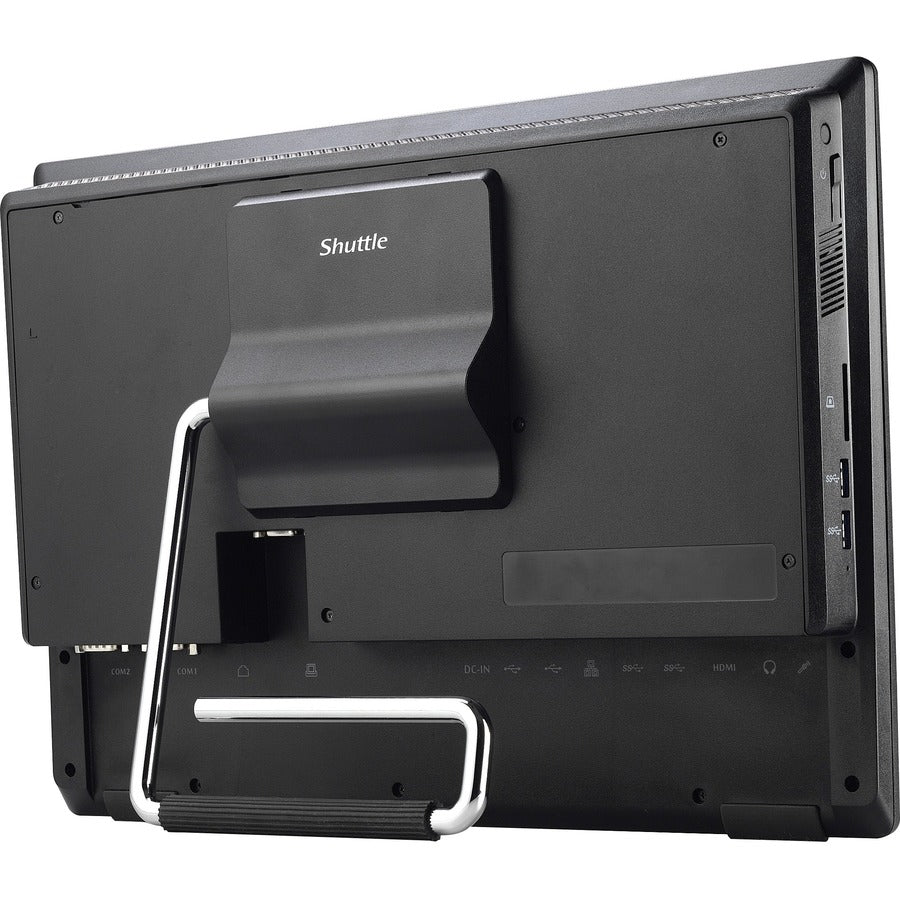

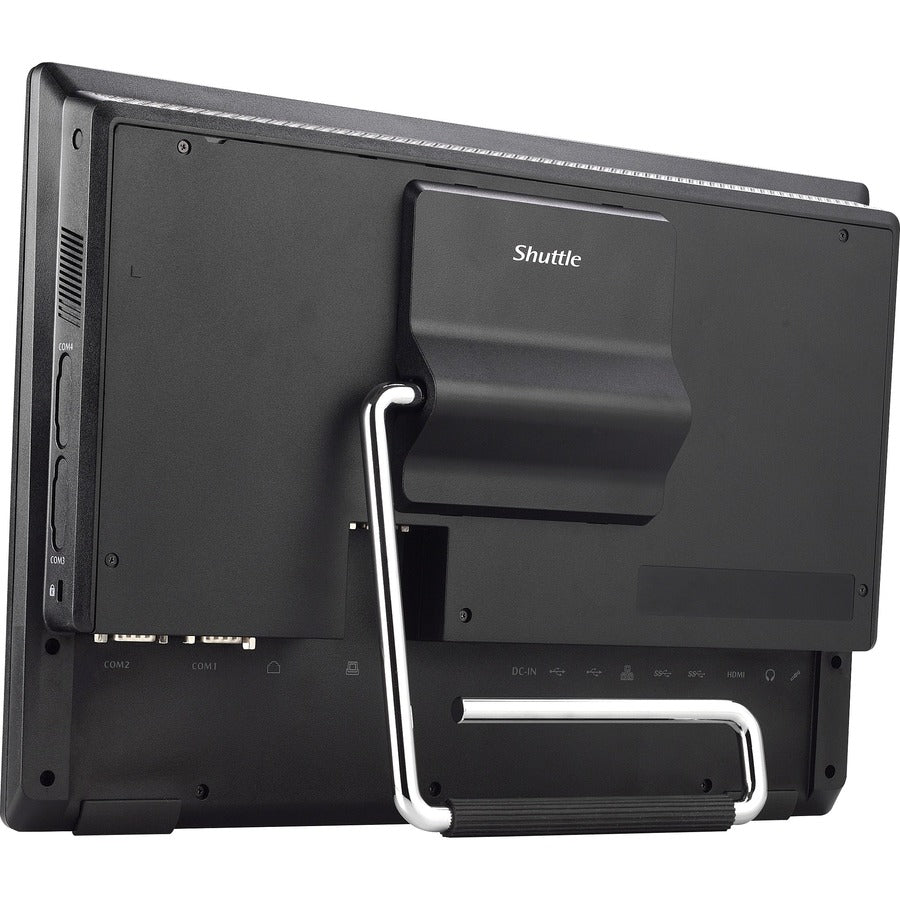

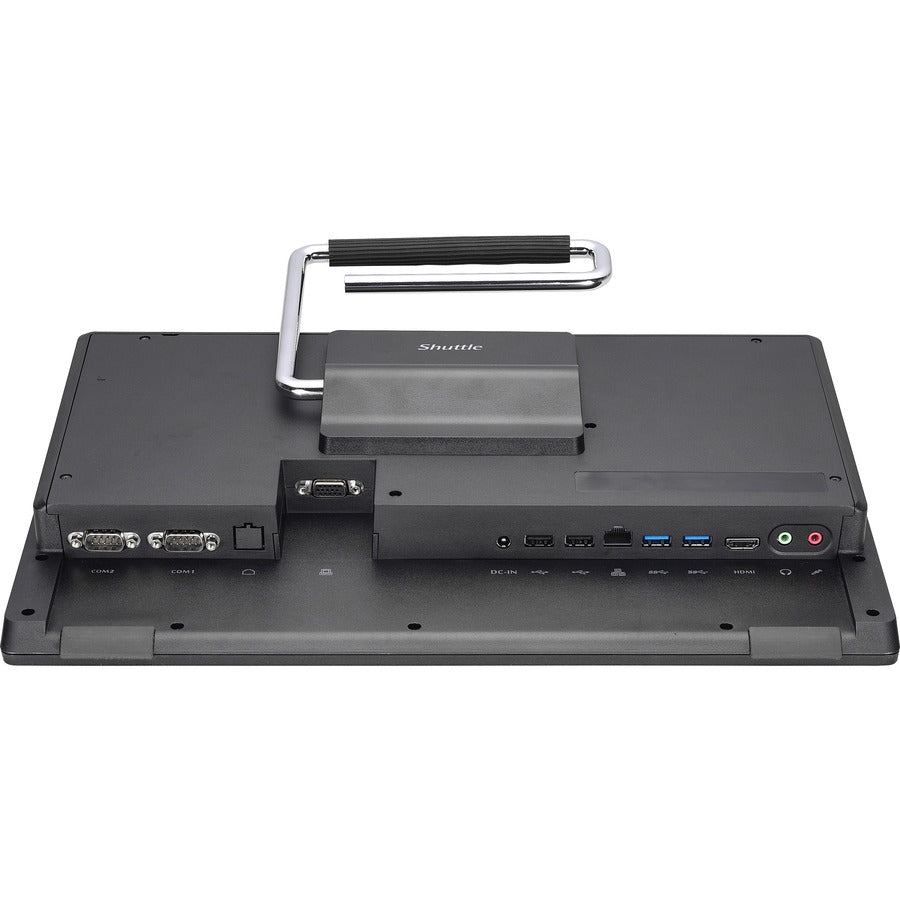

Equipped with 4x USB 3.2 Gen1, 2x USB 2.0, 2x RS232, Intel® Gigabit LAN, SD card reader, FHD webcam, and 2x speaker, P52U can easily connect to other commercial devices. Besides, an optional accessory is provided to offer RS232, DIO, and USB for expansion cards.

24/7 Nonstop Operation

The P52U allows quiet, low-energy use and virtually maintenance-free operation with a passive thermal cooling design. The P52U is approved for 24/7 operation to meet the environmental operation demands of commercial applications.

• XPC P52U Barebone System
• 1 x Quick Guide
• 1 x Driver DVD
• 1 x 65W Power Adapter
• 1 x Power Cord
