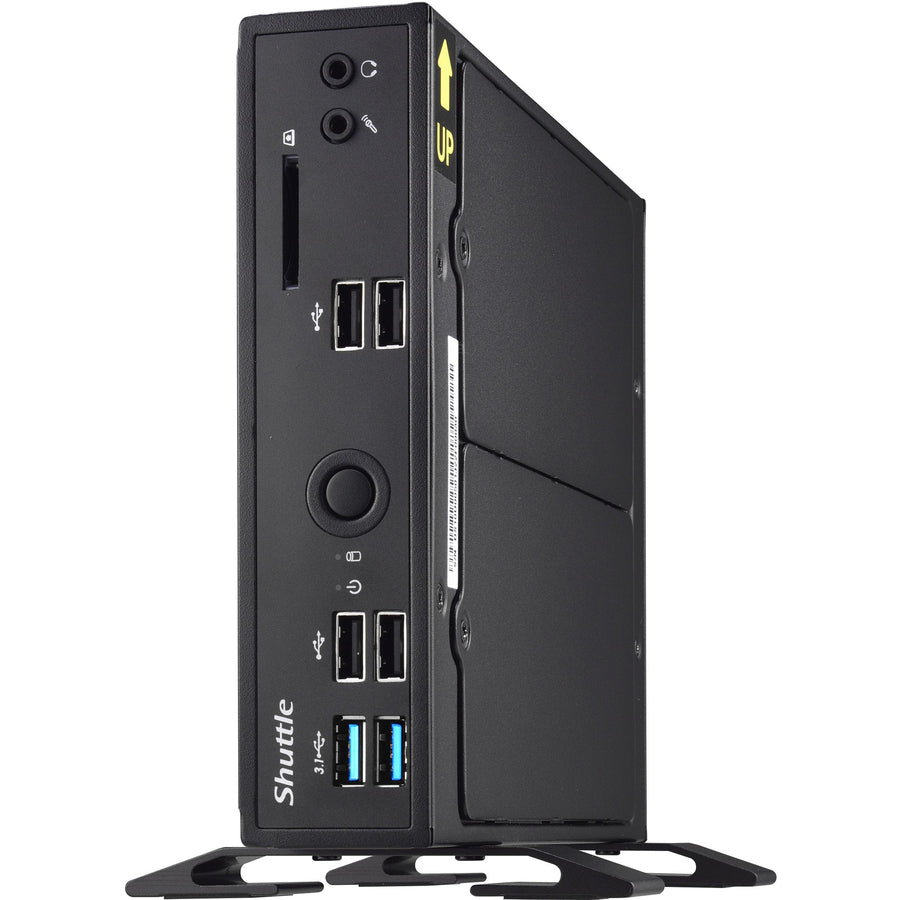

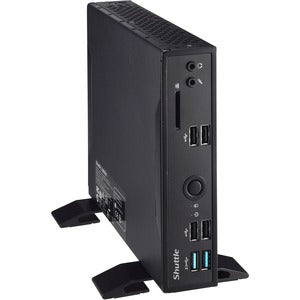

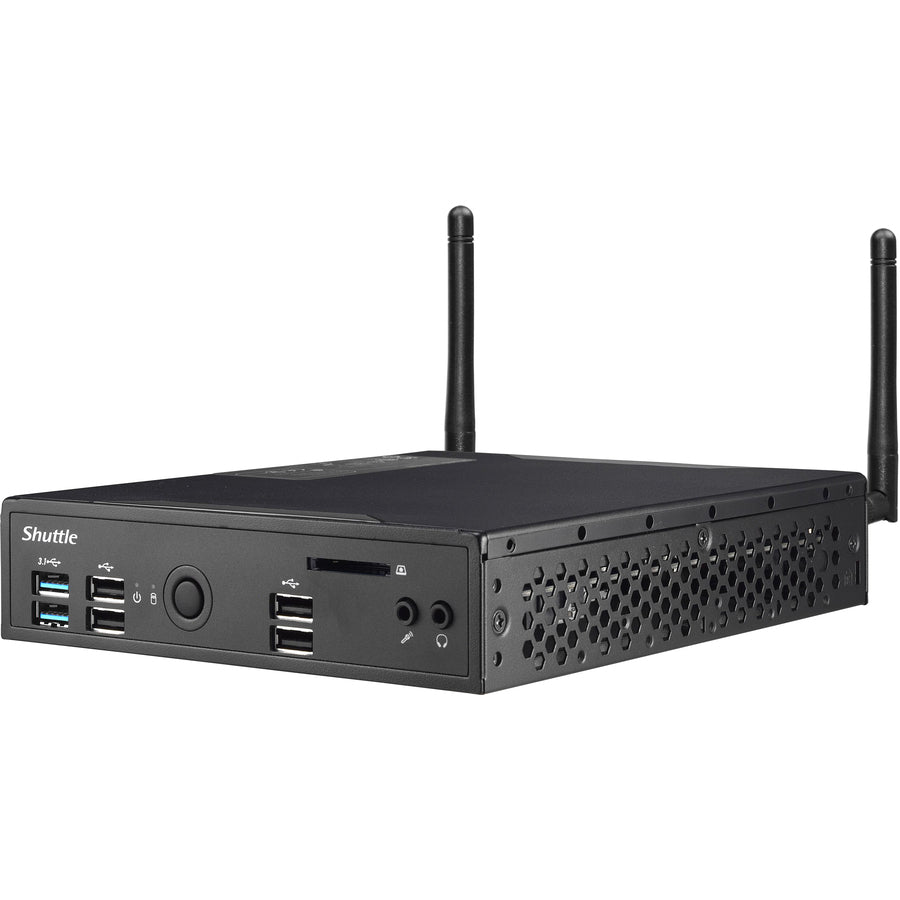

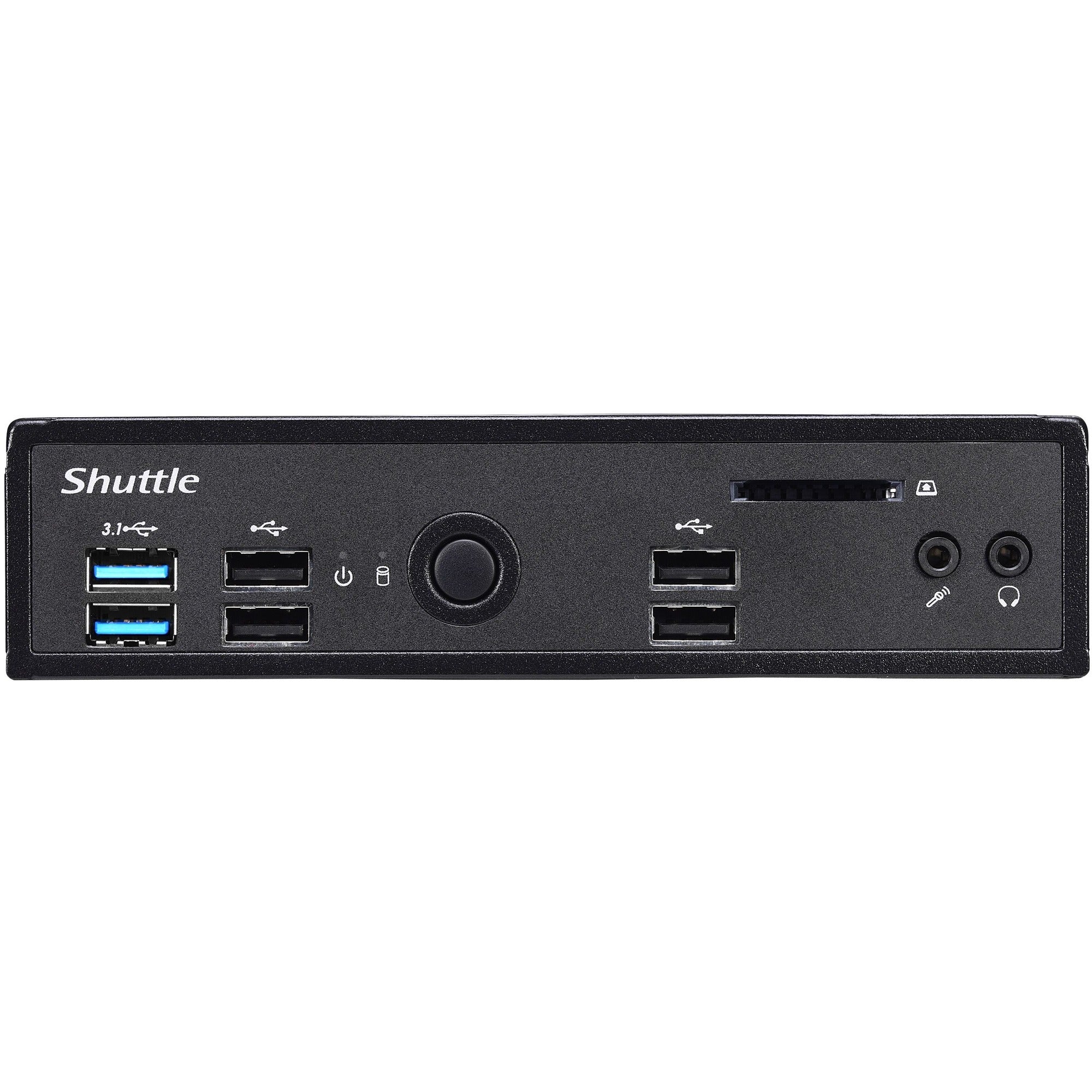

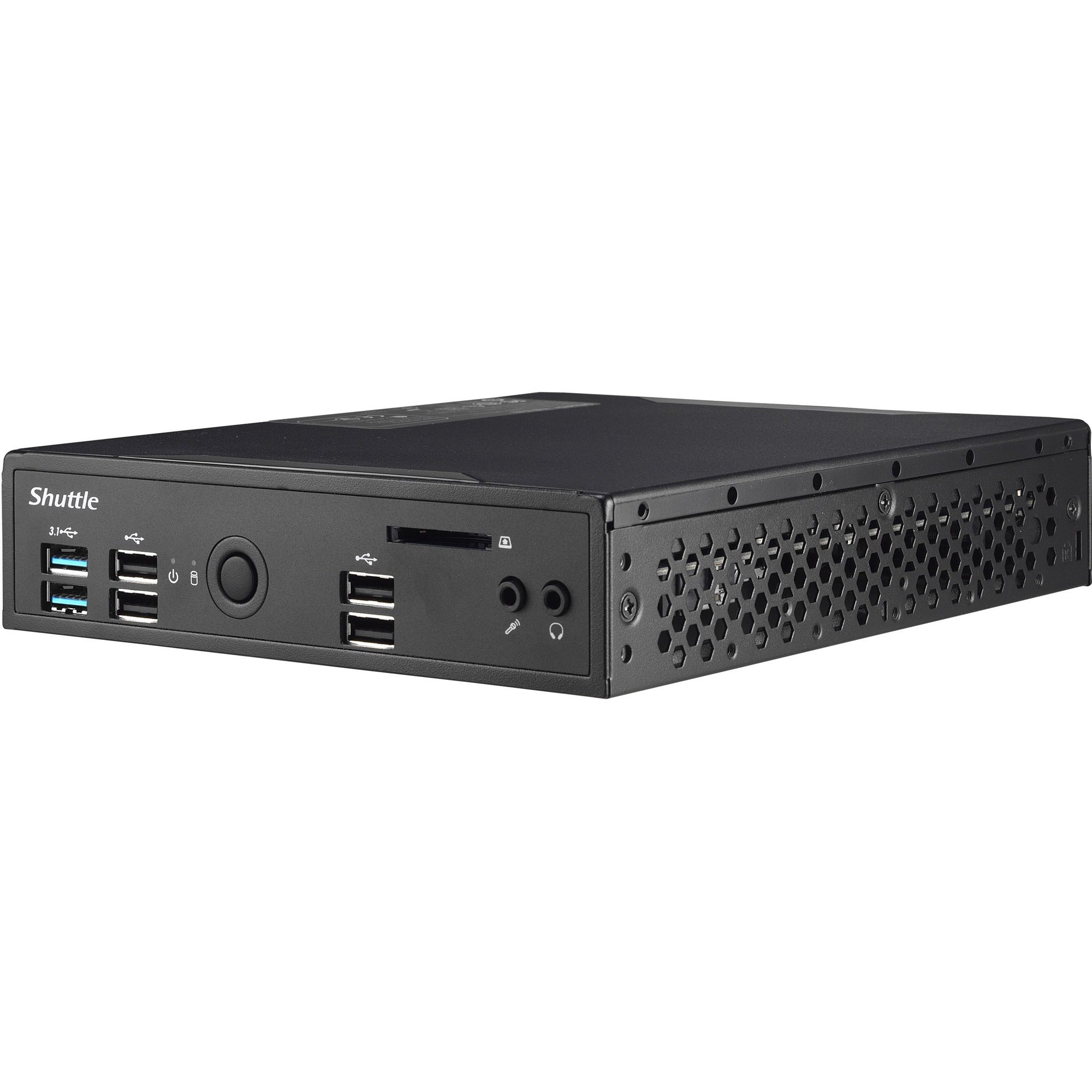

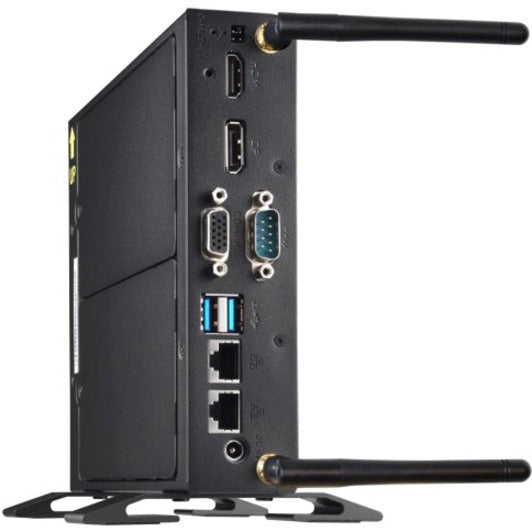

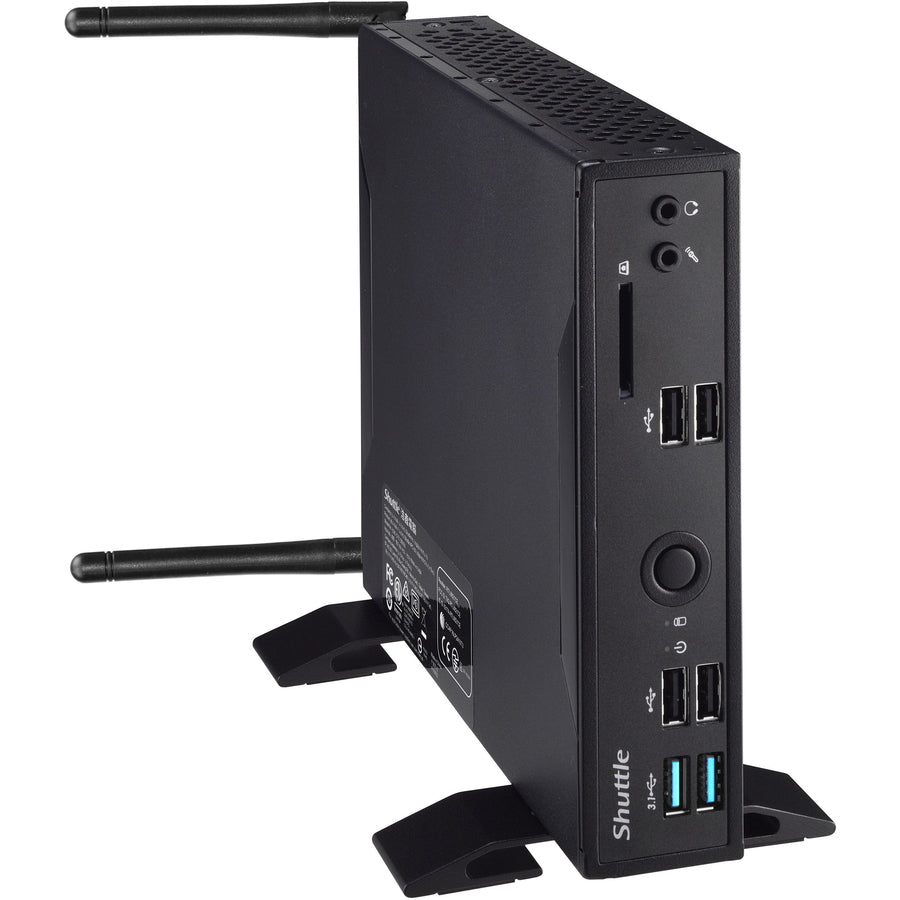

Shuttle XPC slim DS10U Barebone System - Slim PC - Intel Celeron 4205U

Item #: 6KH337   |   Model #: 0887993002873

  |   10 Questions
$429.99
$429.99
Sold out

1 Each

Special Buy
Add to list
Shuttle XPC slim DS10U Barebone System - Slim PC - Intel Celeron 4205U - 32 GB DDR4 SDRAM Maximum RAM Support - 2 Total Memory Slots - Intel UHD graphics 610 Graphic(s)65 W
Type Value
Bluetooth Yes
Brand Name Shuttle
Color Black Steel
Country of Origin China
Depth 7.9"
DisplayPort (Rear) Yes
Energy Star Yes
Features Security Slot
Form Factor Slim PC
Graphics Controller Manufactu Intel
Graphics Controller Model UHD graphics 610
Graphics Memory Accessibility Shared
Graphics Memory Technology DDR4 SDRAM
HDMI (Rear) Yes
Height 1.6"
Manufacturer Shuttle, Inc
Manufacturer Part Number DS10U
Manufacturer Website Address http://www.us.shuttle.com
Marketing Information

Fanless Slim PC with a Whiskey-Lake-U processor in industrial design

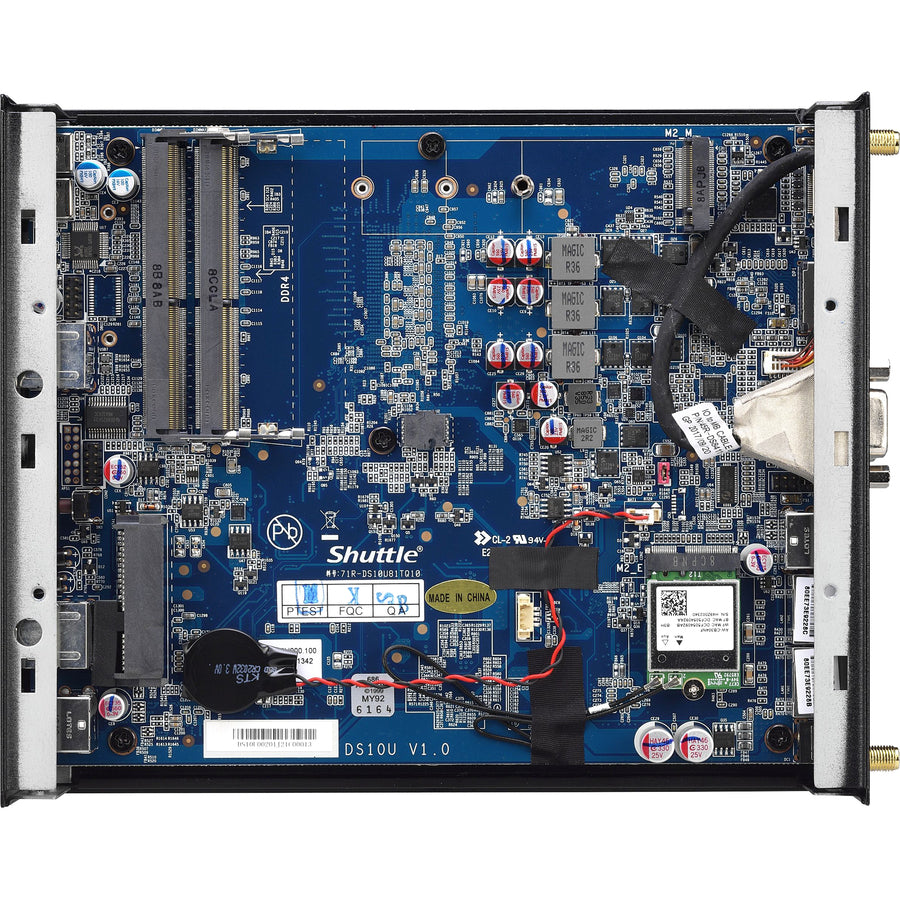

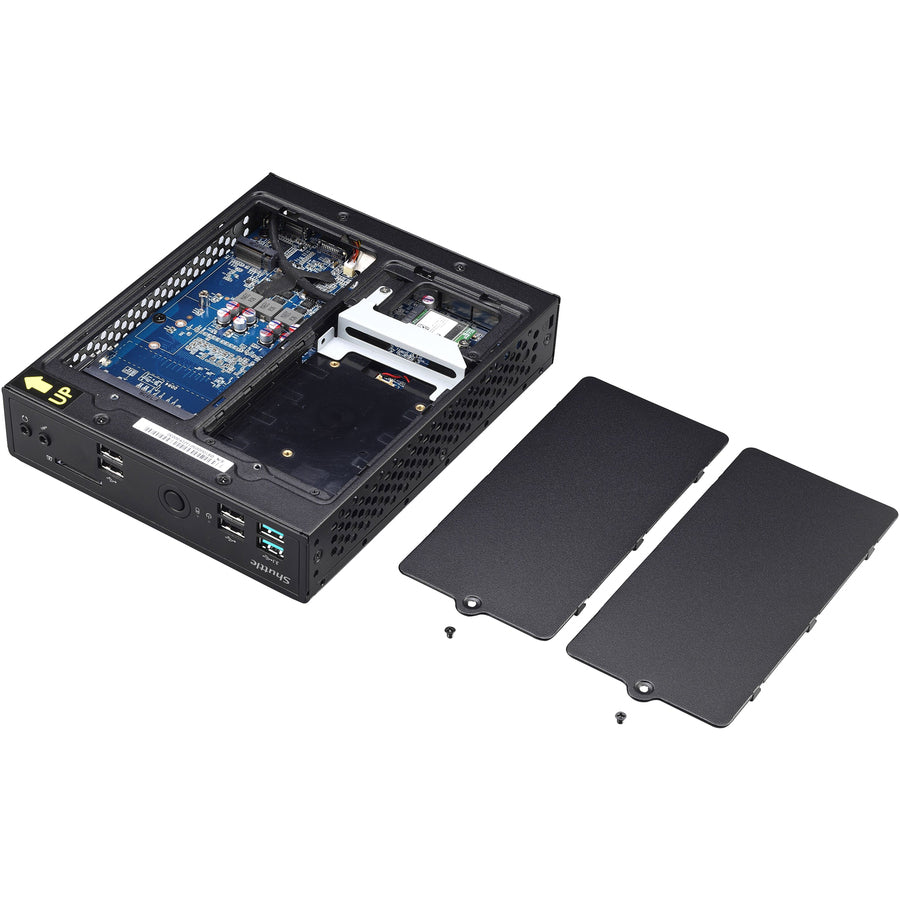

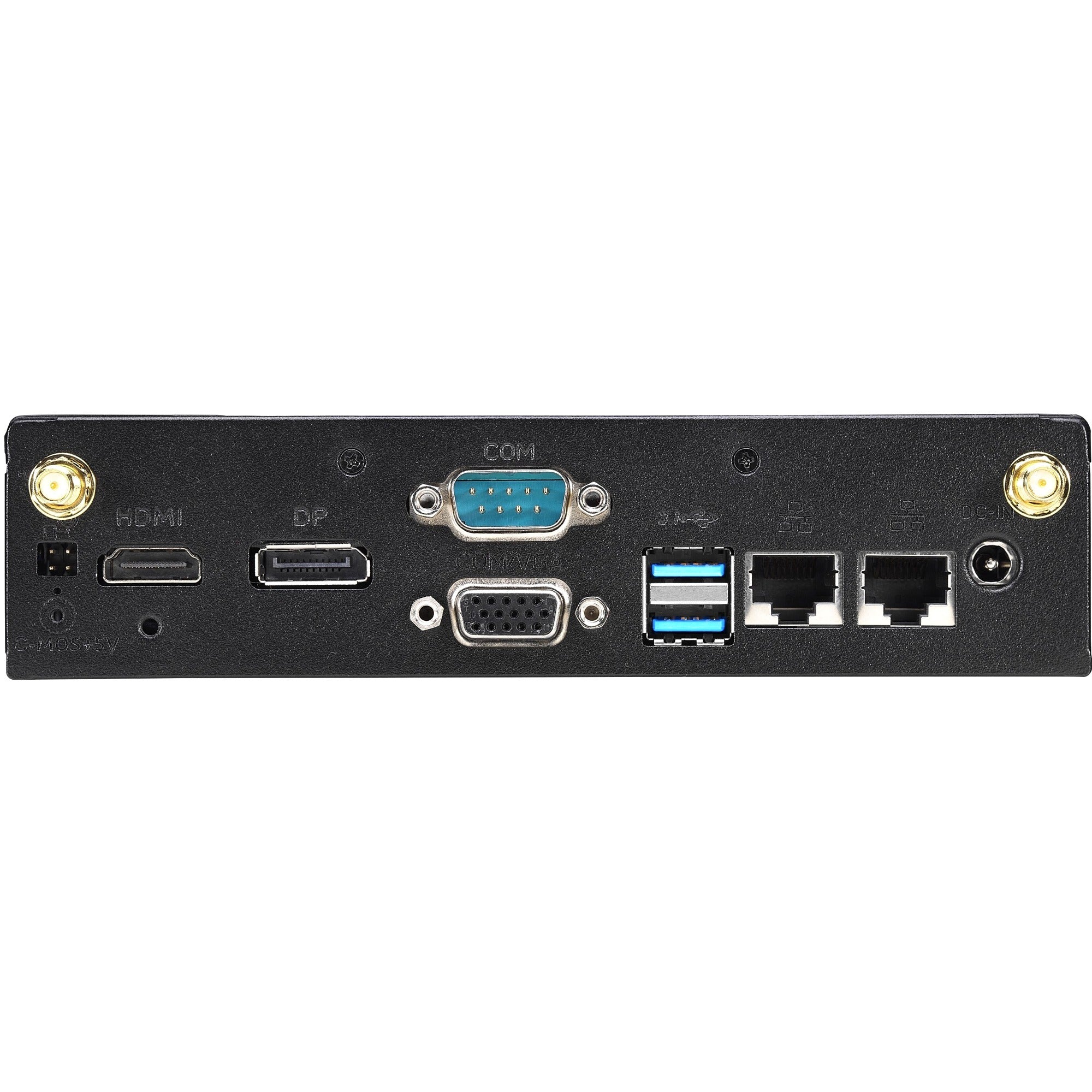

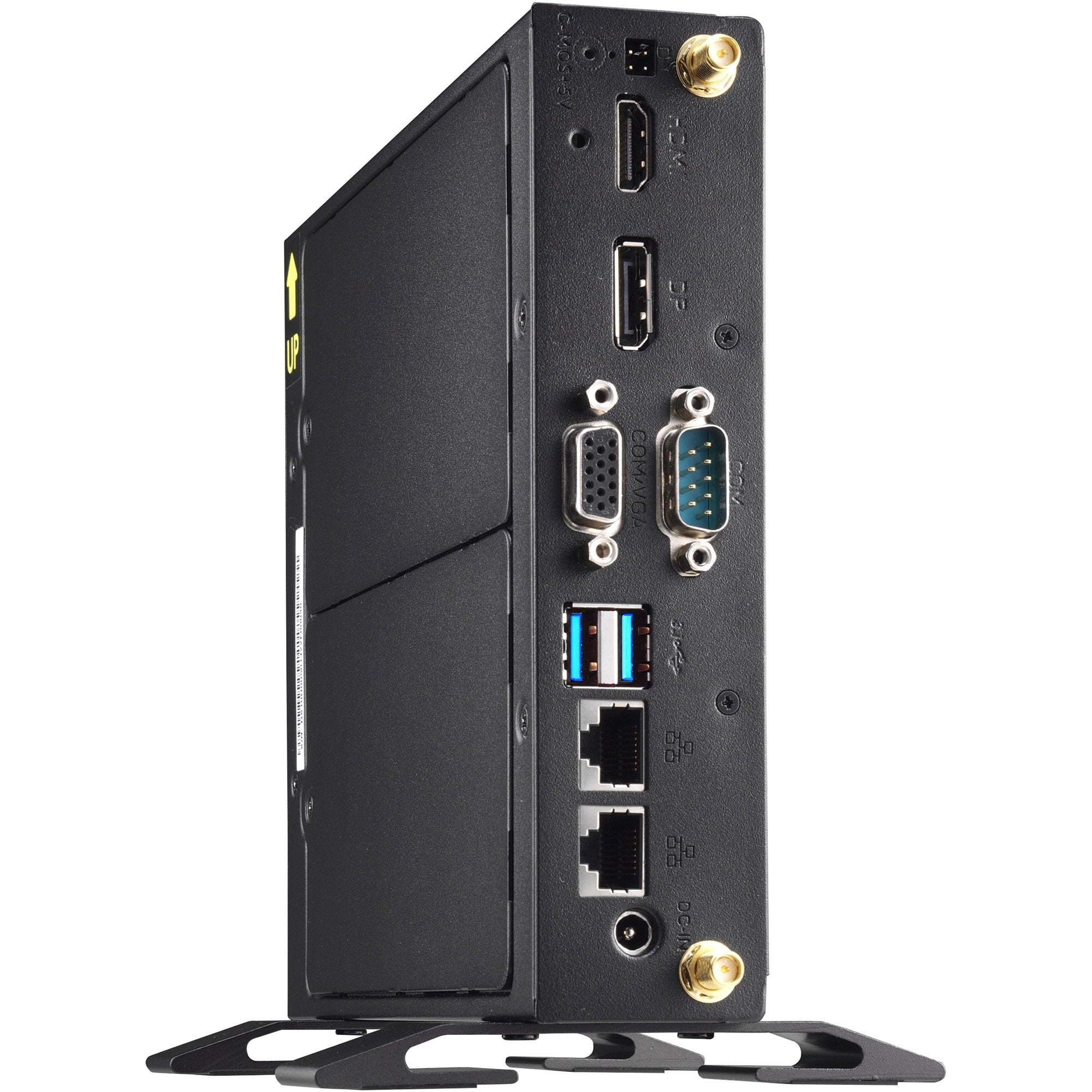

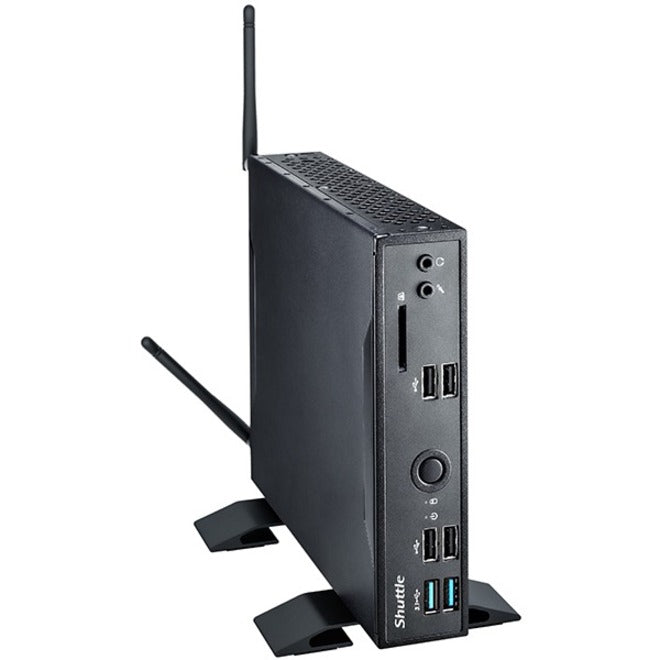

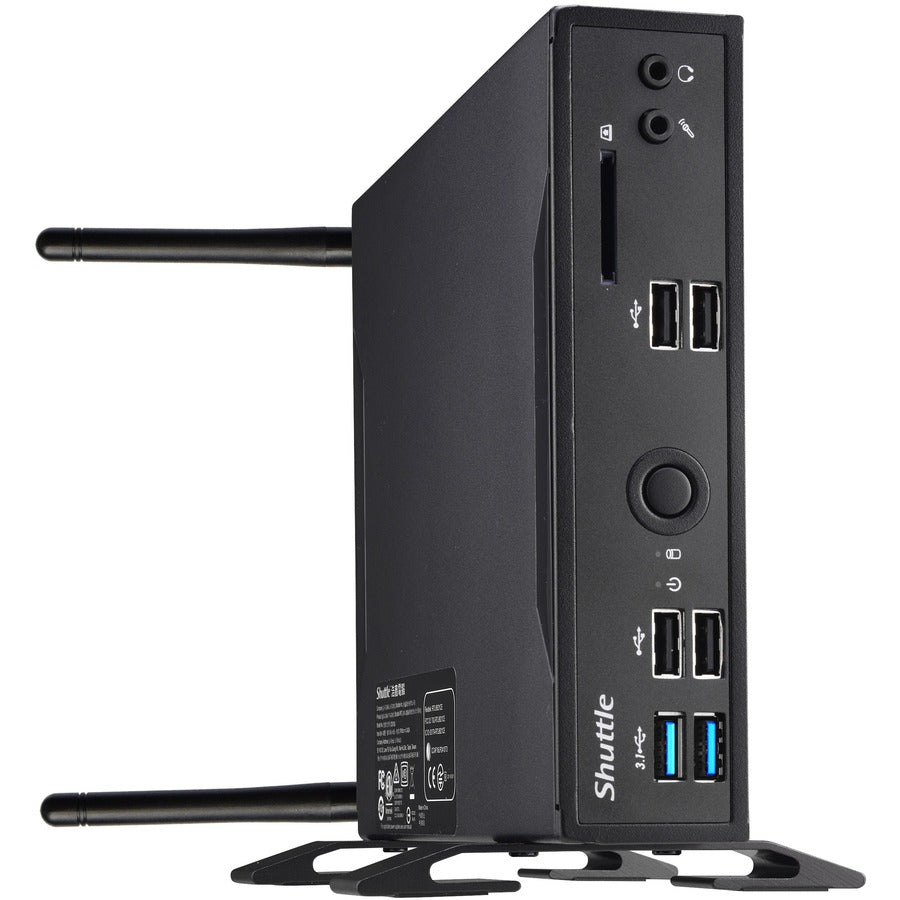

The DS10U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel "Whiskey-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS10U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Maximum Memory Supported 32 GB
Maximum Power Supply Wattage 65 W
Memory Technology DDR4 SDRAM
Number of DisplayPort Outputs 1
Number of Total Memory Slots 2
Number of USB 2.0 Ports (Fron 4
Number of USB 3.1 Gen 1 Ports 2
Processor Manufacturer Intel
Processor Model 4205U
Processor Speed 1.80 GHz
Processor Type Celeron
Product Line XPC slim
Product Model DS10U
Product Name XPC slim DS10U Barebone System
Product Type Barebone System
Total Number of USB Ports 8
VESA Mount Standard 75 x 100
VGA (Rear) Yes
Weight (Approximate) 3.31 lb
Width 6.5"
Wireless LAN Yes
Shuttle XPC slim DS10U Barebone System - Slim PC - Intel Celeron 4205U - 32 GB DDR4 SDRAM Maximum RAM Support - 2 Total Memory Slots - Intel UHD graphics 610 Graphic(s)65 W
