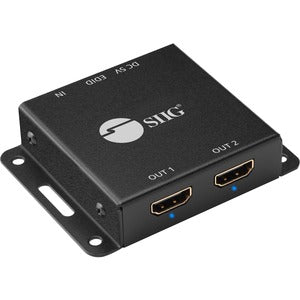

SIIG 2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management

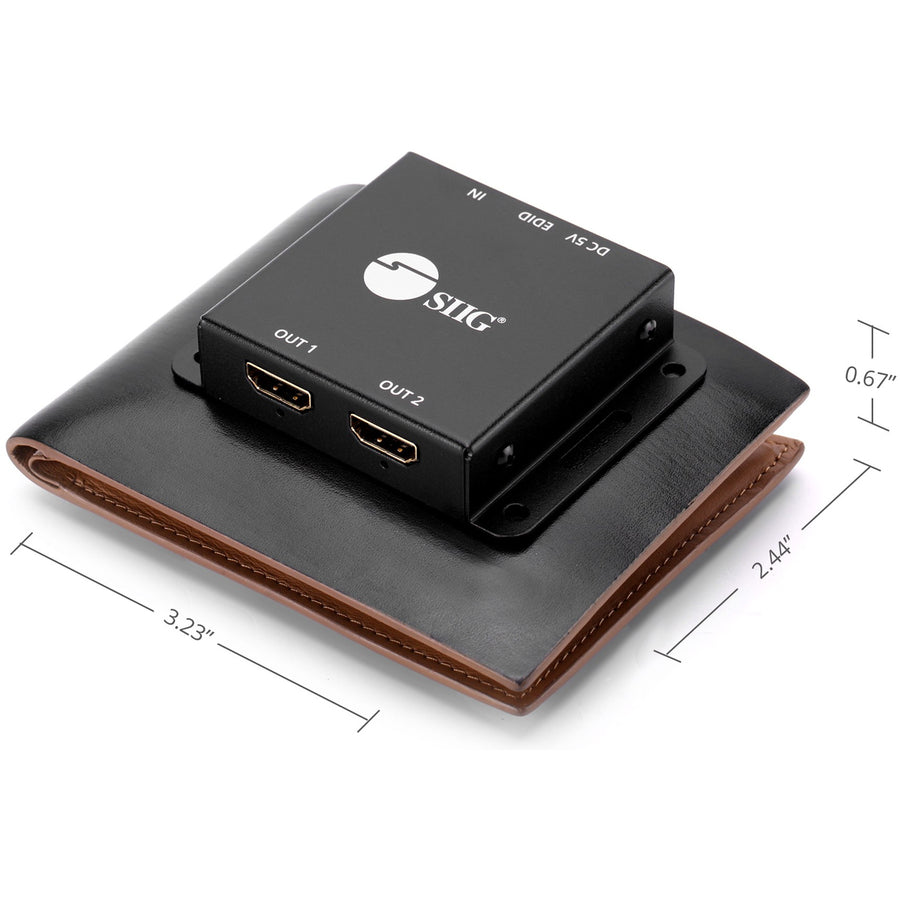

Portable design distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality

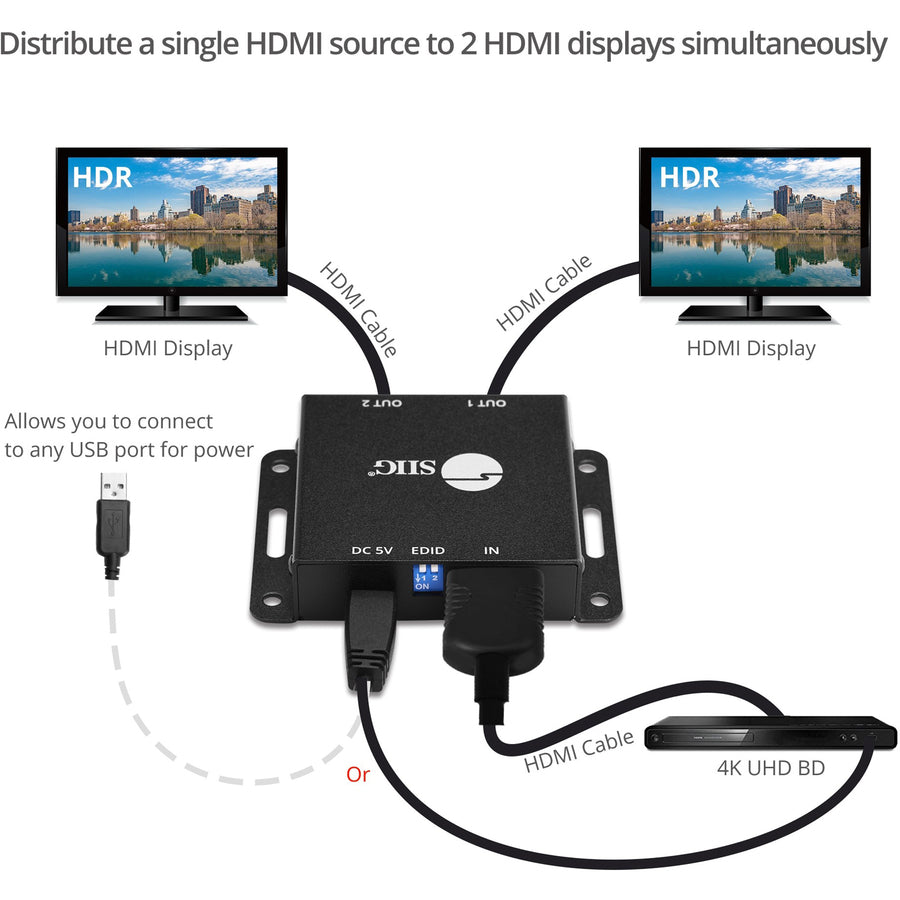

• Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0 and HDCP 2.2
• Supports 18Gbps bandwidth
• Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

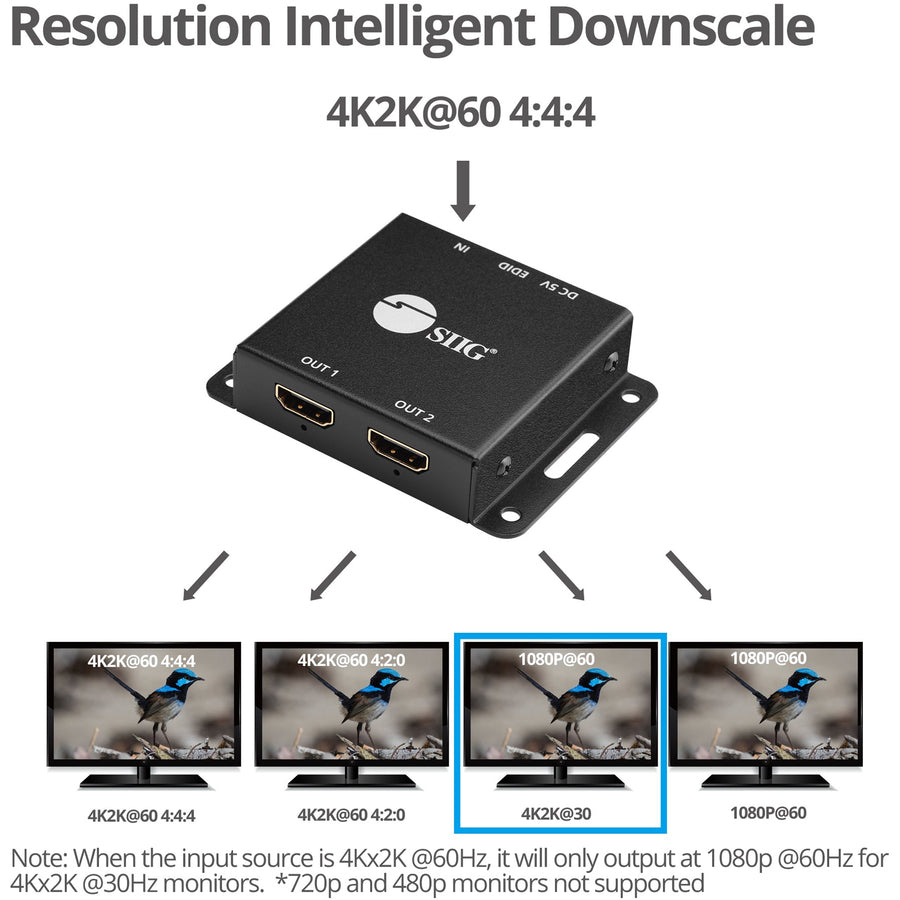

• Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
• Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.

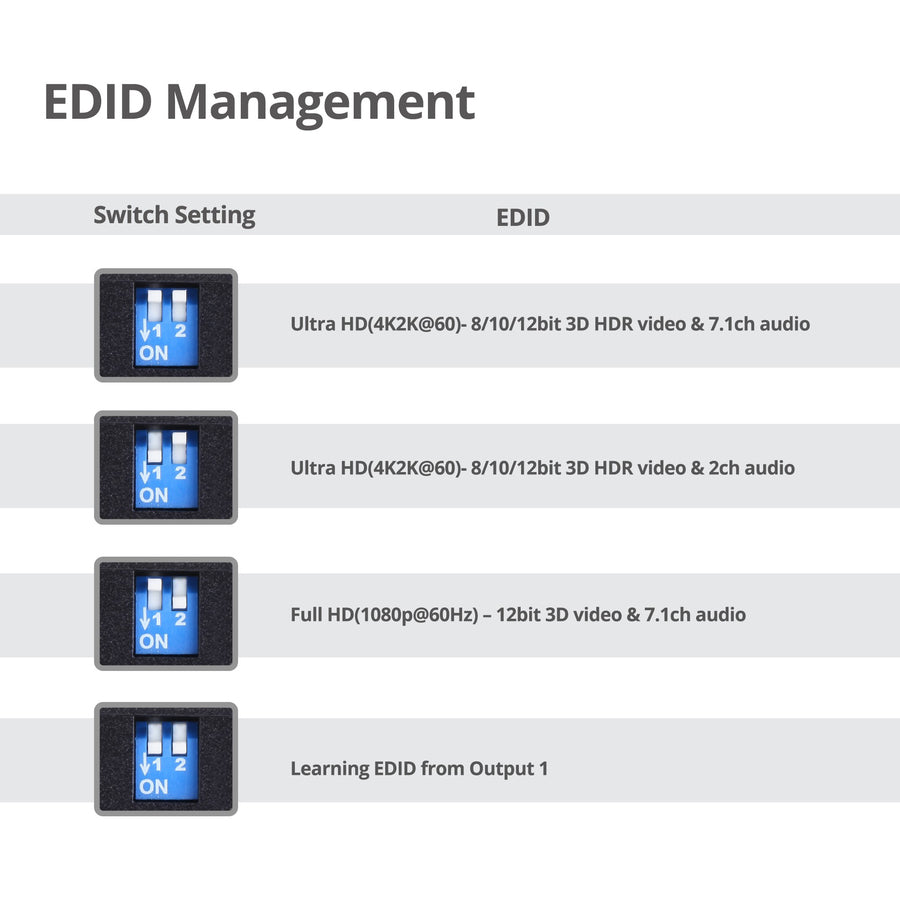

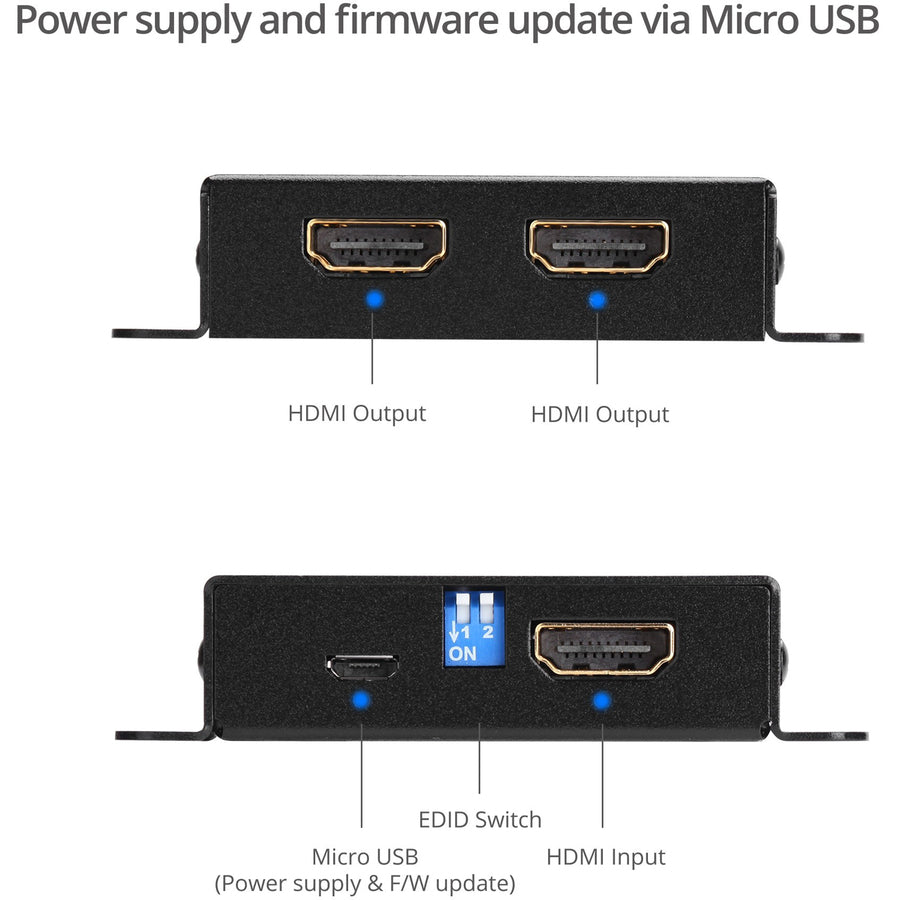

• EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
• Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance

More from the Manufacturer

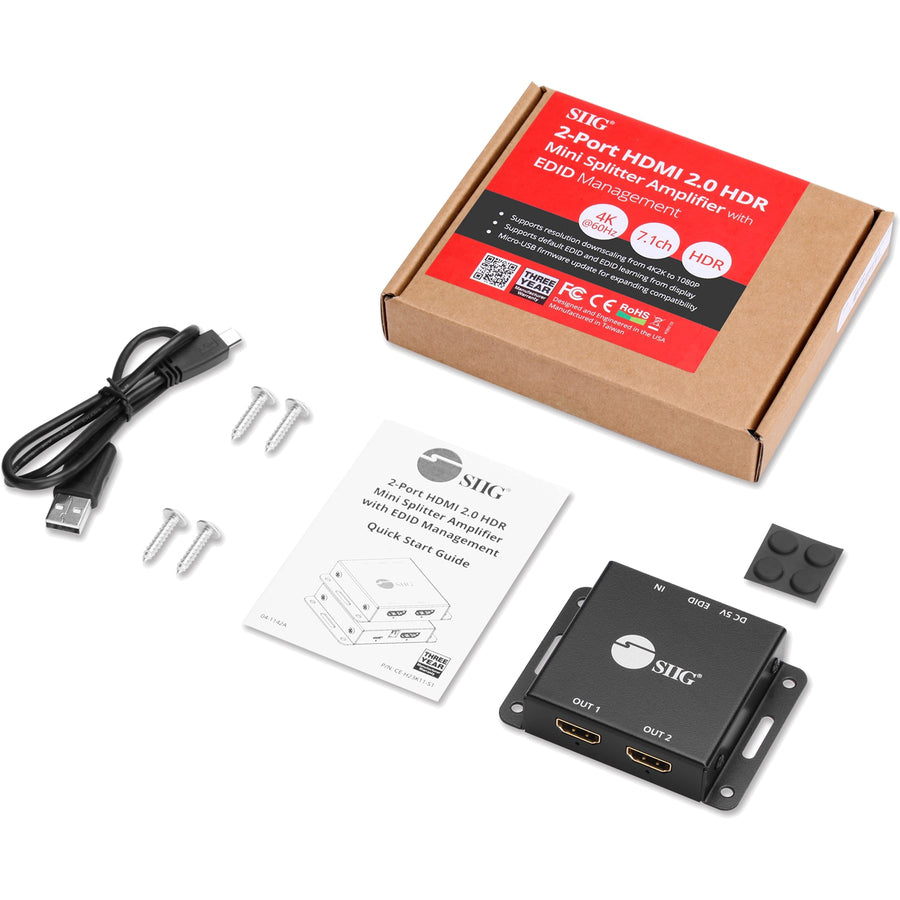

• 2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
• USB Type-A to Micro-USB Power Cable
• User Reference Guide
