SIIG 4 Port HDMI 2.0 4K 60Hz HDR Splitter with EDID and Downscaling Feature

Distributes 4K HDMI video/audio signals from one HDMI source to four HDMI displays with EDID management and video downscaling while maintaining signal quality

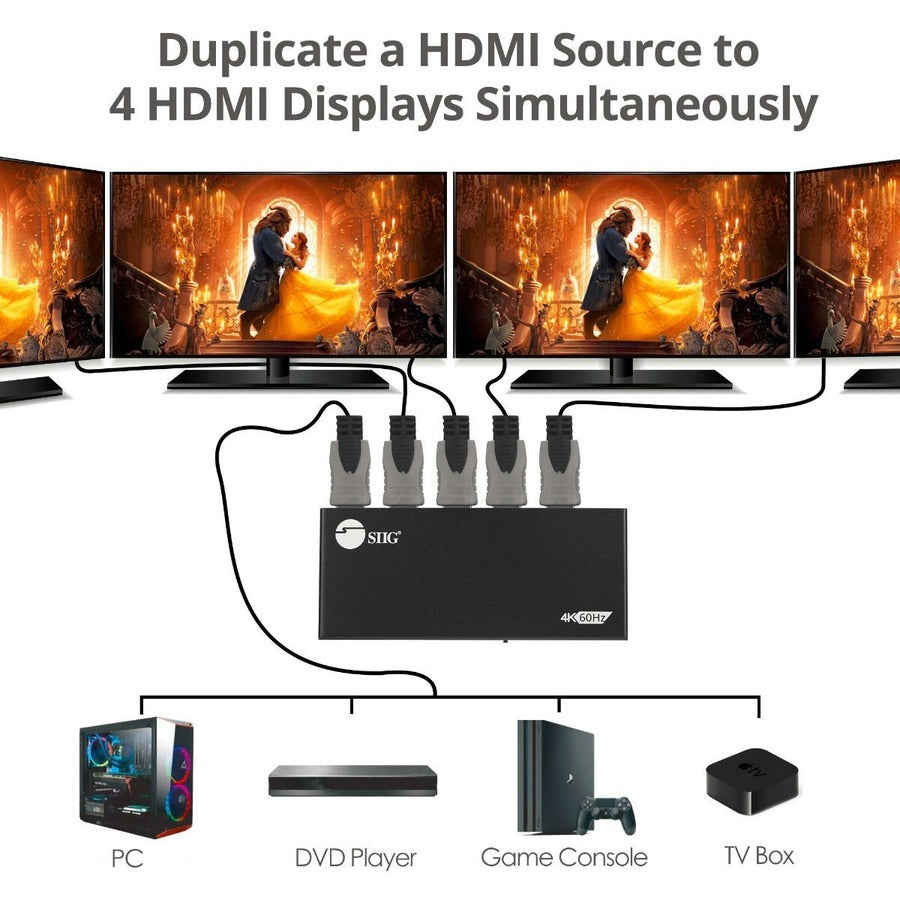

• Distributes HDMI video and audio from a single source to 4 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio
• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• Captures game play in 1080p while playing in 4K - use Elgato or other game capture devices to record game play in 1080p while simultaneously playing in 4K
• High quality materials with metal housing extend the stability and durability, allowing for long hours of operation
• Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
• Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable performance and long life span

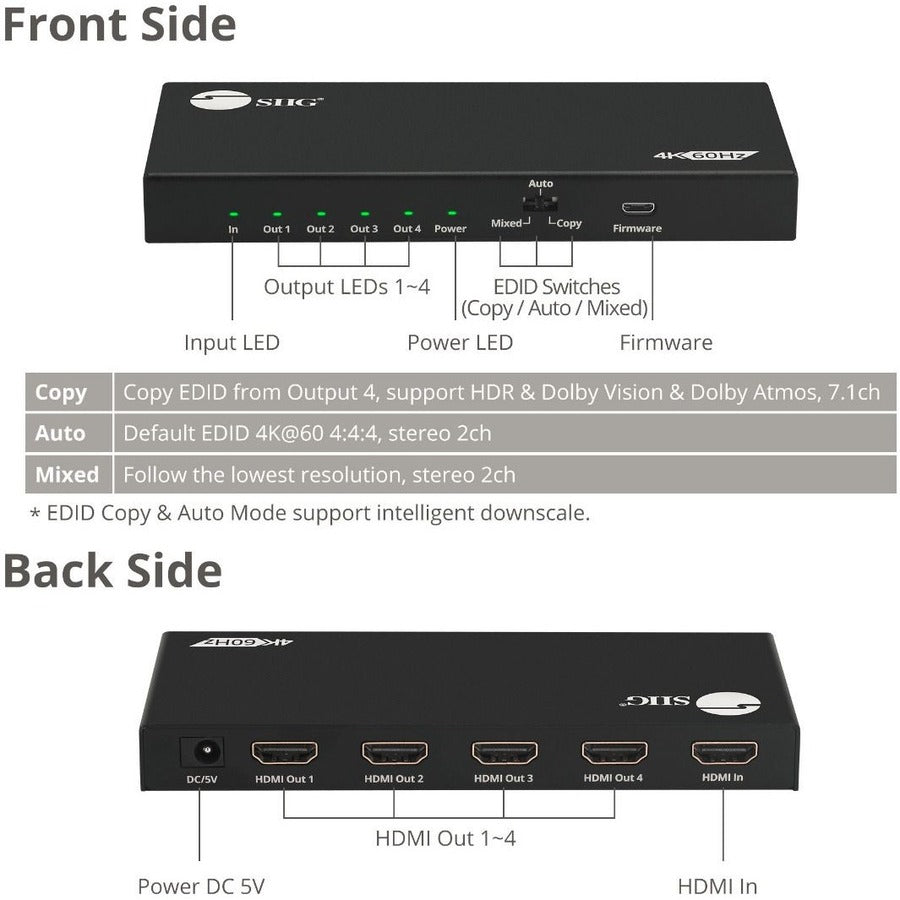

• Individual LED indicators for power and signal allow for easy and quick status recognition

• 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz

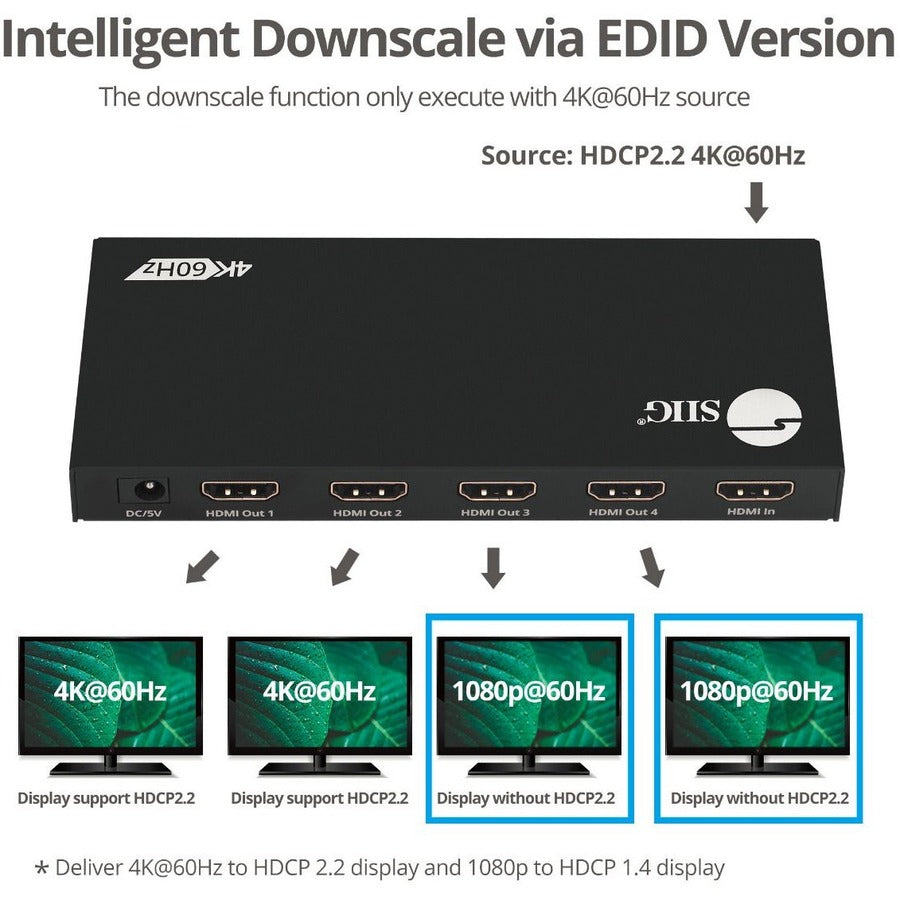

• EDID Copy and Auto mode supports 4K downscaling to 1080p
• For HDCP 2.2 protected 4K source signals, if the TV/Display supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p
• HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only

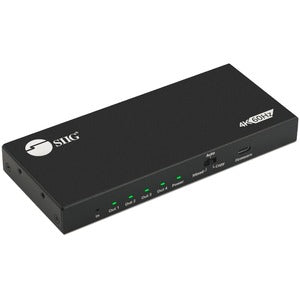

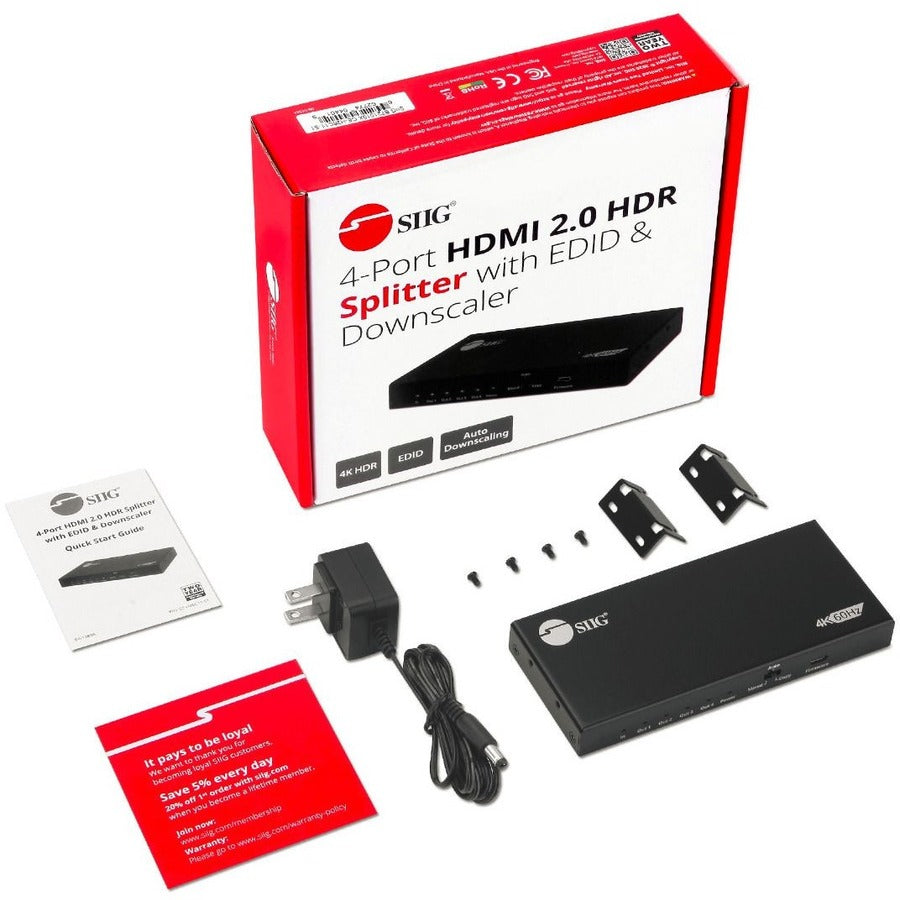

• 4 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
• Power Adapter
• Mounting kit (2x ears, 4x screws)
• User Reference Guide
