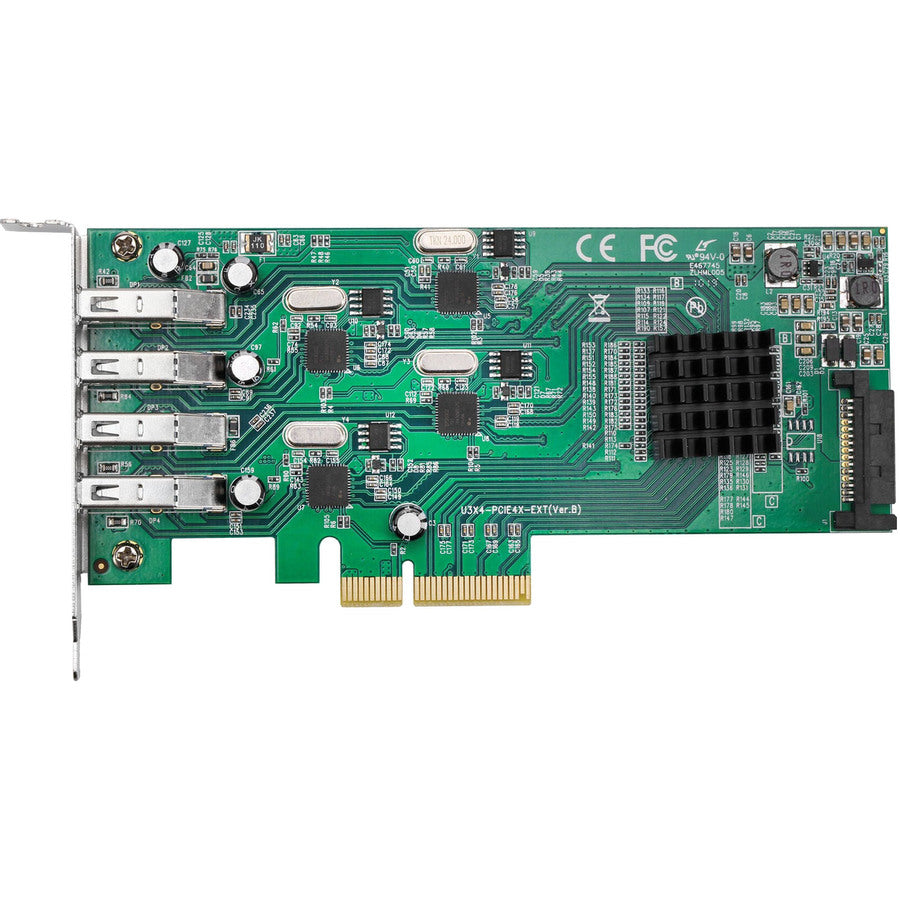

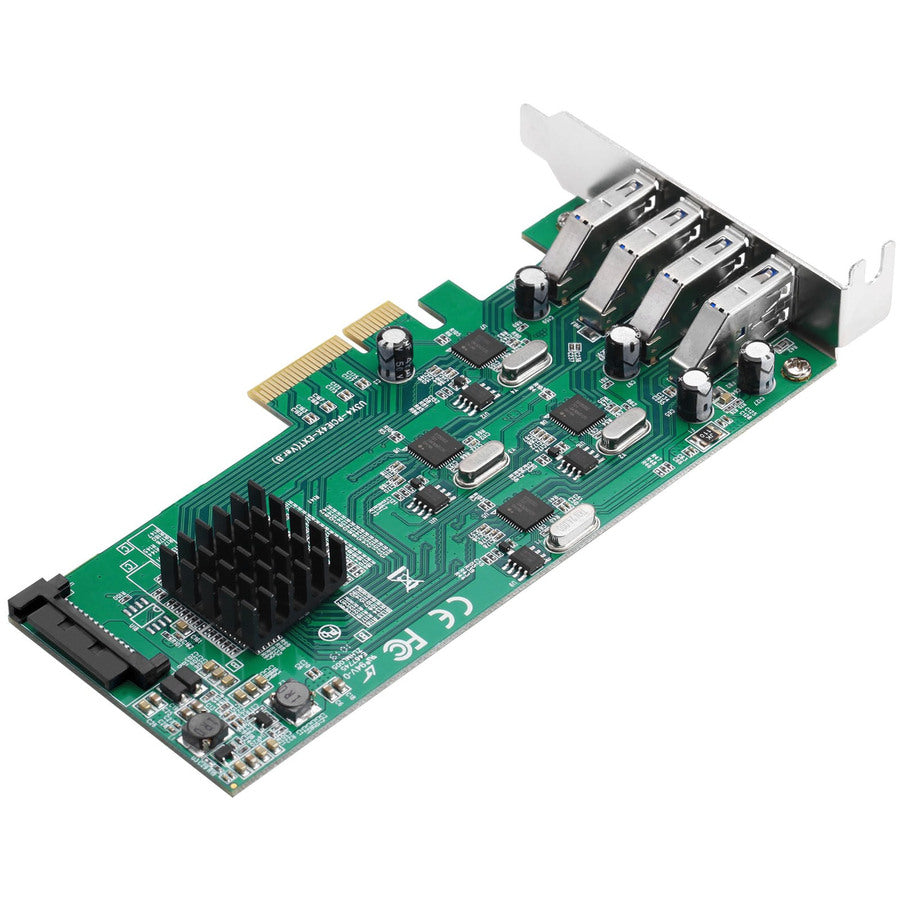

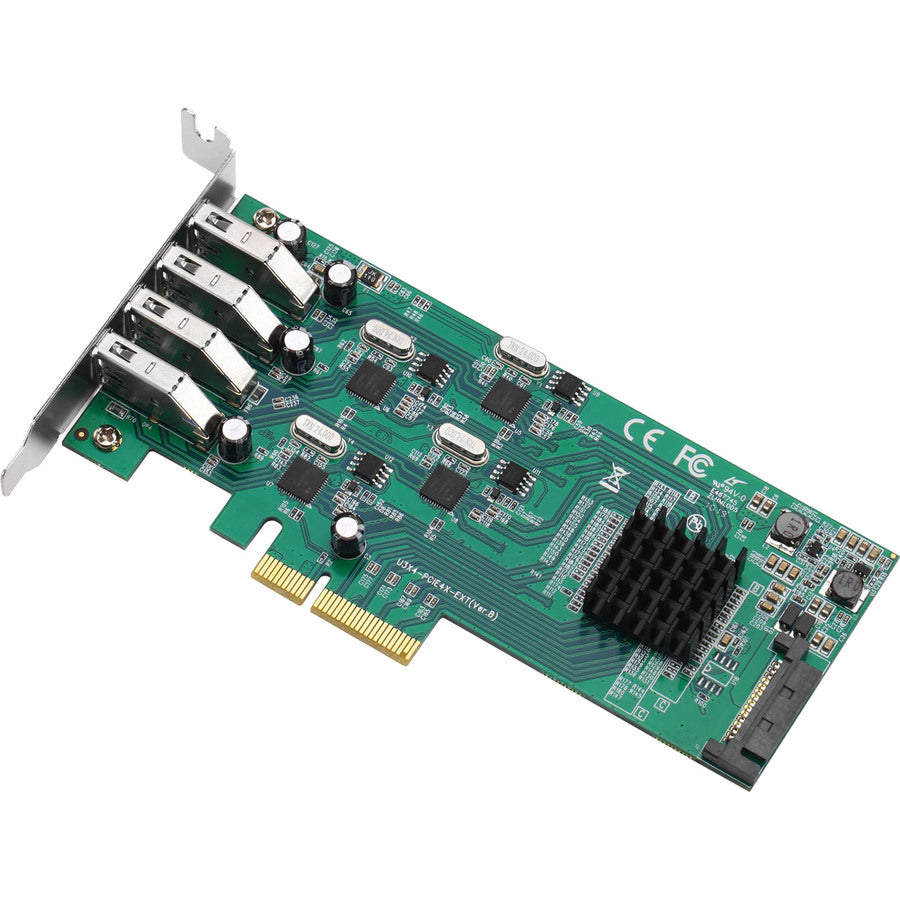

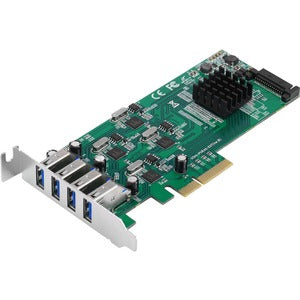

SIIG 4 Port SuperSpeed USB 3.0 PCIe Card - Quad Core

Item #: JUP40811S1   |   Model #: 0662774042640

  |   10 Questions
$109.99
$109.99
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name SIIG
Color Green
Country of Origin China
Depth 3.2"
Environmental Certification WEEE
Environmentally Friendly Yes
Form Factor Plug-in Card
Height 0.8"
Host Interface PCI Express 2.0 x4
Limited Warranty 2 Year
Manufacturer SIIG, Inc
Manufacturer Part Number JU-P40811-S1
Manufacturer Website Address http://www.siig.com
Marketing Information

Adds four independent external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCI Express (PCIe) enabled desktop computer

  • Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
  • Industry recognized high performance Renesas uPD720202 chipset
  • Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps)
  • Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Compliant with PCIe 2.0 standard
  • Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only)
  • Supports PCI Bus Power Management Interface Specification Revision 1.2
  • Low-profile bracket design fits lower size system form factor with included low profile bracket
  • Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes

More from the Manufacturer
Number of USB 3.0 Ports 4

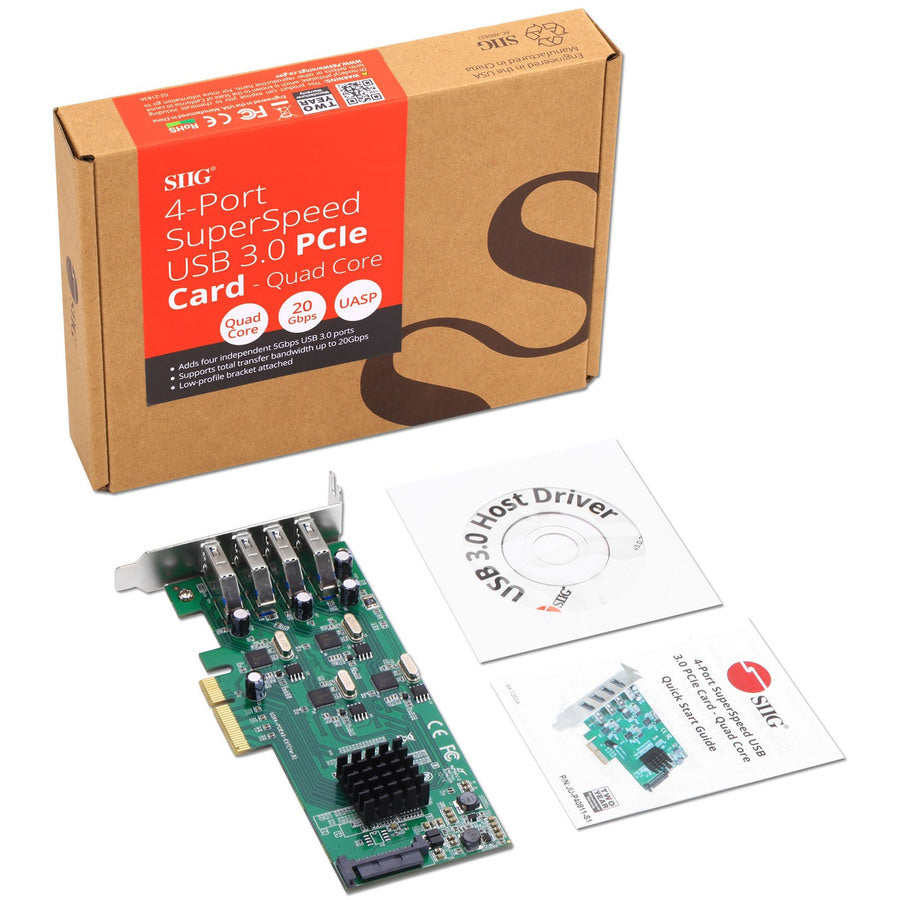

Package Contents
  • 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
  • Driver CD
  • Quick Start Guide
Platform Supported PC
Product Name 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
Product Type USB Adapter
Total Number of USB Ports 4
UASP Support Yes
Weight (Approximate) 2.40 oz
Width 5.9"
