SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver

Item #: 5593991   |   Model #: 0662774042886

  |   10 Questions
$479.99
$479.99
Sold out

1 Each

Special Buy
Add to list
SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver - Supports Matrix Switching & Video Wall Function with the Controller (CE-H25411-S1) TAA Compliant
Type Value
Brand Name SIIG
Color Black
Connectivity Technology Wired
Country of Origin Taiwan
Environmental Certification RoHS
Environmentally Friendly Yes
Graphics Modes 4K
HDMI In Yes
HDMI Out Yes
Limited Warranty 3 Year
Manufacturer SIIG, Inc
Manufacturer Part Number CE-H25311-S1
Manufacturer Website Address http://www.siig.com
Marketing Information

Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly

  • HDMI 2.0a and HDCP 2.2 compliant
  • Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
  • Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch

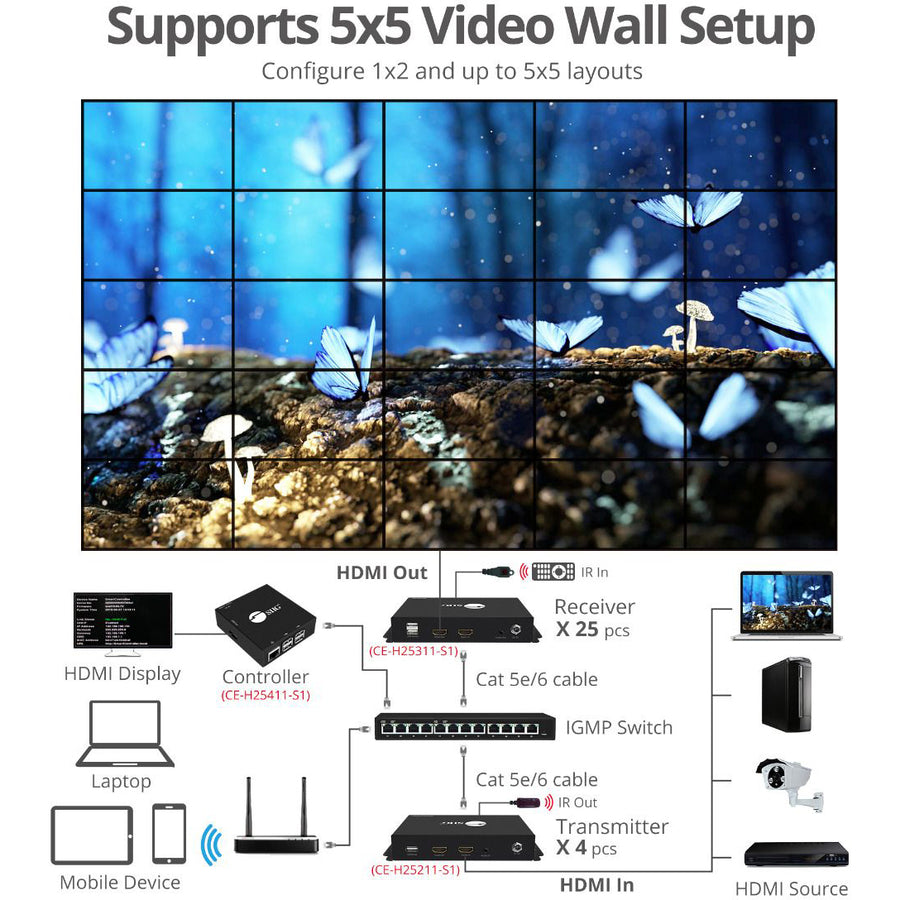

  • Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode

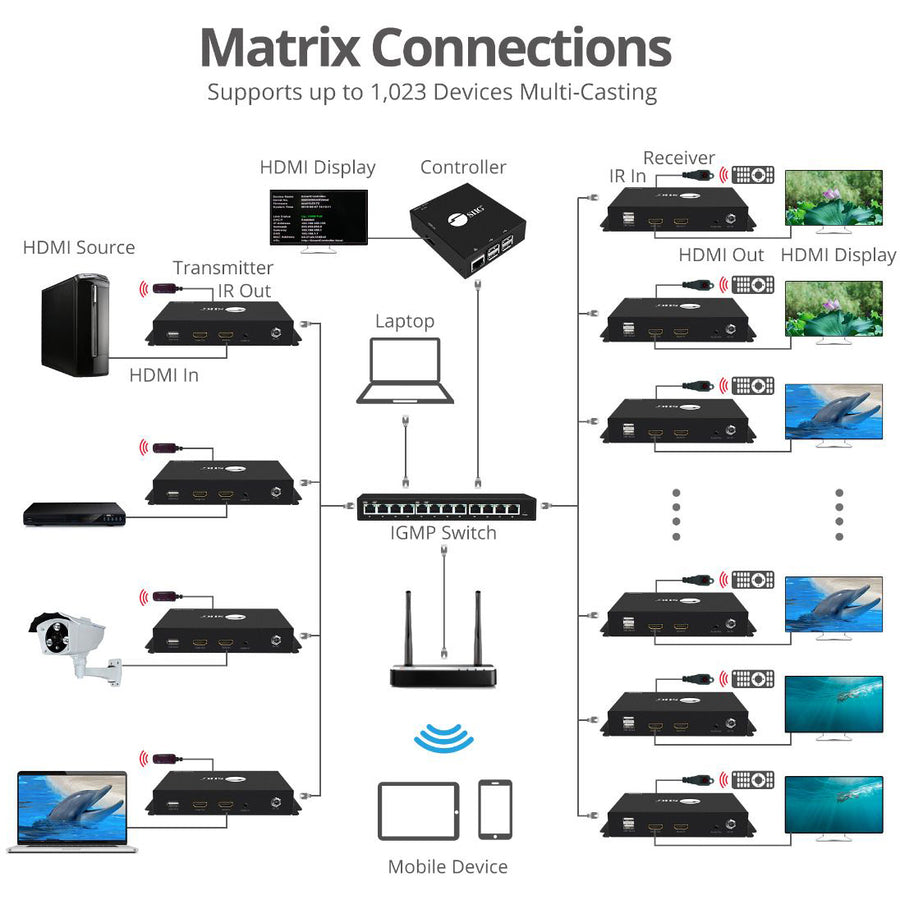

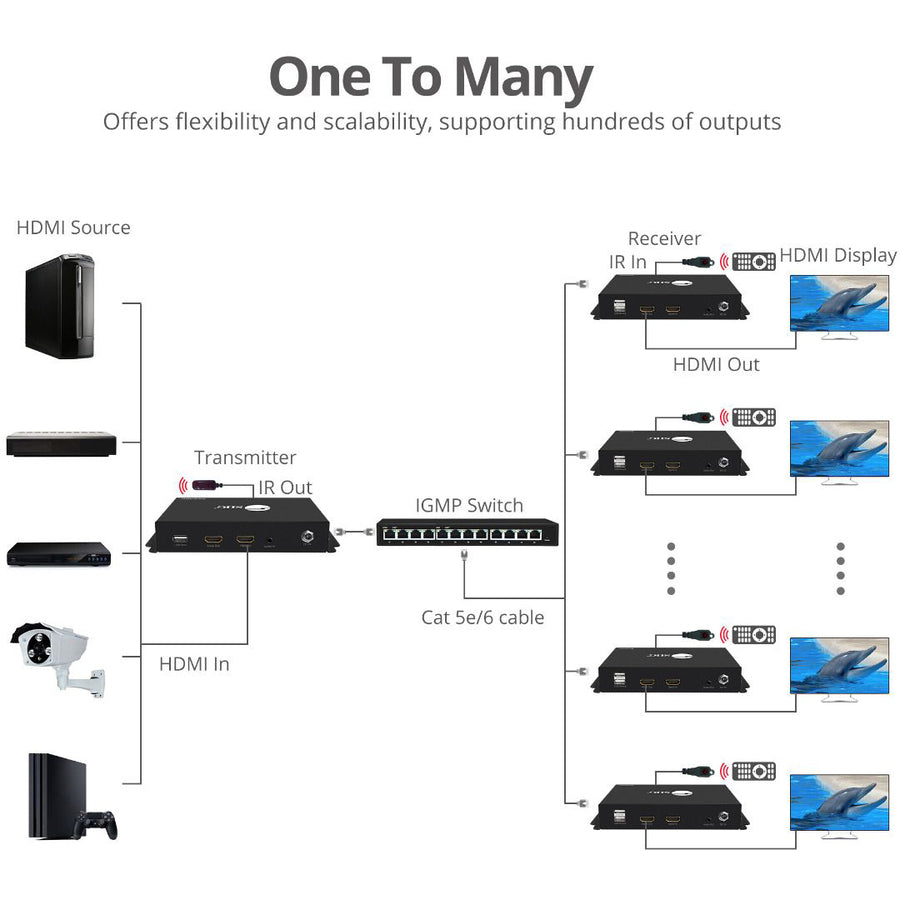

  • Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
  • Easy DIP switch matching for multi-casting group configuration
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Full Duplex RS-232 control up to 115,200 bps
  • Supports 180° and 270° clockwise image rotation
  • Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately
Maximum Operating Distance 394 ft
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
Number of Input Devices Suppo 1
Number of Network (RJ-45) Por 1
Number of Output Devices Supp 1
Number of USB Ports 2

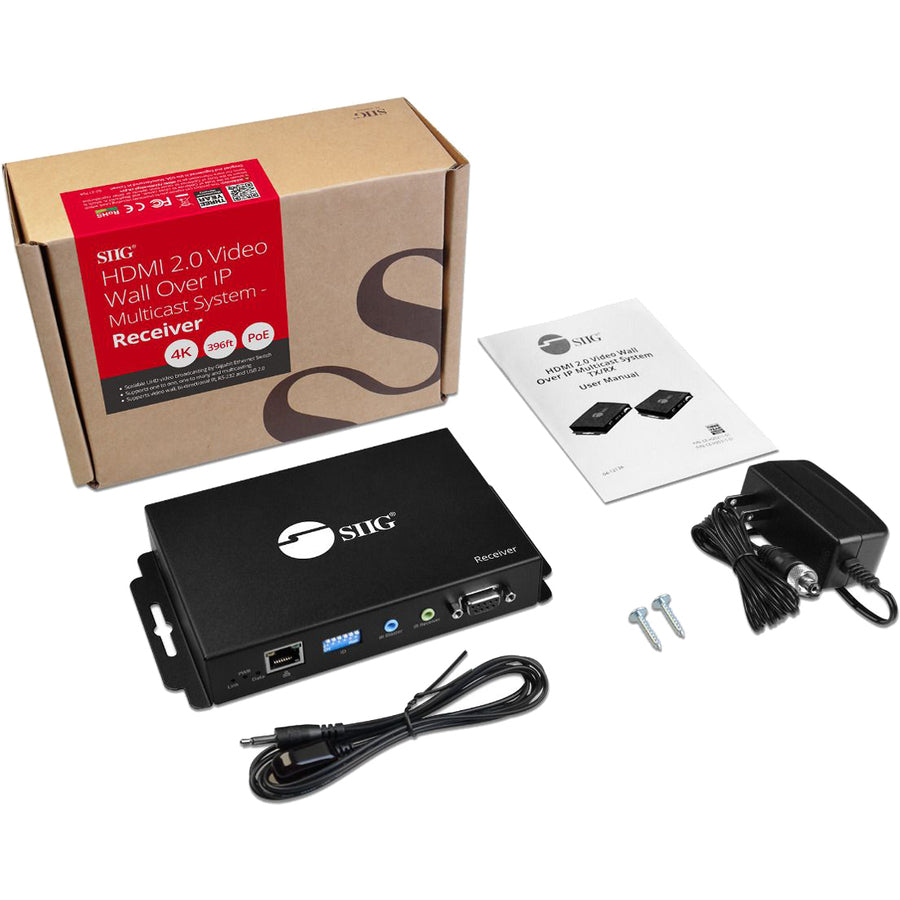

Package Contents
  • HDMI 2.0 Over IP Matrix and Video Wall - Receiver
  • Power Adapter 5V/2A
  • 1 x IR Receiver Cable
  • 2 x Screw Kit
  • Insert Card
  • User Manual
Product Name HDMI 2.0 Over IP Matrix and Video Wall - Receiver
Product Type Video Extender Receiver

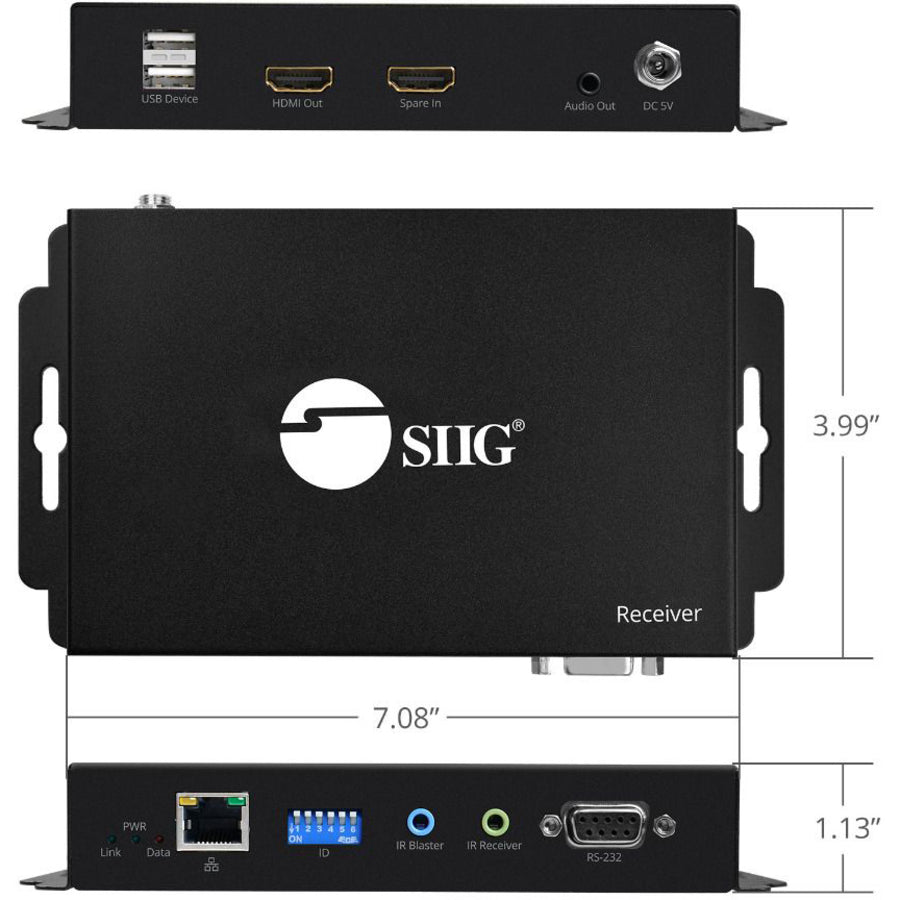

Receiver Depth 7.09"
Receiver Height 1.13"
Receiver Weight (Approximate) 1.07 lb
Receiver Width 4"
TAA Compliant Yes
Twisted Pair Cable Standard Category 5e
USB Yes
SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver - Supports Matrix Switching & Video Wall Function with the Controller (CE-H25411-S1) TAA Compliant
