SIIG HDMI HDBaseT 4x4 4K Matrix Kit

Item #: 5346520   |   Model #: 0662774041964

  |   10 Questions
Regular price
$1,699.00
Sale price
$1,699.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution
Type Value
Brand Name SIIG
Connectivity (RJ-45) Yes
Connectivity Technology Cable
Country of Origin China
Depth 5.9"
Device Supported DVD Player
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Rack-mountable
Graphics Modes 4K
HDMI In Yes
HDMI Out Yes
Height 1.1"
Limited Warranty 3 Year
Manufacturer SIIG, Inc
Manufacturer Part Number CE-H23W11-S1
Manufacturer Website Address http://www.siig.com
Marketing Information

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

  • Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously
  • HDBaseT outputs supports transmission distances up to 230ft (70m) @1080p and 131ft (40m) @4K resolution
  • Compliant with HDMI 1.4 and HDCP 2.2
  • Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D resolution
  • 3 HDBaseT outputs over CAT cables with 3 included Receivers and 1 HDMI output
  • Supports Bi-directional IR control, PoC, powerful EDID management, and manual and auto-detect HDCP management
  • Rack-mountable metal housing
  • Firmware upgradable through the Micro USB port
Maximum Operating Distance 229.66 ft
Maximum Video Resolution 4096 x 2160
Media Type Supported Twisted Pair
Number of Connectivity (RJ-45 4
Number of Displays Supported 4
Number of HDMI Inputs 4
Number of HDMI Outputs 1
Number of Input Devices Suppo 4
Number of USB Ports 1
Package Contents

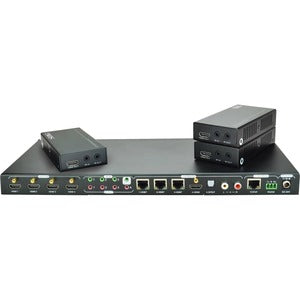

  • HDMI HDBaseT 4x4 4K Matrix Kit
  • 3 x HDBaseT Receiver
  • Power Adapter
  • IR Emitter Cable
  • IR Receiver Cable
  • IR Remote Control (without battery)
  • RS-232 Cable (Phoenix to 9-pin D-Sub)
  • 2 x Transmitter Mounting Ears
  • 6 x Screw
  • 4 x Transmitter Trapezoidal Plastic Pads
  • 6 x Receiver Mounting Ears
  • 6 x Screw
  • 12 x Receiver Round Plastic Pads
  • User Manual
Product Name HDMI HDBaseT 4x4 4K Matrix Kit
Product Type Audio/Video Switchbox
Weight (Approximate) 4.41 lb
Width 14.2"
SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution
