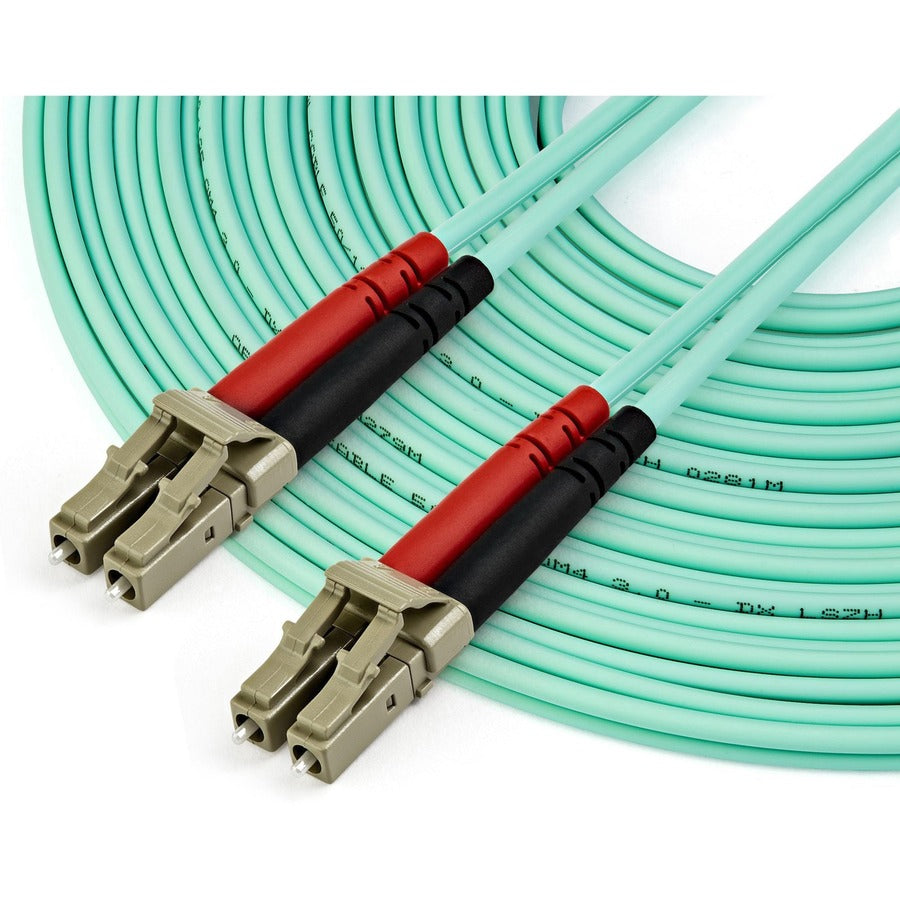

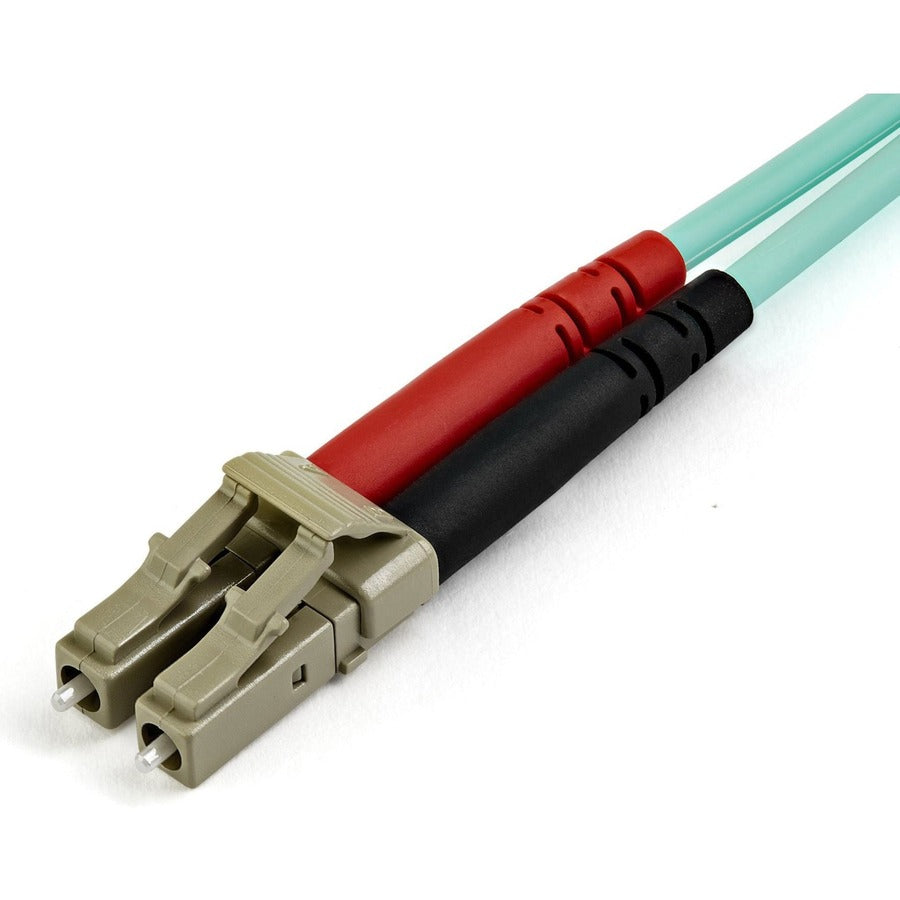

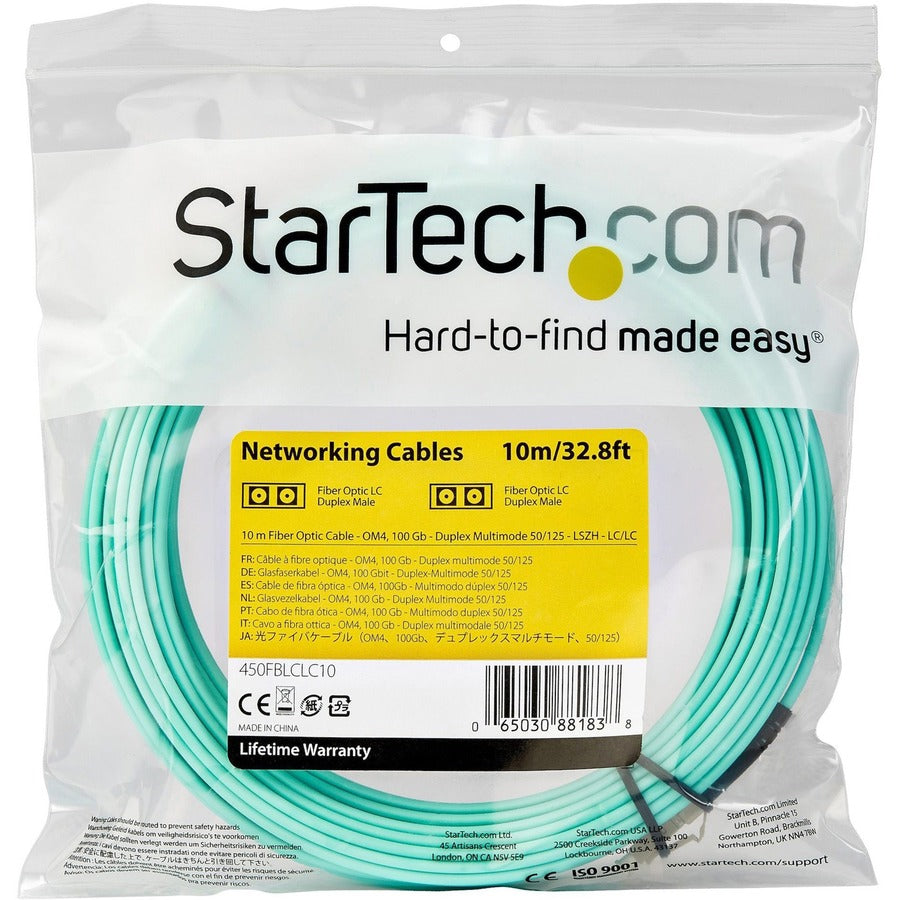

StarTech.com 10m (33ft) LC/LC OM4 Multimode Fiber Optic Patch Cable, 50/125µm, 100 Gbps Data Rate, LSZH Jacket

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com 10-meter (33-foot) LC/LC OM4 multimode fiber optic patch cable provides a reliable high-speed connection for demanding network environments. Designed with laser-optimized multimode fiber (LOMMF), this aqua-colored cable supports data transmission rates up to 100 Gbps, making it suitable for data centers, SANs, and high-density applications. The cable features high modal bandwidth, supporting 2000MHz/km at 850nm, which ensures efficient and robust data transfer over short distances. Its compatibility with 50/125µm fiber core/cladding and backward compatibility with legacy equipment makes it a versatile choice for upgrading existing networks. The cable's construction includes a protective aramid fiber sheath for increased tensile strength and crush resistance, ensuring durability in demanding conditions. The LC/LC connectors are polished with ceramic ferrules, maintaining insertion loss below 0.3dB and supporting industry-standard performance. The LSZH (Low-Smoke Zero-Halogen) jacket minimizes smoke and fumes in case of fire, enhancing safety in confined environments. Each cable is individually tested to meet strict optical insertion loss standards, guaranteeing reliable signal integrity and performance. This full-duplex zip-cord design, with color-coded TX/RX connectors, simplifies installation and troubleshooting, supporting various transceivers and high-speed network devices. Whether deploying for new infrastructure or expanding existing systems, this fiber patch cable offers a high-quality, flame-retardant, and environmentally safe solution to meet your networking needs.

Features:

• SPECS: 10m (33ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards

• QUALITY CONSTRUCTION: 50/125
