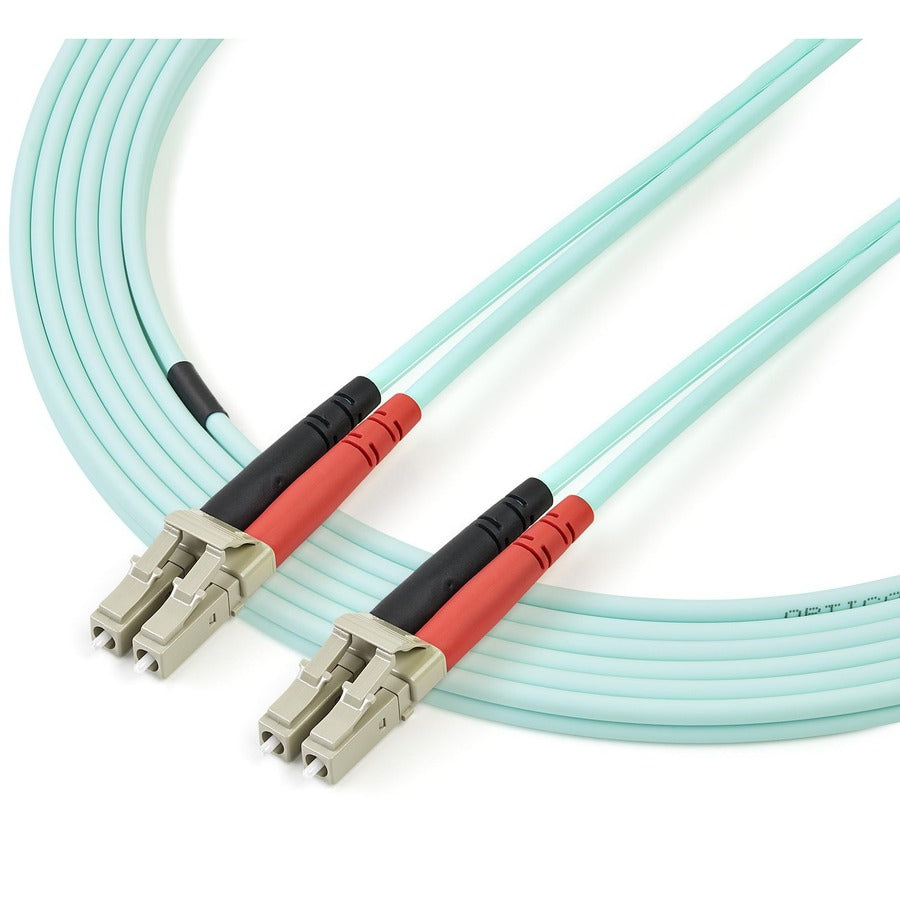

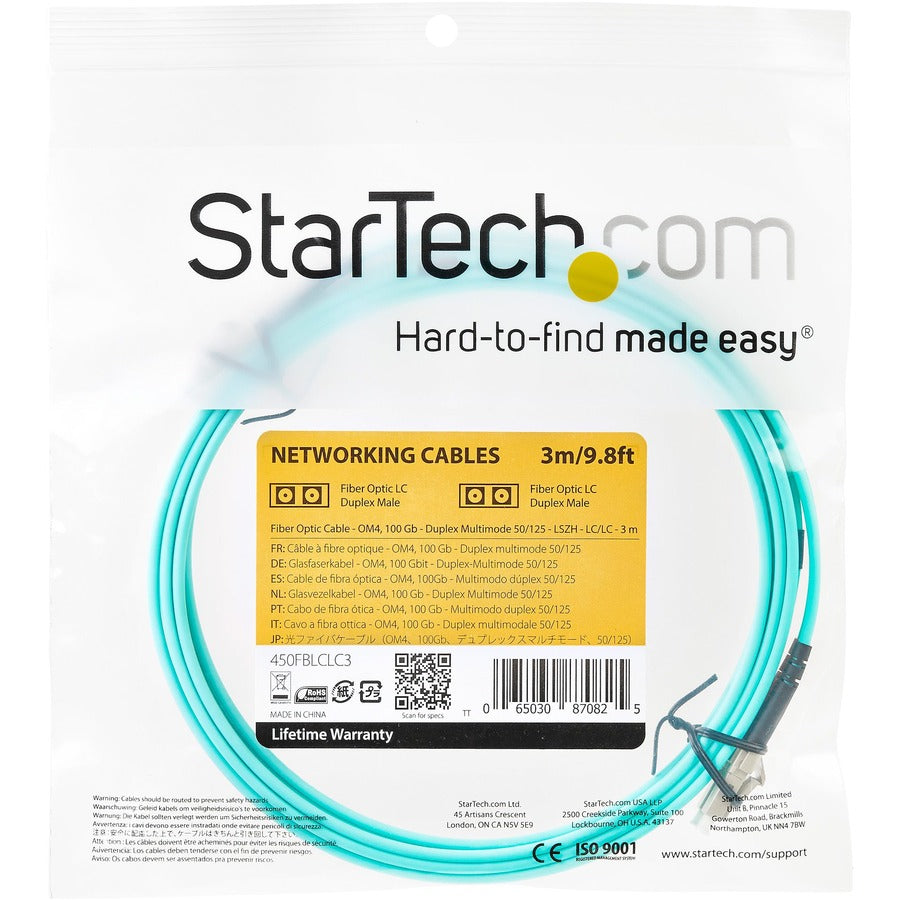

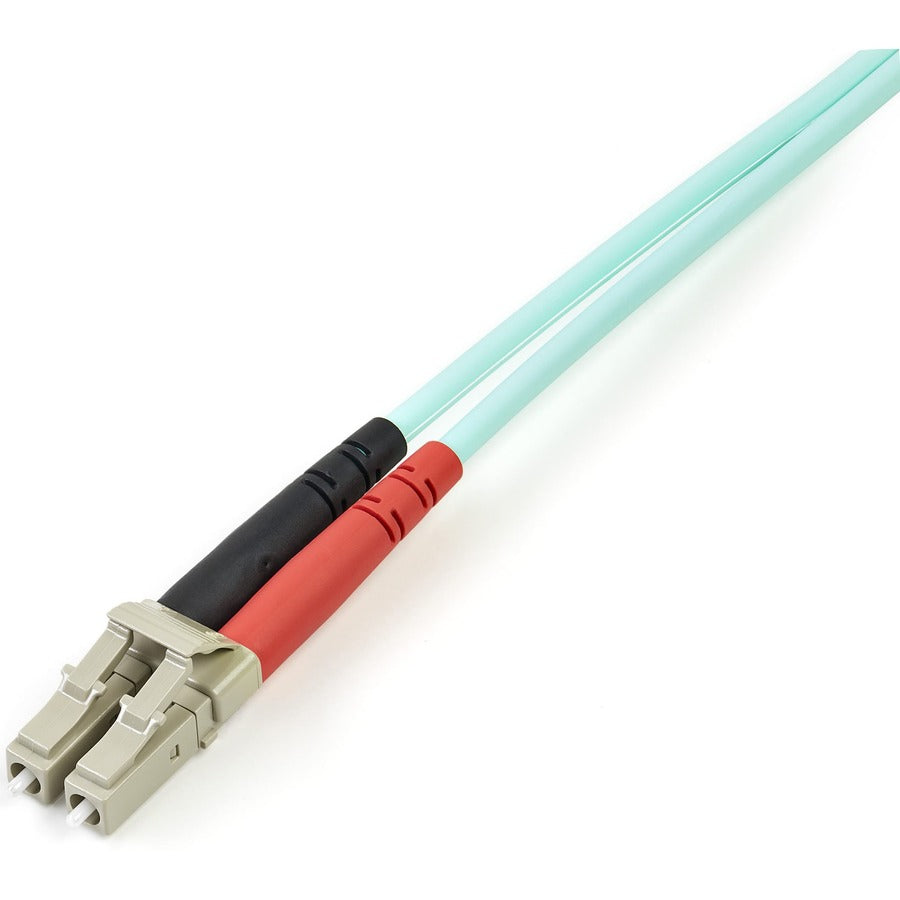

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable - 50/125μm, 100G Data Transfer, LSZH Jacket

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 multimode fiber optic cable is designed for high-speed data transmission in demanding network environments. With a length of approximately 10 feet, this cable provides reliable connections between transceivers supporting 40GBase-SR4, 100GBase-SR10, SFP+, and QSFP+ modules. Its aqua-colored, laser-optimized OM4 fiber core ensures efficient signal transmission over multimode channels, making it suitable for data centers, enterprise networks, and high-density server applications. The cable features a low-smoke, zero-halogen (LSZH) flame-retardant jacket that minimizes smoke and toxic fumes in case of fire, enhancing safety in industrial and public settings. Constructed with a 50/125μm core/cladding, the cable is immune to electromagnetic interference (EMI), ensuring clean signal integrity even in electrically noisy environments. The protective aramid fiber sheath boosts tensile strength and crush resistance, safeguarding the delicate fiber core during installation and operation. The LC/UPC connectors with polished ceramic ferrules deliver insertion losses below 0.3dB, supporting high-performance networking with minimal signal degradation. Compatibility with 850nm VCSEL and LED light sources allows versatile use across various equipment and applications. Certified to meet industry standards for attenuation and reliability, the cable supports data rates up to 100 Gbps, making it ideal for high-bandwidth applications like SANs, data servers, and storage networks. Its flexible design, with a bend radius of just over 1 inch, facilitates easy installation in tight spaces. Backed by a lifetime warranty, this fiber optic cable ensures long-term performance and durability, providing a robust solution for enterprise and industrial networking needs.

Features:

• SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• Compatibility: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10

• Ratings and Reliability: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards

• Quality Construction: 50/125μm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB

• OM4 Fiber Cable: OM4 laser-optimized multimode fiber delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and storage
