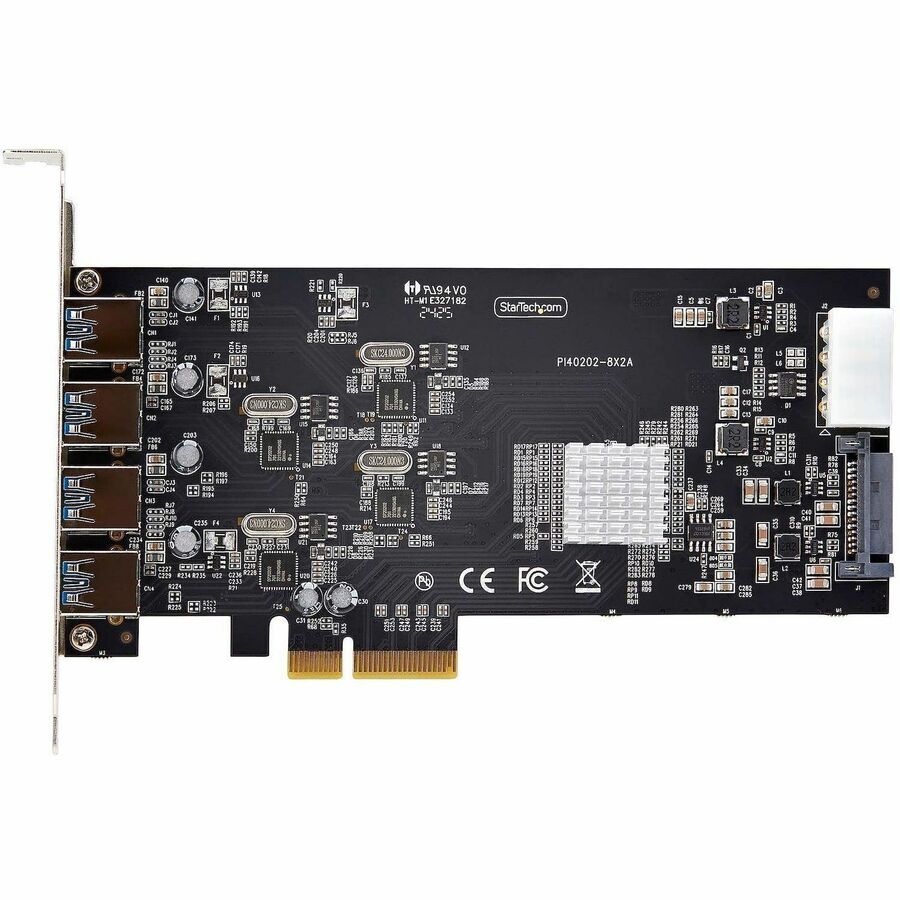

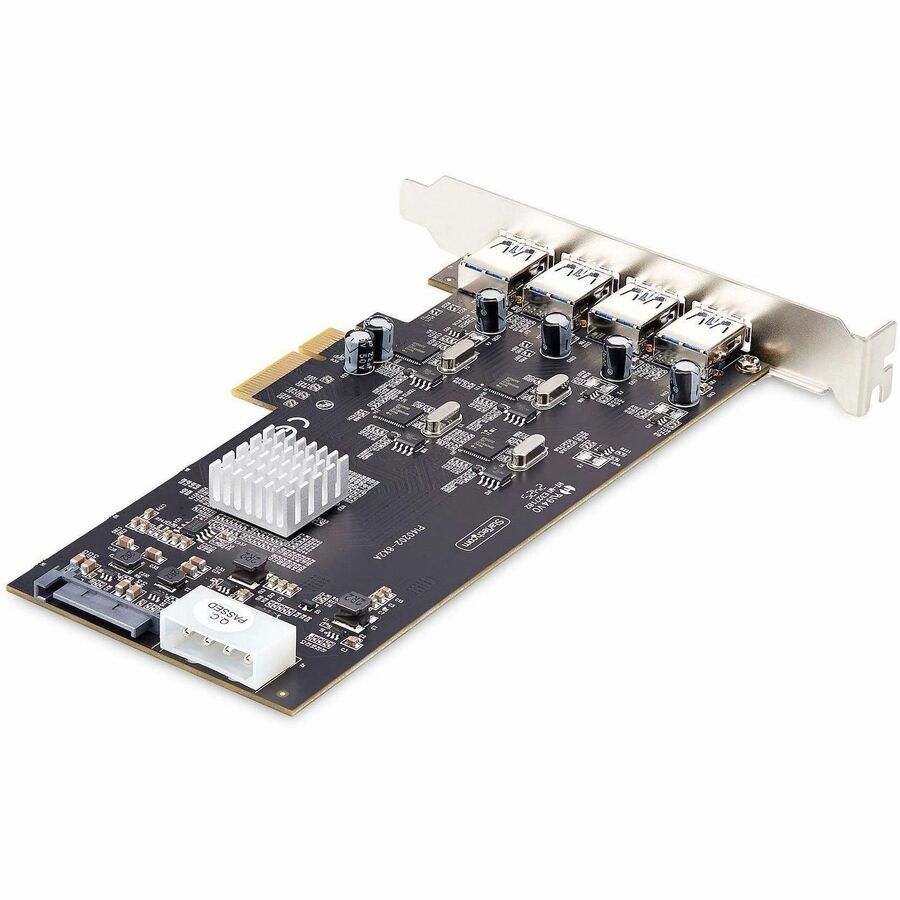

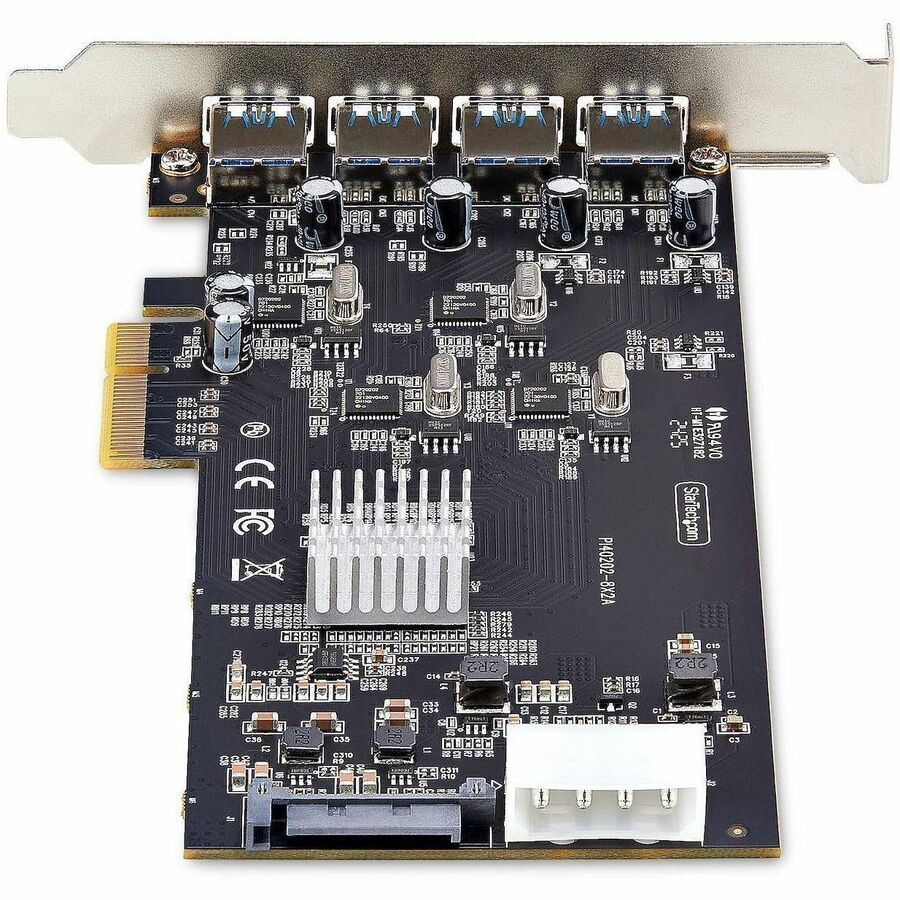

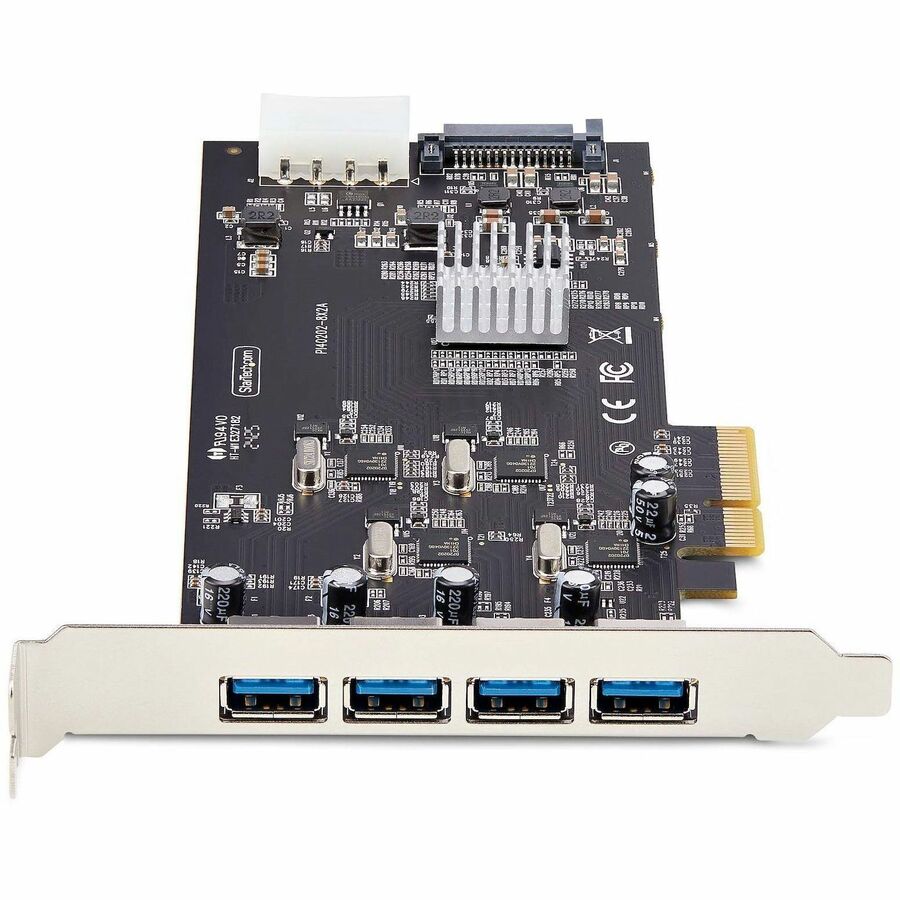

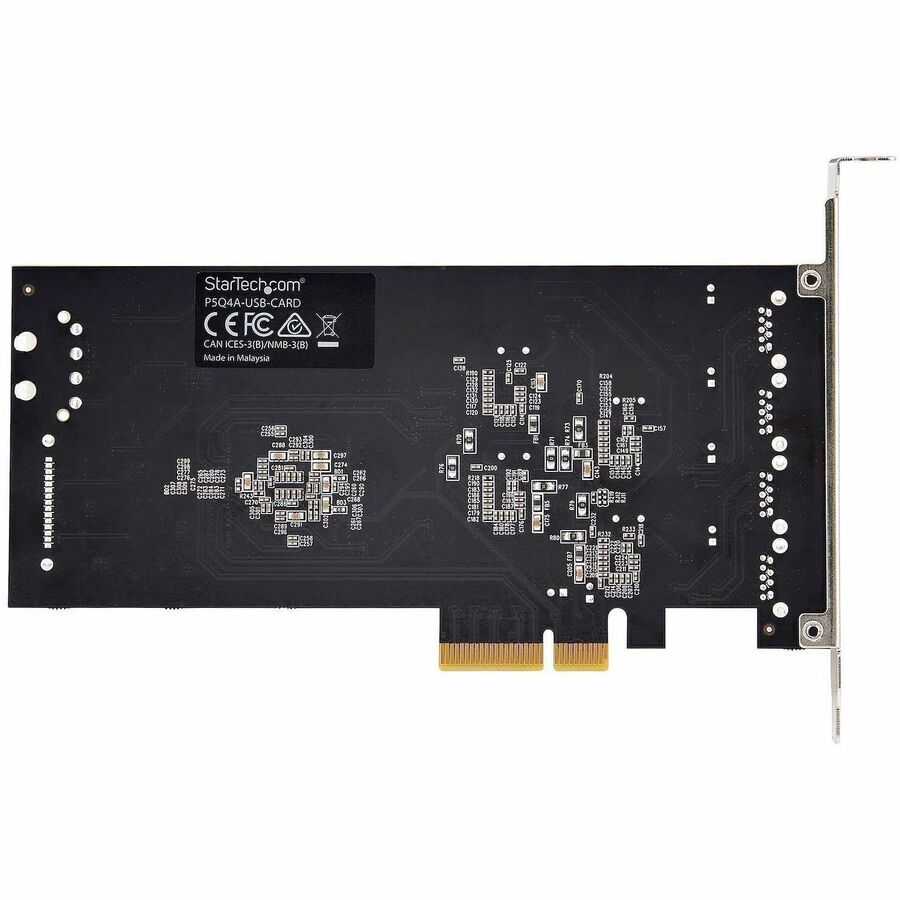

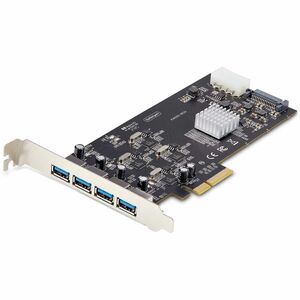

ContactStarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports
Item #: P5Q4AUSBCARD | Model #: P5Q4A-USB-CARD
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Hard Drive |
| Brand Name | StarTech.com |
| Color Family | Black |
| Data Transfer Rate | 640 MB/s |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Height | 0.7" |
| Host Interface | PCI Express x4 |
| Length | 6.6" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | P5Q4A-USB-CARD |
| Manufacturer Website Address | http://www.startech.com |

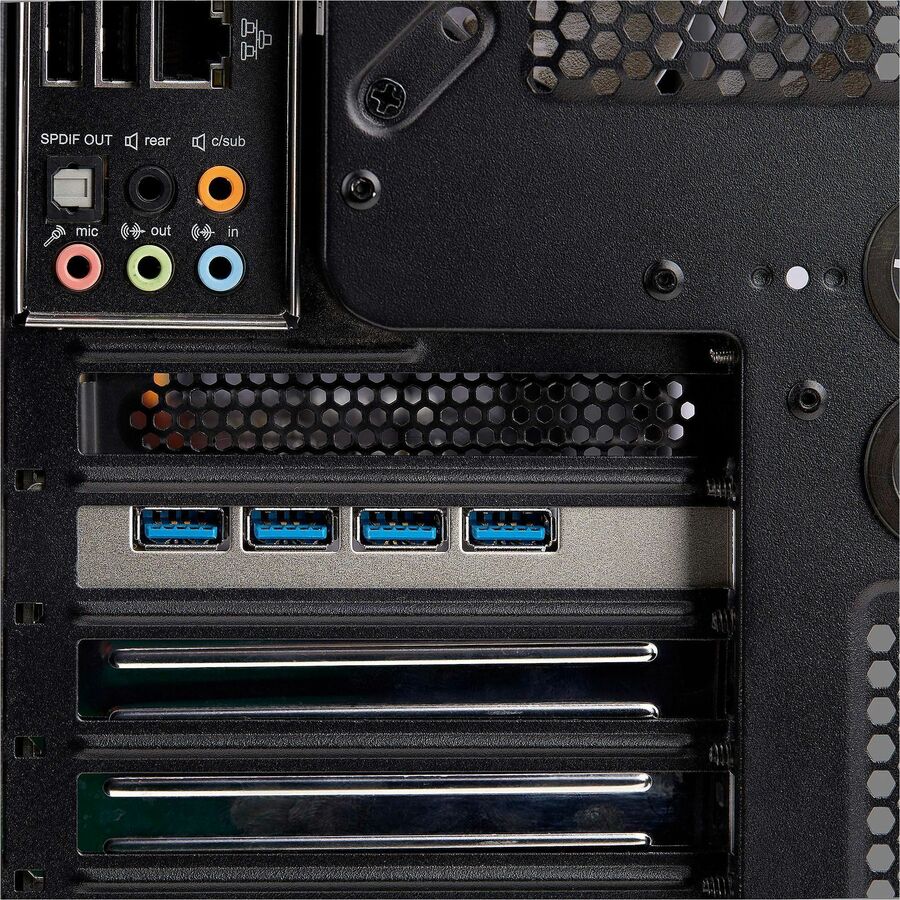

| Marketing Information | Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection. Dedicated USB 5Gbps Per Port When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps. Charge USB Devices This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient. Compatibility The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. The expansion card supports hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables. |
| Number of SATA Ports | 1 |
| Operating System Supported | Linux 2.6.31 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Product Color | Black |
| Product Name | USB Adapter |
| Product Type | USB Adapter |
| Total Number of USB Ports | 4 |
| UASP Support | Yes |
| USB Connector Type | Type-A |
| USB Version | 3.2 Gen 1 |
| Weight (Approximate) | 3.50 oz |
| Width | 4.7" |
