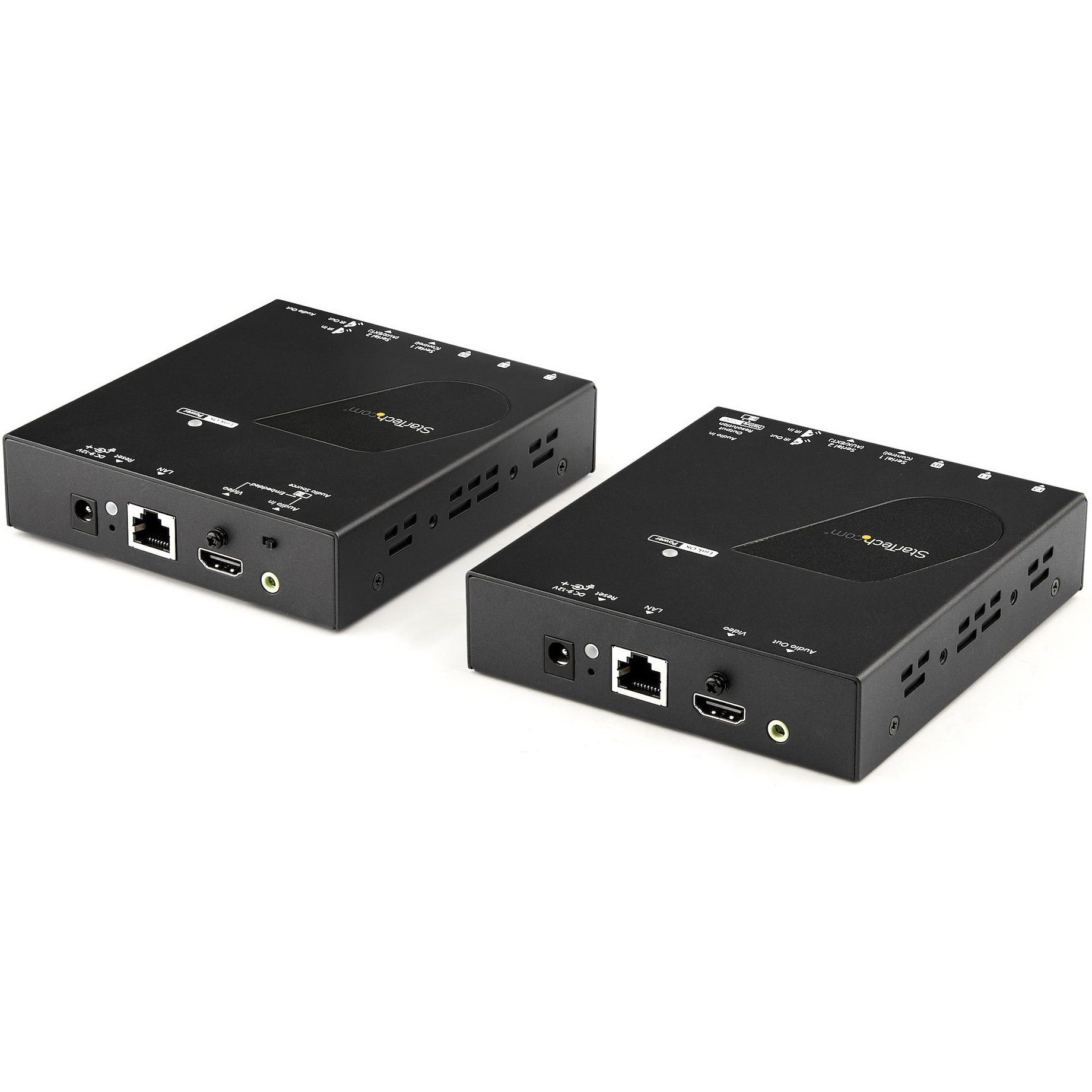

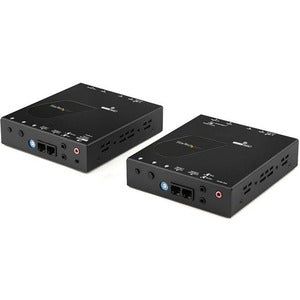

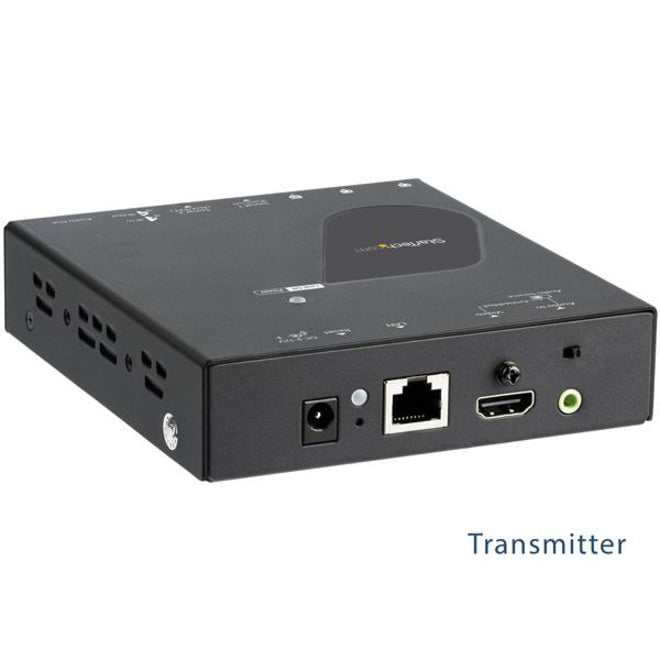

ContactStarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K)
Item #: 5430261 | Model #: 0065030878456
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Color | Black |
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Graphics Modes | Full HD |
| HDMI In | Yes |
| HDMI Out | Yes |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST12MHDLAN2K |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | ThisHDMIover IP extenderkitdistributesvideoto a remote location,overyour local area network (LAN) andCat5orCat6Ethernetcabling.Bycombining this kit withadditional receivers(sold separately)and anEthernet switch (sold separately)you can distributeanHDMIsourceto multiplelocationsandcreatevideo wallsusingseveral remote displays and receivers in the same location. You canalsouse multiple transmitters on the same networktodistributedifferent videosourcesorconnect the transmitterdirectlyto a receiveratup to 330 ft. (100 m), in a point-to-pointsetup.Remotecontrolofserial devicesis supportedthroughRS-232 extension. Resolutionsupto 1080p,with Audio With support forvideo resolutionsup to 1080p(1920x1080at60Hz),the transmitteralsosupports digital andanalog audio to the receiver and analog audio from the receiver to the transmitter. Mobile ControlThrough aFreeApp The kit includesan easy-to-useonlineapp to manageyourIPvideodistribution. Theappis available on iOS foraniPhone or iPad, Android forasmartphone or tablet, and Google Chrome browser foradesktop. Download the StarTech.com Video Control software to manage your IP video distribution. NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled. Hassle-Free Installations TheHDMI transmitter/receiver kitincludes optionalshelf-mountinghardware.ItusesCat5e orCat6cablesandworkswithexisting networkinfrastructures,eliminatingthe expenseof runningproprietarycables. ST12MHDLAN2Kis backed by a StarTech.com 2-year warranty and freelifetime technical support. |
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Input Devices Suppo | 1 |
| Number of Network (RJ-45) Por | 2 |
| Number of Output Devices Supp | 1 |

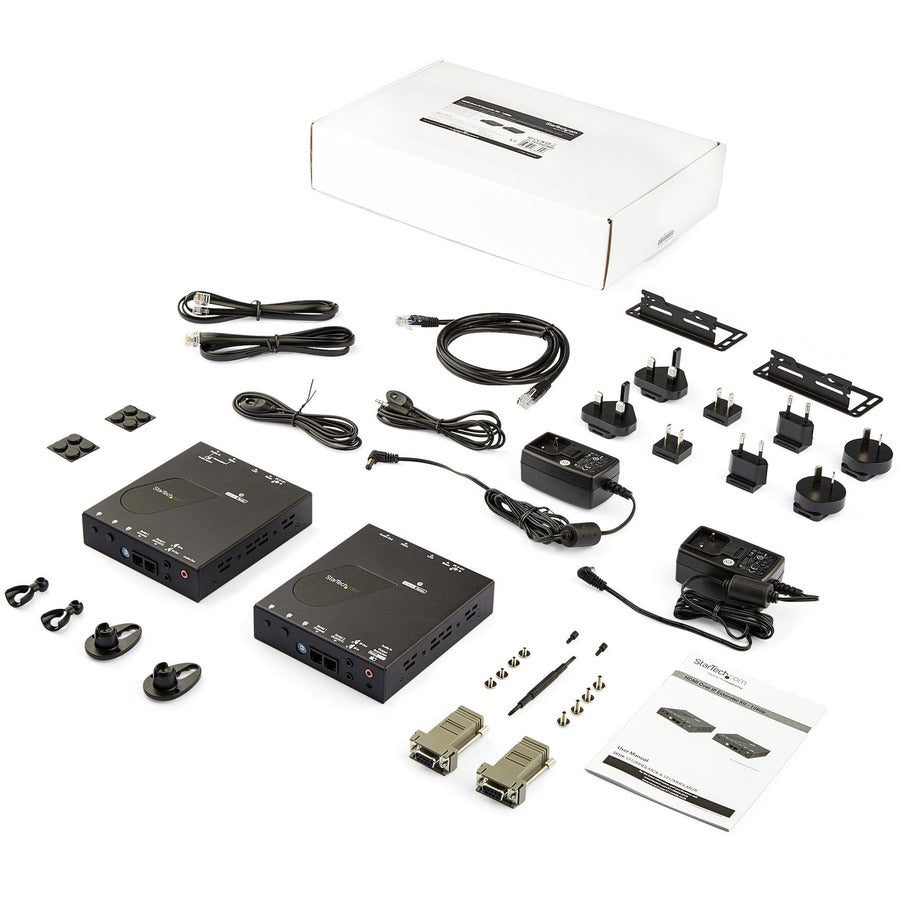

| Package Contents |
|
| Product Name | HDMI over IP Extender Kit with Video Wall Support - 1080p |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 5.20" |
| Receiver Height | 1.20" |
| Receiver Weight (Approximate) | 2.60 oz |
| Receiver Width | 4.60" |
| Serial Port | Yes |
| TAA Compliant | Yes |
| Transmitter Depth | 5.20" |
| Transmitter Height | 1.20" |
| Transmitter Weight (Approxima | 2.60 oz |
| Transmitter Width | 4.60" |
| Twisted Pair Cable Standard | Category 6 |
