StarTech.com Industrial 8 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

Item #: 5999810   |   Model #: 0065030889605

  |   10 Questions
Regular price
$455.99
Sale price
$455.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Brand Name StarTech.com
Country of Origin Taiwan
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Form Factor Wall Mountable
Height 1.6"
Layer Supported 2
Length 5.6"
Limited Warranty 2 Year
Manageable No
Manufacturer StarTech.com
Manufacturer Part Number IESC1G80UP
Manufacturer Website Address http://www.startech.com
Marketing Information

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.

Material Steel
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Network Technology 10/100/1000Base-T
Networking Standards IEEE 802.3x
Package Contents
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block

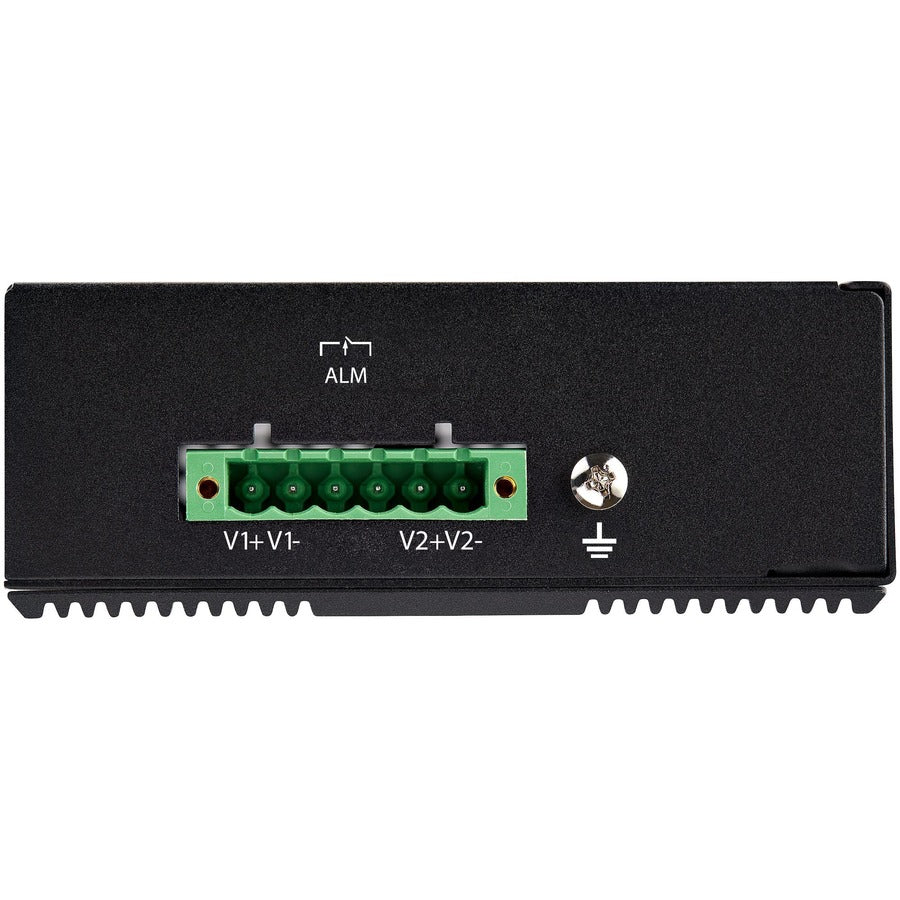

Plug/Connector Type Terminal Block
PoE (RJ-45) Port Yes
PoE Budget 200 W

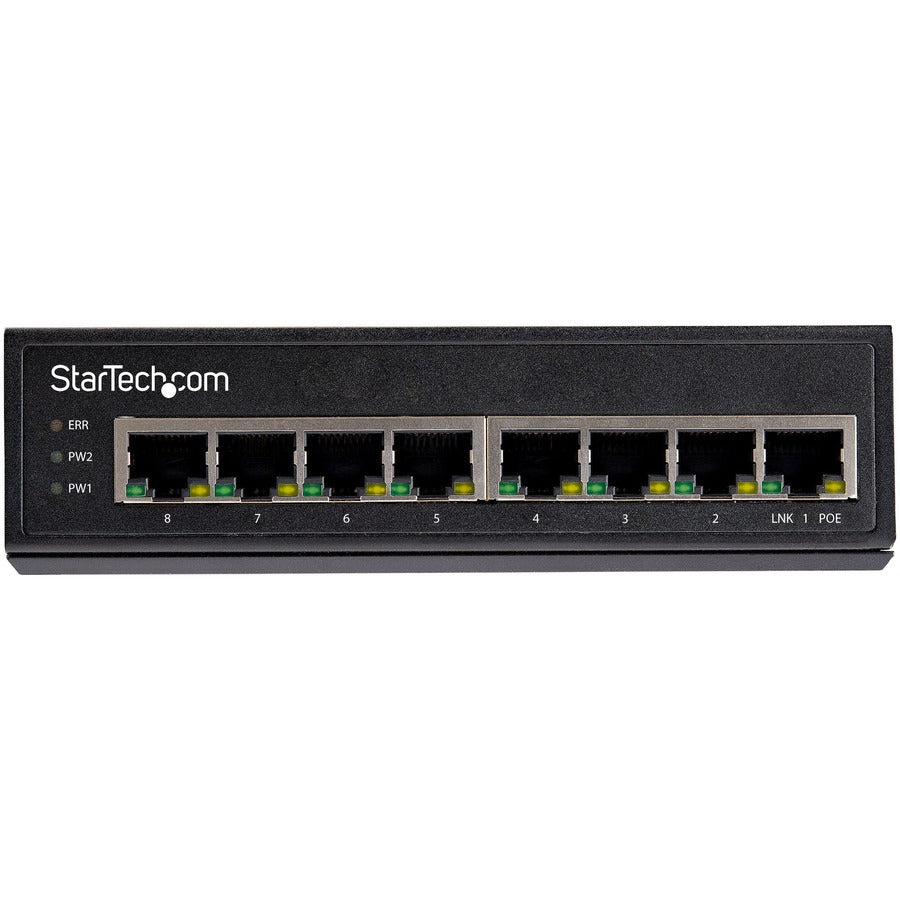

Port/Expansion Slot Details 8 x Gigabit Ethernet PoE+
Power Consumption 206 W
Power Source PoE+
Product Name Ethernet Switch
Product Type Ethernet Switch
Total Number of Network Ports 8
Weight (Approximate) 1.18 lb
Width 4.1"
