ContactStarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m
Item #: MCMGBSCMM055 | Model #: 0065030878227
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | StarTech.com |
| Country of Origin | Taiwan |
| Depth | 2.8" |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 850 nm |
| Form Factor | Wall Mountable |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MCMGBSCMM055 |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks. Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support. |
| Maximum Distance Supported | 1804.46 ft |
| Media Type Supported | Optical Fiber |
| Network (RJ-45) | Yes |
| Network Technology | 10Base-T |
| Number of Network (RJ-45) Por | 1 |
| Number of SC Ports | 1 |

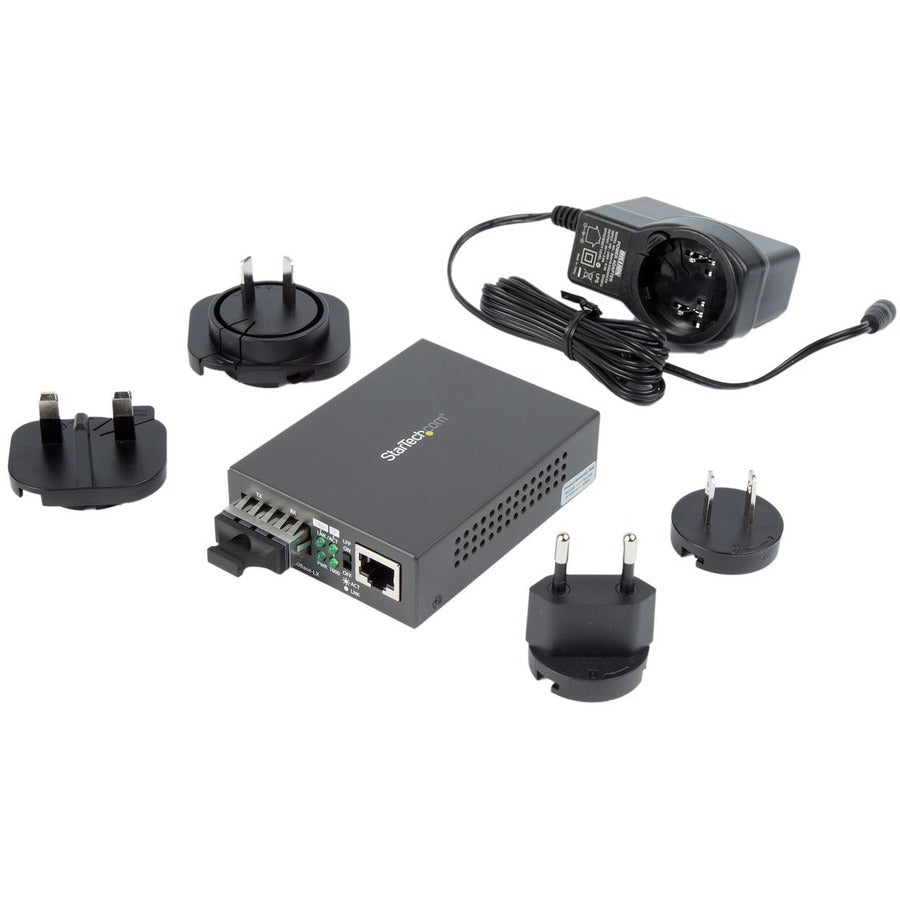

| Package Contents |
|
| Packaged Quantity | 1 |
| Plug/Connector Type | Type N |
| Power Consumption | 10 W |
| Power Source | AC Adapter |
| Product Name | Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m |
| Product Type | Transceiver/Media Converter |
| SC Port Type | Duplex |
| TAA Compliant | Yes |
| Total Number of Ports | 2 |
| Weight (Approximate) | 7.10 oz |
| Width | 3.8" |
