Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet

Item #: RKLCDBK   |   Model #: 0065030834896

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Additional Information
  • Constructed from solid cold pressed steel (SPCC) for durability Engineered to meet EIA and VESA standards, this LCD bracket will work with most 17 and 19 inch LCD monitors
  • Supports a rack/cabinet installation, or a wall mounted configuration for a versatile LCD mounting solution
Brand Name
Certifications & Standards


  • 100mm
  • 75mm
Color Black

17" and 19" LCD Monitor

Depth 4.2"
Device Supported LCD Display
Environmental Certification REACH
Environmentally Friendly Yes
Height 7"
Limited Warranty Lifetime
Manufacturer Part Number RKLCDBK
Manufacturer Website Address
Marketing Information

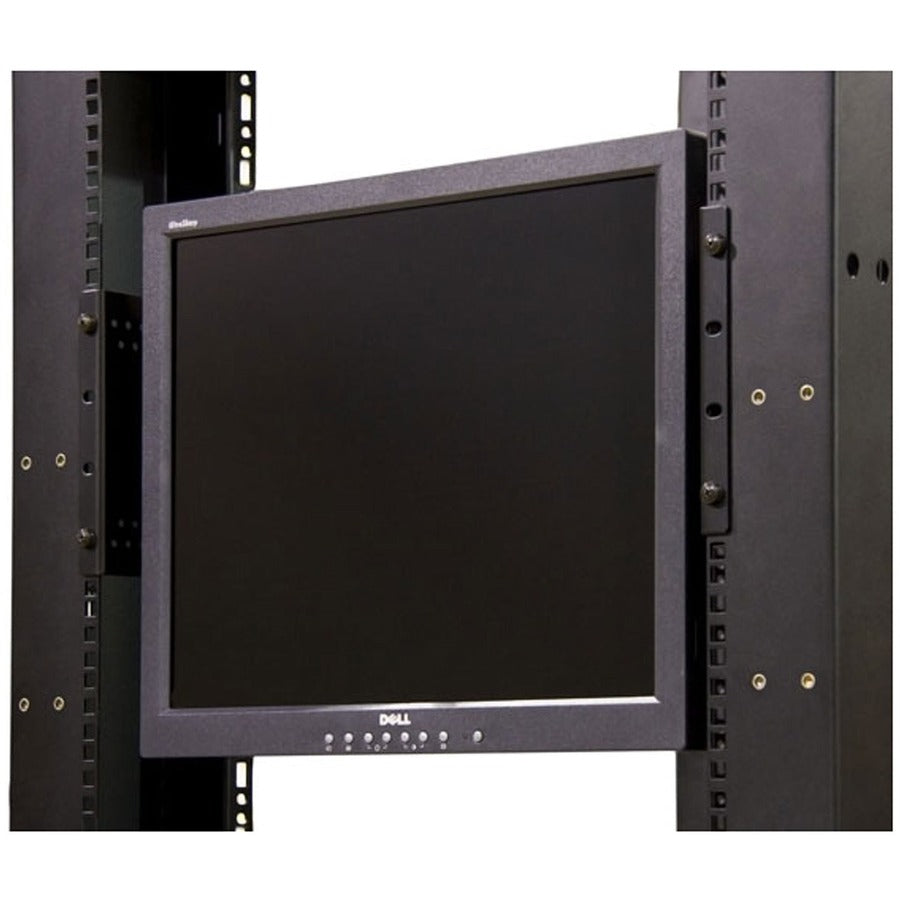

The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

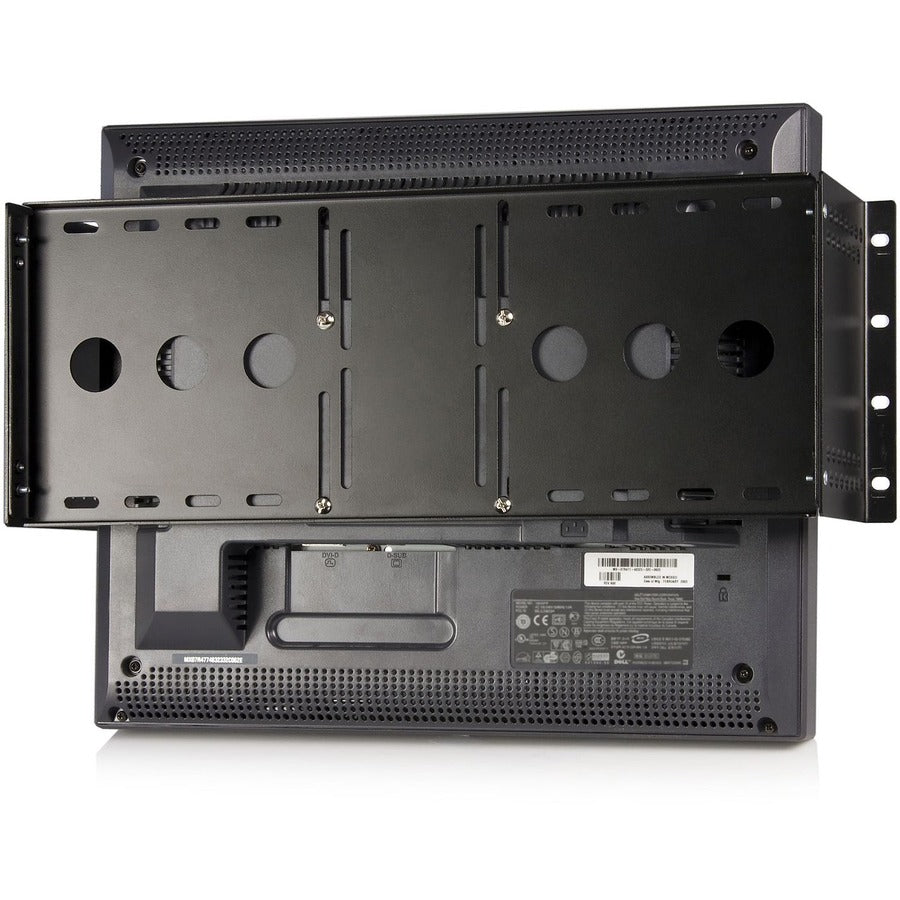

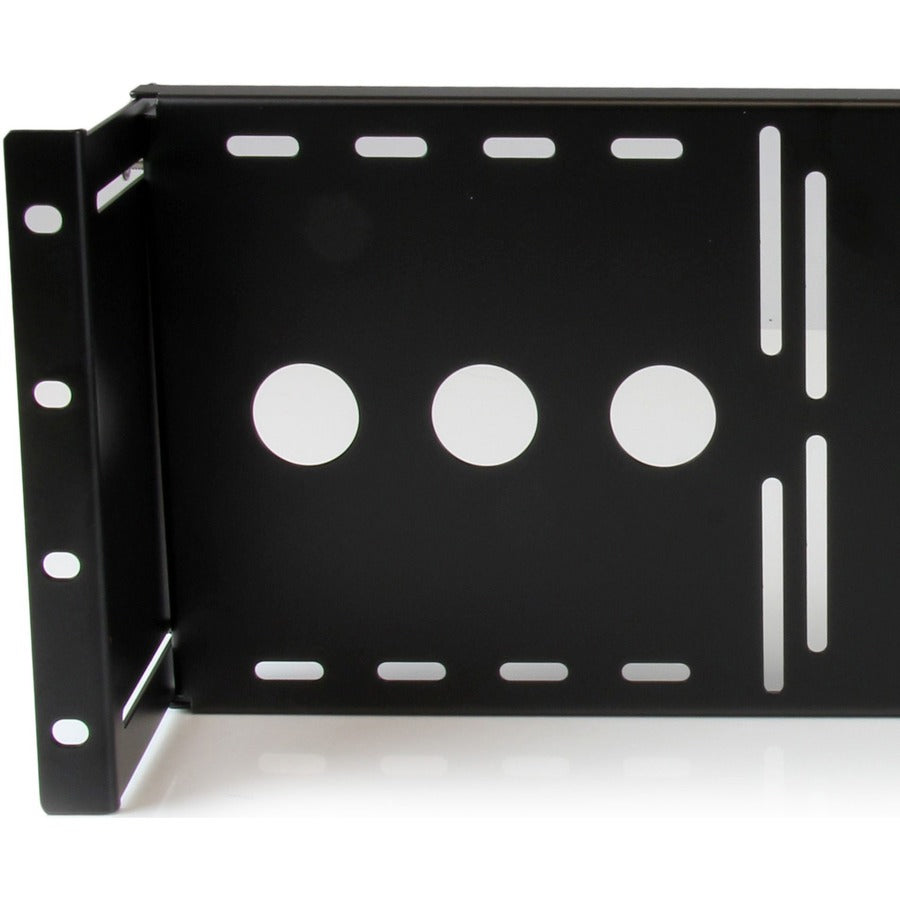

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

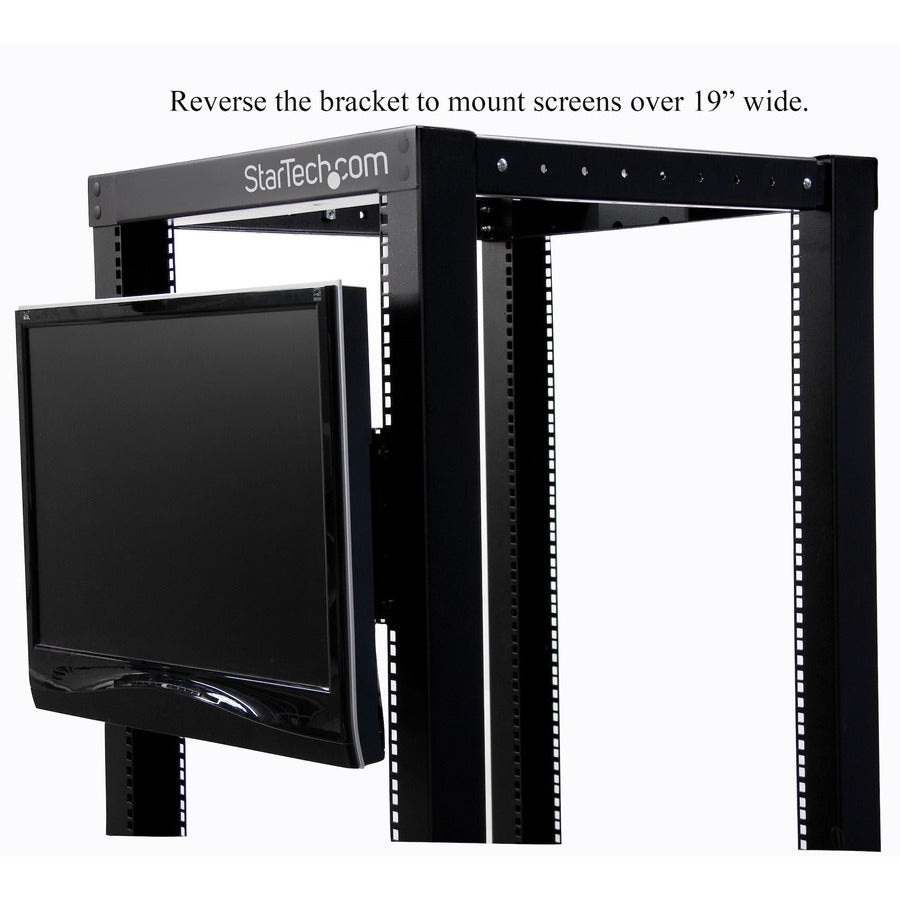

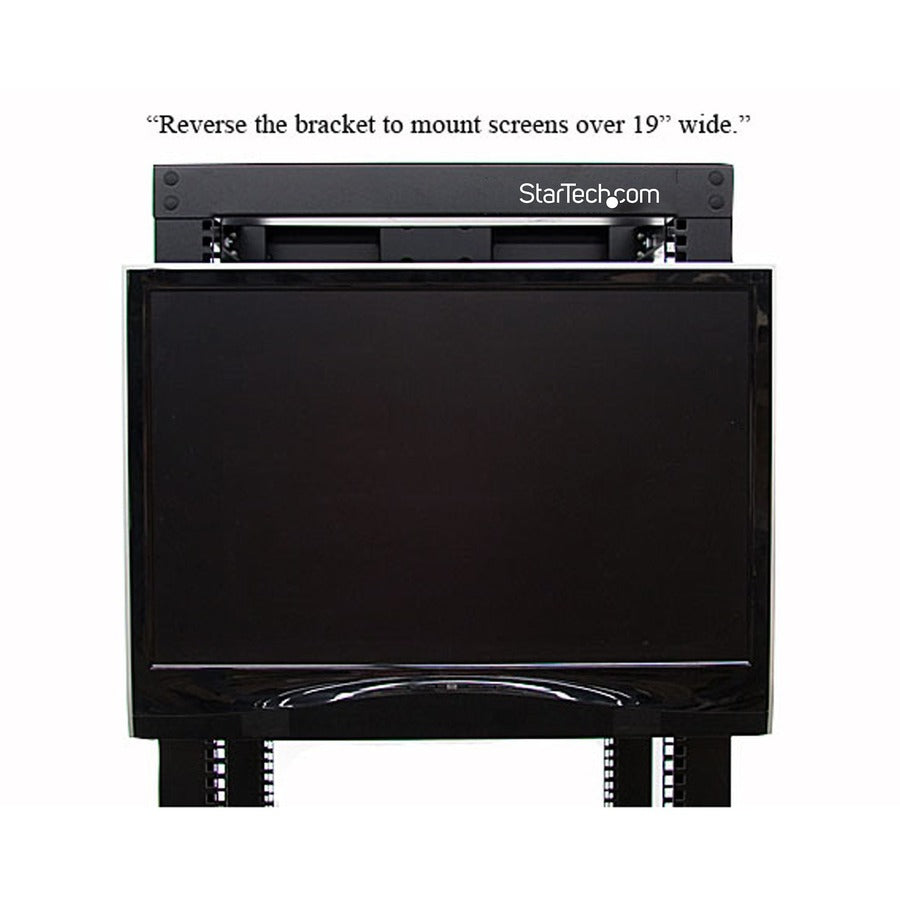

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).

Backed by a Lifetime warranty.

More from the Manufacturer

Material Steel
Maximum Screen Size Supported 19"
Minimum Screen Size Supported 17"
Package Contents
  • 1 x LCD bracket
  • 8 x M5 cage nuts
  • 8 x M5 screws
  • 4 x M4 x 10mm LCD mounting screws
  • 4 x M5 x 10mm bracket screws
  • 4 x washers
  • 1 x instruction manual
Product Name Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet
Product Type Mounting Bracket
TAA Compliant Yes
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Weight (Approximate) 3.77 lb
Width 33.1"
