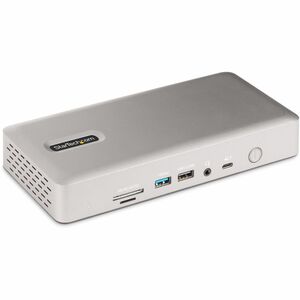

ContactStarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DP, 7x USB Hub, 2.5Gb Ethernet, 98W PD
Item #: JQ6555 | Model #: 132N-TB4USB4DOCK
| 10 Questions
| Type | Value |
|---|---|
| Brand Compatibility | Apple |
| Brand Name | StarTech.com |
| Cable Length | 3.28 ft |
| Charging Capability | Yes |
| Color Family | Gray |
| Compatibility | Compatible Devices:
|
| Connectivity Technology | Wired |
| Device Supported | Notebook/Tablet/Monitor/Headset/Speaker/Smartphone |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Features | Power Delivery Pass-through |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Headphone/Microphone Combo Po | Yes |

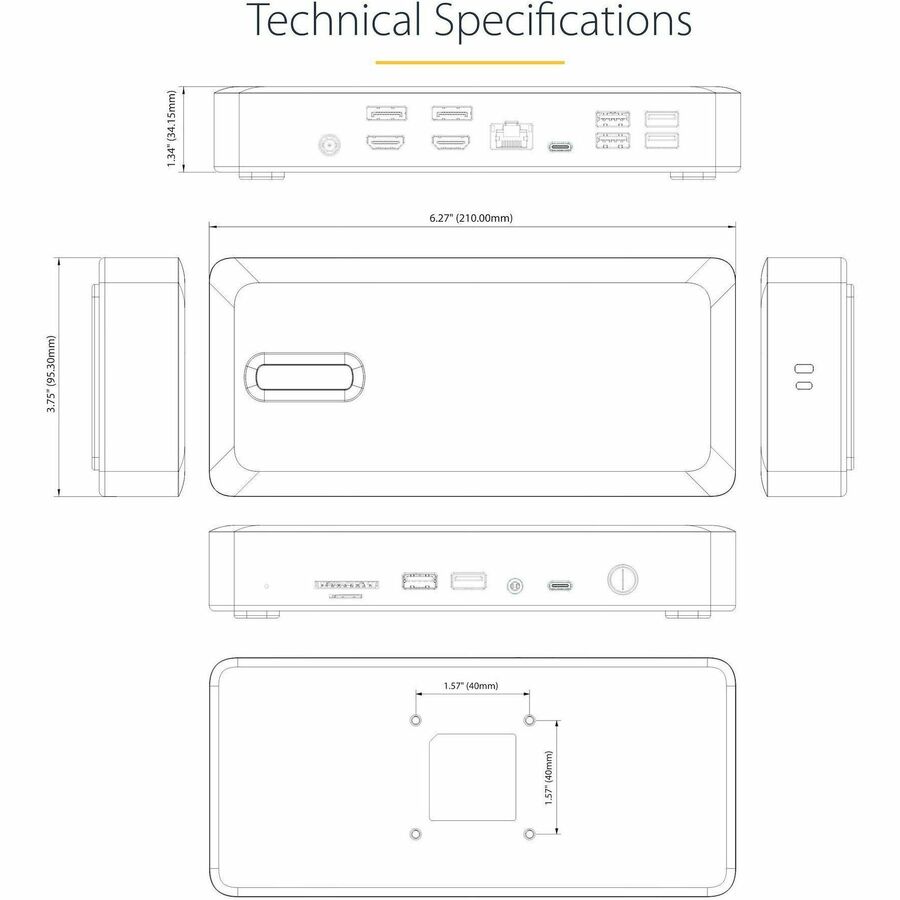

| Height | 1.40" |
| Host Interface | Thunderbolt 4 |
| Input Voltage Detail | 230 V AC |
| Kensington Security Slot | Yes |
| Limited Warranty | 3 Year |
| Management Features | MAC Address Pass-through |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 132N-TB4USB4DOCK |
| Manufacturer Website Address | http://www.startech.com |

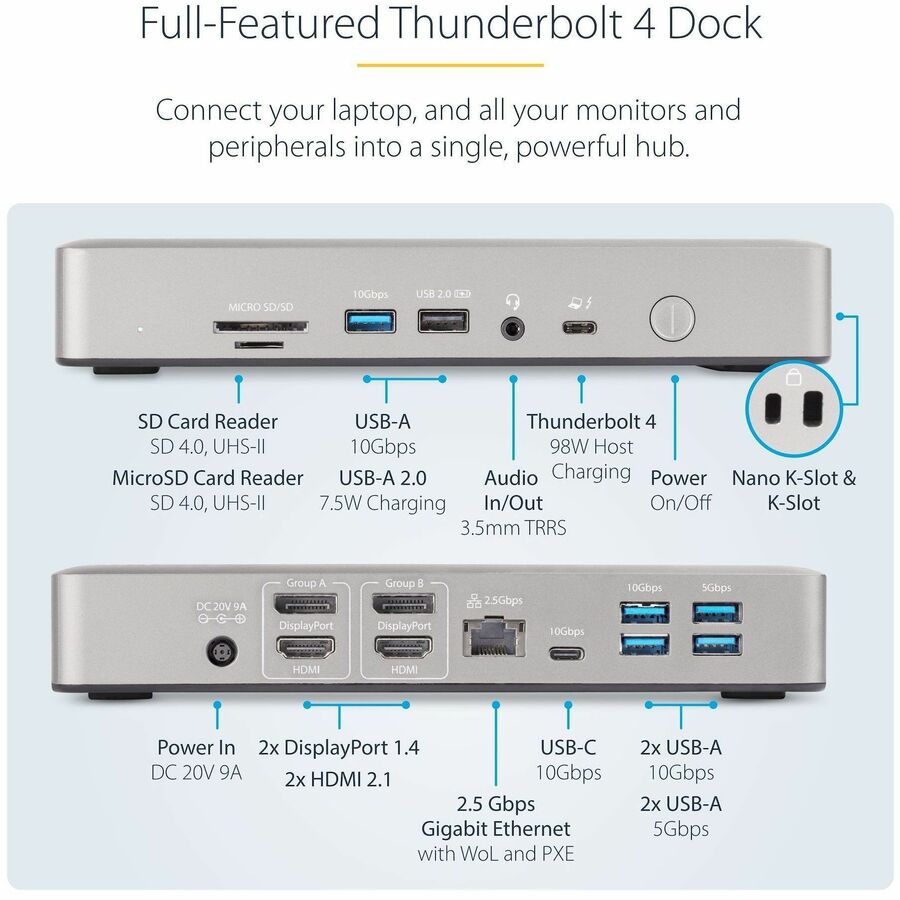

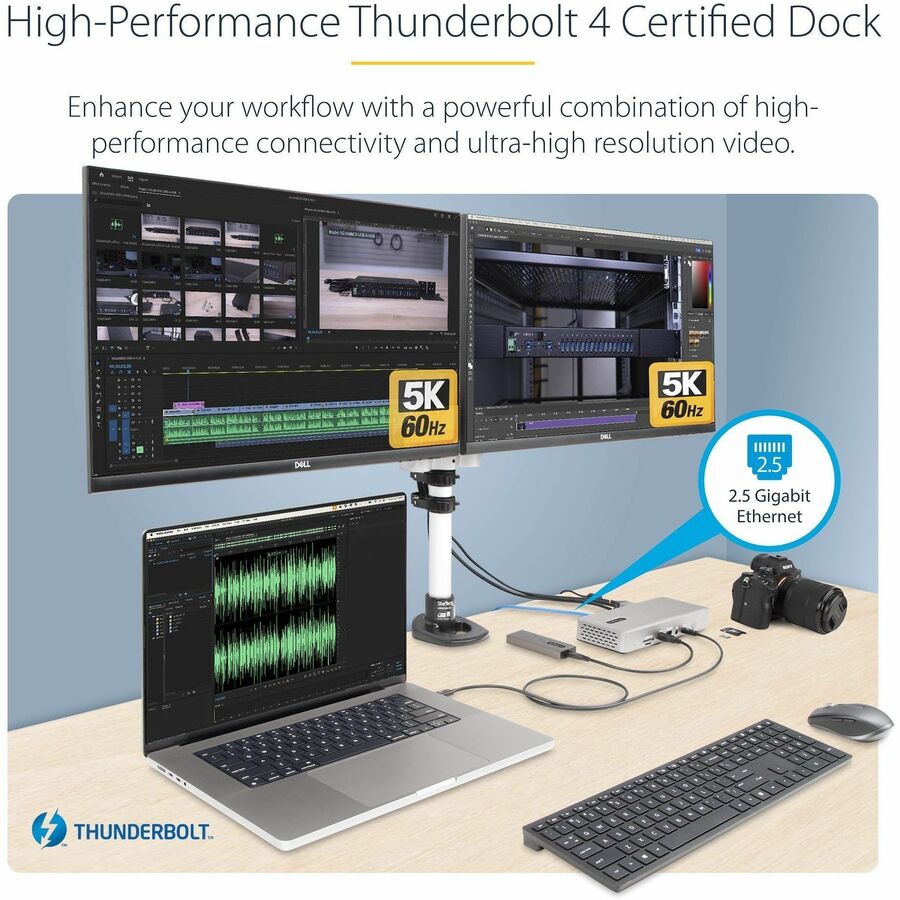

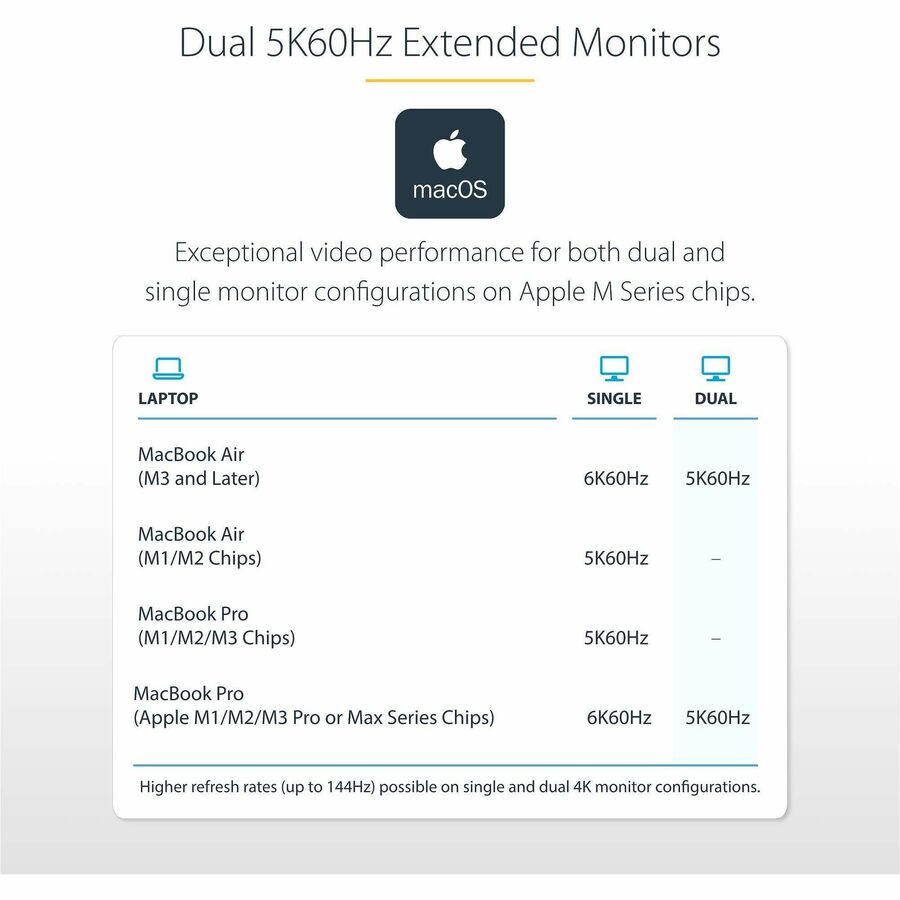

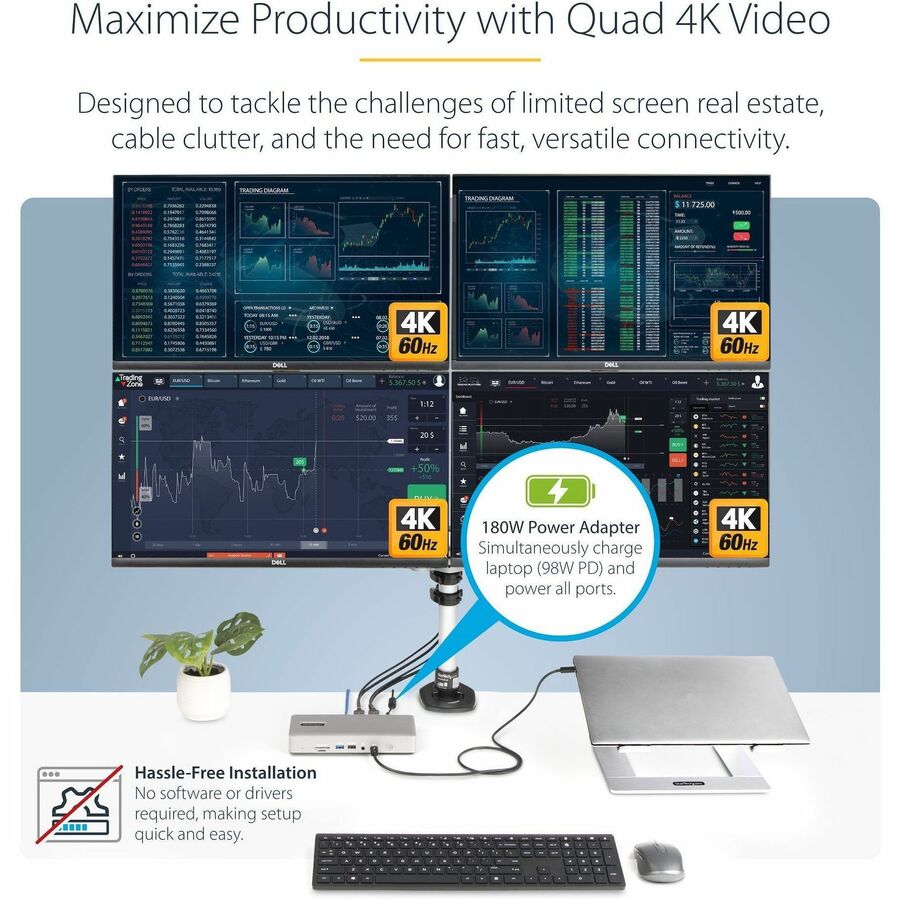

| Marketing Information | This Thunderbolt 4 Certified docking station uses a single Thunderbolt 3, Thunderbolt 4, USB4, or USB Type-C port on a host computer to add high-performance connectivity while charging the laptop. For rapid deployment, the dock includes a 3.3ft. (1m) Thunderbolt 4 cable that connects to the front-facing USB-C host port, and features two sizes of Kensington-style security slots. Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports. Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor, as well as iPad Pros with M1 or later processors, a single display is supported. Port Connectivity The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications. The dock features:
98W USB Power Delivery Certified The Thunderbolt 4 docking station includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices. Thunderbolt Certified This certification ensures the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1/M2/M3 Pro/Max MacBooks. More from the Manufacturer |
| Maximum Data Transfer Rate | 5 GB/s |
| Maximum Power Supply Wattage | 180 W |
| Memory Card Reader | Yes |
| Memory Card Supported | microSDXC |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of Displays Supported | 4 |
| Number of HDMI Outputs | 2 |
| Number of Network (RJ-45) Por | 1 |
| Number of RJ-45 Ports | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 1 Type- | 2 |
| Number of USB 3.2 Gen 2 Type- | 3 |
| Number of USB Type-A Ports | 6 |
| Number of USB Type-C Ports | 1 |
| Operating System Supported | Ubuntu |

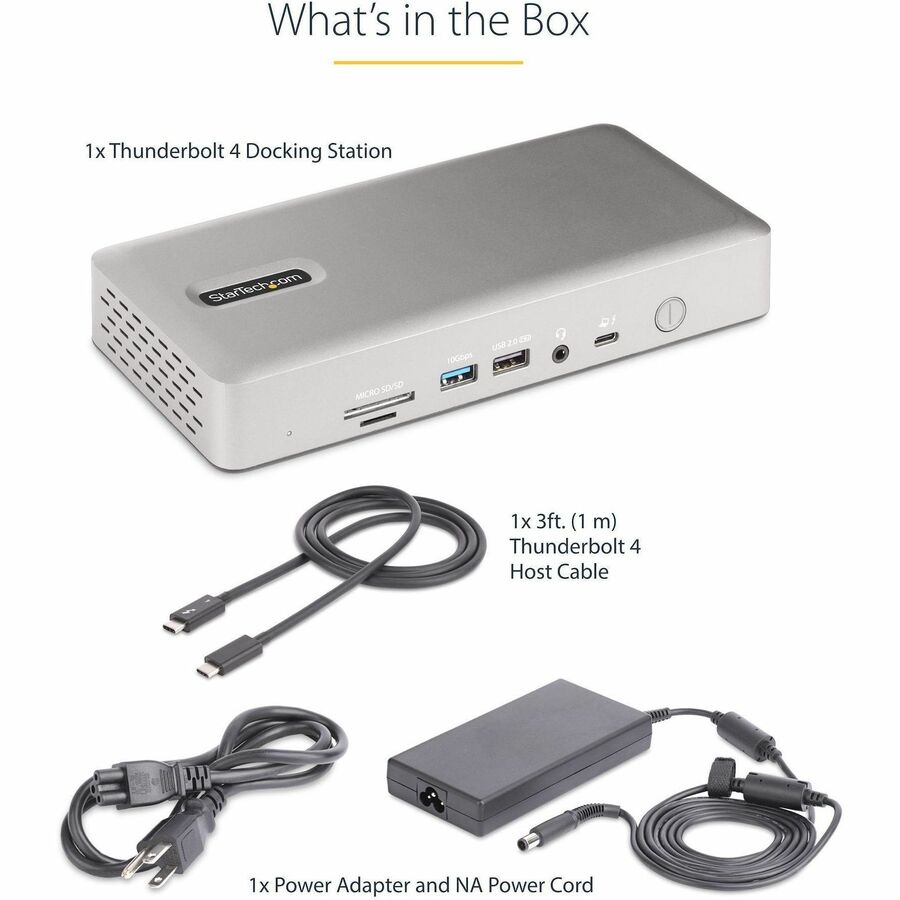

| Package Contents |
|
| Packaged Quantity | 1 |
| Power Source Type | Power Adapter |
| Product Color | Space Gray |
| Product Name | Docking Station |
| Product Type | Docking Station |
| Screen Mode Supported | 4K @ 60Hz |

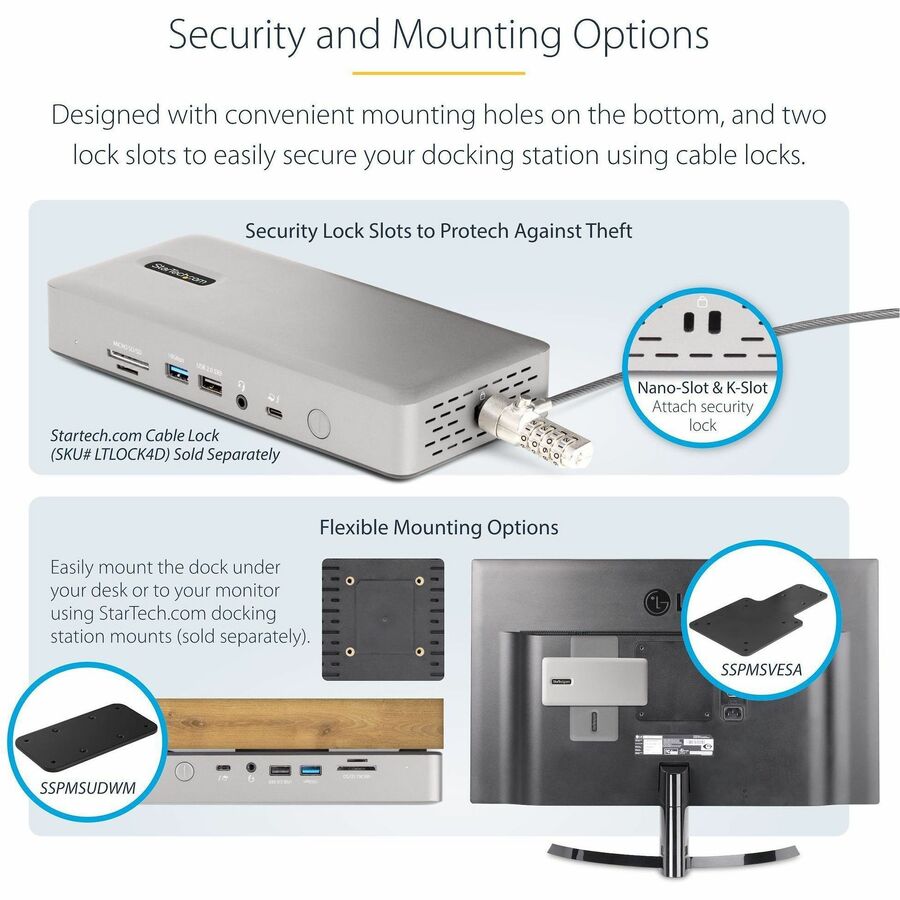

| Security Slot Type | Kensington Security Slot |
| Supported Resolutions | 7680 x 4320 |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 1 |
| Total Number of USB Ports | 7 |
| USB Power Delivery | 98W |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Weight (Approximate) | 7.10 oz |
| Width | 8.30" |
