Tripp Lite 1000W Isolation Transformer with Surge 120V 4 Outlet 6ft Cord HG TAA GSA

Item #: IS1000   |   Model #: 0037332070067

  |   10 Questions
$602.78
$602.78
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information
  • Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
  • Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
  • Noise Suppression Rating: 33-65dB normal mode; >80dB common mode
  • Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
  • Total Harmonic Distortion: less than 1%
  • Transformer Type: Low impedence transformer-based line isolation transformer
Brand Name Tripp Lite
Certifications & Standards UL, cUL
Circuit Breaker Yes
Color Black
Compatibility
  • Point of Sale (POS) Equipment
  • Telecommunications Systems
  • Diagnostic Testing and Precise Measurement Devices
  • Sophisticated CAD/CAM Workstations
  • Computer Networking Equipment
Country of Origin Taiwan
Depth 8.5"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor External
Height 5.5"
Input Voltage 120 V AC
Limited Warranty 2 Year
Manufacturer Tripp Lite
Manufacturer Part Number IS1000
Manufacturer Website Address http://www.tripplite.com

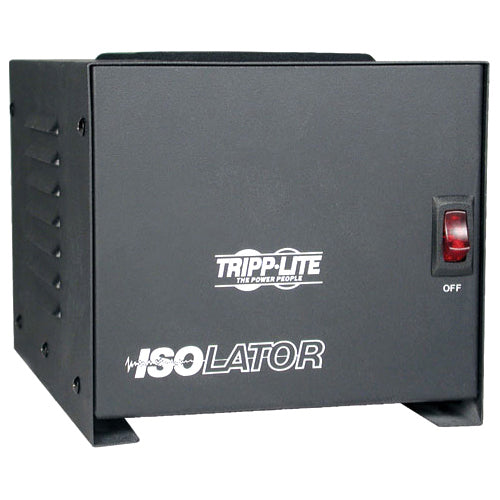

Marketing Information Get complete protection for sensitive devices and prevent power disruption with Tripp Lite's Isolator IS1000 Isolation Transformer. Featuring an internal isolation transformer with Faraday Shield, the IS1000 completely isolates equipment from line noise that can cause incremental but devastating equipment damage. Its 680-joule surge suppression rating protects equipment from surges and spikes caused by utility power disruptions and the operation of nearby equipment on the same circuit. Its 6-ft. power cord allows for flexibility during installation, while its built-in circuit breaker prevents dangerous circuit overloads. Its 1000-watt capacity allows it to be used with a variety of sensitive equipment. Its 4 widely spaced NEMA 5-15R outlets accommodate bulky transformers, and its lighted power switch offers convenient, one-touch power control. For peace of mind, the IS1000 features a rugged, all-metal housing.
Maximum Line Current 8.30 A
Output Voltage 120 V AC
Package Contents
  • IS1000 Isolation Transformer
  • Owner's Manual
Plug/Connector Type NEMA 5-15P
Power Cord/Cable Length 6 ft
Power Handling 1000 VA
Product Model IS1000
Product Name IS1000 Isolation Transformer
Product Type Surge Suppressor/Protector
Protection Type Surge

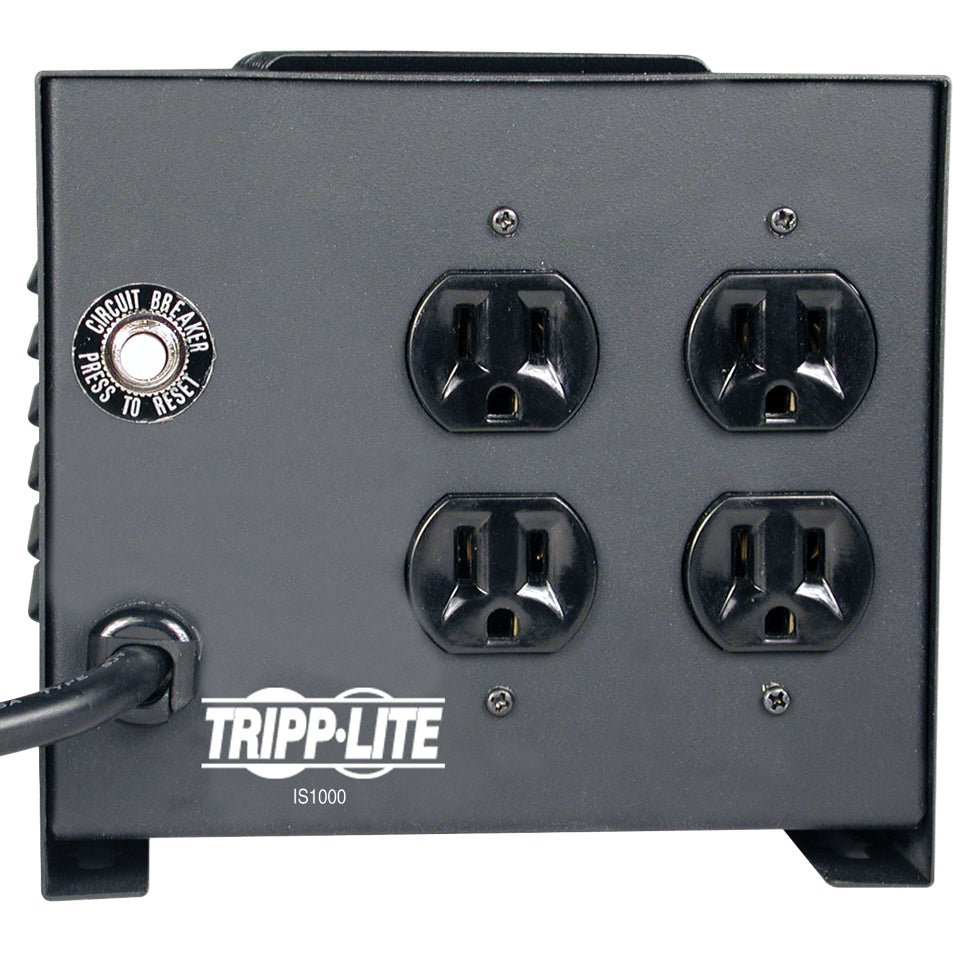

Receptacles 4 x NEMA 5-15R
Shipping Depth 7.50"
Shipping Height 6.25"
Shipping Weight (Approximate) 24.58 lb
Shipping Width 13"
Surge Energy Rating 680 J
Weight (Approximate) 22.60 lb
Width 6.3"
