ContactTripp Lite 18U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount
Item #: 3991399 | Model #: 0037332183316
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Server |
| Brand Name | Tripp Lite |
| Certifications & Standards | EIA-310-E |
| Country of Origin | China |
| Depth | 36.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Removable Side Panel |
| Form Factor | Wall Mountable |
| Front Rail | Yes |
| Height | 37" |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRW18UHD |
| Manufacturer Website Address | http://www.tripplite.com |

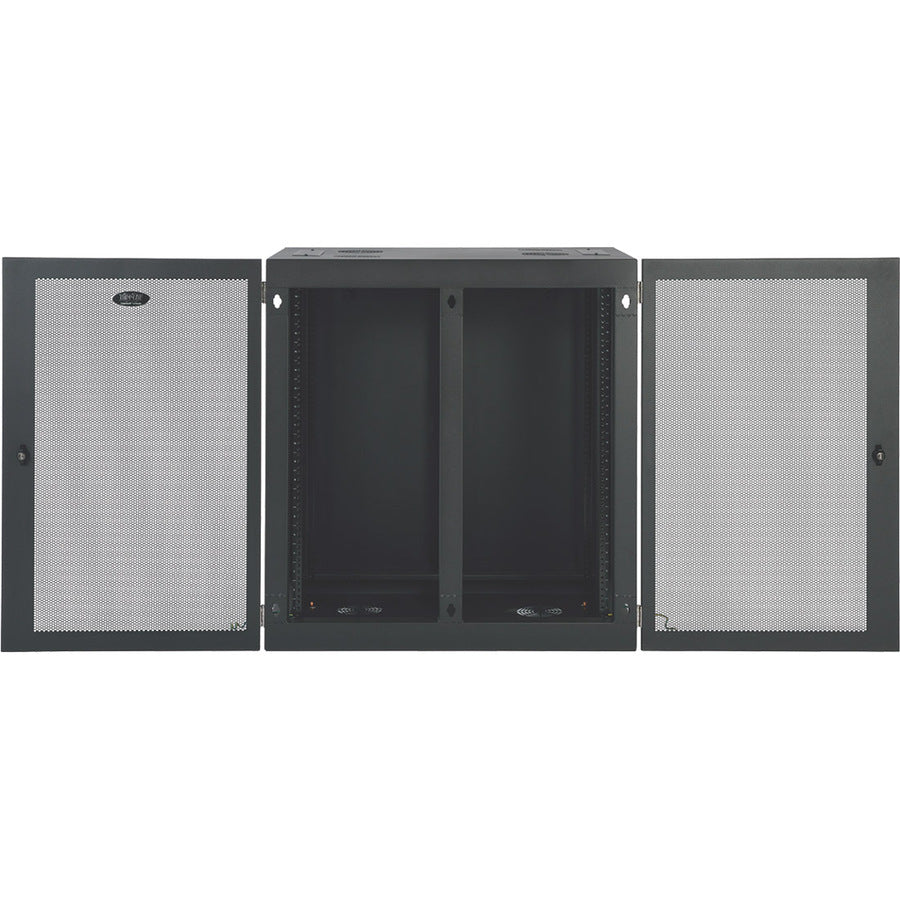

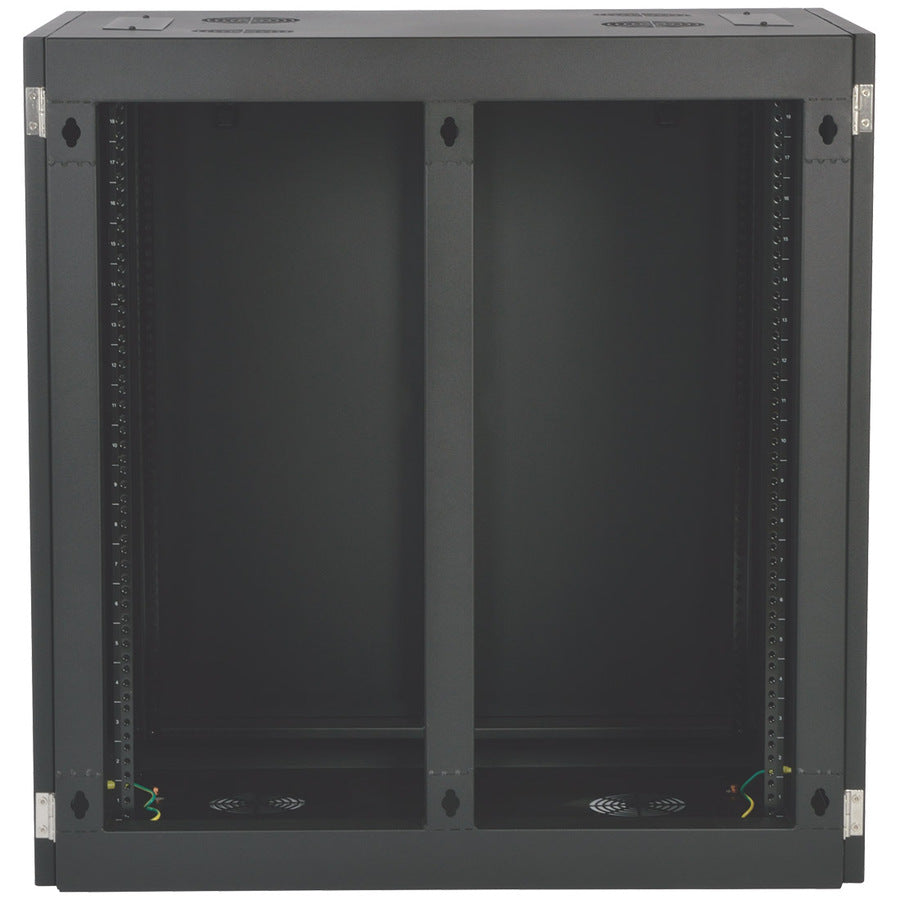

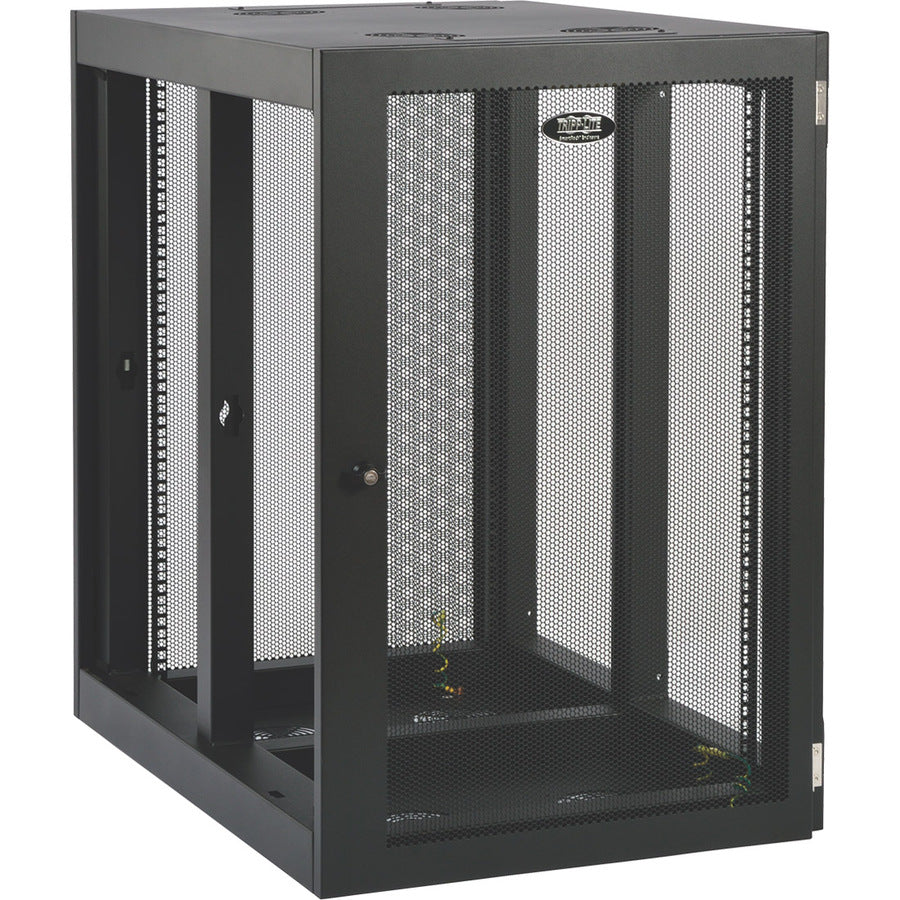

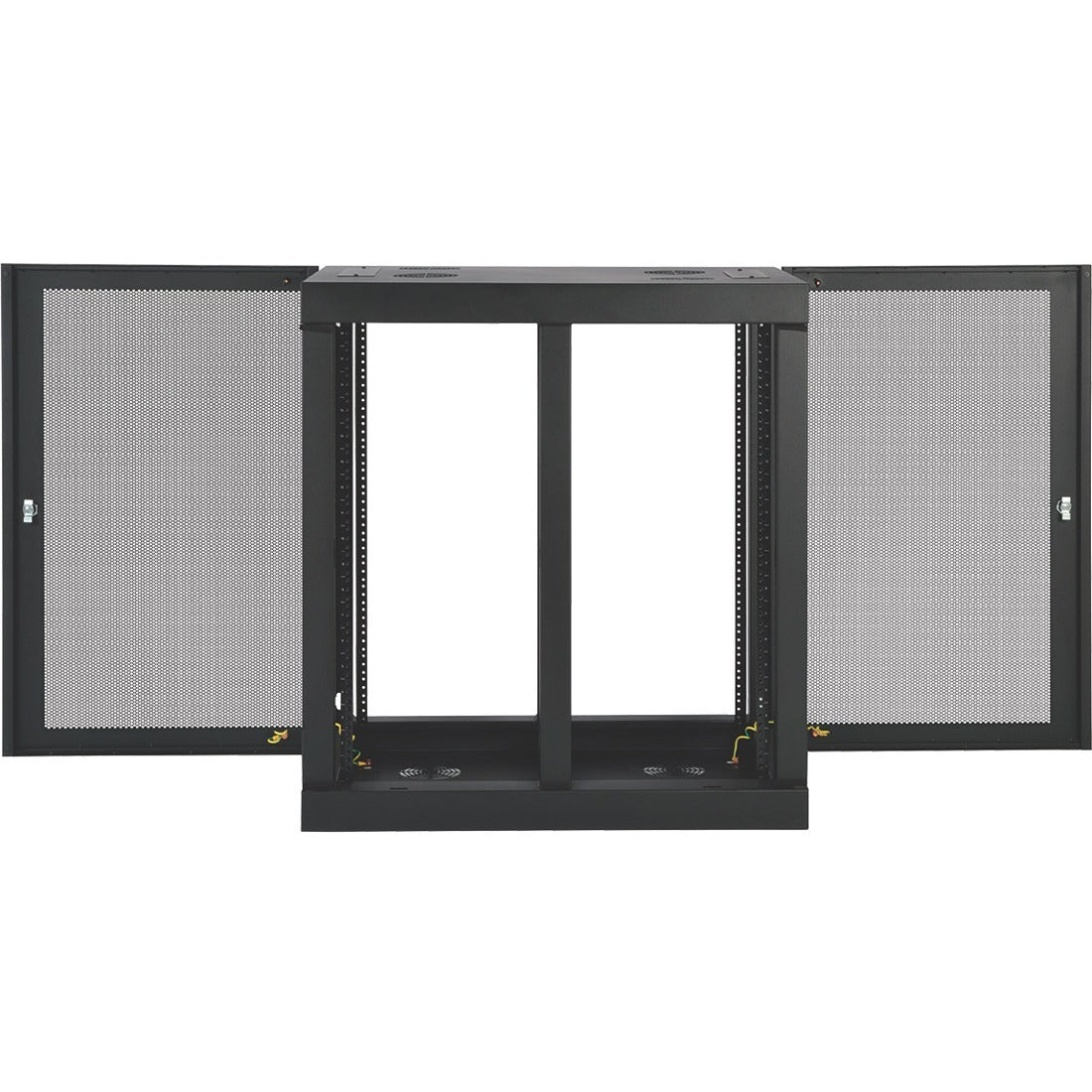

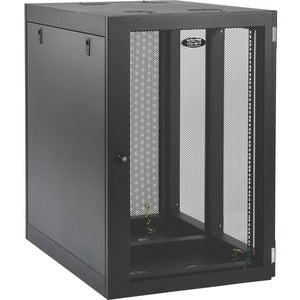

| Marketing Information | The SRW18UHD SmartRack 18U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW18UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments. |
| Package Contents |
|
| Product Color | Black |
| Product Line | SmartRack |
| Product Model | SRW18UHD |
| Product Name | SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Rack Depth | 32.50" |
| Rack Height | 18U |
| Rack Width | 19" |
| Rear Rail | Yes |
| Static/Stationary Weight Capa | 500 lb |
| Weight (Approximate) | 119.90 lb |
| Width | 24.8" |
Tripp Lite 18U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount - For Server - 18U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity
