ContactTripp Lite 6U Wall Mount Rack Enclosure Server Cabinet Switch Depth Deep
Item #: SRW6UDP | Model #: 0037332191458
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Server |
| Assembly Required | No |
| Brand Name | Tripp Lite |
| Country of Origin | China |
| Depth | 21.7" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Wall Mountable |
| Height | 14.6" |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRW6UDP |
| Manufacturer Website Address | http://www.tripplite.com |

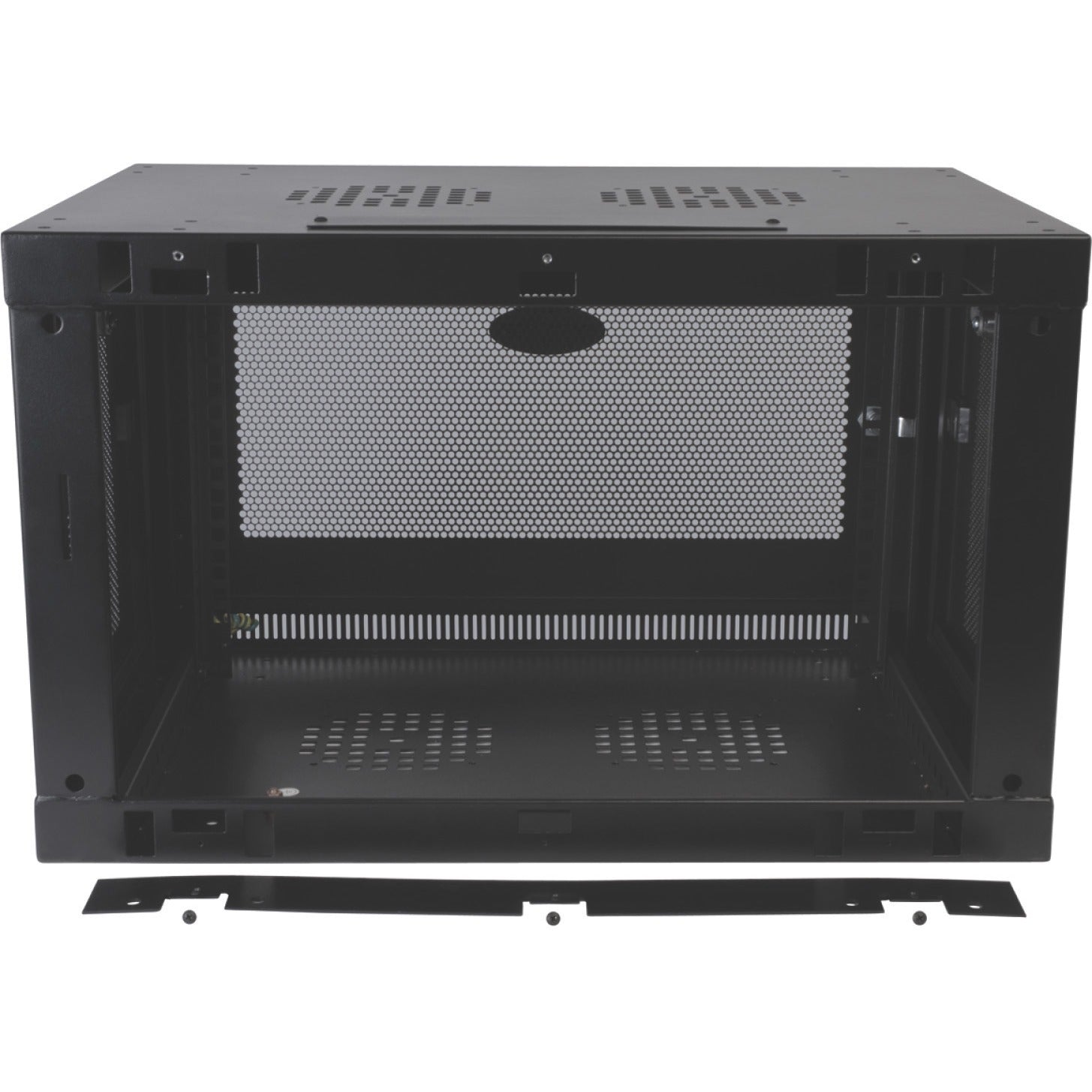

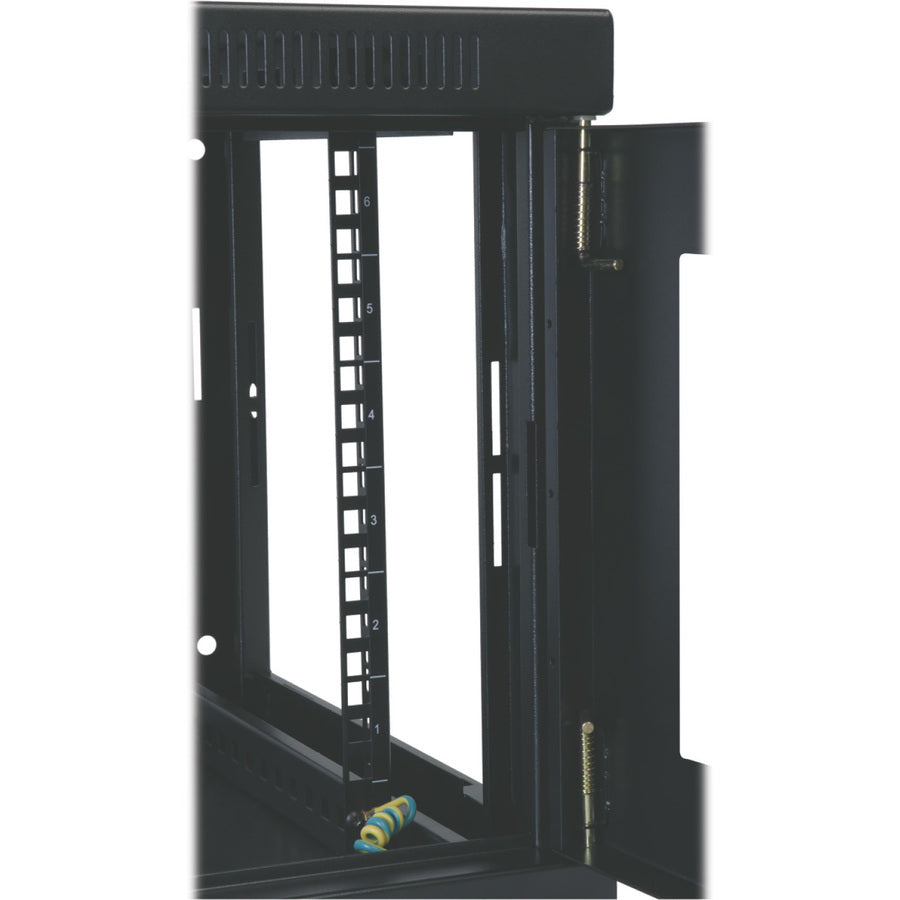

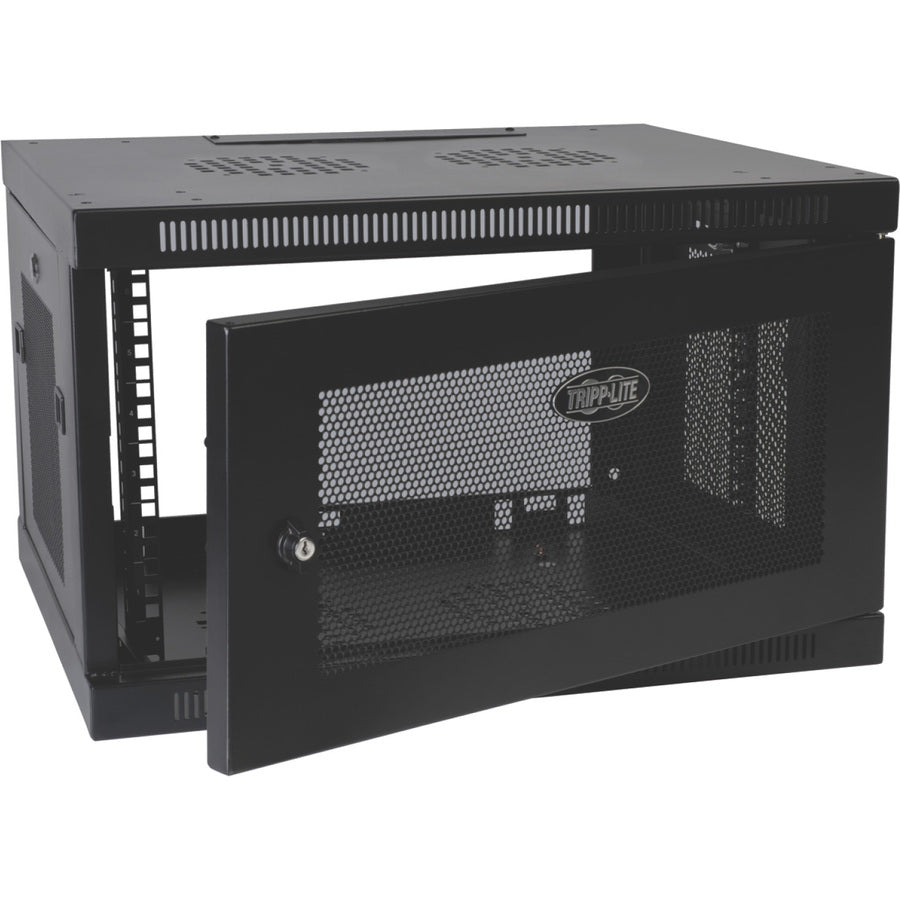

| Marketing Information | The SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels. |
| Maximum Weight Capacity | 200 lb |

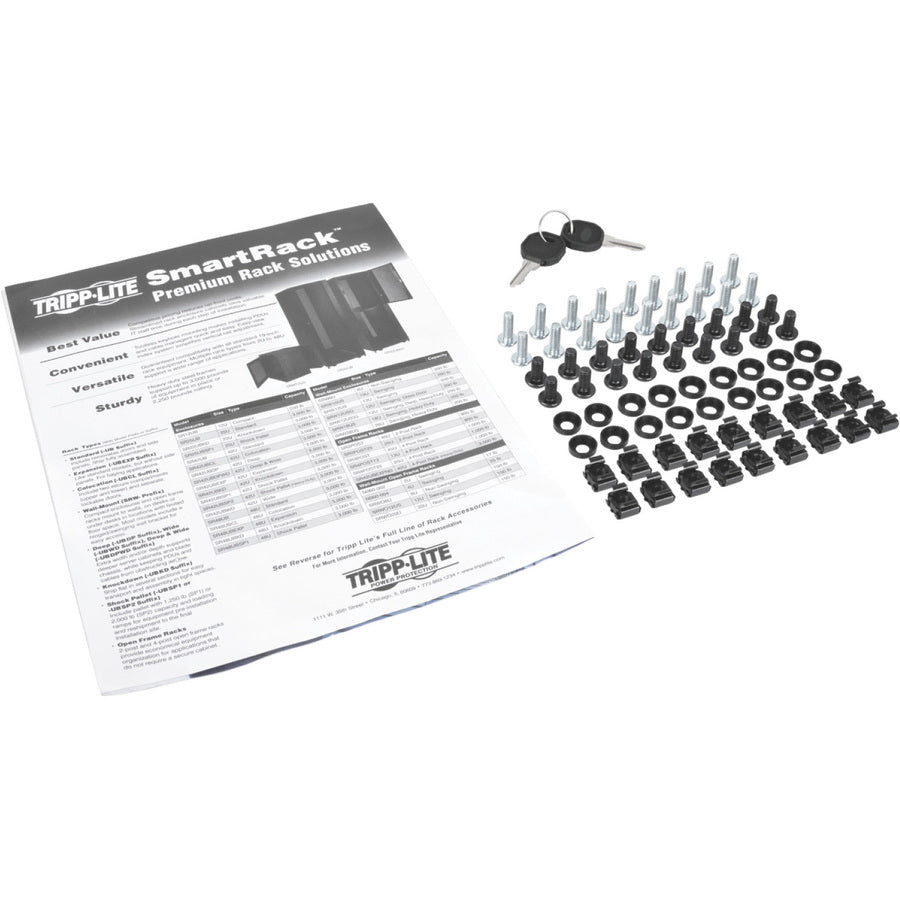

| Package Contents |
|
| Product Color | Black |
| Product Line | SmartRack |
| Product Material | Steel |
| Product Model | SRW6UDP |
| Product Name | SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Rack Depth | 20.50" |
| Rack Height | 6U |
| Rack Width | 19" |
| Static/Stationary Weight Capa | 90.70 lb |
| Weight (Approximate) | 45.19 lb |
| Width | 23.6" |
Tripp Lite 6U Wall Mount Rack Enclosure Server Cabinet Switch Depth Deep - For Server - 6U Rack Height x 19" Rack Width x 20.50" Rack Depth - Wall Mountable - Black - Steel - 200 lb Maximum Weight Capacity - 90.70 lb Static/Stationary Weight Capacity
