Tripp Lite PDU Basic 120V 20A 13 5-15R 15ft Cord 1U RM
Item #: PDU1220 | Model #: 0037332116673
| 10 Questions
Type | Value |
---|---|
Additional Information |
|
Brand Name | Tripp Lite |
Certifications & Standards | cUL, UR |
Compatibility | TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment |
Cord Length | 15 |
Country of Origin | China |
Input Voltage | 120 V AC |
Limited Warranty | 5 Year |
Manufacturer | Tripp Lite |
Manufacturer Part Number | PDU1220 |
Manufacturer Website Address | http://www.tripplite.com |

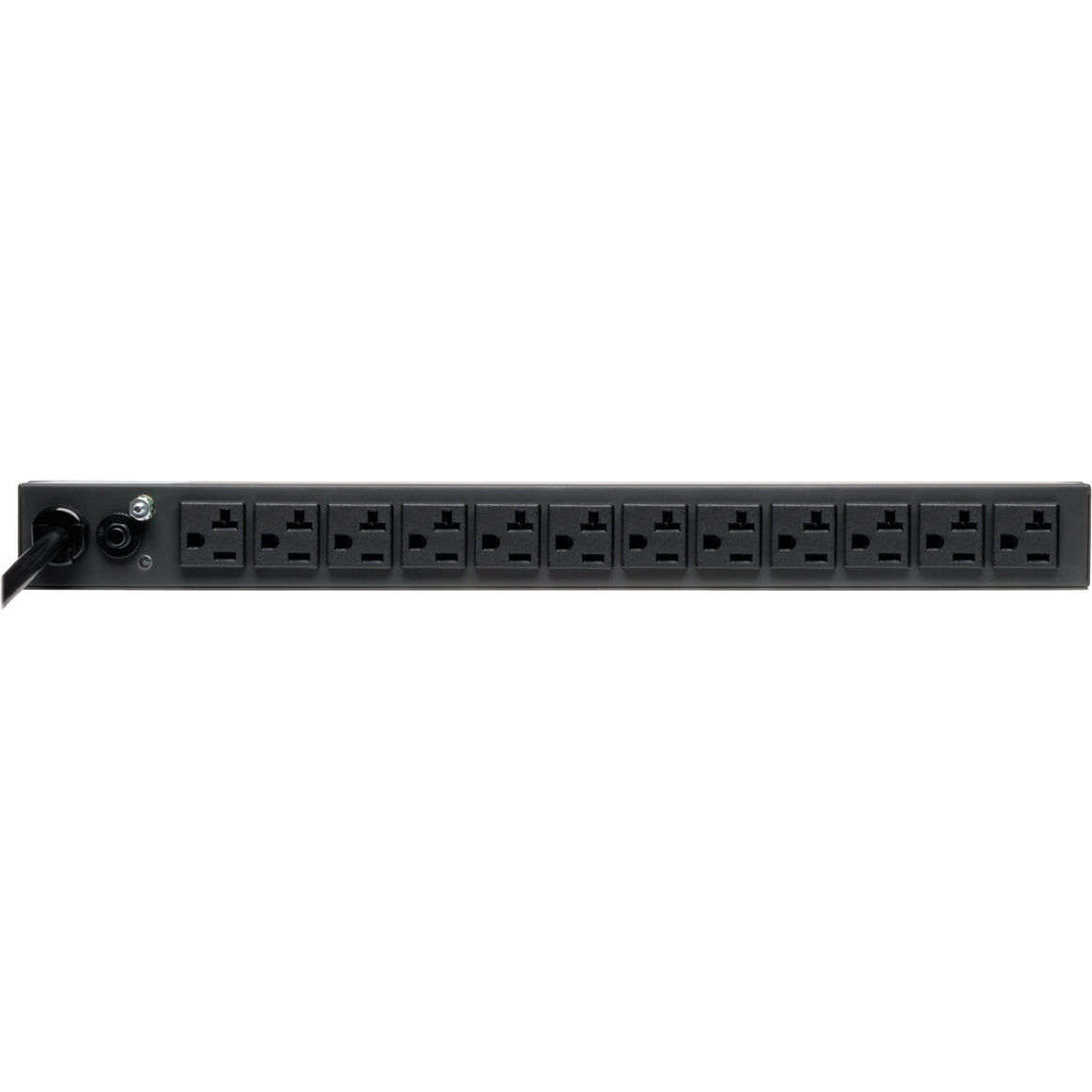

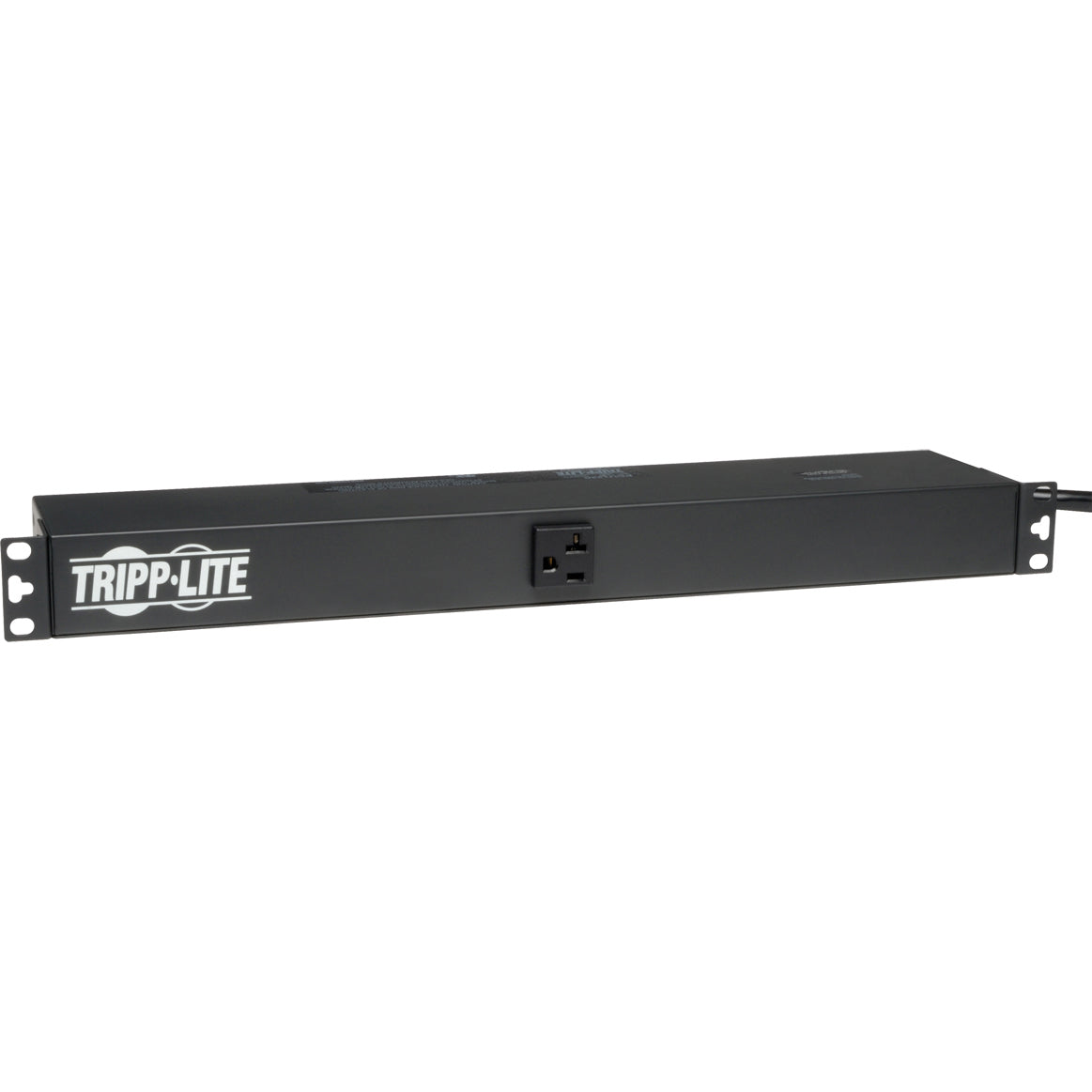

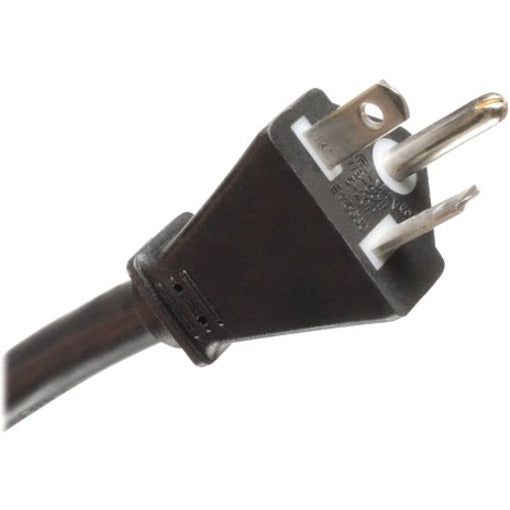

Marketing Information | Tripp Lite's PDU1220 AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing outlets and one front-facing, 15 ft AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA 5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more |
Mount Type | Rack-mountable |
Number of Cord/Cable | 1 |
Output Voltage | 120 V AC |
Package Contents |
|
PDU Type | Basic |
Product Model | PDU1220 |
Product Name | PDU1220 PDU Basic 120V 20A 13 Outlet |
Product Type | PDU |
Rack Height | 1U |
Receptacle Detail | 13 x NEMA 5-20R |
Receptacle Type | NEMA 5-20R |
