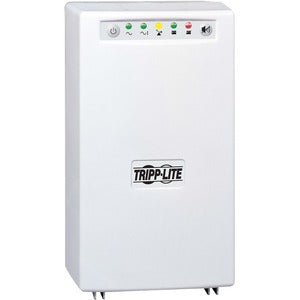

Tripp Lite UPS Smart 1000VA 750W Tower Hospital Medical AVR 120V USB DB9

Item #: SMART1200XLHG   |   Model #: 0037332116406

  |   10 Questions
Regular price
$1,547.52
Sale price
$1,547.52
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Additional Information
  • Ideal UPS protection for applications in medical patient-care areas where UL 2601-1 listed medical electrical equipment is required
  • Maintains less than 300 microamps leakage current for UPS and all connected equipment
  • Built-in isolation transformer with faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
  • Provides connected equipment with continuous power during short and long duration loss of commercial power
  • Expandable runtime is available with the addition of one or more external battery packs (part# BP36V27)
  • Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power
  • Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
  • Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
  • Resistant to electrostatic discharge
  • Supports loads up to 1000VA / 750 watts
  • 34 minutes half load runtime (500VA/375 watts), 16 minutes full load runtime (1000VA/750 watts)

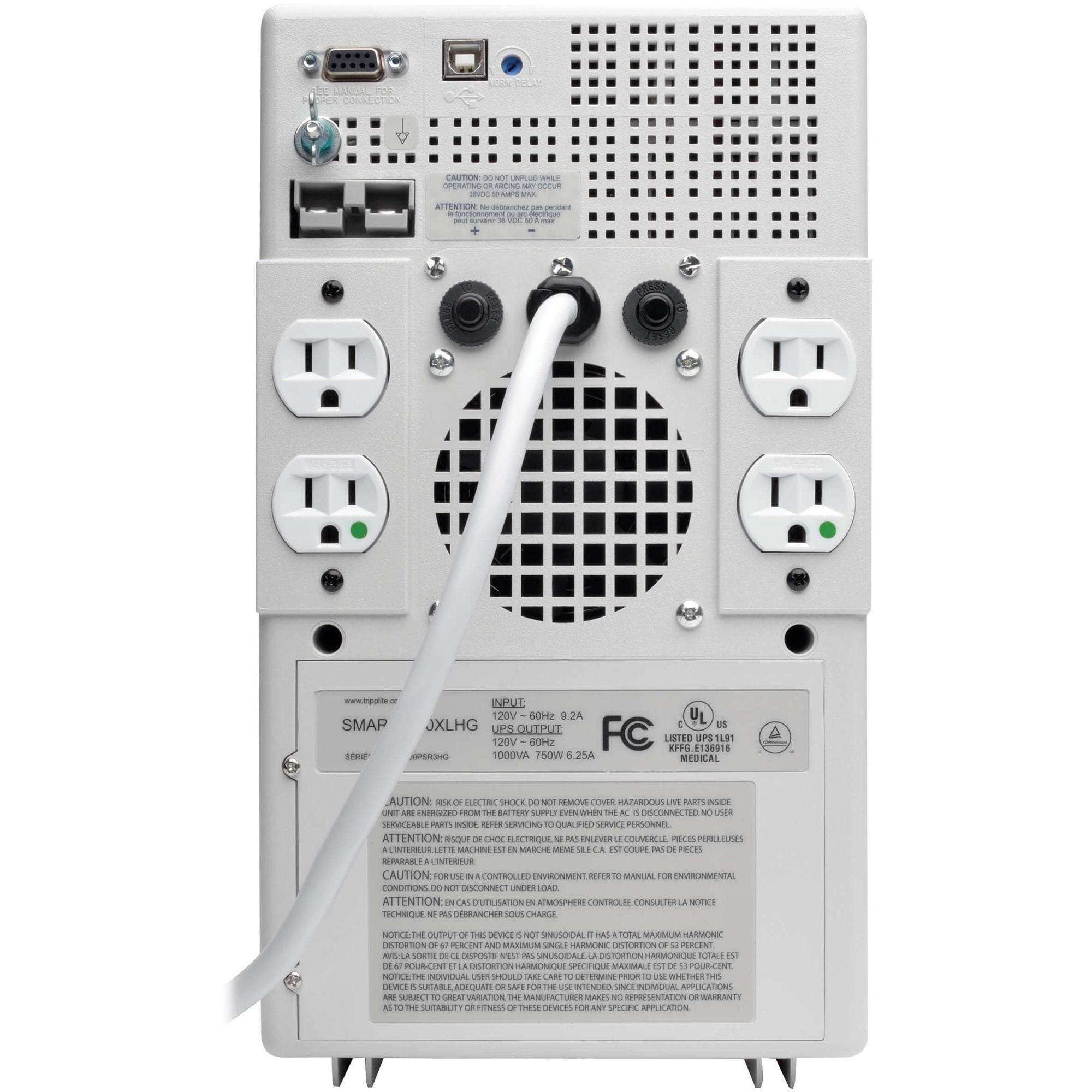

  • 4 protected hospital-grade outlets; 6-ft. cord
  • 1-RS-232 and 1-USB serial port for network interface; SNMP compatible
  • SNMP compatible with separate purchase SNMPWEBSOLO ethernet adapter accessory
  • Complete surge protection, line isolation and EMI/RFI noise filtering
  • 2 year product warranty
  • PowerAlert unattended shutdown software and complete cabling included
  • 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
  • Battery replacement door
  • Back panel grounding lug
Alarm Low Battery
Backup/Run Time (Full Load) 10 Minute
Backup/Run Time (Half Load) 28 Minute
Battery Chemistry Sealed Lead Acid (SLA)
Battery Life 6 Year
Brand Name Tripp Lite
Certifications & Standards UL1778 (USA, Series AGSM1200PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Cord Length 6 ft
Country of Origin China
Depth 9"
Form Factor Tower
Height 12.8"
Hot Swappable Yes
Input Voltage 120 V AC
Limited Warranty 2 Year
Load Capacity 1000 VA/750 W
Manufacturer Tripp Lite
Manufacturer Part Number SMART1200XLHG
Manufacturer Website Address http://www.tripplite.com
Marketing Information Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load, or 10 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Maximum Operating Temperature 104°F (40°C)
Network Management SNMP Manageable
Output Voltage 120 V AC
Package Contents
  • SmartPro 1200XLHG UPS
  • SMART 1200XLHG Medical Grade Tower UPS System
  • PowerAlert Software and cabling
  • Warranty information
  • Instruction manual
Plug/Connector Type NEMA 5-15P
Product Line SmartPro
Product Name SmartPro 1200XLHG UPS
Product Type Line-interactive UPS
Receptacle Detail 4 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Status Indicators Includes 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
Transfer Time 4 ms
Typical Battery Recharge Time 4 Hour
USB Yes
Weight (Approximate) 44.60 lb
Width 7.5"
