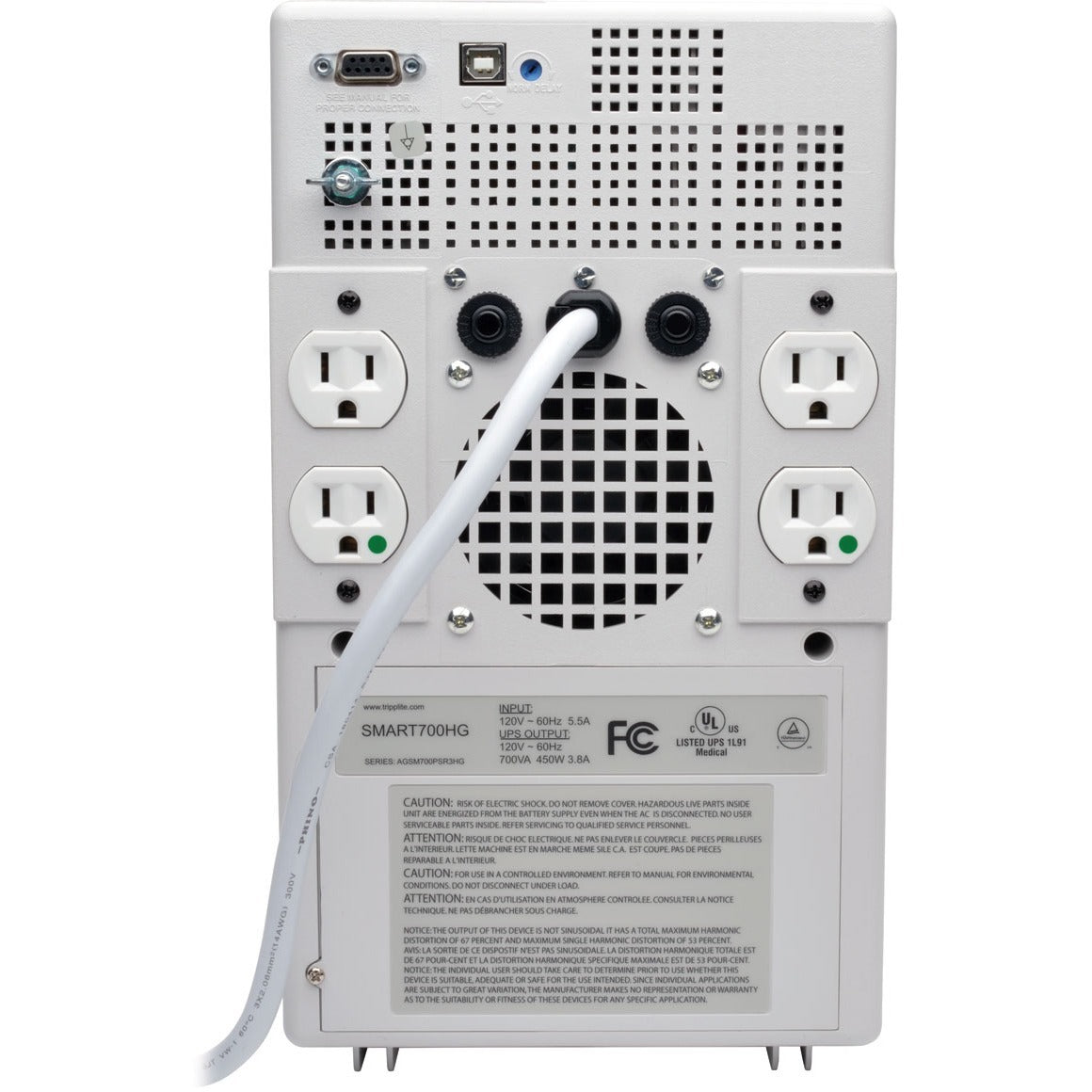

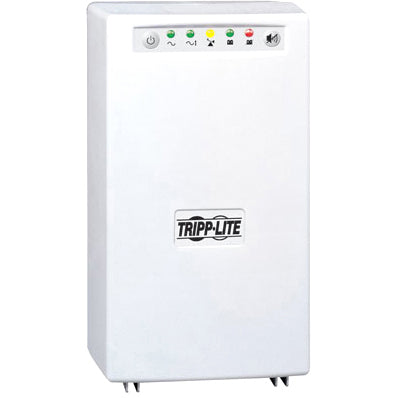

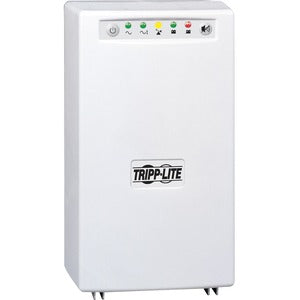

Tripp Lite UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9

Item #: SMART700HG   |   Model #: 0037332095107

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Additional Information
  • Ideal UPS protection for applications in medical patient-care areas where UL2601-1 listed medical electrical equipment is required
  • Maintains less than 300 microamps leakage current for UPS and all connected equipment
  • Built-in isolation transformer with faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
  • Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power
  • Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
  • Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment
  • Resistant to electrostatic discharge
  • Supports loads up to 700VA / 450 watts
  • 42 minutes half load runtime (with 350VA load), 18 minutes full load runtime (with 700VA load)
  • 4 protected hospital-grade outlets; 6-ft. cord
  • RS-232 and USB monitoring ports for remote monitoring and unattended shutdown
  • SNMP compatible with separate purchase SNMPWEBSOLO ethernet adapter accessory
  • PowerAlert unattended shutdown software available via free download from (cabling included)
  • Complete surge protection, line isolation and EMI/RFI noise filtering
  • 2 year product warranty
  • 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
  • Battery replacement door
  • Grounding lug
Alarm Low Battery
Backup/Run Time (Full Load) 18 Minute
Backup/Run Time (Half Load) 42 Minute
Battery Chemistry Sealed Lead Acid (SLA)
Battery Life 6 Year
Brand Name Tripp Lite
Certifications & Standards UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Cord Length 6 ft
Country of Origin China
Depth 9"
Form Factor Tower
Height 12.5"
Hot Swappable Yes
Input Voltage 120 V AC
Limited Warranty 2 Year
Load Capacity 700 VA/450 W
Manufacturer Tripp Lite
Manufacturer Part Number SMART700HG
Manufacturer Website Address
Marketing Information

Tripp Lite's SMART 700HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. UL 60601-1 listed as medical electrical equipment. Built-in isolation transformer with Faraday shield removes common mode noise while maintaining full AC surge suppression in all modes equal to 100 microamps. Resistant to electrostatic discharge. Includes high quality hospital-grade plug and outlets. 700VA power handling capacity. Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143 back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes 4 outlets, diagnostic LEDs and built-in USB & RS-232 communications ports that work with downloadable PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

Maximum Operating Temperature 104°F (40°C)
Network Management SNMP Manageable
Output Voltage 120 V AC
Package Contents
  • SmartPro 700HG UPS
  • SMART 700HG Medical Grade UPS System
  • One USB and One DB9 monitoring cable
  • Warranty information
  • Instruction manual
Plug/Connector Type NEMA 5-15P
Product Line SmartPro
Product Name SmartPro 700HG UPS
Product Type Line-interactive UPS
Receptacle Detail 4 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Status Indicators 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
Transfer Time 4 ms
Typical Battery Recharge Time 4 Hour
Weight (Approximate) 44 lb
Width 7"
