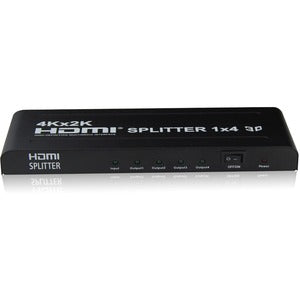

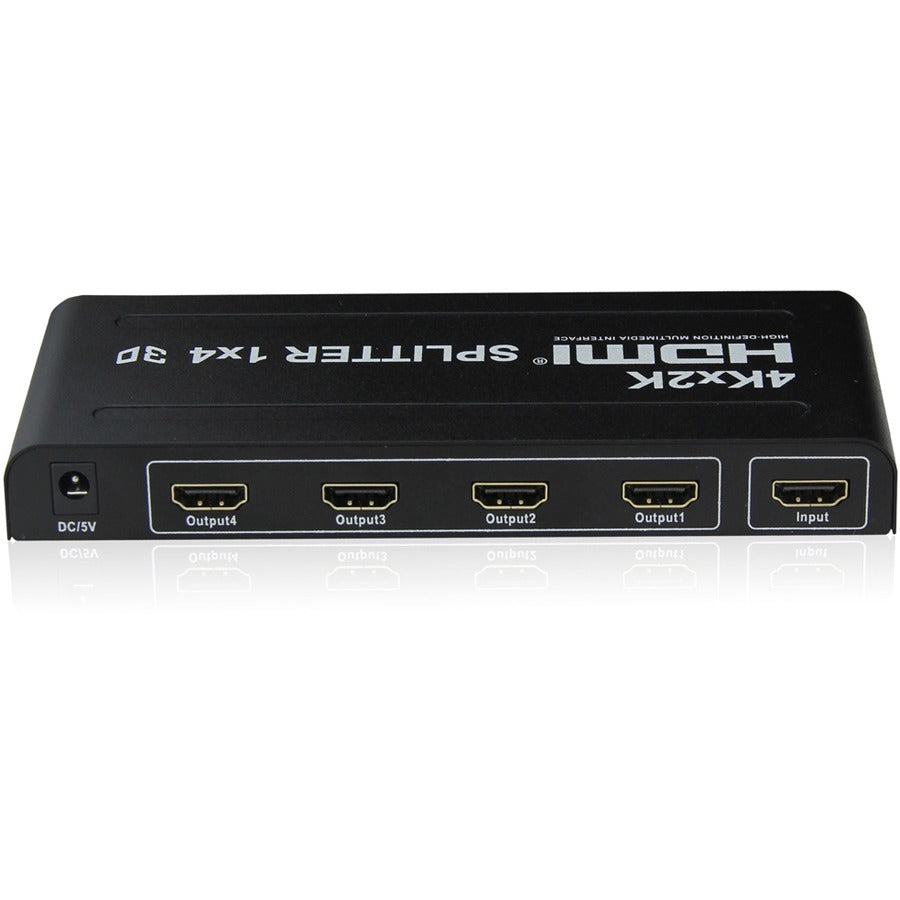

4XEM 4 Port HDMI 4K Splitter

Item #: YN6266   |   Model #: 0873791011001

  |   10 Questions
$49.99
$49.99
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information
  • HDMI version........................................................................................ HDMI 1.4b
  • HDCP version........................................................................................HDCP1.2
  • HDMI resolution ...............................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support video color format ................................................24bit/deep color 30bit,36bit,48bit
  • Support audio format...................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth........................................................................................340MHz
  • Max baud rate.........................................................................................10.2Gbps
  • Input/Output TMDS signal .........................................................0.5~1.5Volts p-p(TTL)
  • Input/Output DDC signal ................................................................. 5Volts p-p (TTL)
  • Input cable distance........ ..................................?15m AWG26 HDMI 1.4standard cable
  • Output cable distance........................................?25m AWG26 HDMI 1.4 standard cable
  • Max working current......................................................................................1.2A
  • Power adapter format..Input: ....................AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
  • Operating Temperature range............................................................... (-15 to +55?)
  • Operating Humidity range.............................................5 to 90%RH (No Condensation)
Brand Name 4XEM
Certifications & Standards
  • FCC
  • CE
Environmental Certification WEEE
Environmentally Friendly Yes
HDMI In Yes
HDMI Out Yes
Height 0.9"
Input Voltage 5 V DC
Length 4.5"
Limited Warranty 1 Year
Manufacturer 4XEM Corporation
Manufacturer Part Number 4XHDMI44K2K
Manufacturer Website Address http://www.4xem.com
Marketing Information

4XEM 4-Port HDMI Splitter and Signal Amplifier for 4K/2K 3D

Split the UHD 3D 4K/2K signal from one HDMI device into four using 4XEM's 1x4 3D 4K/2K HDMI splitter (4XHDMI44K2K). Simply connect your 3D or 4K/2K Displays to the splitter's outputs.

Problem it solves: Display your video on multiple HDMI compatible televisions or monitors. Ideal for retail displays, trade shows, sports bar, etc.

4XEM gear is respected industry wide for its high performance, premium quality and our after sales support.
Maximum Frequency 340 MHz
Number of HDMI Inputs 1
Number of HDMI Outputs 4
Product Model 4XHDMI44K2K
Product Name 4 Port HDMI 4K Splitter
Product Type Signal Splitter
Weight (Approximate) 7.05 oz
Width 2.4"
