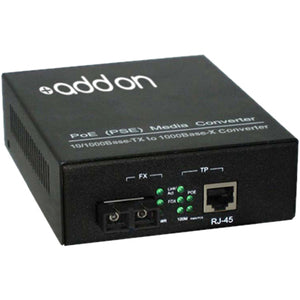

ContactAddOn 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) SMF 1310nm 10km POE Media Converter
Item #: 4103056 | Model #: 0821455028216
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | AddOn |
| Country of Origin | United States |
| Depth | 6" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Height | 1.5" |
| Input Voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMCP-LX-1SC |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Marketing Information | ADD-GMCP-LX-1SC is a Media Converter that converts a 1000Base-TX(RJ45) to 1000Base-LX(SC) via a 1310nmsingle-mode fiber (SMF) SC connector, which allows distance reach up to 10km. ADD-GMCP-LX-1SC provides a cost effective conversion from 1000Base Copper to 1000Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time. |
| Maximum Distance Supported | 6.21 Mile |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-LX |
| Number of Network (RJ-45) Por | 1 |
| Number of SC Ports | 1 |
| Product Model | ADD-GMCP-LX-1SC |
| Product Name | 1000Base-TX To 1000Base-LX SC 1310nm 10km POE Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Weight (Approximate) | 1.40 lb |
| Width | 5" |
AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-LX(SC) SMF 1310nm 10km POE Media Converter - 100% compatible and guaranteed to work
