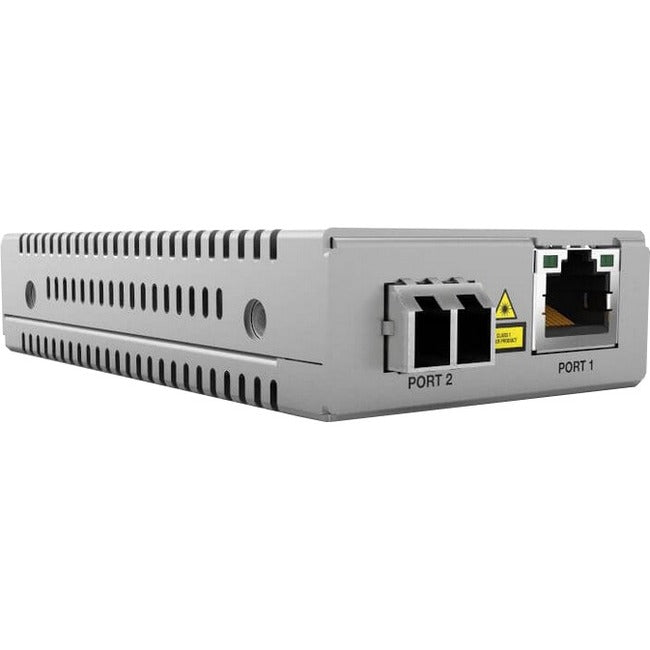

Allied Telesis MMC2000LX/LC Gigabit Ethernet Media Converter with Single-Mode Fiber Support
Item #: AT-MMC2000LX/LC-960 | Model #: 0767035221649
The Allied Telesis MMC2000LX/LC Transceiver/Media Converter offers a compact and efficient solution for extending your network over optical fiber. Designed with environmental sustainability in mind, this rack-mountable device consumes just 1.7W of power, making it one of the most energy-efficient media converters available. Its small size allows for flexible deployment in various environments without sacrificing performance or features. The MMC2000LX/LC supports single-mode fiber connectivity with a maximum distance of 20 kilometers, enabling reliable long-distance network links. It features one RJ-45 copper port supporting 1000Base-LX Ethernet technology and one LC fiber port compatible with 9/125 µm fiber optics, making it suitable for high-speed, high-capacity networks. The converter's supporting features include auto-negotiation and auto MDI/MDIX on the copper port, EEE support for energy efficiency, and a link test function for troubleshooting network issues efficiently. It also supports IEEE 802.1Q VLAN tagging, ensuring compatibility with modern, VLAN-enabled networks. The device's robust design includes an extended operating temperature range from -40°C to 70°C, making it suitable for challenging environments. The MMC2000LX/LC is compliant with TAA and the Waste Electrical and Electronic Equipment Directive (WEEE), highlighting its environmentally friendly design. Included in the package are the media converter itself and an AC power supply, ready for quick installation and integration into your existing network infrastructure.
Features:
- Extended Temperature rating of -40°C to 70°C (-40°F to 158°F)
- Convert speed as well as media type
- 2K MAC address tables
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Auto Negotiation and Auto MDI/MDIX on copper port
- EEE support on copper port
- Far End Fault detection for fiber optic link
- 10K byte Jumbo packets support
- Link/Activity LED per port
