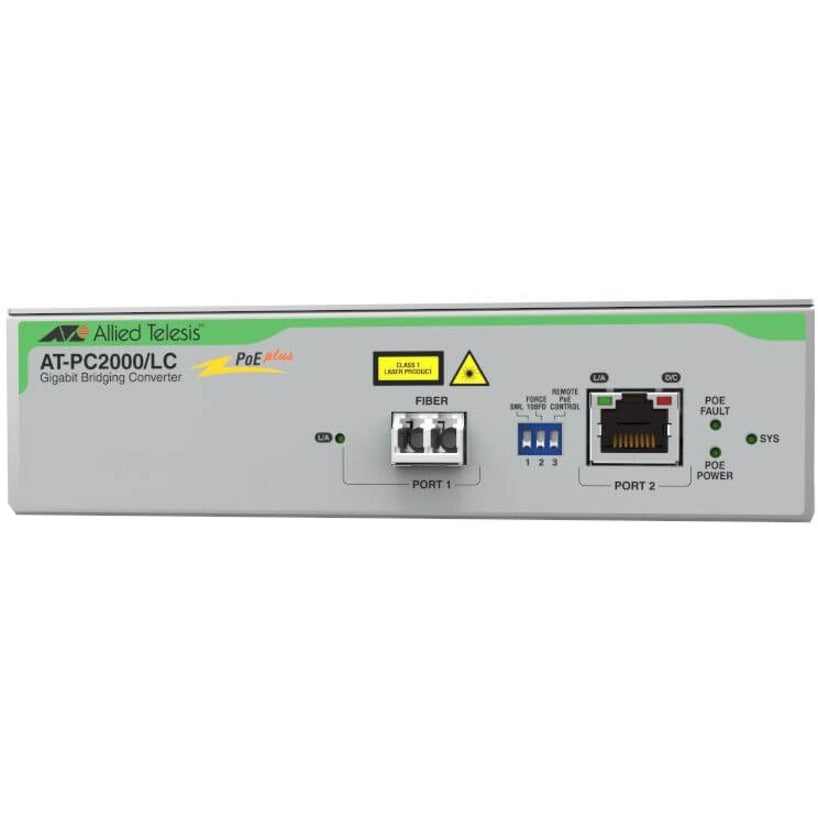

Allied Telesis PC2000/LC PoE+ to Fiber Switching Media Converter with Multi-Mode Fiber Support

Allied Telesis PoE+ to Fiber Switching Media Converter

The Allied Telesis PC2000/LC is a versatile and compact media converter designed for extending network connectivity to remote devices such as IP phones, security cameras, and wireless access points. It enables power and data transmission over fiber and twisted-pair cables, supporting distances beyond 100 meters from the source switch. Featuring a 1000Base-SX fiber port with an SC connector for multi-mode fiber and a Gigabit Ethernet RJ-45 port, it offers seamless integration into modern network infrastructures. The device's small form factor and wall-mountable design make deployment flexible in various environments, including offices, industrial settings, and remote sites.Equipped with IEEE 802.3at PoE+ support, the PC2000/LC can deliver up to 30W of power to connected remote devices, eliminating the need for additional power supplies at the device location. The device supports auto MDI/MDI-X, simplifying cable connections and reducing configuration complexity. Additionally, it supports jumbo frames up to 10K bytes, which enhances performance for large data transfers, and its store-and-forward switching mode ensures reliable data handling. The Smart Missing Link (SML) feature actively monitors network segments, providing alerts when segments fail, enabling quick troubleshooting and minimizing downtime. Its support for VLANs (IEEE 802.1Q) ensures compatibility with advanced network segmentation, making it suitable for enterprise and service provider networks.Built with durability and compliance in mind, the PC2000/LC adheres to environmental standards such as REACH and is TAA compliant. It is powered by a reliable internal power supply and includes a multi-region AC power adapter. This media converter supports a wide range of fiber wavelengths (850 nm) and core/cladding specifications (62.5/125 microns), suitable for various fiber optic cable types. Whether used for network expansion or remote device powering, the Allied Telesis PC2000/LC offers a robust, efficient solution for high-performance fiber-to-Ethernet conversions.Package contents include the PoE+ to fiber switching media converter and a multi-region AC power supply, ensuring readiness for immediate deployment. With its combination of advanced features, compact size, and reliable performance, the PC2000/LC is an ideal choice for expanding network reach while supporting power delivery to remote devices.

Features:

• Convert speed as well as media type

• IEEE 802.3at Power over Ethernet (PoE+) compliant

• Supplies up to 30W of PoE+ power

• Support 100 and 1000Mbps fiber SFP modules (AT-PC2000/SP)

• Auto MDI/MDI-X

• Smart Missing Link (SML) for network segment monitoring

• Supports jumbo frames up to 10K bytes

• Support for multi-mode fiber

• 4K MAC address tables

• Store-and-forward switching mode
