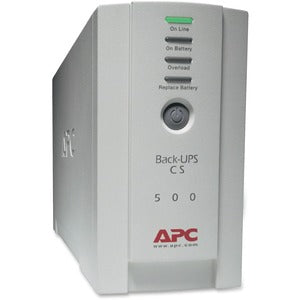

ContactAPC Back-UPS CS 500VA
Item #: BK500 | Model #: 0731304016304
| 10 Questions
| Type | Value |
|---|---|
| Additional Information |
|
| Additional Warranty Informati | 3 years warranty |
| Alarm | Overload |
| Assembly Required | No |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Brand Name | APC by Schneider Electric |
| Certifications & Standards |
|
| Color | Beige |
| Cord Length | 6 ft |
| Country of Origin | Philippines |
| Dataline Protection | RJ-11 |
| Depth | 11.2" |
| Energy Star | Yes |
| Environmental Certification | ENERGY STAR |
| Environmentally Friendly | Yes |
| Form Factor | Tower |
| Height | 6.5" |
| Input Voltage | 110 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 500 VA |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BK500 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit. |
| Maximum Operating Temperature | 113°F (45°C) |
| Output Voltage | 120 V AC |
| Package Contents | |
| Packaged Quantity | 1 Each |
| Plug/Connector Type | NEMA 5-15P |
| Power Consumption | 300 W |
| Product Line | Back-UPS |
| Product Name | BK500 120V Backup System |
| Product Series | CS |
| Product Type | Line-interactive UPS |
| Receptacle Detail | 3 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Recycled | No |
| Serial Port | Yes |
| Sound Emission | 45 dB(A) |
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators |
| Surge Energy Rating | 480 J |
| Thermal Dissipation | 7.03 W |
| Typical Battery Recharge Time | 8 Hour |
| USB | Yes |
| Waveform Type | Stepped Sine Wave |
| Weight (Approximate) | 13.80 lb |
| Width | 3.6" |
