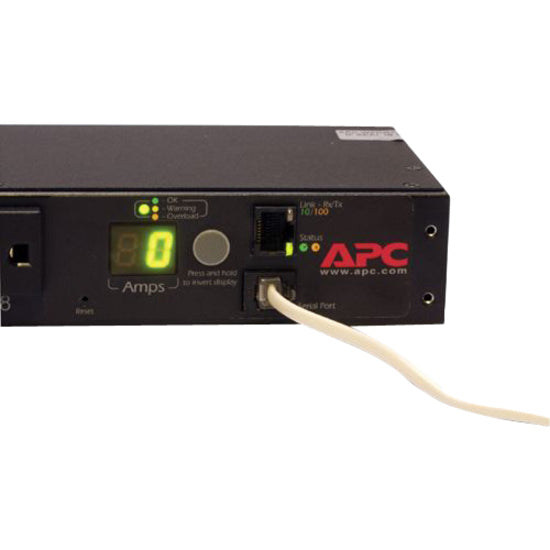

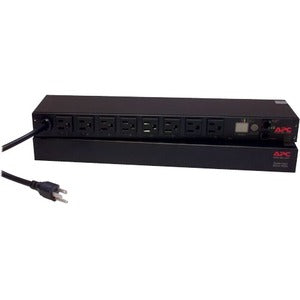

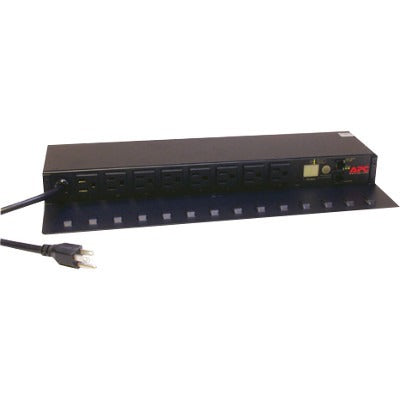

APC by Schneider Electric Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15

Item #: AP7900B   |   Model #: 0731304331568

  |   10 Questions
$1,095.00
$1,095.00
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name APC by Schneider Electric
Depth 4.3"
Environmental Certification REACH
Environmentally Friendly Yes
Height 1.7"
Input Current 15 A
Input Voltage 120 V AC
Limited Warranty 2 Year
Manufacturer Schneider Electric SA
Manufacturer Part Number AP7900B
Manufacturer Website Address http://www.schneider-electric.com
Marketing Information APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Mount Type Rack-mountable
Mounting Orientation Horizontal
Output Voltage 120 V AC
Package Contents
  • Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
  • Cord Retention Bracket(s)
  • Horizontal Mounting Brackets
  • Installation Guide
  • User Manual
PDU Type Switched
Plug/Connector Detail 1 x NEMA 5-15P
Plug/Connector Type NEMA 5-15P
Power Rating (VA) 1440 VA
Product Name Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
Product Type PDU
Rack Height 1U
Receptacle Detail 8 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Weight (Approximate) 5 lb
Width 17.5"
