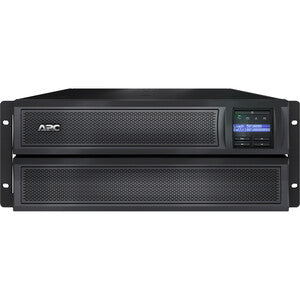

APC by Schneider Electric Smart-UPS X 3000VA Rack/Tower LCD 100-127V

Item #: 3598851   |   Model #: 0731304292647

  |   10 Questions
Regular price
$3,000.00
Sale price
$3,000.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

APC by Schneider Electric Smart-UPS X 3000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 1 x NEMA L5-30R, 6 x NEMA 5-15R
Type Value
Backup/Run Time (Full Load) 6 Minute
Backup/Run Time (Half Load) 18 Minute
Battery Characteristics Spill-proof, Maintenance-free
Battery Chemistry Sealed Lead Acid (SLA)
Brand Name APC by Schneider Electric
Certifications & Standards
  • BSMI
  • CSA
  • EN 50091-2
  • EN 55022 Class A
  • FCC Part 15 Class A
  • NOM
  • TUV
  • UL 1778
  • VCCI Class A
  • UL 1449
Color Black
Depth 19"
Emergency Power OFF Yes
Environmental Certification REACH
Environmentally Friendly Yes
Form Factor Rack-mountable
Height 17"
Hot Swappable Yes
Input Voltage 110 V AC
Limited Warranty 3 Year
Load Capacity 2880 VA/2700 W
Manufacturer Schneider Electric SA
Manufacturer Part Number SMX3000LV
Manufacturer Website Address http://www.schneider-electric.com
Marketing Information

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Number of Batteries 1
Output Voltage 120 V AC
Package Contents
  • Smart-UPS X 3000VA Rack/Tower LCD 100-127V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Plug/Connector Type NEMA L5-30P
    Product Line Smart-UPS
    Product Name Smart-UPS X 3000VA Rack/Tower LCD 100-127V
    Product Type Line-interactive UPS
    Rack Height 4U
    Receptacle Detail 6 x NEMA 5-15R
    Receptacle Type NEMA 5-15R
    Total Number of Expansion Slo 1
    Transfer Time 4 ms
    Typical Battery Recharge Time 3 Hour
    USB Yes
    Waveform Type Sine Wave
    Weight (Approximate) 85.19 lb
    Width 7"
    APC by Schneider Electric Smart-UPS X 3000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 1 x NEMA L5-30R, 6 x NEMA 5-15R
