ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant

Item #: 5256803   |   Model #: 0672792007743

  |   10 Questions
Regular price
$541.00
Sale price
$541.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant - 2 Computer(s) - 1 Local User(s) - 4096 x 2160 - 6 x USB - 1 x HDMI - Desktop - 3 x DisplayPort
Type Value
Brand Name ATEN
Country of Origin Taiwan
Depth 8.3"
DisplayPort Yes
Environmental Certification WEEE
Environmentally Friendly Yes
Form Factor Desktop
HDMI Yes
Height 2.2"
Input Voltage 5 V DC
Input Voltage Range 5V DC
Manufacturer ATEN Technology Inc
Manufacturer Part Number CS1922M
Manufacturer Website Address http://www.aten.com/us/en/
Marketing Information

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.

The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.

With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

More from the Manufacturer

Maximum Video Resolution 4096 x 2160
Number of Computers Supported 2
Number of DisplayPorts 3
Number of HDMI Ports 1
Number of Local Users Support 1
Number of USB Ports 6

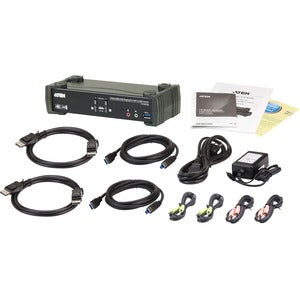

Package Contents
  • 2-Port USB 3.0 4K DisplayPort MST KVMP Switch
  • 2 x DisplayPort 1.2 Cables (1.5m/5ft)
  • 2 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
  • 4 x Audio Cables (1.8m/6ft)
  • 1 x Power Adapter
  • 1 x User Instructions
Packaged Quantity 1
Product Model CS1922M
Product Name 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)
Product Series SOHO
Product Type KVM Switchbox
USB Yes
Weight (Approximate) 1.61 lb
Width 3.5"
ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)-TAA Compliant - 2 Computer(s) - 1 Local User(s) - 4096 x 2160 - 6 x USB - 1 x HDMI - Desktop - 3 x DisplayPort
