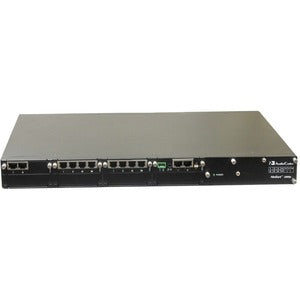

ContactAudioCodes Mediant 1000B VoIP Gateway
Item #: 10323078 | Model #:
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | AudioCodes |
| Carrier Supported | E-carrier |
| Compatible Rack Unit | 1U |
| Environmental Certification | China RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Input Voltage | 220 V AC |
| Manufacturer | AudioCodes Limited |
| Manufacturer Part Number | M1KB |
| Manufacturer Website Address | http://www.audiocodes.com |
| Marketing Information | The new Mediant 1000B chassis, based on the incumbent Mediant 1000 chassis is designed to support the Advanced Mezzanine Card (AMC) or AdvancedMC form-factor modules. It provides eight AMC slots (for housing single and mid-sized AMC modules) on its rear panel. The Mediant 1000B supports both VoIP Gateway and MSBG data routing functionalities, by hosting either the CMX or CRMX module, respectively. The Mediant 1000B also provides support for the regular Mediant 1000 telephony modules (i.e., FXS, FXO, and digital PSTN). The Mediant 1000B chassis supports (optional) the latest OSN server platform - OSN3. The OSN3 provides AMC-based modules, offering high performance CPUs targeted for applications requiring high performance processors. The OSN3 can also be provided with dual SATA hard-disk drives (HDD). |
| Network Standard | 10/100/1000Base-T |
| Number of Network (RJ-45) Por | 2 |
| Number of Total Expansion Slo | 14 |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Product Line | Mediant |
| Product Model | 1000B |
| Product Name | Mediant 1000B VoIP Gateway |
| Product Type | VoIP Gateway |
| Redundant Power Supply Suppor | Yes |
| Serial Port | Yes |
| Voice Codec | GSM |
| Wireless LAN | No |
