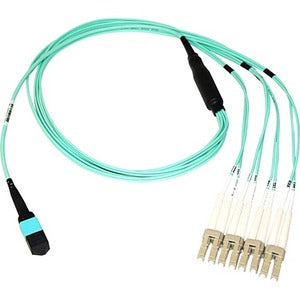

Axiom Fiber Optic Network Cable

Item #: 12241871   |   Model #: 0841280127557

  |   10 Questions
$277.00
$277.00
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name Axiom
Cable Length 39.37 ft
Cable Type Fiber Optic
Color Aqua
Connector on First End 1 x MTP/MPO Female Network
Connector on Second End 8 x LC Male Network
Core/Cladding Diameter 50/125 µm
Device Supported Network Device
Features Crush Resistant
Fiber Optic Mode Multi-Mode
Limited Warranty Lifetime
Manufacturer Axiom Memory Solutions
Manufacturer Part Number MP8LCOM4R12M-AX
Manufacturer Website Address http://www.axiommemory.com
Marketing Information
  • 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125, OM4, Aqua
  • 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side
  • All Connectors Have Ceramic Ferrules
  • Duplex Clips On LC Side
  • PVC (OFNR) Rated Aqua Jacket With Corning Glass
  • Jacket OD: 3.0mm (MPO) 2.0mm (LC)
  • Typical Return Loss,min.: MTP=20dB, LC=30dB
  • Typical Insertion Loss (MPO): 0.16dB
  • Typical Insertion Loss (LC): 0.35dB
  • Long Term Tensile Strength: 150n
  • Long Term Crush Resistance: 200n/100mm
  • Operating Temperature: -40° C To +70° C
  • Color: Aqua
    • Product Name Fiber Optic Network cable
    Product Type Network Cable
