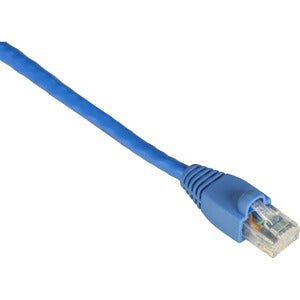

Black Box GigaTrue Cat. 6 Channel UTP Patch Cable

• Perfect for full broadband and baseband video
• Full Power Sum performance
• Provides full-duplex operation
• Meets balance requirements (LCL/LCTL)
• Improved attenuation provides cleaner data and video transmissions
• Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
• Delay Skew (Maximum): 25 ns/100 m (328 ft.)
• Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
• Mutual Capacitance (Maximum): 56 pF/m
• NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
• PS-ACR: 32 dB (Typical) at 100 MHz
• PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
• Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
• Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
• Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

• 1000BASE-T
• 100BASE-TX
• 100BASE-VG
• 155-Mbps ATM
• 100-Mbps FDDI/CDDI

EIA/TIA-568-B.2-1

Black Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.
