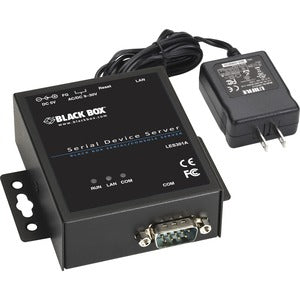

Black Box LES300 Device Server

Item #: 3563562   |   Model #: 822088107026

  |   10 Questions
$152.95
$152.95
Sold out

1 Each

Special Buy
Add to list
Black Box LES300 Device Server - New - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Wall Mountable, DIN Rail Mountable - TAA Compliant
Type Value
Brand Name Black Box
Country of Origin Taiwan
Depth 3.1"
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Fast Ethernet
Form Factor DIN Rail Mountable
Height 1.1"
Input Voltage Range 9 V DC - 30 V DC
Limited Warranty 1 Year
Manufacturer Black Box Corporation
Manufacturer Part Number LES301A-KIT
Manufacturer Website Address http://www.blackbox.com
Marketing Information
  • Features TCP server/client, UDP, Virtual COM, and tunneling modes.
  • Software-selectable RS-232/485/422 serial data communications.
  • Ideal for controlling a manufacturing or automation device over a LAN.
  • Auto MDI/MDI-X Ethernet port. Auto negotiates, autodetects for 10 or 100 Mbps.
  • Rugged, metal case that can be wall or DIN rail mounted (mounts included).
  • Firmware can be upgraded over an Ethernet network from a remote PC.
  • On the serial side, it features 15-kV ESD protection.

Use your Ethernet network to reliably access a remote RS-232 or RS-422/-485 industrial device from a remote workstation.

The 1-Port 10/100 Device Server gives you a cost-effective gateway for TCP/IP Ethernet and serial signal communications, enabling nearly any serial device to be connected to a new or existing Ethernet network.

It does this by encapsulating serial data and transporting it over Ethernet, communicating full-duplex, and transmitting bidirectional data transparently between the serial port and a network.

Plus, it's easy to configure. You can do this remotely over the Ethernet link using Telnet, a Web browser link, a serial console, or another Windows utility.

Even better, it comes with virtual communications software. Through it, you can use an existing Windows-based application to access a serial device by mapping the virtual COM port to a remote serial server over Ethernet.

In addition, the device server supports TCP server, TCP client, and UDP modes of communication, and serial tunneling, which you can use to send data between two serial devices via the TCP/IP link instead of RS-232, -485, or -422 connections. Link a touchscreen to a distant PLC over the Ethernet network, for instance.

Ideal for any manufacturing, process engineering, or automation application, the 1-Port 10/100 Device Server, RS-232/422/485 can also be used to communicate with a bar-code scanner, PLC, electronic Kanban inventory management device, and similar equipment on the factory floor.
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Network Standard 10/100Base-TX
Number of Network (RJ-45) Por 1
Number of Serial Ports 1
Package Contents
  • LES300 Device Server
  • AC Power Supply
  • Mounts
Power Consumption 1.50 W
Product Condition New
Product Name LES300 Device Server
Product Series LES300
Product Type Device Server
Serial Port Yes
TAA Compliant Yes
Weight (Approximate) 1.09 lb
Width 2.6"
Black Box LES300 Device Server - New - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Wall Mountable, DIN Rail Mountable - TAA Compliant
