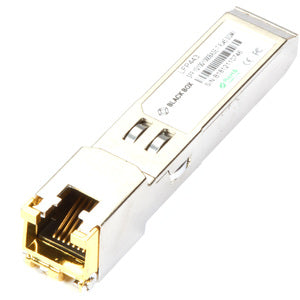

ContactBlack Box SFP (mini-GBIC) Module
Item #: 5645747 | Model #:
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Data Networking |
| Brand Name | Black Box |
| Compatibility | MSA Compliant |

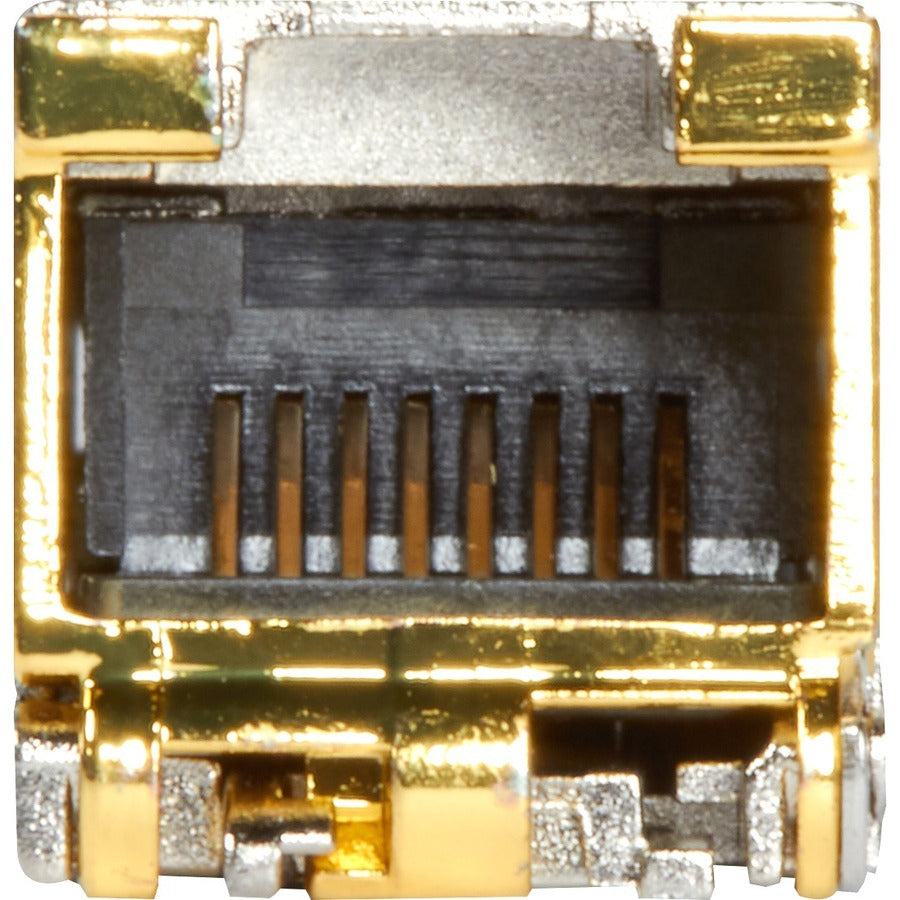

| Connector Type | RJ-45 |
| Country of Origin | China |
| Depth | 2.7" |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Hot-pluggable |
| Height | 0.6" |
| Interfaces/Ports Details | 1 x RJ-45 1000Base-T LAN |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LFP443 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. 10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded). |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Product Name | SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Total Number of Ports | 1 |
| Twisted Pair Cable Standard | Category 5 |
| Weight (Approximate) | 0.04 lb |
| Width | 0.6" |
