Black Box USB 2.0 Extender - CATx/LAN, 4-Port

• Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
• Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
• Operating Humidity 20 to 80%, noncondensing
• Operating Temperature 32 to 122° F (0 to 50°C)
• Power Input From 100-240 VAC, 50-60 Hz adapter (included)
• Power Output 24 VDC
• RoHS Yes
• Speeds Up to 480 Mbps*
• Standards FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
• Storage Humidity 10 to 90%, noncondensing

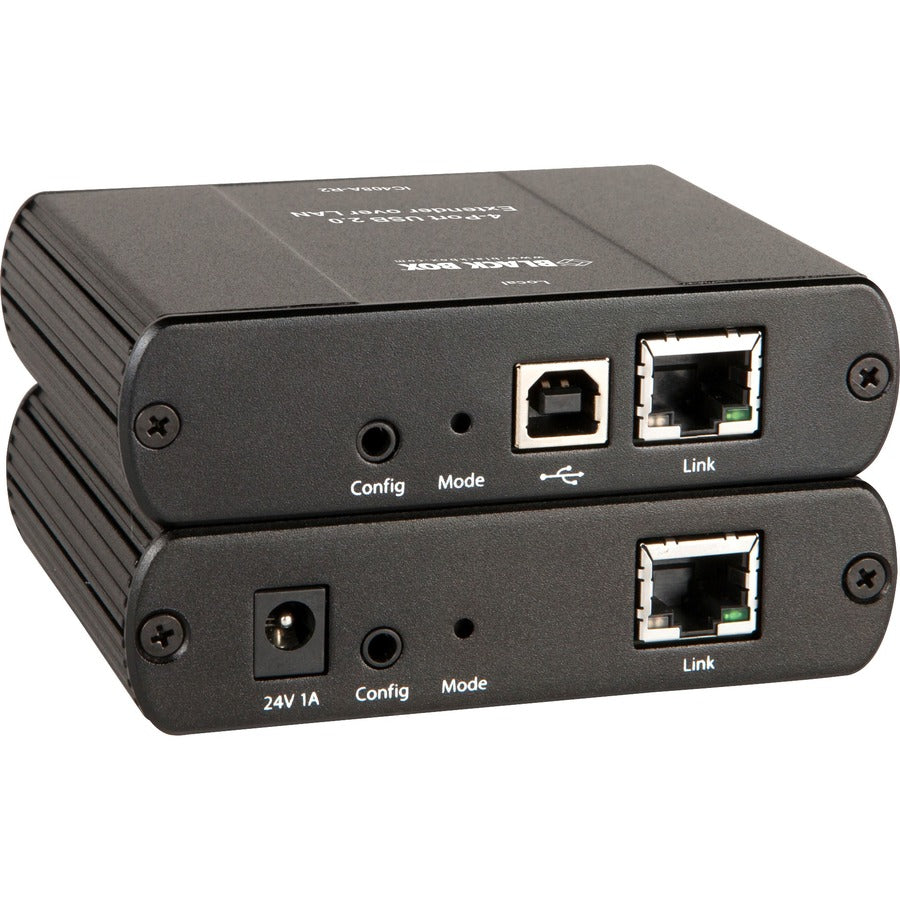

• Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
• Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)

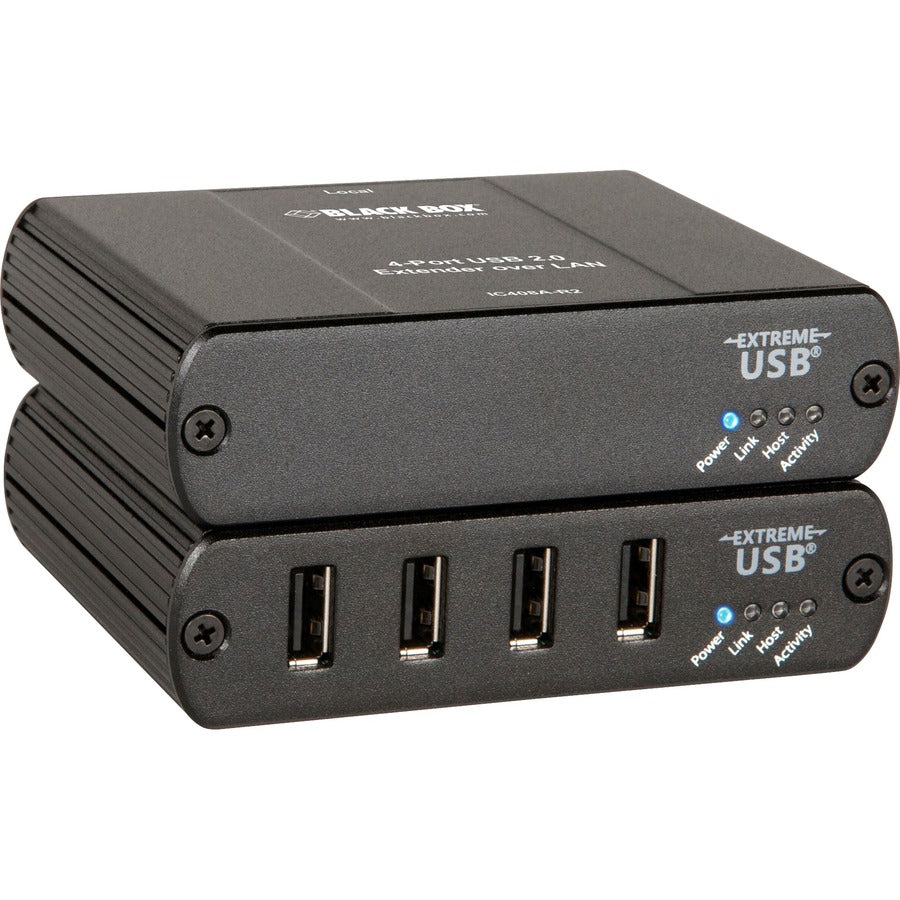

• Indicators On each unit: (4) LEDs (Power, Link, Host, Activity)
• Weight 3.1 lb (1.4 kg)

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control, KVM extension, Digital Sinage, Remote Desktop USB connections, Security web cameras and access control, Medical device connectivity, USB Web device sharing: printing scanning , storage. The extender can be used in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

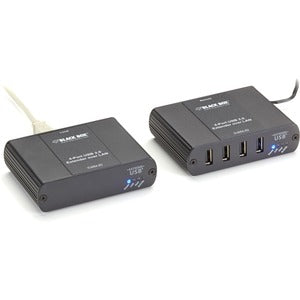

• Local Extender Unit
• Remote Extender Unit
• USB Cable
• Power Adapter
• US Power Cord
• Quick Start Guide
