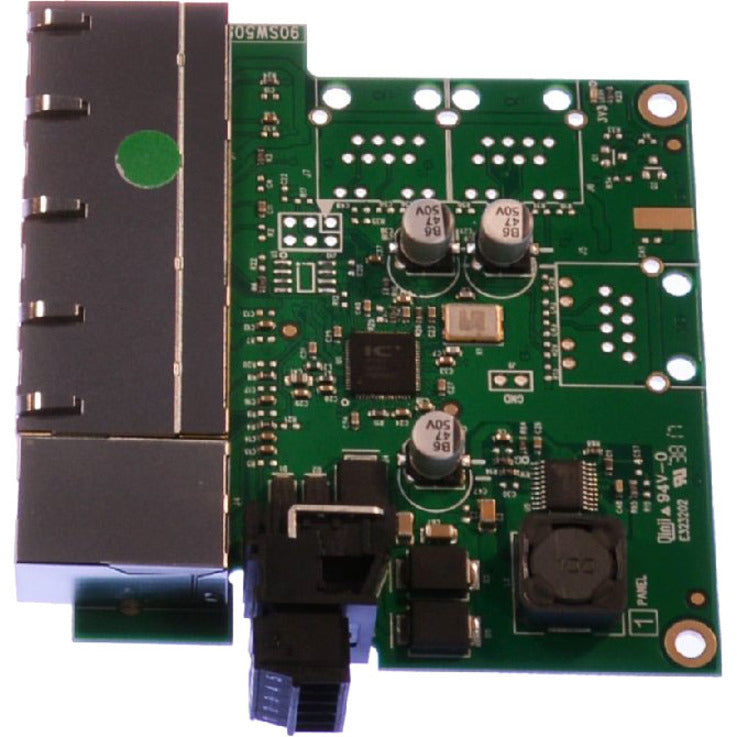

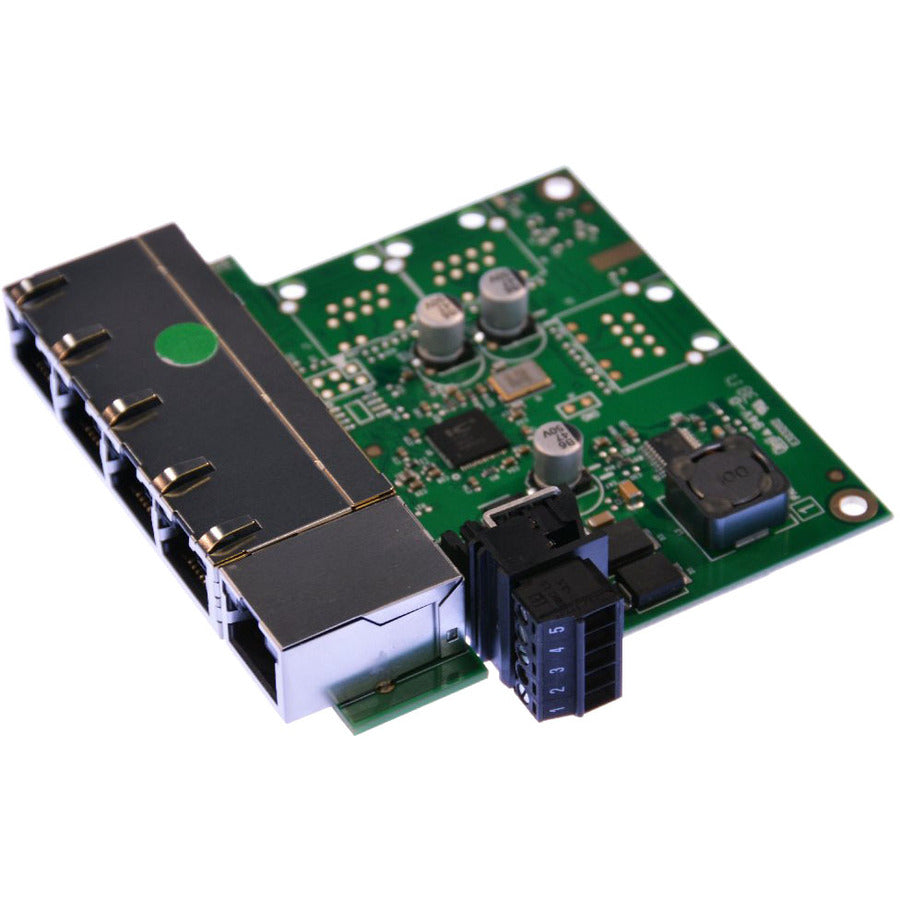

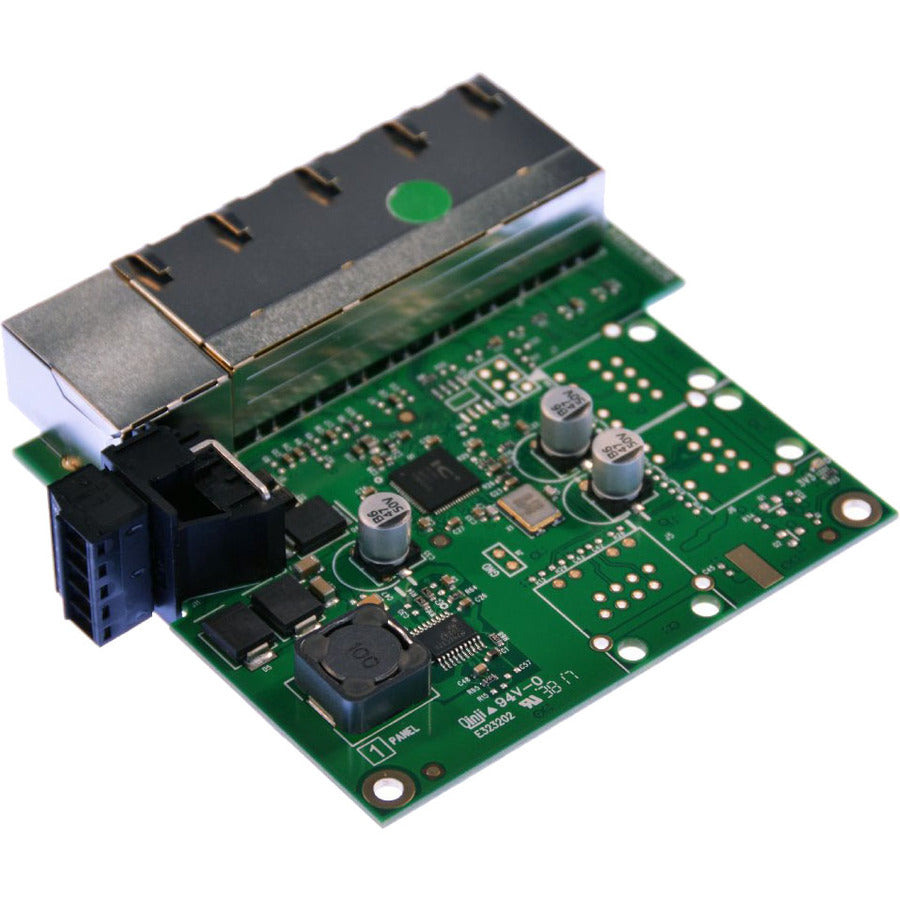

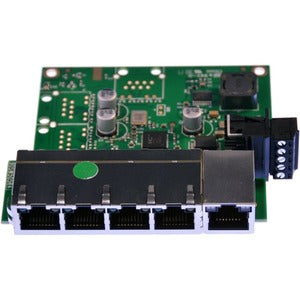

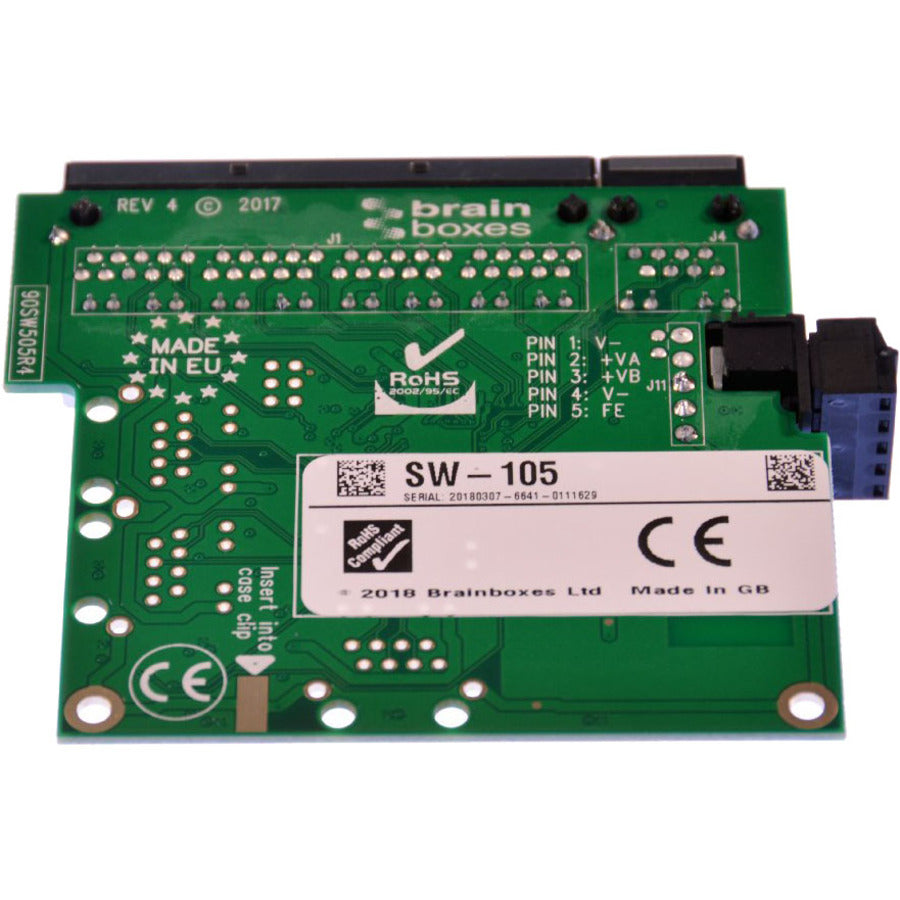

ContactBrainboxes Industrial Embeddable 5 Port Ethernet Switch
Item #: 5DB377 | Model #: 0837324004168
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Brainboxes |
| Country of Origin | United Kingdom |
| Depth | 3.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Height | 0.8" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-105 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications. |
| Media Type Supported | Twisted Pair |
| Modular | No |
| Network Technology | 10/100Base-T |
| Package Contents |
|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Power Source | Power Supply |
| Product Model | SW-105 |
| Product Name | Industrial Embeddable 5 Port Ethernet Switch |
| Product Type | Ethernet Switch |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Weight (Approximate) | 2.40 oz |
| Width | 3.7" |
