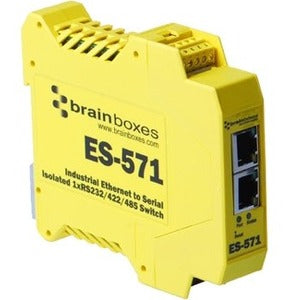

ContactBrainboxes Isolated Industrial Ethernet to Serial 1xRS232/422/485 + Ethernet Switch
Item #: XK1908 | Model #: 0837324002904
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Brainboxes |
| Country of Origin | United Kingdom |
| Depth | 4.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | DIN Rail Mountable |
| Height | 0.9" |
| Limited Warranty | Lifetime |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-571 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports. ES-571 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. The Ethernet Switch allows daisy chaining of devices, to instantly upgrade infrastructure. Also featuring 4 separate power domains with total galvanic isolation between each. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply. |
| Number of Serial Ports (Exter | 1 |
| Package Contents |
|
| Platform Supported | Linux |
| Product Model | ES-571 |
| Product Name | Isolated Industrial Ethernet to Serial 1xRS232/422/485 + Ethernet Switch |
| Product Type | Serial Adapter |
| TAA Compliant | Yes |
| Weight (Approximate) | 4.13 oz |
| Width | 4.1" |
