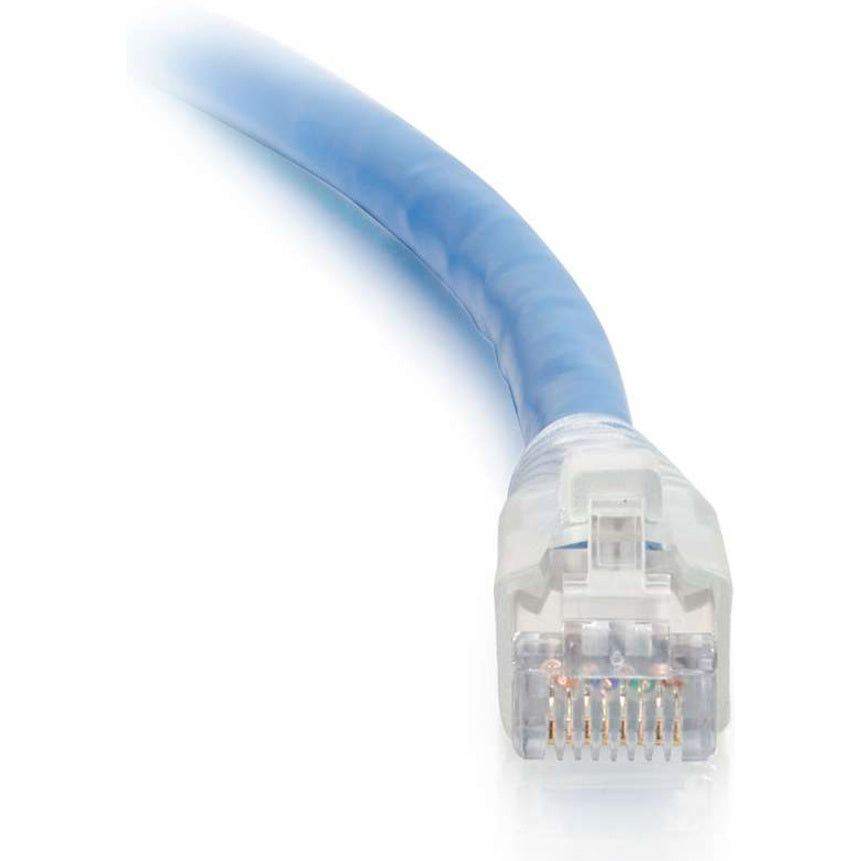

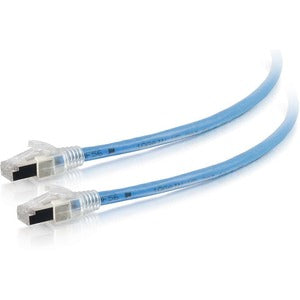

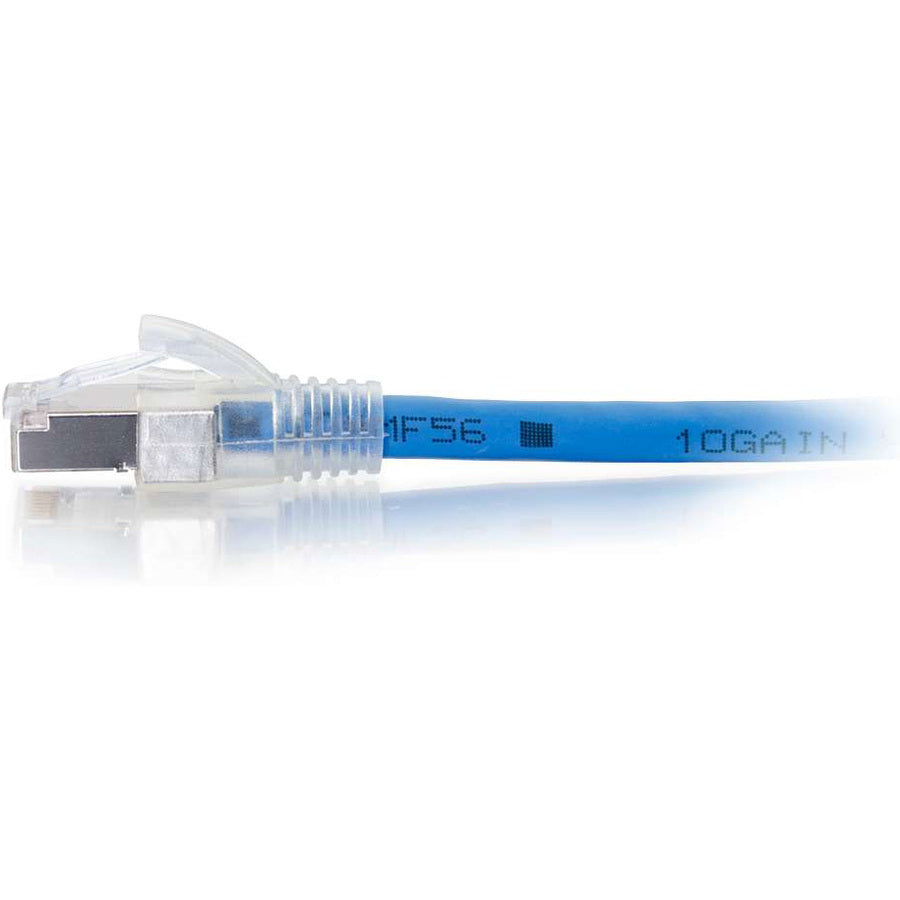

C2G 35ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum

Item #: 5007504   |   Model #: 0757120431718

  |   10 Questions
Regular price
$210.99
Sale price
$210.99
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
American Wire Gauge 23 AWG
Brand Name C2G
Cable Characteristic Patch Cable
Cable Length 35 ft
Cable Type Category 6a
Color Blue
Connector on First End 1 x RJ-45 Male Network
Connector on Second End 1 x RJ-45 Male Network
Contact Plating Gold
Data Transfer Rate 10 Gbit/s
Device Supported Network Device
Energy Star Yes
Environmental Certification REACH
Environmentally Friendly Yes
Features Molded
Limited Warranty Lifetime
Manufacturer C2G
Manufacturer Part Number 43171
Manufacturer Website Address http://www.cablestogo.com
Marketing Information

This Snagless Discontinuous Shielded Cat6a patch cable is ideal for use with HD A/V applications such as HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.

These cables have been tested and validated to guarantee they consistently meet the highest industry performance and safety standards. The uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. These cables have a nominal 0.265" diameter that allows for higher cable density and smaller bend radius than other Cat6a cable products. These cables are also designed for Power over Ethernet (PoE) applications type 1-4 according to IEEE 802.3bt draft D1.2.

These cables have discontinuous metallic shielding elements surrounding the inner 4-pair core of the cable. The effect of this approach is to attenuate both electromagnetic signals that emanate from the cable core and the potentially interfering electromagnetic signals that are generated by other sources. The metallic shielding elements are designed to be discontinuous to avoid any need for grounding, which is a requirement for shielded cable designs, and have been shown to provide superior Alien Crosstalk performance in comparison to conventionally designed Category 6A UTP cables.

Product Name 35ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum
Product Type Network Cable
Shielding Yes
Weight (Approximate) 1.25 lb
