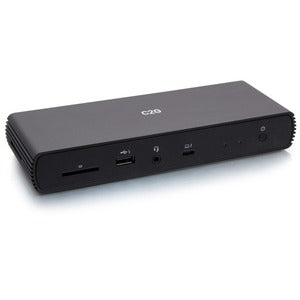

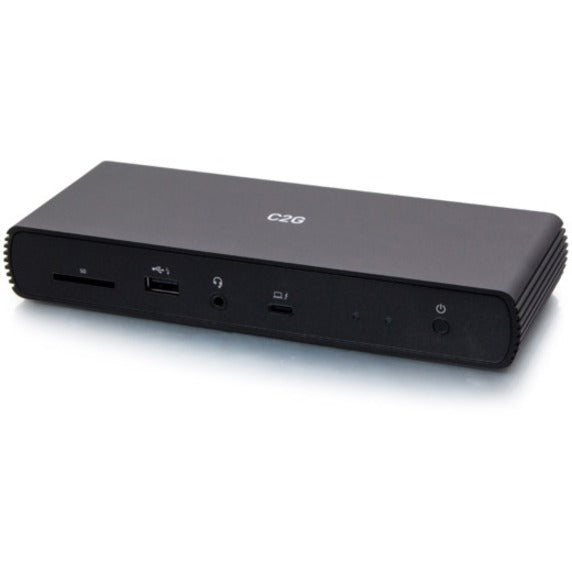

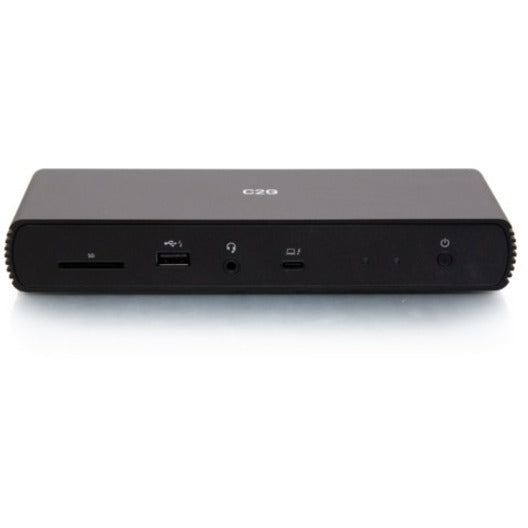

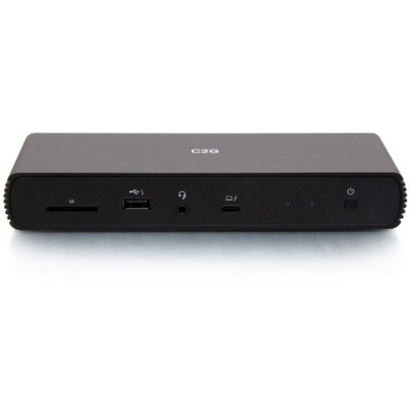

ContactC2G Thunderbolt 4 Dock - Dual Monitor Docking Station with USB, Ethernet, SD Reader, and AUX - Power Delivery up to 90W
Item #: 54537C2G | Model #: C2G54537
| 10 Questions
| Type | Value |
|---|---|
| Brand Compatibility | Apple |
| Brand Name | C2G |
| Color Family | Black |
| Compatibility | Apple Products:
|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Depth | 0.93" |
| Device Supported | Desktop PC/Notebook/Monitor/Optical Drive/Speaker/Microphone/Headset/Hard Drive/Printer/Keyboard/Mouse |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Headphone/Microphone Combo Po | Yes |
| Height | 5.43" |
| Host Interface | USB Type C |
| Limited Warranty | 3 Year |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G54537 |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | The Thunderbolt 4 USB-C 10-in-1 Dual Display Dock transforms Thunderbolt 4 enabled laptops into total desktop solutions through a single USB-C connection - allowing them to have more video outputs, more connected peripherals, and lightning-speed data transfers, all while keeping the laptop charged and ready to go. This docking station supports crisp, ultra high definition images and video when connected to a single 8K display or dual 4K displays and provides data transfer speeds up to 40Gbps, all through the available Thunderbolt 4 ports. The front USB-A 2.0 port supports BC 1.2 for quick mobile device charging, while the three USB-A Gen 2 ports on the rear support 10Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Access multimedia content quickly with the SD 4.0 card reader that supports all SD cards, including SD, SDHC, and SDXC. The included 135W power supply keeps the connected Thunderbolt 4 laptop charged and ready to go with 90W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 135W may charge at lower speeds. The Thunderbolt 4 USB-C 10-in-1 Dual Display Dock maximizes desktop space while providing a plug-and-play solution for Thunderbolt 4 Windows 10 or later laptops and backward compatibility with Thunderbolt 3 and USB4 devices running Windows 10 or later or Mac OS Big Sur 11.2 or later. MAXIMUM SUPPORTED RESOLUTIONS 2 Displays: 4K (4096 � 2160) at 60Hz 1 Display: 8K (7680 x 4320) at 30Hz PORTS 4x Thunderbolt 4 Ports: Connect to a single 8K or dual 4K displays for audio and video, and transfer data up to 40Gbps from storage devices. 4x USB-A: Connect storage devices and transfer data up to 10Gbps through the USB-A Gen 2 ports, with the front port also supporting BC 1.2 for quick mobile device charging. Gigabit Ethernet: Connect to a local network for network and internet access. Audio Combo Jack: Connect a headset microphone or speakers for audio output. SD 4.0 Card Reader: Insert an SD, SDHC, or SDXC memory card for fast data transfers. |
| Maximum Power Supply Wattage | 135 W |
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Network (RJ-45) | Yes |
| Number of Displays Supported | 2 |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-A Ports | 4 |
| Number of USB Type-C Ports | 1 |
| Operating System Supported | macOS |
| Package Contents |
|
| Packaged Quantity | 1 |
| Power Source Type | Power Adapter |
| Product Color | Black |
| Product Name | Thunderbolt 4 USB C Dual Display Docking Station with Ethernet - 90W PD |
| Product Type | Docking Station |
| Screen Mode Supported | 4K |
| Supported Resolutions | 4096 x 2160 |
| TAA Compliant | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 4 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 90W USB-C Power Delivery |
| Width | 2.71" |
C2G Thunderbolt 4 Dock - Dual Monitor Docking Station with USB, Ethernet, SD Reader, and AUX - Power Delivery up to 90W - for Desktop PC/Notebook/Monitor/Optical Drive/Speaker/Microphone/Headset/Hard Drive/Printer/Keyboard/Mouse - Memory Card Reader - SD - 135 W - USB Type C - 2 Displays Supported - 8K, 4K - 7680 x 4320, 4096 x 2160 - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - Black - Thunderbolt - Wired - Gigabit Ethernet - W
