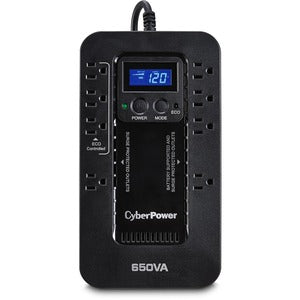

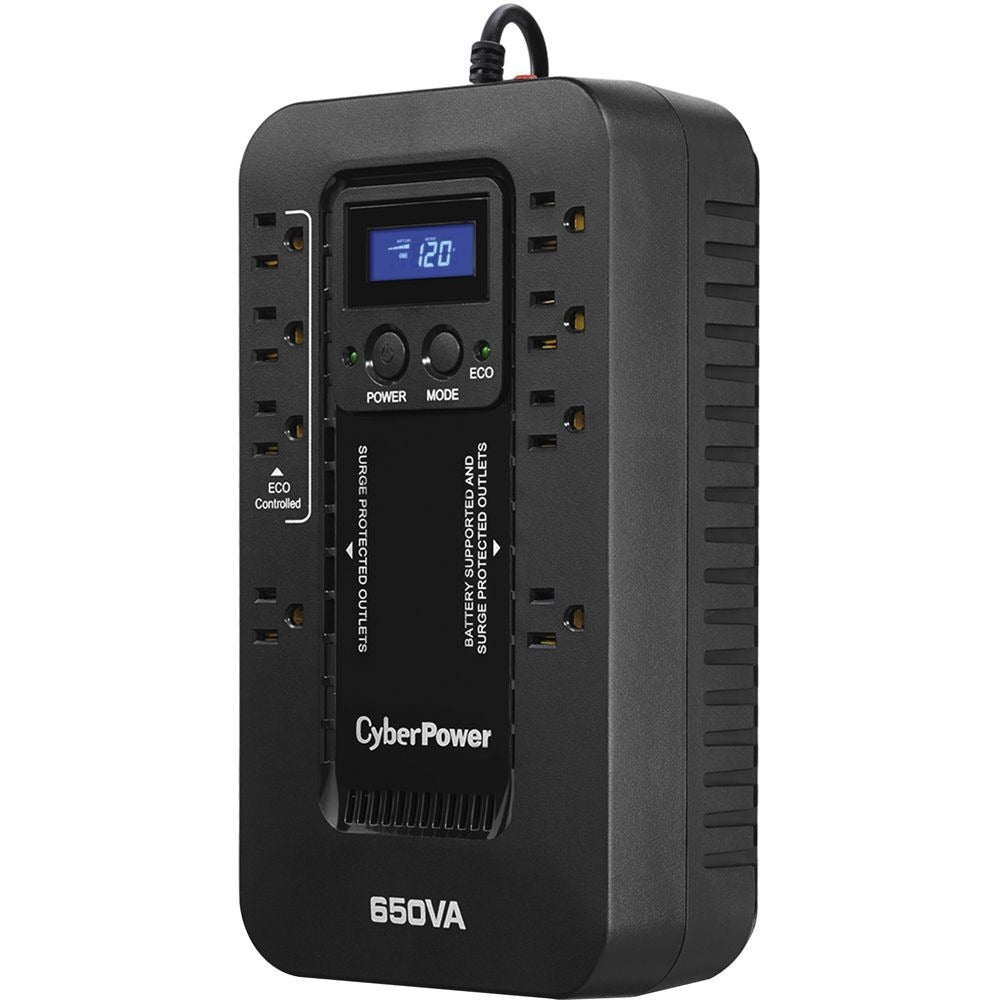

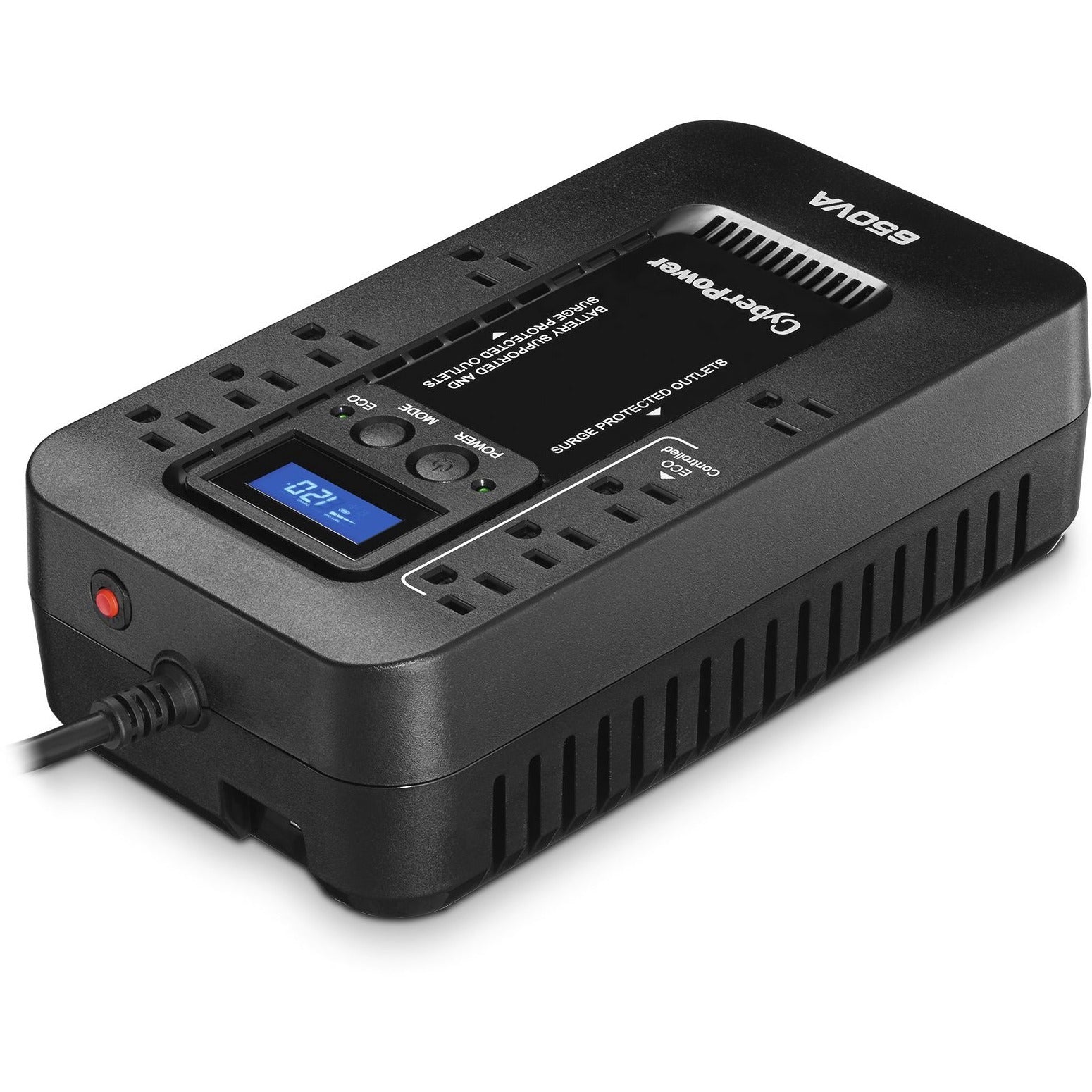

ContactCyberPower EC650LCD Ecologic UPS Systems
Item #: EC650LCD | Model #: 0649532607594
| 10 Questions
| Type | Value |
|---|---|
| Additional Information |
|
| Alarm | Battery Mode |
| Backup/Run Time (Full Load) | 2.80 Minute |
| Backup/Run Time (Half Load) | 8.40 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Brand Name | CyberPower |
| Certifications & Standards |
|
| Color | Black |
| Cord Length | 5 ft |
| Country of Origin | China |
| Depth | 5.9" |
| Directly Connected Equipment | $100000 - Lifetime |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Compact |
| Height | 3.1" |
| Input Frequency | 63 Hz |
| Input Voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 650 VA/390 W |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | EC650LCD |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee. |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Number of Batteries | 1 |
| Number of Battery & Surge Out | 4 |
| Number of Surge-only Outlets | 4 |
| Output Voltage | 120 V AC |
| Overload Protection | Yes |
| Package Contents |
|
| Plug/Connector Type | NEMA 5-15P |
| Product Model | EC650LCD |
| Product Name | EC650LCD ECOLOGIC UPS |
| Product Series | Ecologic UPS |
| Product Type | Standby UPS |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Software Included | PowerPanel Personal Edition |
| Status Indicators | Power On |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Surge Energy Rating | 526 J |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 8 Hour |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Waveform Type | Simulated Sine Wave |
| Weight (Approximate) | 6.40 lb |
| Width | 10.6" |
