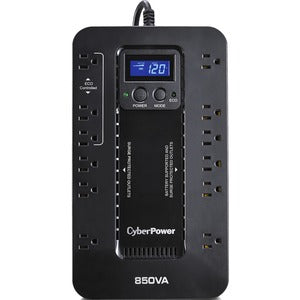

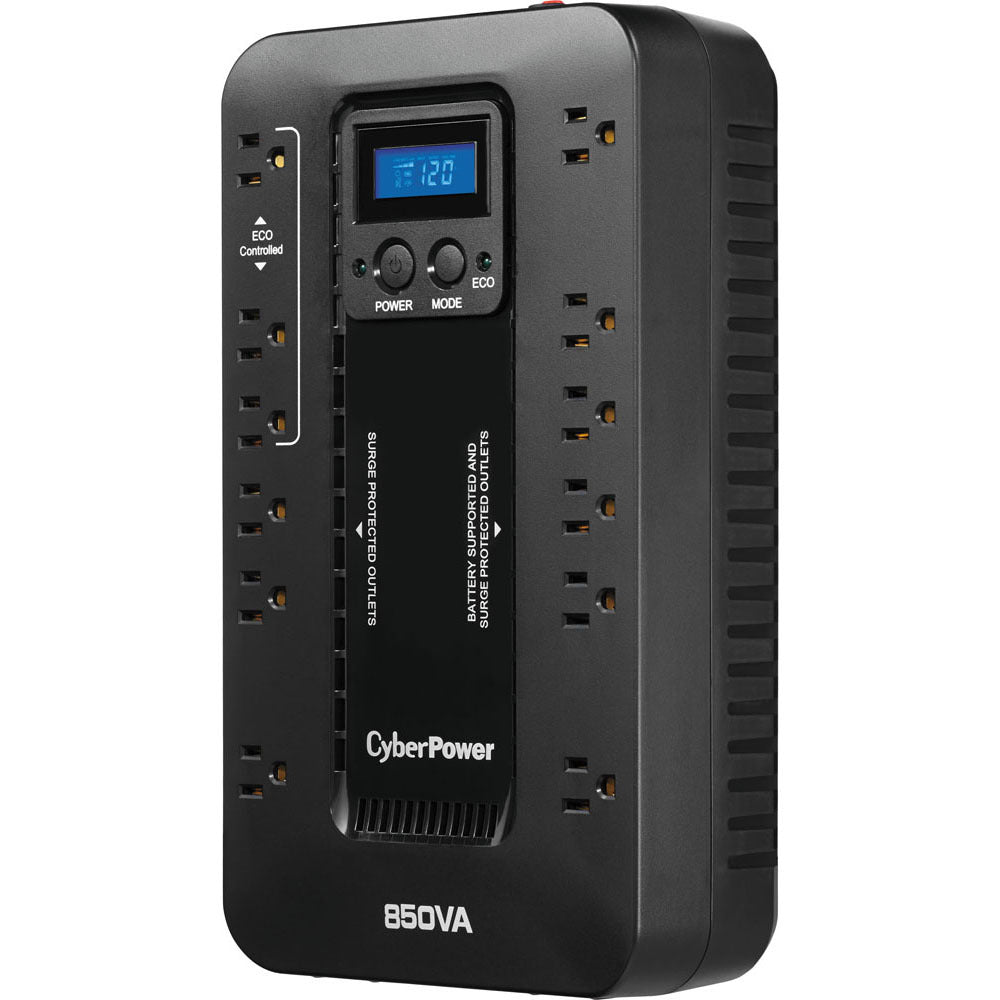

CyberPower EC850LCD Ecologic UPS Systems

Item #: EC850LCD   |   Model #: 0649532607600

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

CyberPower EC850LCD Ecologic UPS Systems - 850VA/510W, 120 VAC, NEMA 5-15P, Compact, 12 Outlets, LCD, PowerPanel® Personal, $100000 CEG, 3YR Warranty
Type Value
Additional Information
  • Field-serviceable Battery : Replaceable by qualified technician
  • Plug Style : Right Angle - 45° Offset
  • On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
  • On Battery Voltage : 120 VAC ± 5%
  • Outlets - Eco Controlled : 3
  • Outlets - Widely Spaced : 4
  • Software (Free Download) : PowerPanel® Personal
  • Keyhole Mounting Slots : Yes
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
Alarm Battery Mode
Backup/Run Time (Full Load) 2.30 Minute
Backup/Run Time (Half Load) 7.90 Minute
Battery Characteristics Maintenance-free, Sealed
Battery Chemistry Lead Acid
Brand Name CyberPower
Certifications & Standards
  • UL1778
  • cUL CSA C22.2 No.107.3-05
  • FCC/DoC Class B
Cord Length 5 ft
Country of Origin Philippines
Depth 7"
Directly Connected Equipment $100000 - Lifetime
EMI/RFI Noise Filter Yes
Energy Saving GreenPower UPS™ Bypass Technology
Energy Star Yes
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Compact
Height 3.1"
Input Frequency 63 Hz
Input Voltage 120 V AC
Limited Warranty 3 Year
Load Capacity 850 VA/510 W
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number EC850LCD
Manufacturer Website Address
Marketing Information

A compact UPS with standby topology, the CyberPower Ecologic EC850LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC850LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC850LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

More from the Manufacturer

Maximum Operating Elevation 10000 ft
Maximum Operating Temperature 104°F (40°C)
Maximum Storage Elevation 50000 ft
Number of Batteries 1
Number of Battery & Surge Out 6
Number of Surge-only Outlets 6
Output Voltage 120 V AC
Overload Protection Yes
Package Contents
  • PowerPanel Personal Edition Software CD
  • USB Cable
  • User Manual
  • Registration Card
Plug/Connector Type NEMA 5-15P
Product Model EC850LCD
Product Series Ecologic UPS
Product Type Standby UPS
Receptacle Detail 12 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Software Included PowerPanel Personal Edition
Status Indicators Power On
Storage Relative Humidity 0% - 95%
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Surge Energy Rating 526 J
Transfer Time 4 ms
Typical Battery Recharge Time 8 Hour
USB (HID Compliant) Port Yes
Waveform Type Simulated Sine Wave
Weight (Approximate) 7.70 lb
Width 12.2"
CyberPower EC850LCD Ecologic UPS Systems - 850VA/510W, 120 VAC, NEMA 5-15P, Compact, 12 Outlets, LCD, PowerPanel® Personal, $100000 CEG, 3YR Warranty
