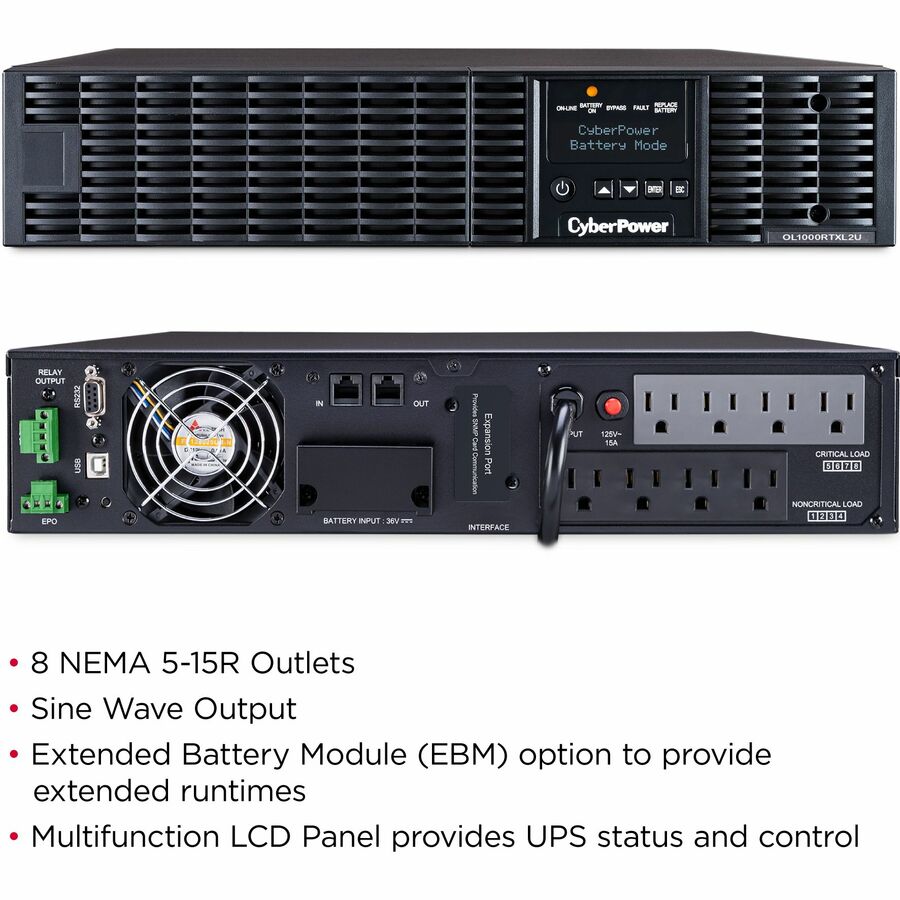

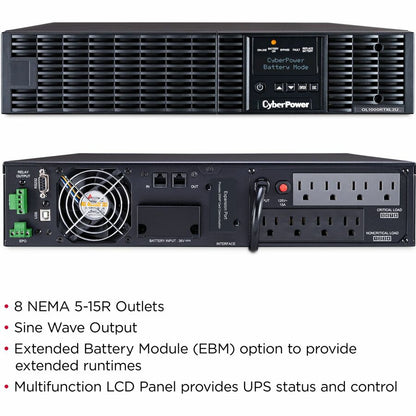

CyberPower OL1000RTXL2U Smart App Online UPS Systems - 1000VA/900W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Type Value
Additional Information
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 15A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Audible Alarms: Battery Mode
  • Dry Contacts: Yes

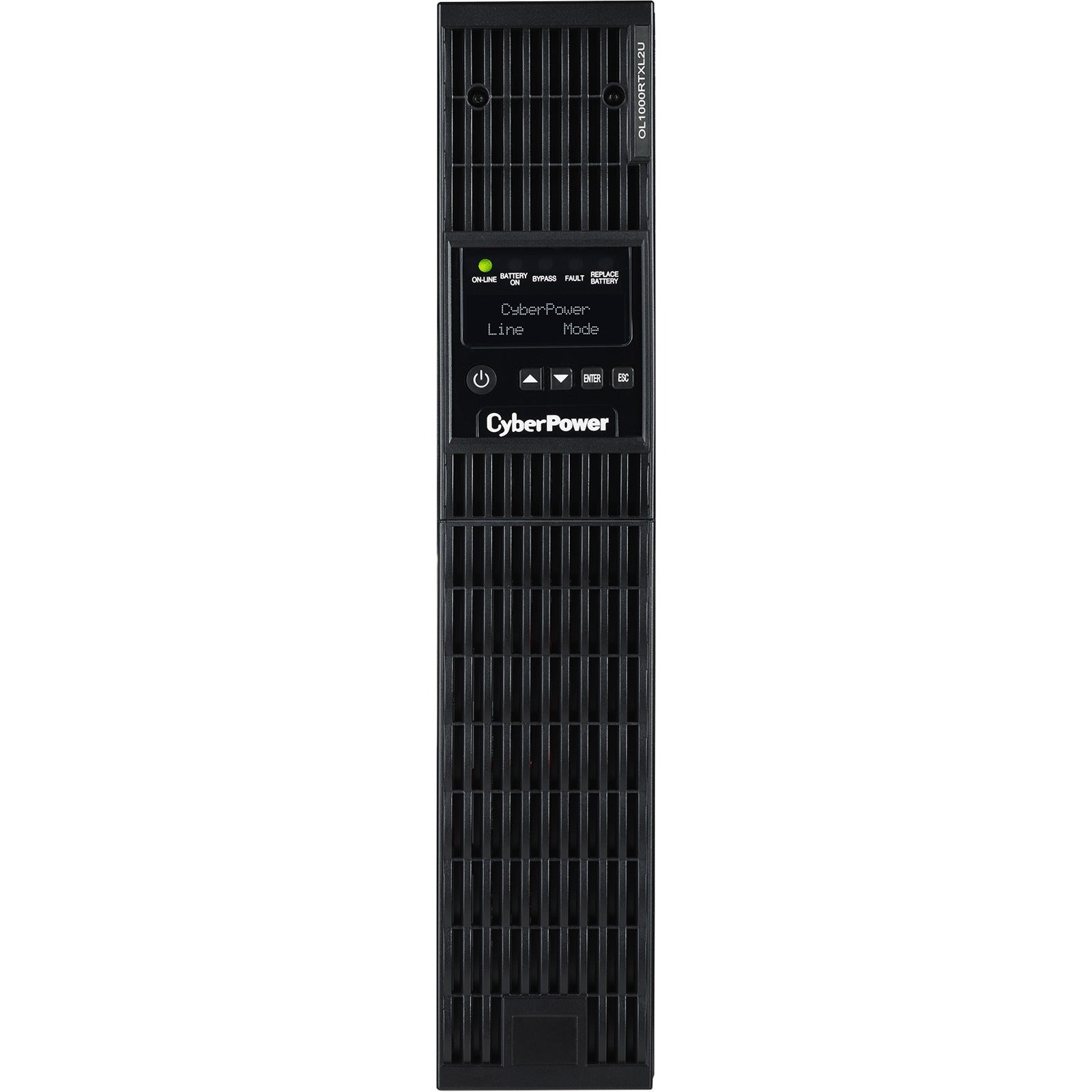

  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Upgradeable firmware: Yes

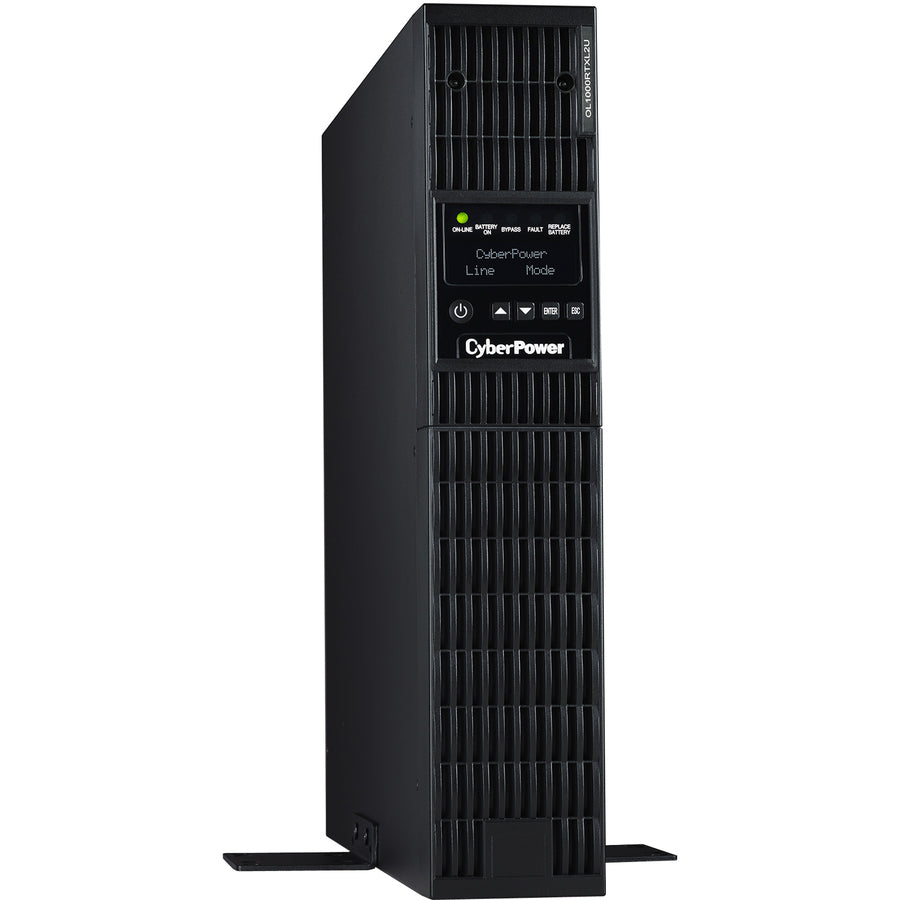

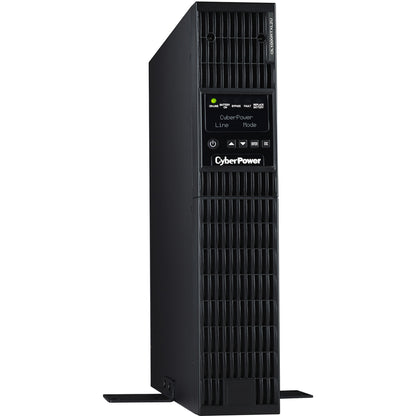

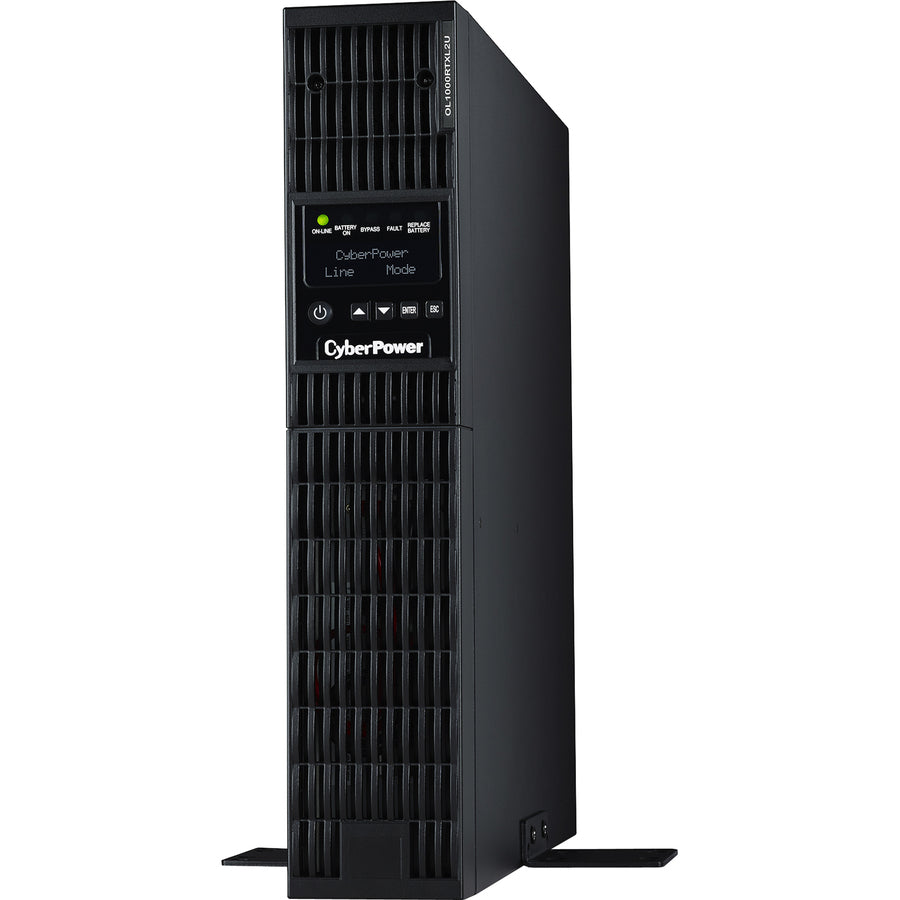

  • Form Factor: Rack / Tower
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • Online Thermal Dissipation: 274 BTU/hr
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity: 0 - 95% (non-condensing)
Alarm UPS Fault
Backup/Run Time (Full Load) 7.40 Minute
Backup/Run Time (Half Load) 20 Minute
Battery Capacity 9000 mAh
Battery Characteristics Maintenance-free
Battery Chemistry Sealed Lead Acid (SLA)
Battery Size 12V
Brand Name CyberPower
Certifications & Standards UL1778
Color Black
Country of Origin Philippines
Dataline Protection RJ-45

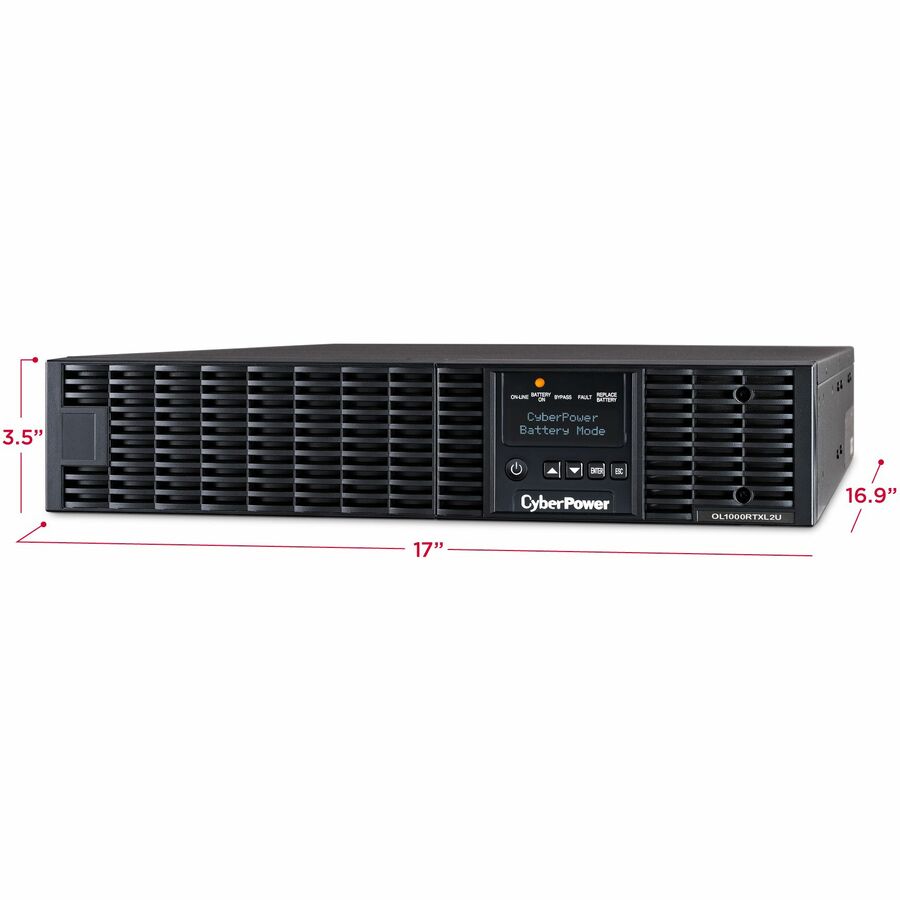

Depth 16.9"
Directly Connected Equipment $400000Lifetime
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >94%
Energy Star Yes
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Rack/Tower
Height 3.5"
Input Frequency 70 Hz
Input Voltage 120 V AC
Input Voltage Range 100 V AC - 125 V AC
Limited Warranty 3 Year
Load Capacity 1000 VA
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL1000RTXL2U
Manufacturer Website Address http://www.cyberpowersystems.com
Marketing Information

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL1000RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1000RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Maximum Operating Elevation 10000 ft
Maximum Operating Temperature 104°F (40°C)
Maximum Storage Elevation 50000 ft
Network Management SNMP/HTTP Remote Monitoring
Number of Batteries 3
Output Voltage 120 V AC
Overload Protection Yes
Package Contents
  • Smart App Online OL1000RTXL2U 1000VA 100-125V Sine Wave LCD Rack/Tower UPS
  • PowerPanel Business Edition Software CD
  • User Manual
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Mounting Hardware
  • Registration Card
Plug/Connector Type NEMA 5-15P
Product Model OL1000RTXL2U
Product Name Smart App Online OL1000RTXL2U 1000VA 100-125V Sine Wave LCD Rack/Tower UPS
Product Series Smart App Online UPS
Product Type Dual Conversion Online UPS
Rack Height 2U

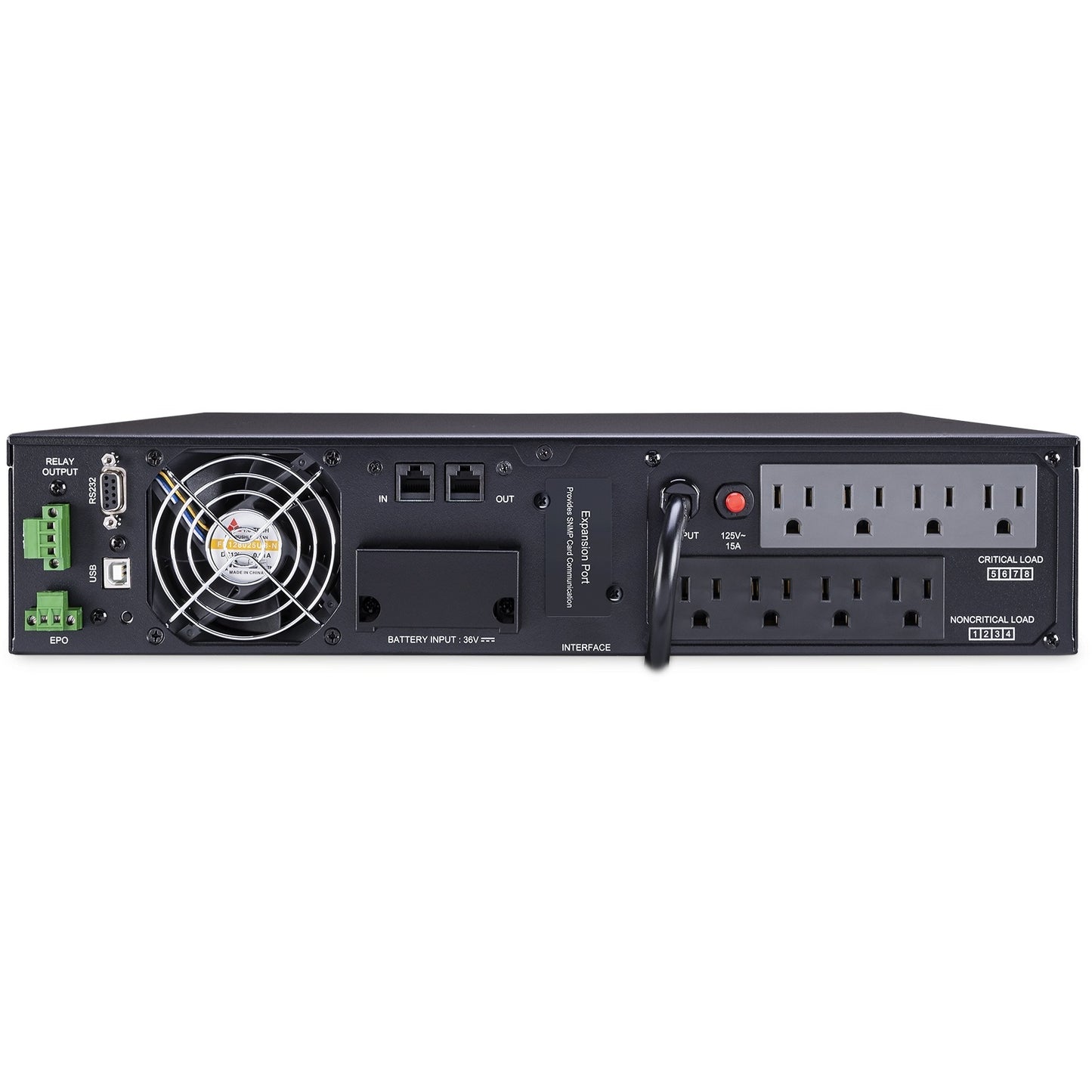

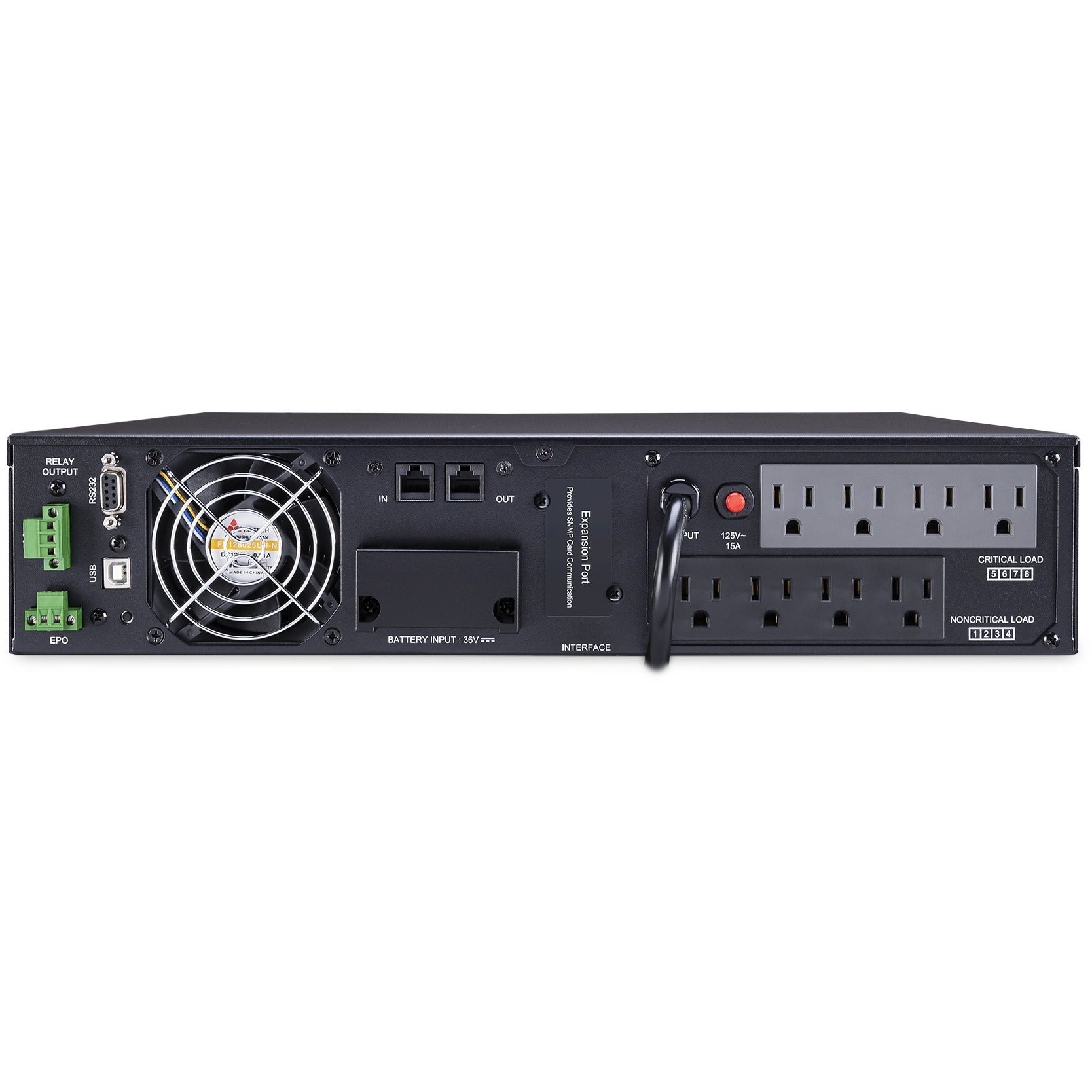

Receptacle Detail 8 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Serial Port Yes
Software Included PowerPanel® Business
Sound Emission 38 dB(A)
Status Indicators
  • Power On
  • Line Mode
  • Battery Mode
  • Bypass Mode
  • Fault
  • Replace Battery
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Surge Energy Rating 1780 J
Thermal Dissipation 31.65 W
Transfer Time 0 ns
Typical Battery Recharge Time 4 Hour
USB (HID Compliant) Port Yes
Waveform Type Sine Wave
Weight (Approximate) 39.60 lb
Width 17"
