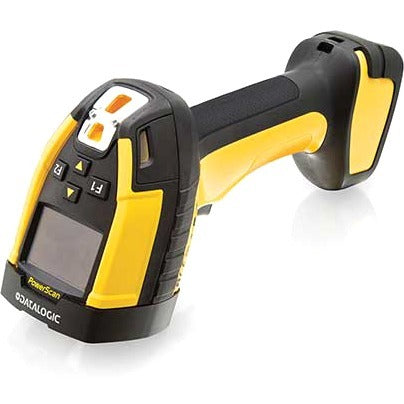

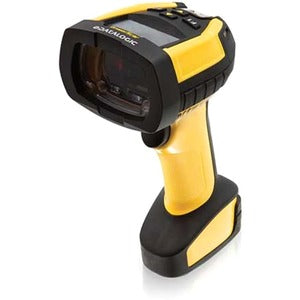

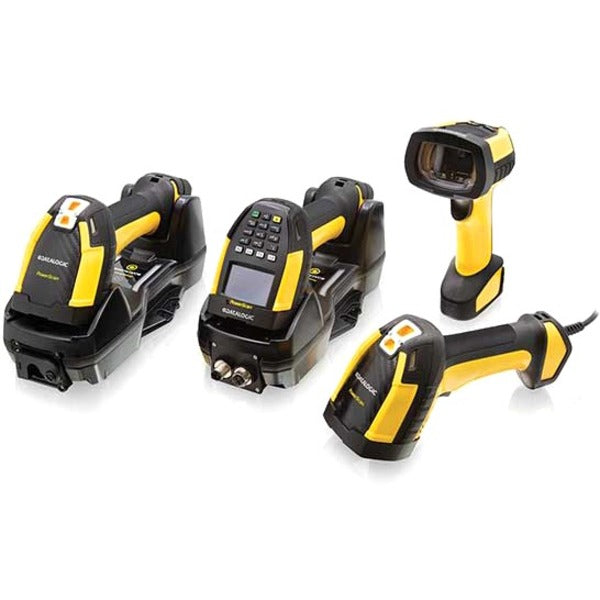

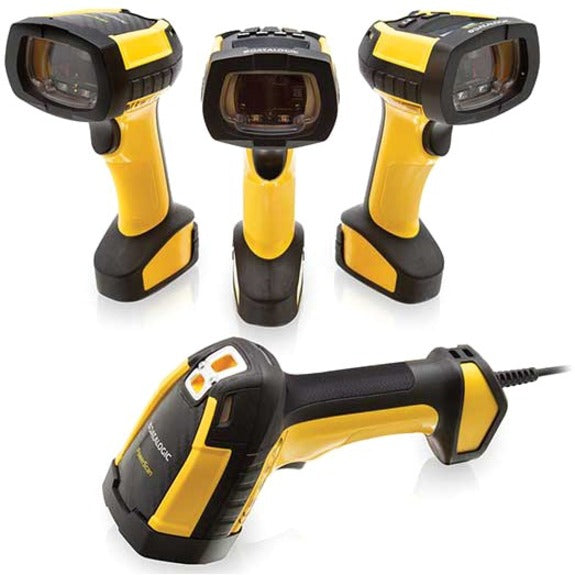

ContactDatalogic PowerScan PM9600 Barcode Scanner Kit
Item #: 7657427 | Model #: PM9600-SR910RBK20
| 10 Questions
| Type | Value |
|---|---|
| Air Electrostatic Discharge ( | 20kV |
| Application/Usage | Sorting |
| Battery Capacity | 3350 mAh |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Bluetooth | Yes |
| Brand Name | Datalogic |
| Cable Type Included | Serial |
| Connectivity Technology | Cable/Wireless |
| Drop Specification |
|

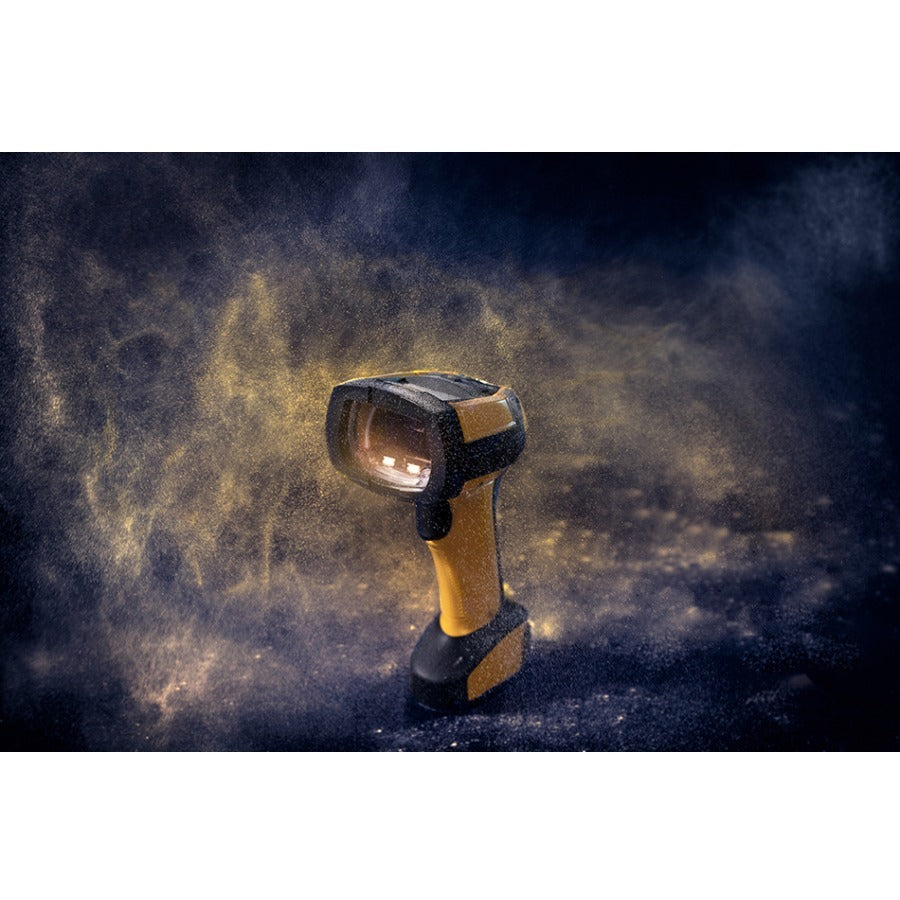

| Durability | Dust Resistant |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Features | Ergonomic Design |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Form Factor | Handheld |
| Height | 7.8" |
| Host Interface | Serial |
| Humidity (Non-condensing) | 0% to 95% |
| Illumination Color | White |
| Illumination Type | LED |
| Image Sensor Resolution | 1280 x 800 |
| Image Sensor Type | Imager |

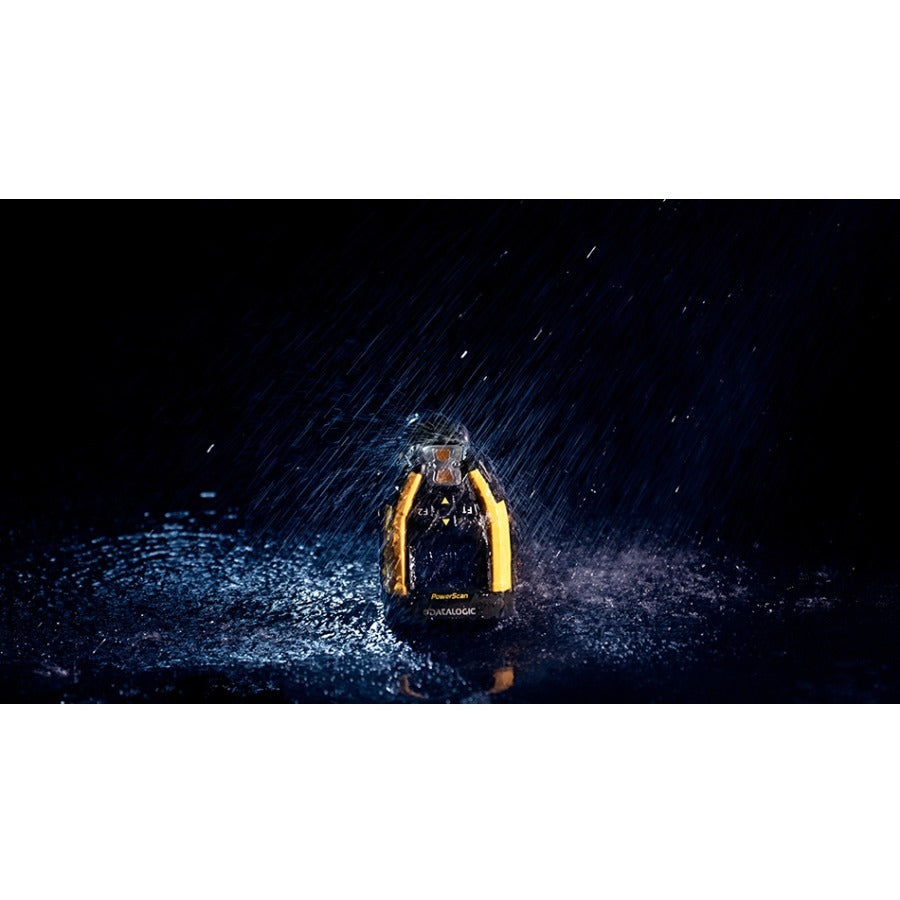

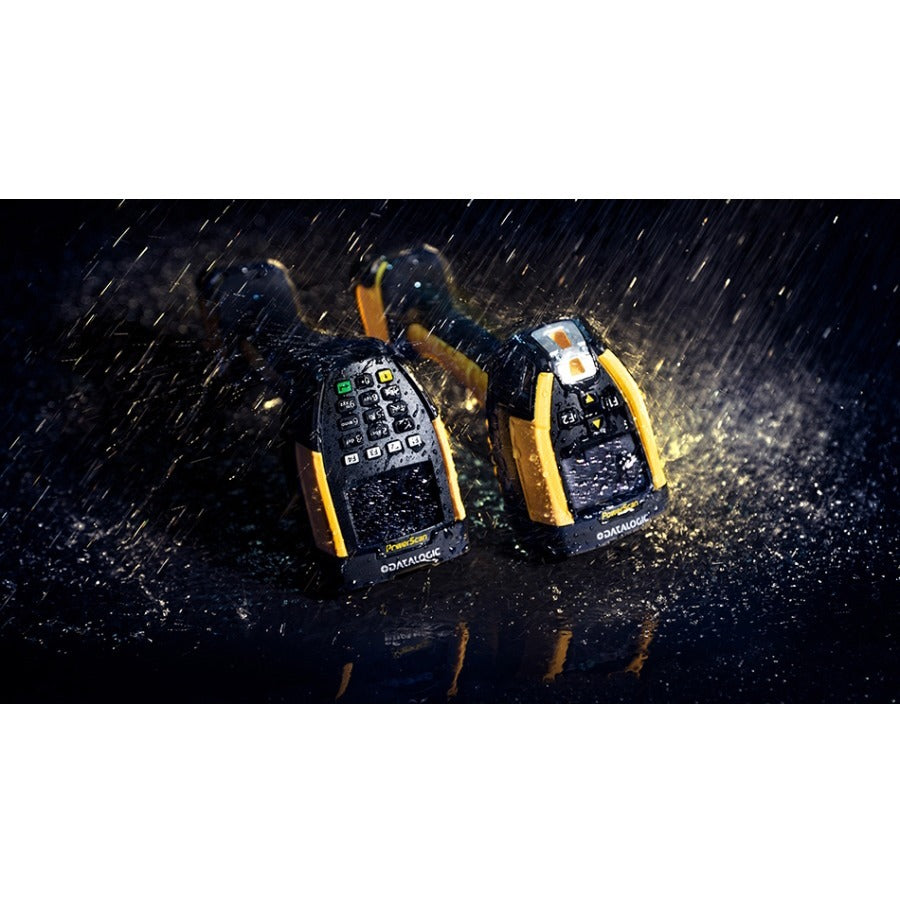

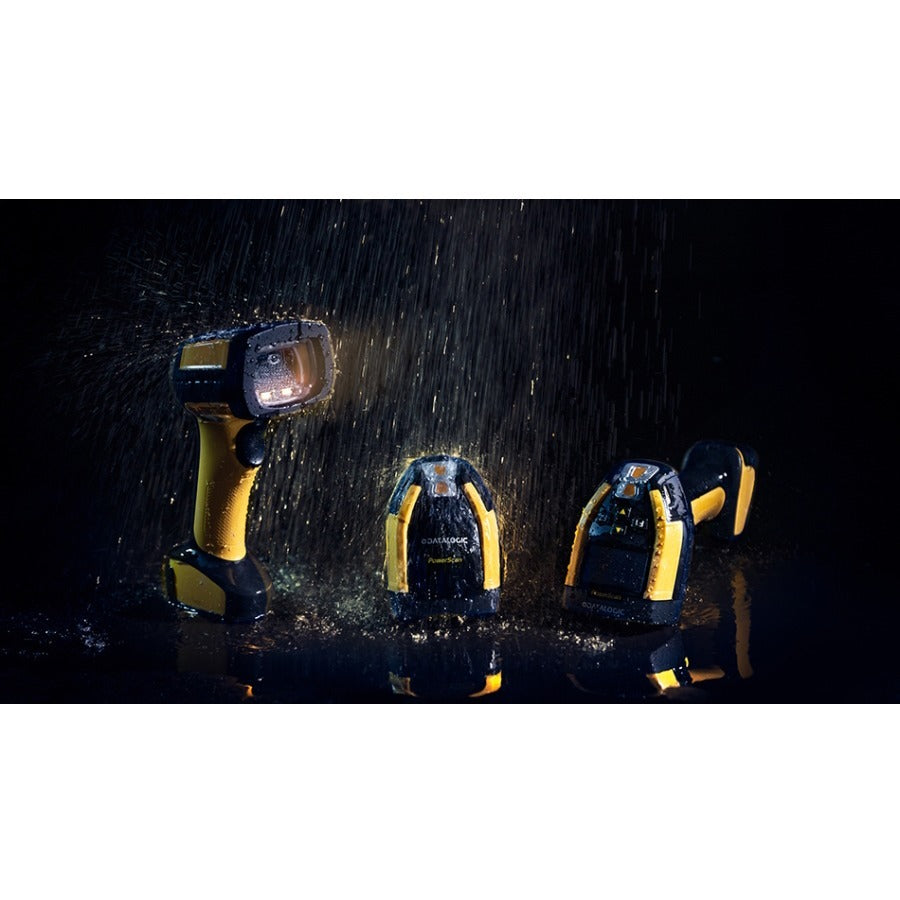

| Ingress Protection (IP) Rating | IP67 |
| Length | 5.5" |
| Light Source | LED |
| Limited Warranty | 3 Year |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600SR910RBK20 |
| Manufacturer Website Address | http://www.datalogic.com |

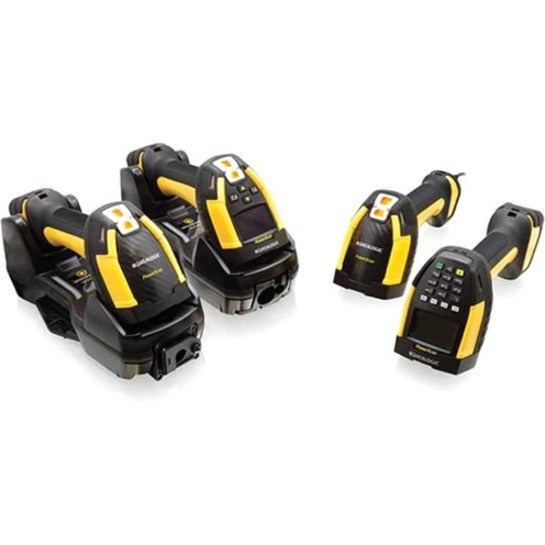

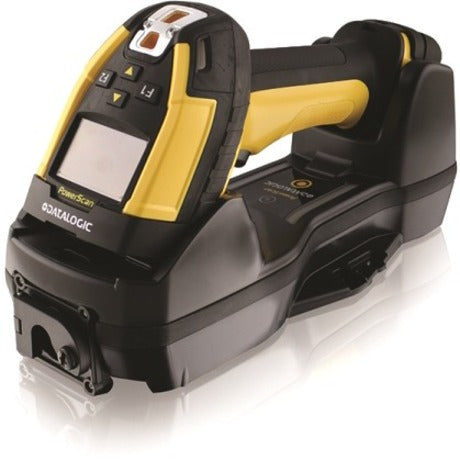

| Marketing Information | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. MOBILITY ENHANCES PRODUCTIVITY The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. MODULARITY WITH THE BEST FLEXIBILITY The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols. |
| Maximum Ambient Light | 100000 lux |
| Maximum Battery Recharge Time | 3.20 Hour |
| Minimum Element Resolution (D | 10 mil |
| Minimum Print Contrast | 15% |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Package Contents |
|
| Power Supply Included | Yes |
| Product Line | PowerScan |
| Product Model | PM9600 |
| Product Name | PowerScan PM9600 Barcode Scanner Kit |
| Product Series | 9600 |
| Product Type | Barcode Scanner Kit |
| Radio Frequency | Yes |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Reading Angle (Skew) | 52° |
| Rugged | Yes |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 68.90" |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Weight (Approximate) | 14.99 oz |
| Width | 3.1" |
